Themis TI-890

Unpacking and Quick Start Guide

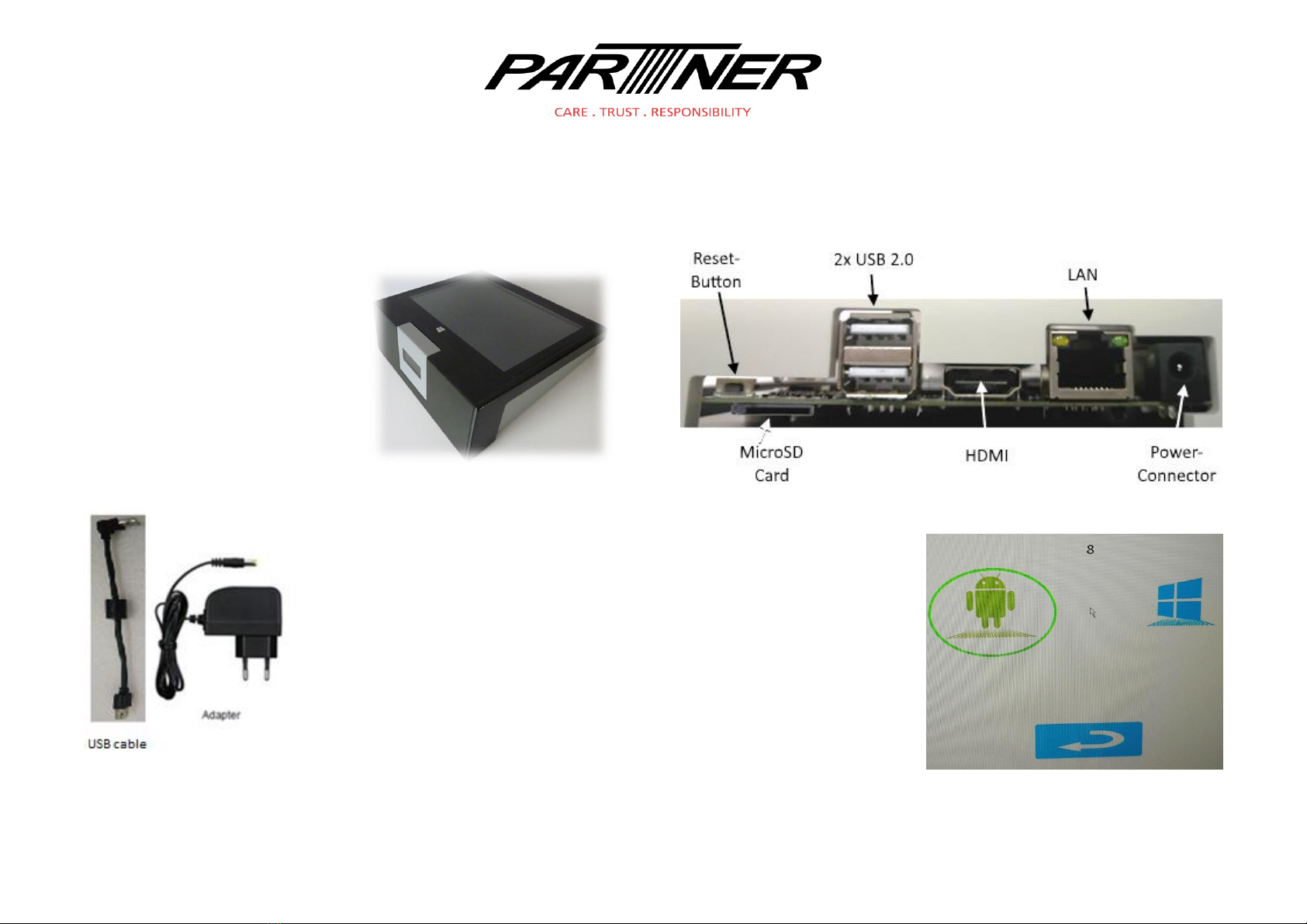

1. Unpack the box and check contents

The TI-890 and its accessories are

packed in a carton-box with foam

padding for protection during

shipment. Carefully unpack the

device and keep the packing

materials for future use.

Verify that all of the items shown

below are included in the box. If an

item is missing or appears to be

damaged, contact your Partner Tech

dealer immediately.

2. I/O panel

The I/O panel is located on the back-right side of LCD panel and there are:

-2 x USB 2.0 - 1 x Micro SD

-1 x RJ-45 Ethernet - 1 x Power-Socket

-1 x HDMI - 1 x Reset-Button

3. Start the TI-890

Connect the power supply at

the power socket located at

the I/O panel. The TI-890 will

boot automatically. At the

Boot-Menu you can select

the OS, which should be

start.

Default: After 10 seconds

will start Windows 10 Home

Partner Tech Europe GmbH Page 2 (V1.4 2018)

4. Switch operating system

On upper left corner at the Boot-Menu screen you can disable Boot-Menu by

removing check mark.

Important: After you disable Boot-Menu you can´t recover Boot-Menu back.

How to switch OS:

-from Android OS swipe down from top twice and click on OS SWITCH

icon, after that device will shut down and restart into Windows

-from Windows click desktop icon OS SWITCH, device will shut down

and start again into Android

5. Specification

Partner Tech Europe GmbH Page 3 (V1.4 2018)

6. Option “Additional Housing”

In order to obtain additions space for hiding power supply, PoE splitter or any

kind of cables, an optional additional housing is available.

The additional housing is made of 2 parts, which fit into each other. The rear

part of the housing (fixed to walls or VESA mounts) provides mounting holes,

VESA 100 and cable passes (round in the middle, oval at the lower side).

Power supplies, PoE Splitter or other devices can be fixed to the inner part of

the rear part of the housing.

The front part of the additional housing uses the VESA 75 holes to be fixed to

the rear side of TI-890. Cable and connectors can easily pass through to the

I/O plate of TI-890. An extra hole allows as well access to the security screw at

the rear part of TI-890. This allows opening of TI-890, while part of the

additional housing is still fixed to TI-890.

The 2 parts of the additional housing fit into each other and will be secured by

3 screws (left, right, bottom).

Front part to TI-890 back cover Rear part for wall or VESA fixing

7. Option “PoE Power Supply”

To provide power to TI-890 via LAN, an appropriate PoE-Splitter can be used

instead of the power supply. It is important, that the Splitter, in conjunction with

PoE Injector / PoE Switch, fulfils the 802.3 at standard. This standard is also

called the “PoE+” standard.

By using PoE as power source, the requirements are +5.5V DC ±10% and

>15Watt. The PoE Splitter / PoE Switch have to provide this power

requirement for each connected TI-890 system (port).

Note: In case if question please contact Partner Tech Europe to receive

detailed advice about powering the TI-890 via LAN network .

Possible solutions

PoE Injector

PoE Splitter

PoE Switch

The PoE Splitter fits into the TI-890 additional housing.

Partner Tech Europe GmbH Page 4 (V1.4 2018)

8. Dimensions TI-890 Terminal / Additional Housing

Rear View TI-890 Terminal

VESA 75

73mm73mm

60mm

73mm

68mm

73mm

Side View TI-890 Terminal

Partner Tech Europe GmbH Page 5 (V1.4 2018)

Rear View of TI-890 Additional Housing

200mm

222mm

VESA 100

28mm

55mm

66mm

50mm

The Rear Side of the „Additional Housing“ allows mounting to walls or

VESA devises.

Side View of TI-890 Additional Housing

200mm

35mm
