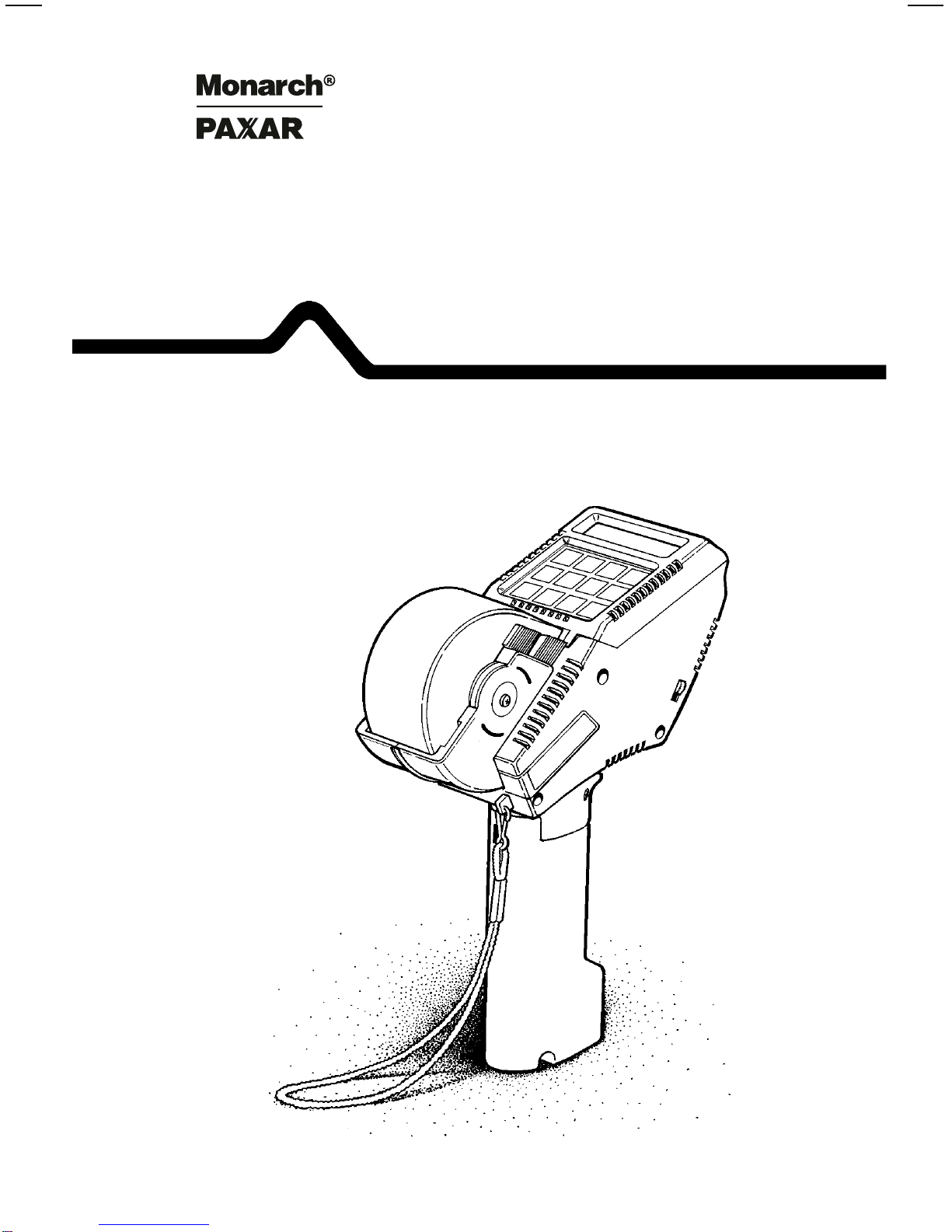

Pathfinder™

Scout Peripheral Printer

Operator’s Handbook

Each product and program carries a respective written warranty, the

only warranty on which the customer can rely. Monarch reserves the

right to make changes in the product and the programs and their

availability at any time and without notice. Although Monarch has

made every effort to provide complete and accurate information in

this manual, Monarch shall not be liable for any omissions or

inaccuracies. Any update will be incorporated in a later edition of

this manual.

WARNING

This equipment can interfere with radio communication if not

installed and used in accordance with the instruction manual. It

has been tested and found to comply with the limits for a

Class A computing device pursuant to FCC Rules, Part 15,

Subpart B, which provide reasonable protection against such

interference when operated in a commercial environment.

Operation in a residential area is likely to cause interference

which the user must correct at their own expense.

CANADIAN D.O.C. WARNING

This digital apparatus does not exceed the Class A limits for

radio noise emissions from digital apparatus set out in the

Radio Interference Regulations of the Canadian Department of

Communications.

Le présent appareil numérique n’émet pas de bruits

radioélectriques dépassant les limites applicables aux appareils

numériques de la classe A prescrites dans le Réglement sur le

brouillage radioélectrique édicte par le ministère des

Communications du Canada.

Trademarks

MONARCH is a registered trademark of Monarch Marking Systems, Inc.

Paxar is a trademark of Paxar Corporation

6010, 6021, 6090, 6092, 6094, 6095, 6096, and Pathfinder are trademarks of

Monarch Marking Systems, Inc.

Preface

This manual contains general information about:

•the features and functions of the 6020™Online Series

printers.

•the general operation of the printer.

•the maintenance of the printer.

Models such as the 6021-WP have offline printing capabilities.

Refer to the

Offline Features Manual

for additional information.

A Format Design Kit is available for information about

designing format and label data records. The kit is used

primarily by the specialist creating the formats and label data

records. The kit contains the manuals listed below:

•

Programmer’s Manual

•

Format Reference

Terms to know

Programming

specialist

A programmer or individual with

programming experience. The specialist

will provide the operator format and label

data records which will be sent to the

printer.

Host system

Any mainframe, minicomputer, data

terminal, or personal computer.

download (send)

Transmitting data from your host system

to your printer.

Offlineprinter

Printer with offline printing capabilities.

Cursor

Tells which keypad mode you are in:

Regular mode cursor is a solid underline.

Shift mode cursor is a blinking rectangle.

Enter or enter

Tells you to input data or information.

Represents the

key on the keypad.

Press this key to complete an action or

to send data to memory.

Format records

Contains a specific label design for

printing data.

Label records

The data containg the format number

and the actual data to be printed on a

label.

Represents the

key on the keypad.

Press this key to use the functions

located on numeric keys.

default

Refers to the value already set when you

receive the printer. See Chapter 4,

about the special operating functions.

Operator’s Handbook

How This Manual Is Organized

Chapter 1 Gives a basic overview about your printer.

Chapter 2 Tells you what you need to do and know before

using the printer.

Describes how to operate the printer to

receive records and print labels.

Chapter 3 It also describes data entry features available

in your model.

Chapter 4 Provides procedures for using special

operatingfunctions.

Chapter 5 Provides information about the care maintenance

of your printer.

Chapter 6 Contains error messages you may see while

using your printer and troubleshooting

suggestions.

Chapter 7 Provides specifications about your printer. It

also has a listing of accessories you may use

with your printer.

Audience

Operator is the individual printing and applying labels.

Chapters 1, 2, 3, 5, 6, and 7 are for the Operator.

Chapter 4 is for the supervisor setting the options of the printer.

Preface

iii

Operator’s Handbook

Table of Contents

1. Overview..............................................................................1

2. Getting Started ...................................................................3

About the Handle...........................................................4

Charging Time...................................................4

Low Battery........................................................5

Factors Affecting a Charge ...............................5

Charging the Handles....................................................6

Loading and Removing a Handle..................................7

Loading and Removing Supplies ..................................8

LoadingSupplies...............................................8

Removing Supplies .........................................12

The Display..................................................................13

The Cursor ......................................................13

Using Alphanumeric Mode..........................................13

Using the Keypad........................................................14

Using the Function Keys .............................................15

3. Printing a Label ...............................................................17

Receiving Records......................................................18

Receiving Label Data Records........................19

Receiving Formats Records............................19

Error Messages...............................................20

Duplicate Formats...........................................20

SequentialCounting....................................................21

Sequential Count Multiples..........................................22

Helpful Reminders.......................................................24

4. Special Operating Features ............................................25

Setting the Communication Parameters.....................26

Date and Time Feature...............................................27

Setting the Date and Time ..............................27

Disabling/Enabling Date and Time Display..... 29

Changing Date and Time Styles.....................30

Date Format Samples.....................................33

Time Format Samples.....................................33

Displaying the Revision Level.....................................34

Sequential Count Multiples .........................................35

OnlineInterface...........................................................36

CurrencySelection......................................................37

Creating a Check Digit Routine...................................38

5. Care and Maintenance......................................................41

Clearing the Supply and Backing Paper Tracks......... 41

Checking the Label Chute for Stuck Labels................43

Cleaning the Print Head and Platen Roller.................44

6. Messages and Troubleshooting......................................47

Messages....................................................................47

Error Messages...........................................................49

Troubleshooting..........................................................50

7. Specifications and Accessories......................................53

Specifications..............................................................53

Accessories.................................................................53

Operator’s Handbook

1. Overview

If you requested custom formats for your printer at the time

your printer was ordered, your printer already has formats

stored in memory.

If custom formats were ordered, see your management for

procedures about using your formats.

If you did not request custom formats, the programming

specialist in your company must design formats to be sent to

your printer. These formats must be sent to the printer’s

memory before you begin to print labels.

First, read Chapter 2 for general installation and operating

procedures.
