OPERATION MANUAL FOR

Series 138

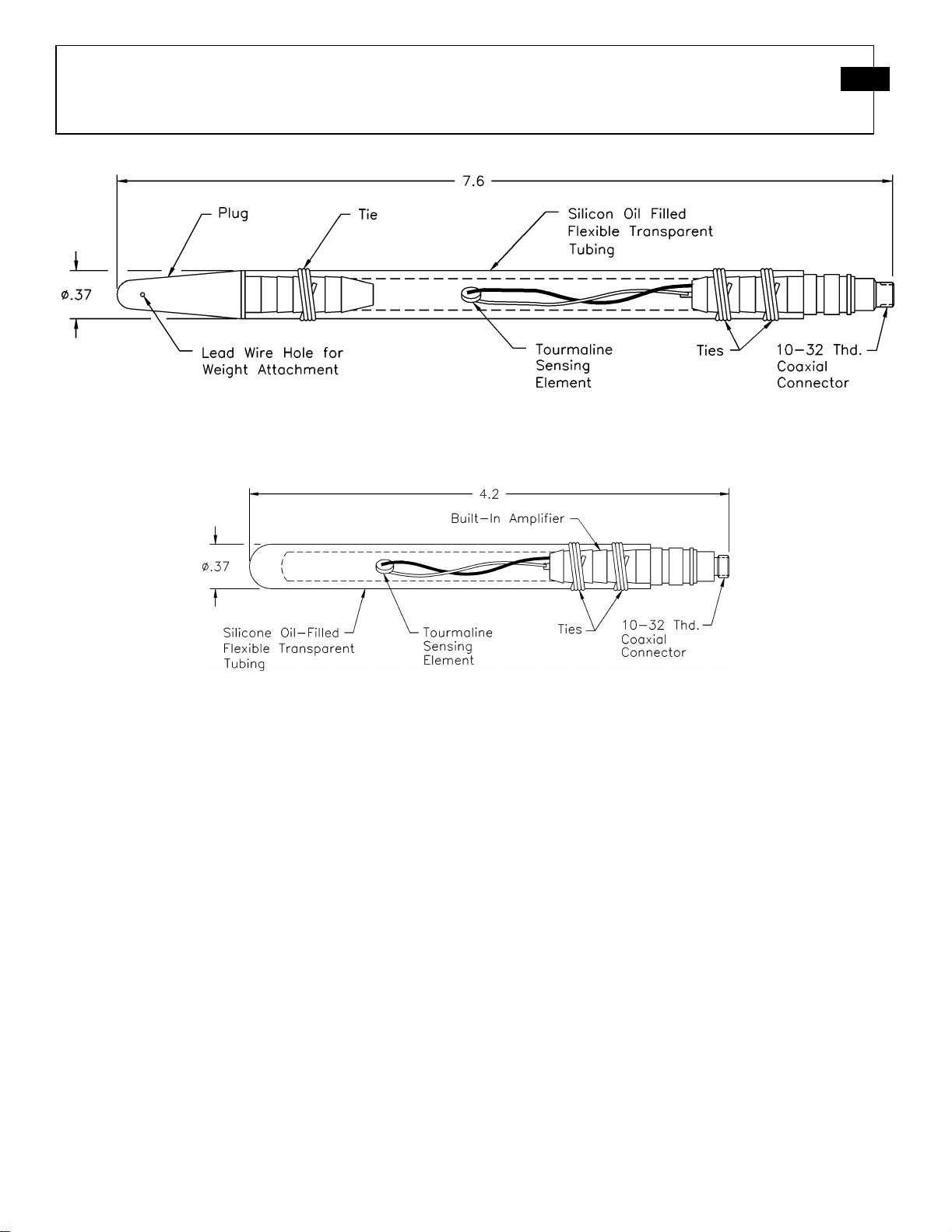

Series 138 Standard Length, with Lead Wire Hole for Attaching Weights

Series 138 Short Length, One-Piece Molded Closed-End Tube

1.0 INTRODUCTION

PCB Series 138 are voltage mode tourmaline sensors

designed for operation underwater or in liquids

compatible with tygon and nylon. (See specification

sheet in the back of the manual for range and

sensitivity).

Series 138 feature built-in ICP®amplifiers which

convert the high-impedance voltage from the crystals

into a low-impedance output voltage of less than 100

ohms. Power to operate the IC amplifier and the

output signal are conducted over a single conductor

coaxial cable with a shield serving as signal return.

Special low-noise cables are not required.

Series 138 are used by the military for underwater

explosive testing, commercial use in gasoline tanks

and transformer shock wave applications. The

sensors are ideal for monitoring dynamic pressures

because they exhibit near non-resonant response.

The charge generated by deflection of the

piezoelectric element when subjected to shock waves

creates a voltage on the input capacitance at the gate

of the amplifier. The amplifier, in conjunction with

the source element, transforms this input into a low-

impedance signal of equal amplitude. The DC bias

that exists on the signal lead is blocked from the

output by a coupling capacitor in the PCB signal

conditioners.

Drawing Number: 21102

Revision: NR

OPERATION MANUAL FOR

Series 138

Some models of the Series 138 feature a tygon tube

closed at one end with conical-shaped delrin plug.

The plug features a small hole for attachment of a

weight. Other models feature a one-piece molded

closed tube.

2.0 INSTALLATION, CABLE

ATTACHMENT, AND SEALING

THE CABLE/CONNECTOR

ASSEMBLY

Various methods are used to mount the 138 sensors

for use in liquids. Care should be taken to prevent

conductive liquids from entering the cable or

connector assemblies, where they could cause

corrosion, short circuiting or degradation of

insulation resistance.

For low-pressure (<500psi) dynamic measurements, a

standard low-noise coaxial cable with an extruded

teflon jacket and a 10-32 connector can be used.

Heat shrink tubing, RTV silicon rubber or sometimes

silicone grease can make an adequate seal in an

environment with low static pressure.

For high static pressures due to deep submersion or

use in a pressure vessel, alternate methods of sealing

the cable/connector may be required. A method of

waterproofing the cable/connector assembly of a 138

which also provides protection to the cable is to put a

flexible tube (plastic, tygon, etc.) around the cable

and cable/connector assembly. Tie the tube at the

metal housing with monofilament or fine steel wire.

The opposite end of the tube must be above the level

of the liquid or sealed around the cable to prevent

liquid from entering the protective tubing. Filling the

protective tube with a non-conducting liquid such as

Dow Coming silicone oil can be done to prevent the

tube from collapsing. This will also equalize pressure

inside and outside the tubing, helping to prevent a

conductive liquid (such as water) from entering.

In some blast applications, when using a standard 10-

32 micro cable/connector, the high shock can flex the

cable/connector joint enough to move the center pin

of the 10-32 cable connector. This can cause noise

on the output signal. Protecting the connection from

shock may be required.

PCB Model 070A03 adaptor can be used to adapt the

10-32 micro jack on the 138 to a BNC jack. A

heavier coaxial cable (eg. RG-58/U) can now be used

in place of the micro cable. Because of the large

mass of the 070A03 compared to the 10-32 jack, this

connection should be sealed and protected from

shock and turbulence. Putting a two to three inch

diameter of duct seal, wrapped with a waterproof

tape, will seal the connection and provide shock

protection at the cable/connector/ amplifier assembly.

PCB Model 070A09 Solder Connector Adaptor can

also be used to attach a short length (~two to three

inches) of ribbon cable to a 138. The ribbon cable

can then be soldered to an extension cable. The

ribbon cable and both solder connections should be

sealed with a suitable waterproofing material.

Various types of sealing materials such as

polyethylene and flexane have been shown to be

effective for sealing cables, connectors, etc.

2.1 MOUNTING OR SUSPENDING

THE SENSOR

After the cable/connector assembly is sealed, the

sensor can be suspended in the liquid where the

measurement is to take place. For low dynamic

pressure measurements (less than 500 psi), models

featuring a small hole in the conical end piece of the

tube allow attachment of a light weight (~two lb.) to

suspend the sensor in a vertical position.

The line should be of light material (monofilament,

15 lb. test) to enable it to break easily. This way, the

sensor does not pull apart in the turbulence caused by

the collapse of gas bubbles resulting from a shock

wave.

For higher pressure dynamic measurements, alternate

methods of suspending the sensor should be used to

minimize damage from turbulence. Taping or

attaching (with cable ties) the sensor amplifier

housing to a braided steel wire is a method that is

suited for use in higher dynamic pressure

measurements.

Drawing Number: 21102

Revision: NR

OPERATION MANUAL FOR

Series 138

The steel wire can have a weight attached to it to

submerge the entire assembly. Tape or attach the

coaxial cable loosely to the steel wire at ~one foot

intervals. Attach a monofilament line (~50 lb. test) to

the end of a steel wire braid, and let it hang down past

the end of the sensor.

Attach a three to five lb. weight to the end of the

monofilament and tape the sensor to the

monofilament.

Another method of mounting the sensor is to tape the

sensor to the surface of a structure. (The pressure

measured when mounted to the surface of a structure

will be twice the free field pressure since the pressure

wave reflected off the surface adds to the pressure

wave initially striking the sensor.)

For applications in which the 138 is immersed only a

few feet into a liquid, and the blast may be in very

close proximity to the sensor, a steel pipe can be

placed around the cable and sensor so that only the

tourmaline sensing element is exposed to the blast.

Since the static pressure is not high, a standard micro

cable with 10-32 coax connector can be used with

heat shrink tubing to seal the cable/connector.

3.0 OPERATION

It is necessary only to supply the sensor with a 2 to 20

mA constant current at +20 to +30 VDC through a

current-regulating diode or equivalent circuit. See

Guide G-0001B for powering and signal utilization

information pertaining to all ICP®instrumentation.

Most PCB signal conditioners have an adjustable

current feature allowing a choice of input currents

from 2 to 20 mA.

In general, for best resolution, choose the lower

current ranges, and for driving long cables (to several

thousand feet) use the higher current, up to 20 mA

maximum. Line-impedance matching may be

necessary to produce flat-frequency response over

long (hundreds or thousands of feet) cables.

Switch power on and observe reading of bias

monitoring voltmeter on front panel of the signal

conditioner.

If indicator is in green section of indicator panel, the

IC amplifier is producing proper bias (+8 to 14

VDC), cable connections are normal and the system

is ready to operate.

If the needle moves to the red area of the fault

monitor meter, output is zero and a short is indicated.

Short could be located in amplifier, cable connectors,

or power unit.

If the pointer moves into the yellow area of the fault

monitor meter, an open circuit is indicated with full

power supply voltage. An open circuit could be the

result of a faulty amplifier, an open cable or open

connectors.

Allow the sensor to stabilize for about one minute. A

signal drift may occur when cable is connected to the

readout instrument.

This drift occurs during charging of the coupling

capacitor in the power unit. The signal will stabilize

in several minutes.

4.0 CALIBRATION

Series 138 are calibrated dynamically using a drop

weight tester. For best accuracy, use the calibration

certificate supplied. Factory recalibration is available

for a nominal charge.

5.0 POLARITY

This sensor series produces a positive-going output

voltage for increasing pressure input. See the

specification sheet for polarity of the sensor.

6.0 LOW-FREQUENCY RESPONSE

The low-frequency response of an ICP®system is

determined by:

l.) The discharge time constant of the sensors.

2.) If AC-coupled at the power unit, the

coupling time constant.

Consult Section 7 in General Guide G-0001B for a

detailed explanation of low-frequency characteristics

of ICP®instruments.

Drawing Number: 21102

Revision: NR

OPERATION MANUAL FOR

Series 138

7.0 MAINTENANCE

Observe the following precautions when using the

sensor:

l.) Keep connections clean and dry.

2.) Do not exceed specified maximum range.

3.) Do not subject sensor to temperatures

exceeding 100 °F.

4.) Do not apply voltage to sensor without

current-limiting diodes or other current protection.

5.) Do not apply more than 20 mA of current to

the sensor.

®ICP is a registered trademark of PCB Piezotronics,

Inc.

Inhaltsverzeichnis

Andere PCB Piezotronics Sicherheitssensor Handbücher

PCB Piezotronics

PCB Piezotronics IMI SENSORS 682C05 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics ICP 208A12 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics ICP W138A10/-0031 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics ICP W105C12/003AG030FW Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 124A24 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics ICP CA102B Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics W138A05/-0021 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics IMI SENSORS X649A03 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 233B Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 1203-14A Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics ICP W138A25 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics ICP 123B23 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 117B39 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics ICP W138A10/-0018 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics J113B03/062A01 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 209C02 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 117B221 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics W138A11/M038CY100AC Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 117B108 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 4105-02A Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics W200B03/002C20 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics ICP 102A08 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics ICP 222B Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics ICP 105C12/NC Bedienungsanleitung

Beliebte Sicherheitssensor Handbücher anderer Marken

THORLABS

THORLABS PDA10JT Bedienungsanleitung

Waeco

Waeco UV-DETECT Bedienungsanleitung

Intermatic

Intermatic IOS-DSIMF Bedienungsanleitung

urmet domus

urmet domus 1083 Bedienungsanleitung

Siemens

Siemens AZL66 Series Bedienungsanleitung

BTI

BTI Profiline Multi Finder Bedienungsanleitung

Challenger

Challenger SL01 Bedienungsanleitung

DMP Electronics

DMP Electronics 1122INT Bedienungsanleitung

Rielta

Rielta Ladoga MK-RK Bedienungsanleitung

Mirion Technologies

Mirion Technologies ACCURAD PRD Bedienungsanleitung

Bosch

Bosch DS835 Bedienungsanleitung

DBI SALA

DBI SALA EZ Stop Bedienerhandbuch

Lamptime

Lamptime ST05C Bedienungsanleitung

Ubiquiti

Ubiquiti MFI-MSC Bedienungsanleitung

Subsite

Subsite 910R Montageanleitung

Satel

Satel OPAL Pro Bedienungsanleitung

Aleph

Aleph XC-1XTEU Bedienungsanleitung

Pima

Pima LARIS QUAD Bedienungsanleitung
