Pelican PRC34 Bedienungsanleitung
OwnerOwnerOwner’’’s Manuals Manuals Manual
Pelican PRC34 Whole House
Filter/Softener Combo
Pelican PRC34 Whole House Filter/Softener Combo
Rev A
Page 2
© 2017 Enviro Water Solutions LLC
3060 Performance Circle, Suite 2. DeLand, FL 32724
www.pelicanwaterretail.com
© Copyright 2017 Enviro Water Solutions LLC. All rights reserved.
All information contained herein is the property of Pelican Water Systems. Pelican Water Systems makes
no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose. Pelican Water Systems shall not be liable for technical
or editorial errors or omissions contained herein or for incidental or consequential damages in connection
with the furnishing, performance, or use of this material. The information is provided “as is” without
warranty of any kind and is subject to change without notice. This document contains proprietary
information which is protected by copyright. No part of this document may be photocopied, reproduced, or
translated into another language without the prior written consent of Pelican Water Systems. Pelican Water
Systems is an Enviro Water Solutions LLC Company.
Rev A
Page 3
© 2017 Enviro Water Solutions LLC
3060 Performance Circle, Suite 2. DeLand, FL 32724
www.pelicanwaterretail.com
Pelican PRC34 Whole House Filter/Softener Combo
Table of Contents
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Operation and Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Water Conditions For Operation - NaturSoft® Pro Systems . . . . . . . . . . . . . . . . . . . . . . . . . 4
Complete Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Pre-Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Carbon Soak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Carbon Flush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Sediment Filter Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Whole House Water Filter Tank Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Whole House Salt-Free NaturSoft® Tank Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
NaturSoft® Media Soak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
NaturSoft® Media Flush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
What to Expect with your New Salt-Free NaturSoft® system . . . . . . . . . . . . . . . . . . . 17
Clean your Water Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Premium Whole House Water Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Sediment Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Replacing the Sediment Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Warranty Registration Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Product Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Circulation Pump Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Circulation Pump Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Flow Restrictor Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Bypass Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Pelican PRC34 Whole House Filter/Softener Combo
© 2017 Enviro Water Solutions LLC
3060 Performance Circle, Suite 2. DeLand, FL 32724
Rev A
Page 4
www.pelicanwaterretail.com
Product Operation and Specifications
Water Conditions For Operation - NaturSoft® Systems
The water should be free of hydrogen sulfide, a dissolved gas with a characteristic smell of rotten
eggs. If present, it can coat the catalytic surface of the media and interfere with the process. The gas
should be removed through adequate pre-treatment.
The water should be free of hydrocarbons, oils, and lubricants. If present, they can coat the catalytic
surface of the media and interfere with the process. Remove through adequate pre-treatment.
The water should contain less than 1 mg/l of phosphates. Phosphates sequester dissolved hardness
molecules preventing them from forming crystals and may coat the catalytic media surface and
interfere with the process.
The copper level in the water supply should be below the MCL of 1.3mg/L. If copper is present above
this level, it can attach to the surface of the catalytic media and interfere with the process.
WARNING:
If this or any other system is installed in a metal (conductive) plumbing system, i.e. copper or
galvanized metal, the plastic components of the system will interrupt the continuity of the
plumbing system. As a result any errant electricity from improperly grounded appliances
downstream or potential galvanic activity in the plumbing system can no longer ground
through contiguous metal plumbing. Some homes may have been built in accordance with
building codes, which actually encouraged the grounding of electrical appliances through the
plumbing system. Consequently, the installation of a bypass consisting of the same material
as the existing plumbing, or a grounded "jumper wire" bridging the equipment and re-
establishing the contiguous conductive nature of the plumbing system must be installed prior
to your system’s use.
CAUTION:
When adding a filtration/softening system to homes/buildings supplied by well water, the system should be
installed following the pressure tank. DO NOT USE this system for pneumatic or hydro pneumatic
applications. If you are using a booster pump, then install this system following the booster
pump. If you have questions, please call customer service.
Specification Description PRC34 Whole House Combo
Peak Flow 34 GPM
Minimum Working Pressure 25 PSI
Maximum Working Pressure 80 PSI
Maximum Vacuum 5 inch/127 mm Hg
Operating Temperatures 36°F - 120°F
pH Range 7 - 11
Pelican PRC34 Whole House Filter/Softener Combo
© 2017 Enviro Water Solutions LLC
3060 Performance Circle, Suite 2. DeLand, FL 32724
Rev A
Page 5
www.pelicanwaterretail.com

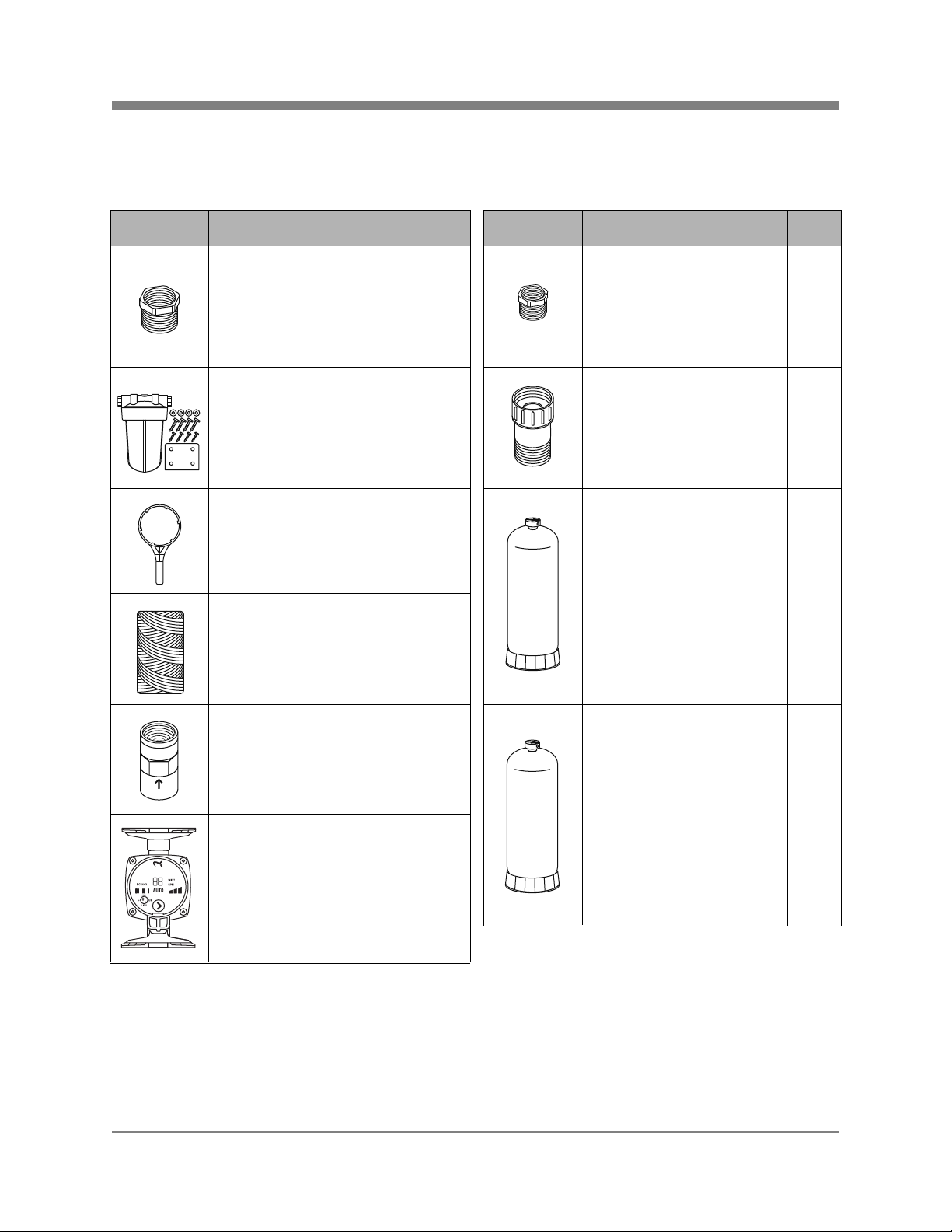

Complete Parts List
Note: Enviro Water Products supplies the parts below to accommodate a variety of water supply lines.
Table 1: Parts List
Note: Drawings are not to scale.
Additional fittings will be needed to adapt to your
plumbing.
Part Description Qty. Part Description Qty.
PVC Adapter:
1-½” to 1” Threaded PVC
Adapter
Note: For Use with Tank Head
6PVC Adapter:
1” to ¾” Threaded PVC
Adapter
Note: For Use with Tank Head
2
Sediment Filter System:
20" Big Blue Filter Housing,
Mounting Bracket, Philips
Head Screws (4), Bolt Head
Screws (4), and Washers (4)
2¾" PVC Hose Bib 2
Sediment Filter Wrench 1Water Filter Tank 2
Sediment Filter:
5 Micron Poly-Spun Sediment
Filter
2
Salt-Free NaturSoft® Tank 1
Flow Restrictor:
17 gallons per minute
2
Circulation Pump 1

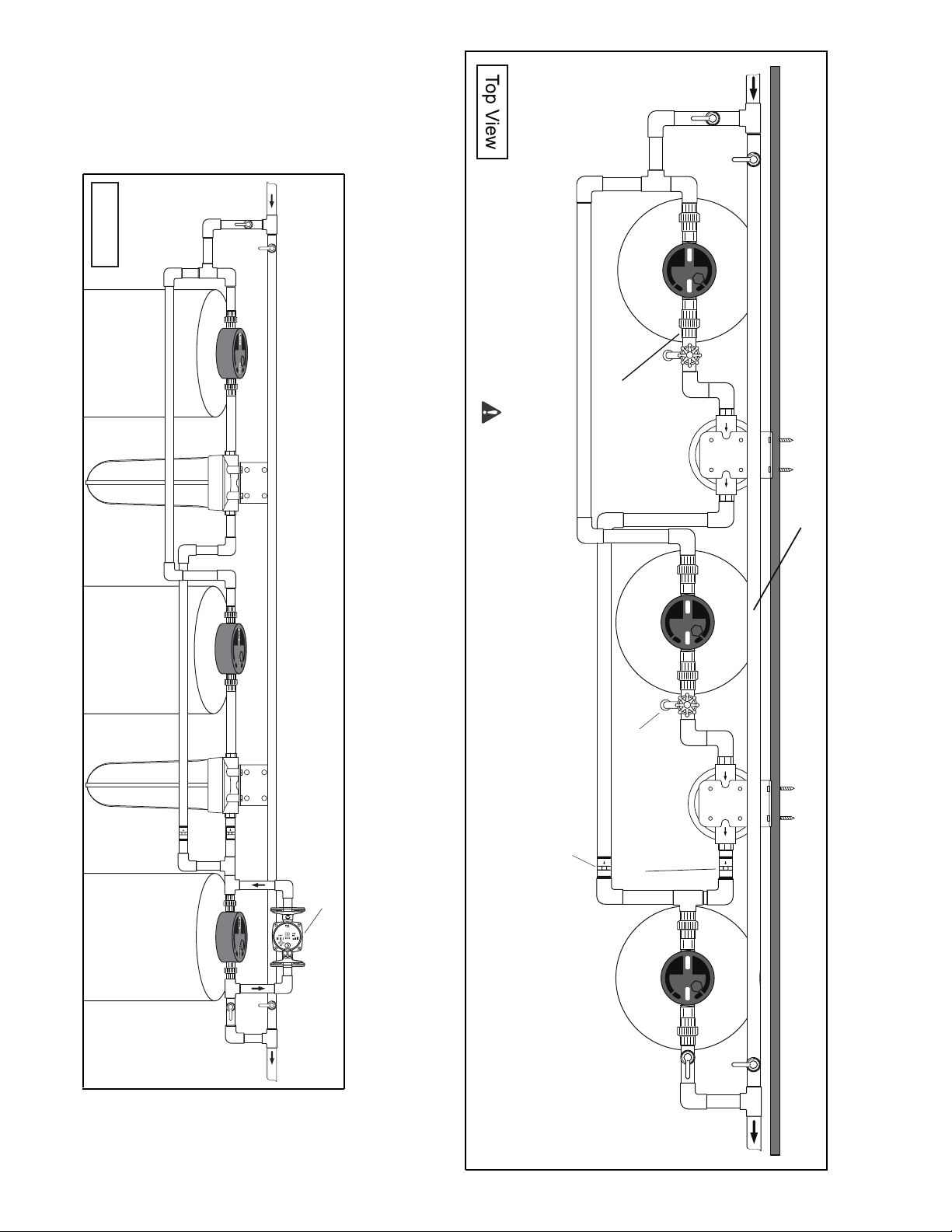

Installation Overview
NaturSoft® Circulation Pump
INLET OUTLET
Outgoing
Water to
House
Sediment Filter
Incoming
Water
Supply
Wall
Unions
(Recommended)
INLET OUTLET INLET OUTLET
IN
OUT
IN
OUT
Sediment Filter
Water Filter
Water Filter NaturSoft®
Wall
Flow Restrictor
Flow Restrictor
Bypass
Hose Spigot
Side View
Incoming
Water
Supply
Outgoing
Water to
House
Circulation Pump
NaturSoft®
Water Filter
Water Filter
System requires a paralleled installation
CAUTION:
Pelican PRC34 Whole House Filter/Softener Combo
© 2017 Enviro Water Solutions LLC
3060 Performance Circle, Suite 2. DeLand, FL 32724
Rev A
Page 7
www.pelicanwaterretail.com

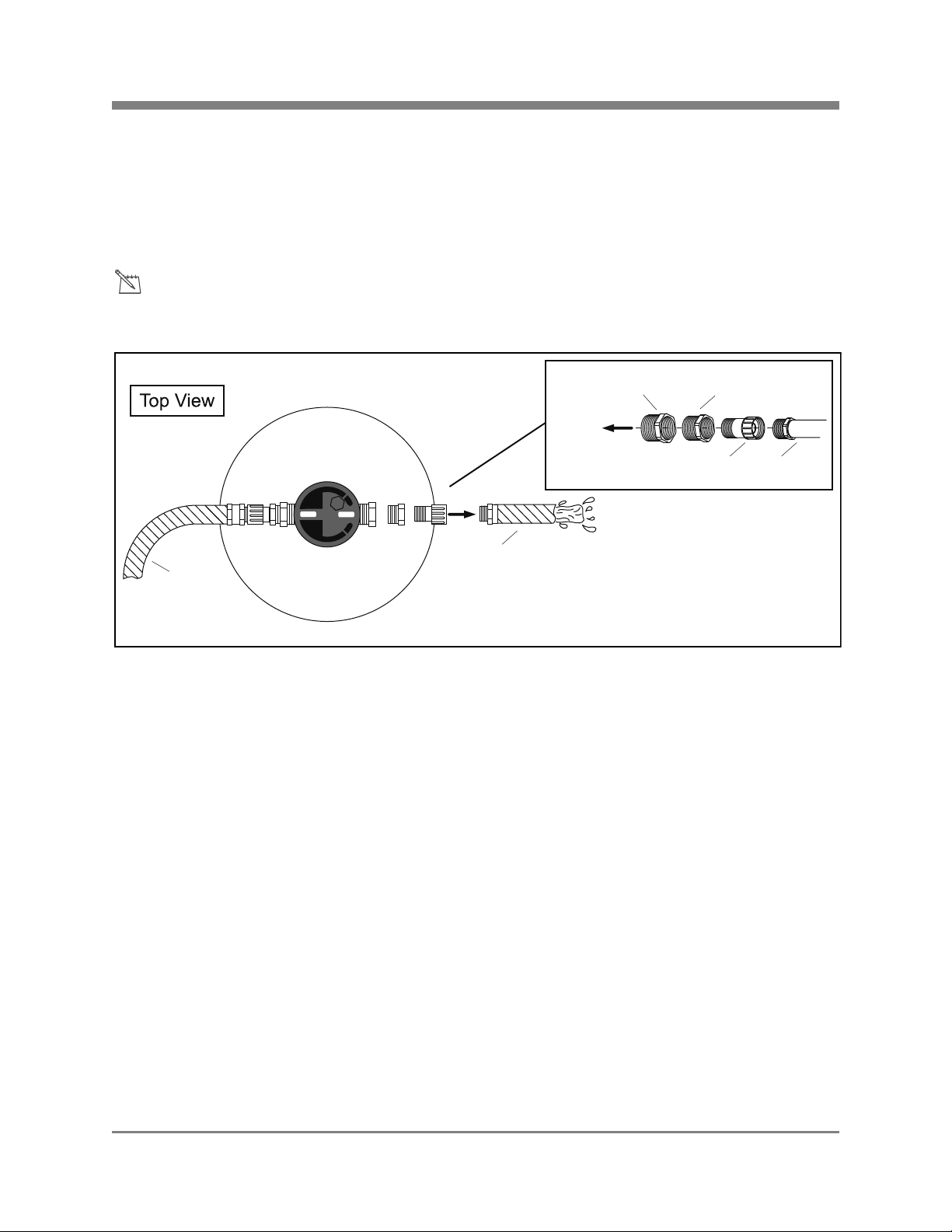

Water Filter Tank - Carbon Soak
!IMPORTANT!
Your system will not be ready for use for a minimum of 48 hours while the Carbon Soak process takes
place. Please plan your installation accordingly.
Notice:
Water will flow out of the filter head during this process. Be sure you perform this series of steps in a
location suitable for water flow.
1. Connect the 1-½” threaded PVC adapter to the inlet side of the tank head.
2. Connect the 1” threaded PVC adapter into the 1-½” adapter.
3. Connect the ¾” PVC hose bib into the 1” adapter.
4. Connect your garden hose to the Hose bib adapter.
5. Repeat steps 1-4 on the outlet side of the tank head.
6. Fill the Water Filter tank full until water flows out of the second hose.
7. Turn the water off.
8. Allow the Water Filter tank to soak for a minimum of 48 hours prior to installation.
Water
Garden
Hose
Garden
Hose
IN
OUT
INLET OUTLET
Water Filter
Garden
Hose
1˝ to ¾˝ Threaded
PVC Adapter
1-½˝ to 1˝ Threaded
PVC Adapter
¾˝ PVC
Hose Bib
To filter
head
Pelican PRC34 Whole House Filter/Softener Combo
© 2017 Enviro Water Solutions LLC
3060 Performance Circle, Suite 2. DeLand, FL 32724
Rev A
Page 8
www.pelicanwaterretail.com

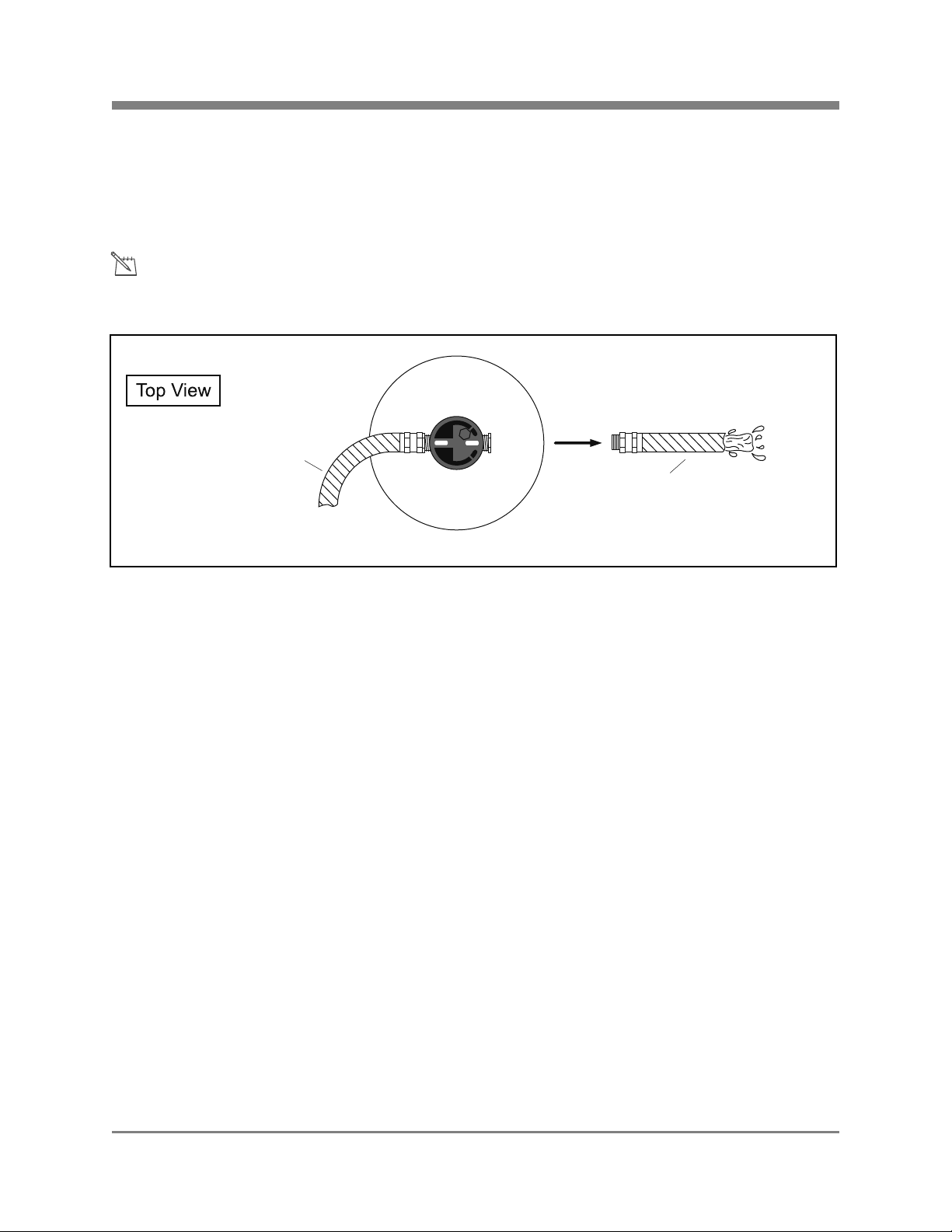

Water Filter Tank - Carbon Flush
!IMPORTANT!
Do not perform the Carbon Flush until the Carbon Soak process is complete.
Notice:
Water will flow out of the filter head during this process. Be sure you perform this series of steps in a
location suitable for water flow.
1. Slowly turn on the water to the full position for this entire process.
2. Run water through the INLET side of the filter head for 60 minutes.
3. Turn off the water.
4. Remove the hoses and the hose bib adaptors.
IN
OUT
INLET OUTLET
Water Filter
Garden
Hose
Water
Garden
Hose
Pelican PRC34 Whole House Filter/Softener Combo
© 2017 Enviro Water Solutions LLC
3060 Performance Circle, Suite 2. DeLand, FL 32724
Rev A
Page 9
www.pelicanwaterretail.com

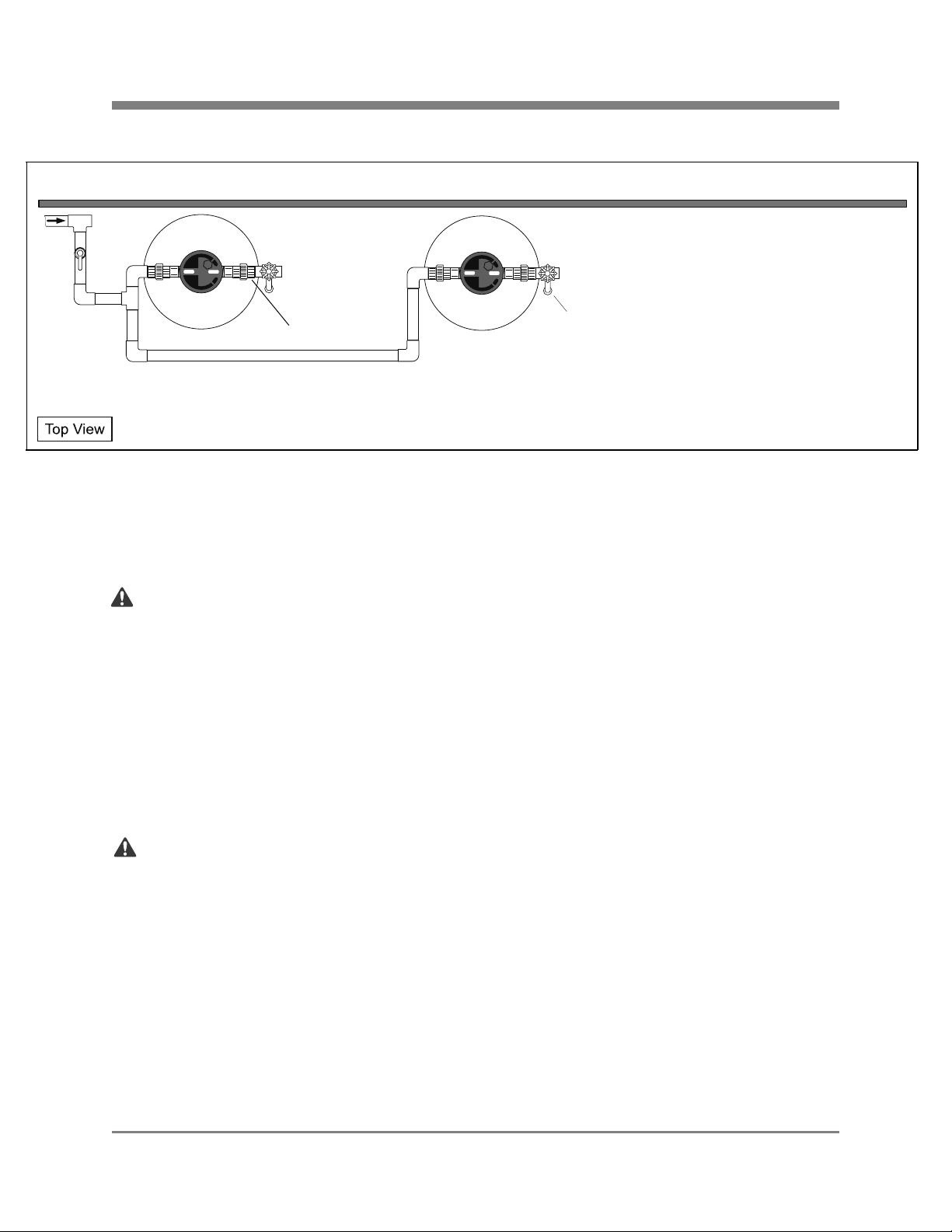

Whole House Water Filters Installation
Do not over-tighten any of the fittings during installation.
CAUTION:
Carbon dust may be released into the water lines of the house/building during the first few days of water
use after carbon tank installation. The carbon dust is harmless, but may give the water a gray appearance
that should diminish within a week or 10 days depending on water use.
!IMPORTANT!
Do not use where water is microbiologically unsafe or with water of unknown quality without proper
disinfection before or after the filter/softener system.
1. Shut off the main water supply
2. Level the Water Filters.
3. Determine the size and material of your incoming water supply line and choose the appropriate
fittings required to connect it to the filter heads. We recommend using unions.
4. Install the fittings onto the INLET and OUTLET sides of the filter heads.
5. We recommend plumbing in a bypass around the system for future maintenance. When plumbing
in the Water Filters integrate a tee fitting to allow for the bypass. (see figure above)
6. We recommend plumbing in a shut off valve prior to the system.
7. Connect the incoming water supply to the INLET side of the filter heads utilizing a tee fitting to
split the line to the two Water Filters.
8. Connect the outgoing water supply to the OUTLET side of the filter heads.
9. We recommend installing 2 hose spigots after the Water Filters for flushing and future
maintenance.
CAUTION:
INLET OUTLET
Incoming
Water
Supply
Wall
Unions
(Recommended)
INLET OUTLET
Water Filter
Water Filter
Wall
Hose Spigot
Pelican PRC34 Whole House Filter/Softener Combo
© 2017 Enviro Water Solutions LLC
3060 Performance Circle, Suite 2. DeLand, FL 32724
Rev A
Page 10
www.pelicanwaterretail.com

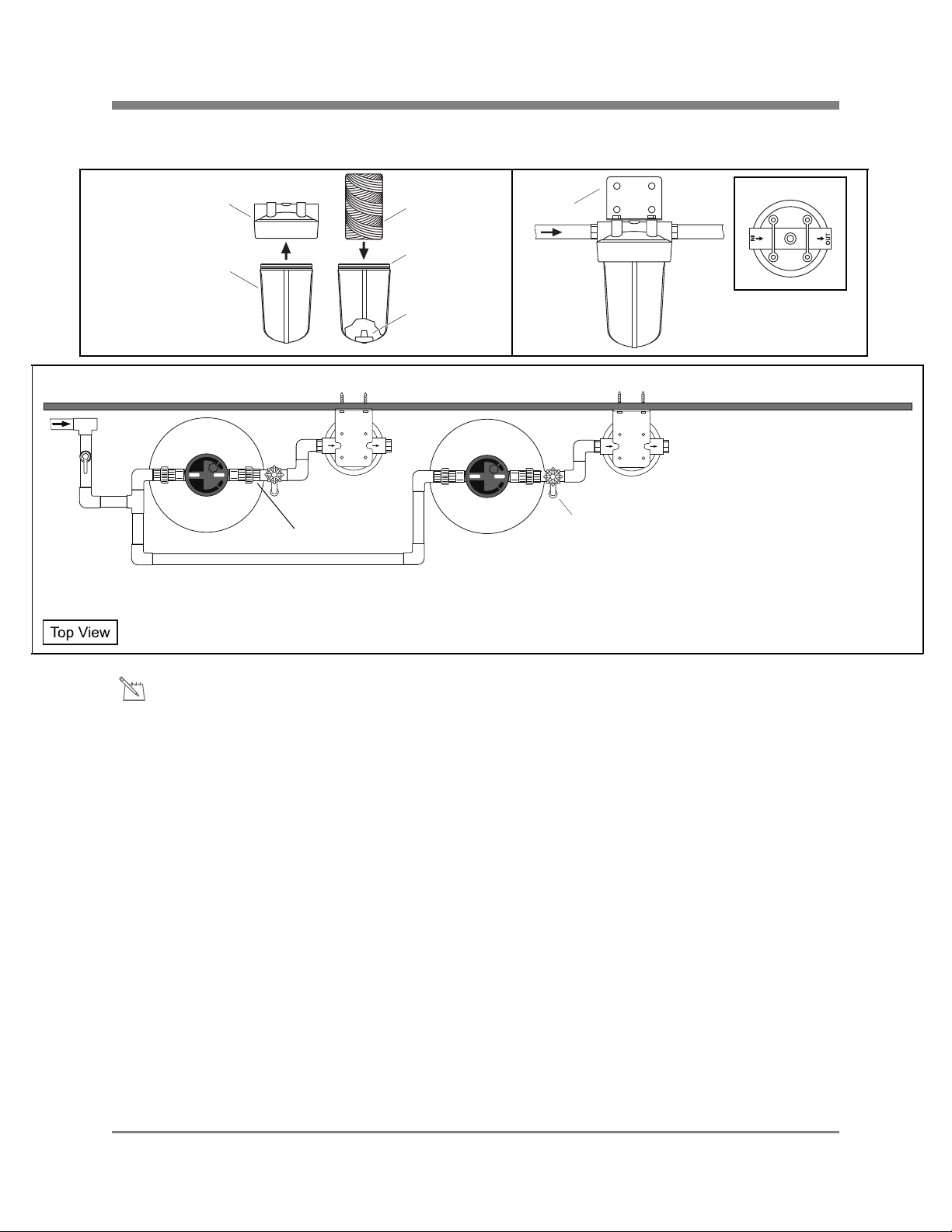

Sediment Filter Installation
1. Unscrew the cover from the Blue Housing.
2. Attach the Mounting Bracket to the Cover using the supplied Bolt Head Screws and Washers. Make
sure to orientate the INLET and OUTLET correctly to match the flow pattern.
3. Attach the Sediment Filter System to the wall using the supplied Phillips Head Screws.
4. Connect the outgoing water supply from the Water Filters to the INLETS of the Sediment Filters.
5. Remove the plastic covering from the Sediment Filters.
6. Place the Sediment Filters onto the Stand Pipes in the Blue Housings.
7. Tighten the Blue Housings using the supplied Sediment Filter Wrench (counter clockwise) Do Not
Over Tighten.
Notice:
The Sediment Filter Housing comes with a 1 1/2” threaded female inlet/outlet and will require additional
fittings to adapt to your plumbing.
Sediment Filter Cover Sediment Filter
O-Ring
Stand Pipe
Sediment Filter Housing
Top View
Mounting
Bracket
INLET OUTLET
Sediment Filter
Incoming
Water
Supply
Wall
Unions
(Recommended)
INLET OUTLET
IN
OUT
IN
OUT
Sediment Filter
Water Filter
Water Filter
Wall
Hose Spigot
Dieses Handbuch passt für folgende Modelle
2
Inhaltsverzeichnis
Andere Pelican Wasserspender Handbücher
