FlexModule Mini User Guide

For Balance 20X / 380X / 580X

Sep 2021

Important Notes

1. Please handle the connectors with care as to not damage them.

2. LTE-A (CAT-6) and LTE-A Pro (CAT-12) FlexModule Minis have 2x cellular antenna

connectors while LTE-A Pro (CAT-18) and 5G have 4x cellular antenna connectors. So if

you are upgrading from LTE-A (CAT-6) or LTE-A Pro (CAT-12) to either LTE-A Pro

(CAT-18) or 5G, you will require additional antennas.

3. FlexModule Minis are fully interchangeable with other FlexModule Minis, e.g. Ethernet,

and cellular.

Procedure for changing the FlexModule Mini on

the B380X/B580X

Step 1: Power off the router. The router MUST be disconnected from power before starting the

upgrade.

Step 2: Disconnect all antennas.

Step 3: Loosen the screws on the cover or the installed FlexModule Mini.

Step 4: Remove the cover or module by pulling them out directly.

https://www.peplink.com 2 Copyright @ 2021

Step 5: Loosen the screws of the new FlexModule Mini in order to remove the module cover

which is for the Balance 20X.

Step 6: Install the 380X/580X module cover and tighten the screws.

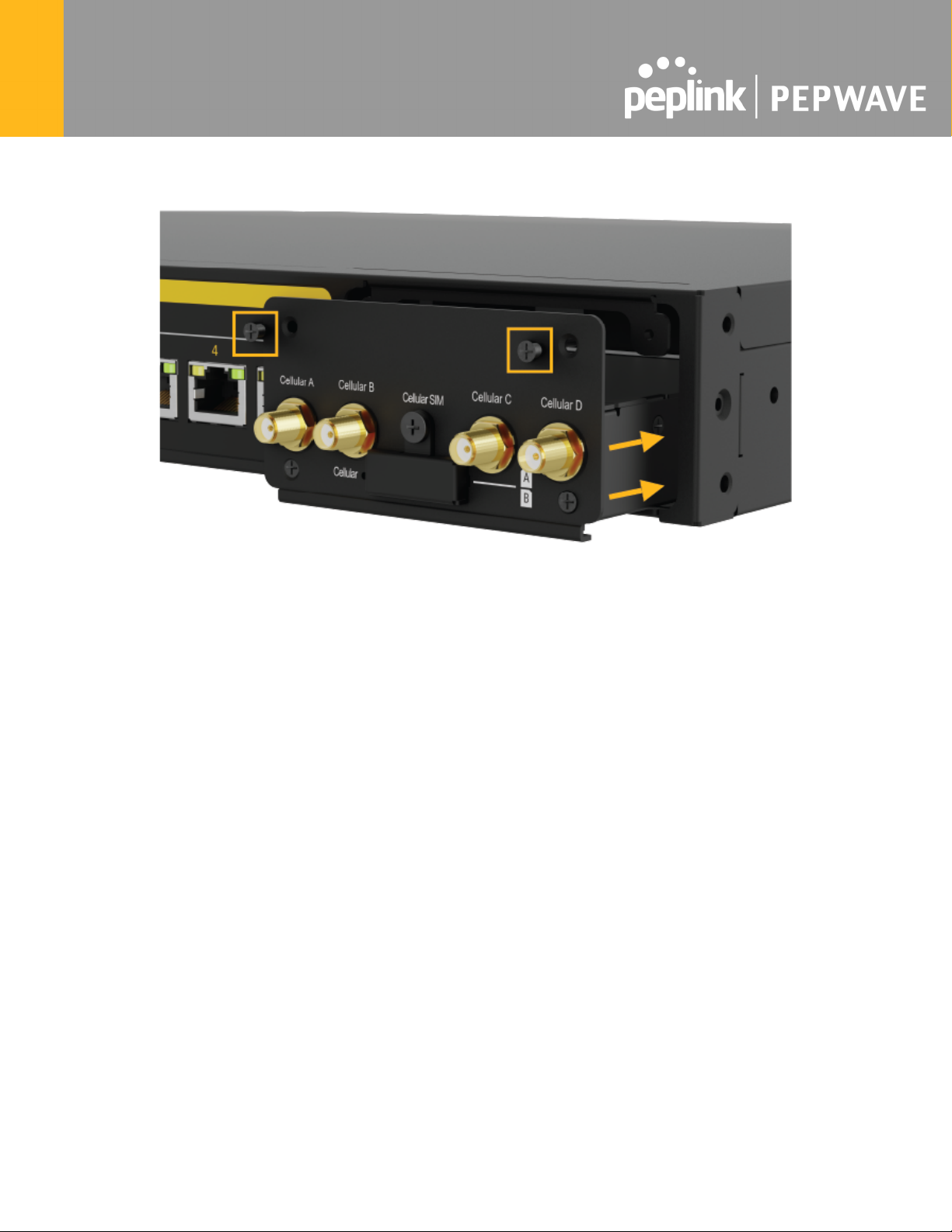

Step 7: Install the new module. Make sure it is correctly aligned before pressing the module

firmly into place. The FlexModule Mini should sit flush with the router chassis.

https://www.peplink.com 3 Copyright @ 2021

Step 8: Tighten the screws until the FlexModule Mini sits flush and tight with the collar.

Step 9: Reconnect the antennas.

Step 10: Reconnect the power.

https://www.peplink.com 4 Copyright @ 2021

Procedure for changing the FlexModule Mini on

the B20X

Step 1: Power off the router. The router MUST be disconnected from power before starting the

upgrade.

Step 2: Disconnect all antennas.

Step 3: Loosen the screws on the cover or the installed FlexModule Mini.

https://www.peplink.com 5 Copyright @ 2021

Step 4: Remove the cover or module by pulling it out directly.

Step 5: Install the new module. Make sure it is correctly aligned before pressing the module

firmly into place. The FlexModule Mini should sit flush with the router chassis.

Step 6: Tighten the screws until the FlexModule Mini sits flush and tight with the collar.

https://www.peplink.com 6 Copyright @ 2021

Step 7: Reconnect the antennas.

Step 8: Reconnect the power.

https://www.peplink.com 7 Copyright @ 2021
