Pepperl+Fuchs KT-SRT-FF Bedienungsanleitung

Starter Kit for FOUNDATION Fieldbus

H1 Infrastructure

KT-SRT-FF

<Complete hardware for connection of FOUNDATION Fieldbus H1

field devices to the host system of your choice

<Output: 25 ... 28 V/360 mA

<Connection of 6 field devices with individual short-circuit

protection

<High-power trunk for high device count and long cable lengths

Starter Kit for FOUNDATION Fieldbus H1 Infrastructure

Function

The starter kit for FOUNDATION Fieldbus H1 includes all hardware components in order to power and connect field devices to a host system. The

starter kit is designed to conveniently build out-of-the-box test environments. The test environment can be supplied by regular 90 … 253 V AC

power.

The fieldbus power supply provides up to 360 mA current load on the bus. A Segment Protector can connect up to 6 field devices to the host with

individual short circuit current limitation. The system can be expanded at any time with extra components from the FieldConnex® system.

Note: The host system, field devices, cables and wiring are not included. The starter kit is limited to 1 per customer and location.

Connection

Host Trunk

90 ... 253 V AC

24 V DC

-S+

-+S

Spur Spur Spur

-S+

-+S

-S+

Technical Data

General specifications

Design / Mounting Cabinet installation

Connections

Field devices 6 , any FF field device

Supply voltage 90 ... 253 V AC

Fieldbus interface

Number of segments 1

Rated voltage UN25 ... 28 V DC

Rated current IN360 ... 10 mA

Terminating resistor integrated

Release

date:

2021-01--

12 Date of

Release date: 2021-01-12 Date of issue: 2021-01-12 Filename: 202383_eng.pdf

Germany: +49 621 776 2222Pepperl+Fuchs Group

Refer to "General Notes Relating to Pepperl+Fuchs Product Information".

USA: +1 330 486 0002 Singapore: +65 6779 9091

www.pepperl-fuchs.com pa-info@us.pepperl-fuchs.com [email protected]

[email protected].com

Technical Data

Fieldbus distribution

Number of outputs 6

Rated output voltage max. 31 V DC

Rated output current max. 43 mA

Short-circuit current max. 58 mA

Terminator external

General information

Supplementary information Statement of Conformity, Declaration of Conformity, Attestation of Conformity and

instructions have to be observed where applicable. For information see www.pepperl-

fuchs.com.

Assembly

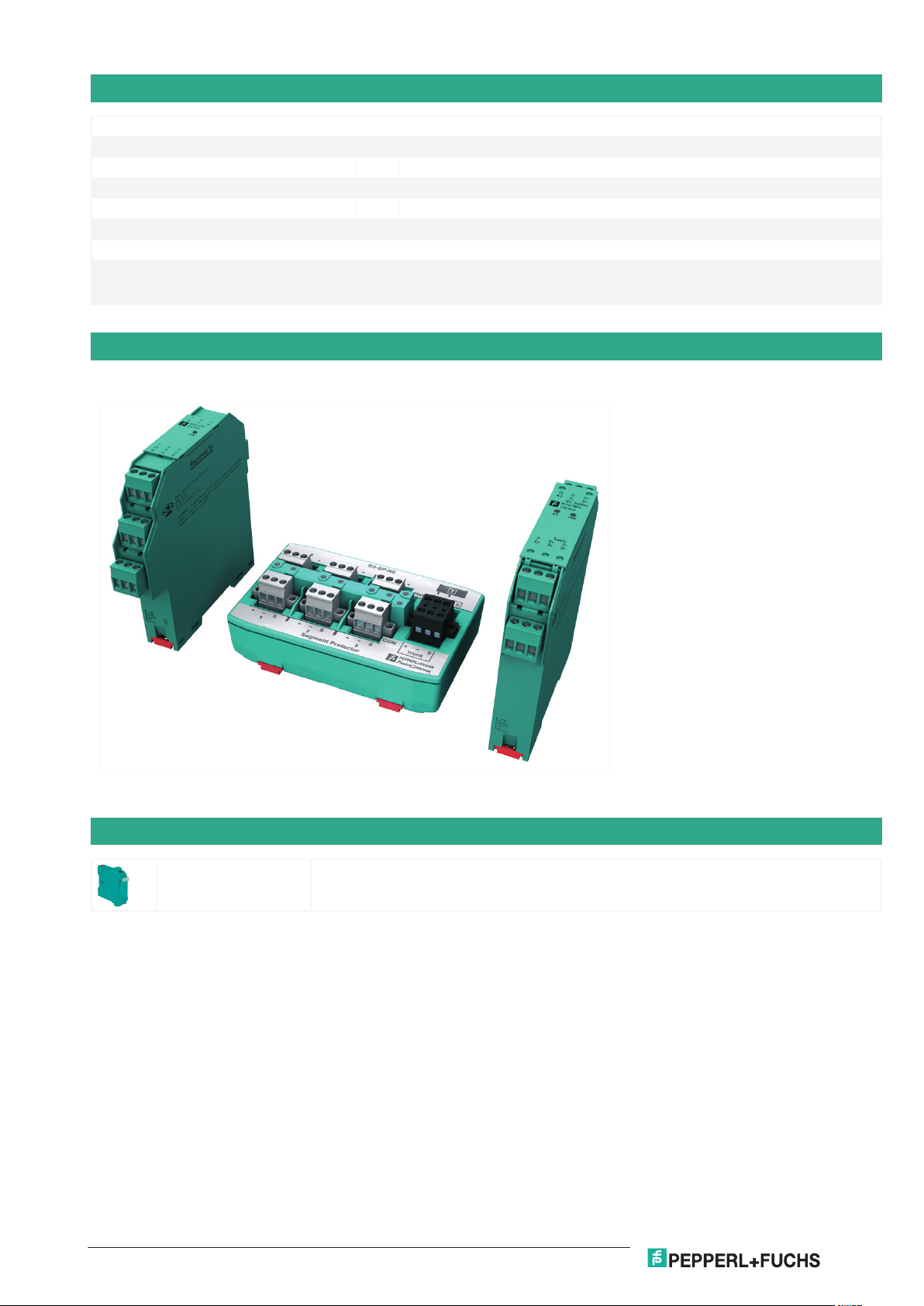

Matching System Components

KLD2-FBPS-1.25.360

KT-SRT-FF

Release date: 2021-01-12 Date of issue: 2021-01-12 Filename: 202383_eng.pdf

Germany: +49 621 776 2222Pepperl+Fuchs Group

Refer to "General Notes Relating to Pepperl+Fuchs Product Information".

USA: +1 330 486 0002 Singapore: +65 6779 9091

www.pepperl-fuchs.com pa-info@us.pepperl-fuchs.com [email protected]

[email protected].com

Release date: 2021-01-12 Date of issue: 2021-01-12 Filename: 202383_eng.pdf

KT-SRT-FF

Germany: +49 621 776 2222Pepperl+Fuchs Group

Refer to "General Notes Relating to Pepperl+Fuchs Product Information".

USA: +1 330 486 0002 Singapore: +65 6779 9091

www.pepperl-fuchs.com pa-info@us.pepperl-fuchs.com [email protected].com

[email protected].com

Starter Kit for FOUNDATION Fieldbus H1 Infrastructure

Assembly

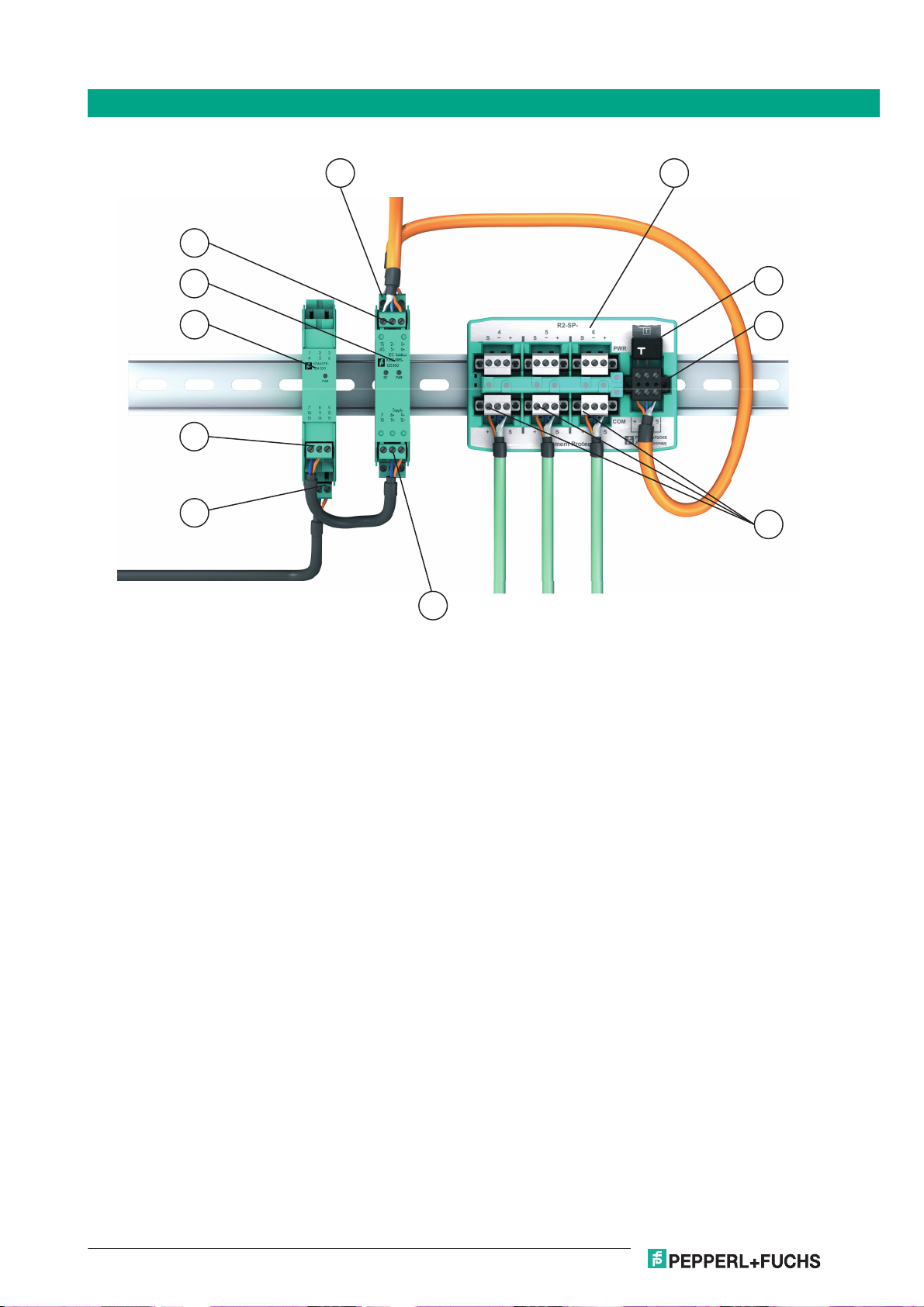

Description:

1 Trunk output, pins 1S, 2-, 3+

2 Segment Protector R2-SP-IC

3Terminator

4 Trunk connector, T-connector

5Spurconnectors

6 Bulk power supply connector fieldbus power supply, pins 8+, 9-

7 Connector supply voltage 90 ... 253 V AC, pins 14, 15

8 Output 24 V DC, pins 7+, 8-

9 Power supply KFA6-STR-1.24.500

10 Fieldbus power supply KLD2-FBPS-1.25.360

11 Connector host, pins 4S, 5-, 6+

For details on individual components included in this kit refer to the respective datasheets.
