ICRL-U-8M12-G60 Manual

Table of Contents

1. Safety Instructions......................................................................................................... 5

1.1. Warning .............................................................................................................................................. 5

1.2. General Safety Instructions ............................................................................................................. 5

1.3. Certified Usage.................................................................................................................................. 5

1.4. Installation Site Requirements ........................................................................................................ 5

1.5. Device Casing.................................................................................................................................... 6

1.6. Qualification Requirements for Personnel ..................................................................................... 6

1.7. National and International Safety Regulations ..............................................................................6

1.8. Shielding Ground .............................................................................................................................. 6

1.9. Requirements For Connecting Electrical Wires............................................................................. 7

1.9.1. General Requirements for Connecting Electrical Wires.............................................................. 7

1.9.2. Requirements for Connecting the Supply Voltage ...................................................................... 7

1.9.3. Relevant for Use in Explosion Hazard Areas (Hazardous Locations, Class I, Division 2) ........... 8

1.9.4. FCC Note ................................................................................................................................... 8

2. Product Overview........................................................................................................... 9

2.1. Power Supply .................................................................................................................................... 9

2.2. Ethernet Ports (10BASE-T/100BASE-TX) ..................................................................................... 10

2.3. LEDs ................................................................................................................................................ 10

2.3.1. Device State ............................................................................................................................. 10

2.3.2. Port Status................................................................................................................................ 11

2.3.3. ACA Connector ........................................................................................................................ 11

3. Installation ....................................................................................................................12

3.1. Checking the Package Contents ................................................................................................... 12

3.2. Installing and Grounding the ICRL-U-8M12-G60 ......................................................................... 12

3.2.1. Mounting on a Flat Surface....................................................................................................... 12

3.2.2. Grounding the ICRL-U-8M12-G60............................................................................................14

3.3. Wiring the Connector for the Supply Voltage ............................................................................. 14

3.4. Connecting Data Cables................................................................................................................. 15

4. Technical Data..............................................................................................................16

2021-02

ICRL-U-8M12-G60 Manual

Table of Contents

ICRL-U-8M12-G60 Manual

Safety Instructions

2021-02

1. Safety Instructions

1.1. Warning

UNCONTROLLED MACHINE ACTIONS

To avoid uncontrolled machine actions caused by data loss, configure all the data transmission devices

individually.

Before you start any machine that is controlled through data transmission, be sure to complete the configuration

of all data transmission devices.

Failure to follow these instructions can result in death, serious injury, or equipment damage.

1.2. General Safety Instructions

Improper usage of the device entails the risk of physical injury or significant property damage.The proper and

safe operation of this device depends on proper handling during transportation, proper storage and installation,

and careful operation and maintenance procedures.

•Before connecting any cable, read this document, and the safety instructions and warnings.

•Operate the ICRL-U-8M12-G60 with undamaged components exclusively.

•The ICRL-U-8M12-G60 is a potted device and there are not any serviceable components. In the event of a

failure, turn off the supply voltage and contact Pepperl+Fuchs for return procedures.

1.3. Certified Usage

Use the following guidelines:

•Use the ICRL-U-8M12-G60 only for the application cases described in the Pepperl+Fuchs product

information, including this manual.

•Operate the product only according to the technical specifications.

•Connect to the product only components suitable for the requirements of the specific application case.

Operational environment:

•On the inside of vehicles

•On the inside of buildings

1.4. Installation Site Requirements

•When you are selecting the installation location, make sure you observe the climatic threshold values

specified in the technical data.

•Operate the device at the specified ambient temperature (temperature of the ambient air at a distance of 2

in (5 cm) from the device) and at the specified relative humidity exclusively.

ICRL-U-8M12-G60 Manual

Safety Instructions

2021-02

•Use the device in an environment with a maximum pollution degree that complies with the specifications in

the technical data. See Technical Data on Page 16 for more information.

Note: Operation of the device in high humidity or condensing atmospheres is exclusively allowed when using

recommended accessories with IP67 rating.

1.5. Device Casing

At ambient air temperatures > 140 °F (+60 °C): The surfaces of the device housing may become hot. Avoid

touching the device while it is operating.

1.6. Qualification Requirements for Personnel

Only allow qualified personnel to work on the device. Qualified personnel have the following characteristics:

•Qualified personnel are properly trained. Training as well as practical knowledge and experience make up

their qualifications.This is the prerequisite for grounding and labeling circuits, devices, and systems in

accordance with current standards in safety technology.

•Qualified personnel are aware of the dangers that exist in their work.

•Qualified personnel are familiar with appropriate measures against these hazards in order to reduce the risk

for themselves and others.

•Qualified personnel receive training on a regular basis.

1.7. National and International Safety Regulations

Verify that the electrical installation meets local or nationally applicable safety regulations.

1.8. Shielding Ground

The overall shield of a connected shielded twisted pair cable is connected to the ground connection on the

metal housing as a conductor.

Beware of possible short circuits when connecting a cable section with conductive shielding braiding.

ICRL-U-8M12-G60 Manual

Safety Instructions

2021-02

1.9. Requirements For Connecting Electrical Wires

Before connecting the electrical wires, always verify that the requirements listed are complied with.

1.9.1. General Requirements for Connecting Electrical Wires

The following requirements apply without restrictions:

•The electrical wires are not connected to a power source.

•The cables used are permitted for the temperature range of the application case.

•Ground the device via the ground screw. Disconnect the grounding only after disconnecting all other

cables.

•Exclusively use 60/75 °C (140/167 °F) or 75 °C (167 °F) copper (Cu) wire.

•The power supply cable to be connected is suitable for ambient air temperature of at least 212 °F (100 °C).

•The power supply complies with the requirements for a safety extra-low voltage (SELV) as per IEC/EN

60950-1.

1.9.2. Requirements for Connecting the Supply Voltage

The following requirements apply without restrictions:

All of the following requirements are complied with:

•The supply voltage corresponds to the voltage specified on the type plate of the device.

•The power supply conforms to over-voltage category I or II.

•The power supply has an easily accessible disconnecting device (for example a switch or a plug).This

disconnecting device is clearly identified. So in the case of an emergency, it is clear which disconnecting

device belongs to which power supply cable.

•The power supply cable is suitable for the voltage, the current and the physical load. Pepperl+Fuchs

recommends a wire diameter of 0.5 mm² to 0.75 mm² (AWG20 up to AWG18).

The following requirements apply alternatively.

Requirements for Connecting the Supply Voltage

Relevant when the device is supplied via 1 voltage input

Alternative

1The power supply complies with the requirements for a limited power source (LPS) as per EN

60950-1.

Alternative

2Relevant for North America: The power supply complies with the requirements according to NEC

Class 2.

Alternative

All of the following requirements are complied with:The power supply complies with the

requirements for a safety extra-low voltage (SELV) as per IEC/EN 60950-1.

Install a fuse suitable for DC voltage in the plus conductor of the power supply.

Connect the minus conductor to the ground potential. If the minus conductor is not connected to

the ground potential, also install an external fuse in the minus conductor.

See the notes below.

Relevant when the device is supplied via 2 voltage inputs

Alternative

1The total voltage supply meets the requirements for a limited power source (LPS) as per EN

60950-1.

ICRL-U-8M12-G60 Manual

Safety Instructions

2021-02

1.9.3. Relevant for Use in Explosion Hazard Areas (Hazardous Locations, Class I,

Division 2)

This equipment is exclusively suitable for use in Class I, Division 2,

Groups A, B, C, and D or non-hazardous locations.

WARNING – EXPLOSION HAZARD – DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS BEEN

SWITCHED OFF OR THE AREA IS KNOWN TO BE NON-HAZARDOUS.

WARNING - EXPLOSION HAZARD - SUBSTITUTION OF ANY COMPONENT MAY IMPAIR SUITABILITY

FOR CLASS I, DIVISION 2.

Avertissement - Risque d'explosion - Ne pas débrancher tant que le circuit est sous tension à moins que

l'emplacement soit connu pour ne contenir aucune concentration de gaz inflammable.

Avertissement - Risque d'explosion - La substitution de tout composant peut rendre ce matériel incompatible

pour une utilisation en classe I, division 2.

This device is an open-type device that is to be installed in an enclosure suitable for the environment.

Exclusively use the device for the application cases specified by the manufacturer. Failure to follow these

instructions can impair device protection.

1.9.4. FCC Note

The ICRL-U-8M12-G60 complies with part 15 of the FCC rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference; (2) this device must accept any interference

received, including interference that may cause undesired operation.

Appropriate testing has established that this device fulfills the requirements of a class A digital device in line

with part 15 of the FCC regulations.

These requirements are designed to provide sufficient protection against interference when the device is being

used in a business environment.The device creates and uses high frequencies and can also radiate these

frequencies. If it is not installed and used in accordance with this operating manual, it can cause radio

transmission interference.The use of this device in a residential area can also cause interference, and in this

case the user is obliged to cover the costs of removing the interference.

Alternative

2Relevant for North America: The total voltage supply complies with the requirements as per NEC

Class 2.

Alternative

All of the following requirements are complied with: The power supply complies with the

requirements for a safety extra-low voltage (SELV) as per IEC/EN 60950-1. In both voltage inputs,

install a fuse suitable for DC voltage in the plus conductor of the power supply. In both voltage

inputs, connect the minus conductor to the ground potential. If the minus conductor is not

connected to the ground potential, also install an external fuse in the minus conductor. See the

note below.

Note: Back-up fuse for each voltage input when supplied via 1 input.

Nominal rating: 1 A ... 4 A

Characteristic: slow blow

Note: Back-up fuse for each voltage input when supply is via 2 inputs.

Nominal rating: 1A ... 2 A

Characteristic: slow blow

Requirements for Connecting the Supply Voltage

ICRL-U-8M12-G60 Manual

Product Overview

2021-02

2. Product Overview

The RocketLinx ICRL-U-8M12-G60 is an 8-port unmanaged field-mountable Ethernet switch designed for use

in industrial applications. With eight 10/100 Mbps Ethernet ports and redundant power inputs all utilizing M12

connections, it achieves an IP65/67 protection rating. Its passively cooled design ensures long-term reliability

while supporting a wide operating temperature range from -40 to +70 °C making it appropriate for use in

extreme conditions. Further flexibility is provided by its wide input voltage range of 9.6 to 45 VDC.

2.1. Power Supply

The supply voltage is connected by means of a 5-pin, A-coded M12 connector (PG7). See Wiring the

Connector for the Supply Voltage on Page 14 for more information.

ICRL-U-8M12-G60

1 Mounting hole

2 8 × Indicator plate

8 × 4-pin, D-coded M12 socket

for 10/100 Mbps twisted pair

connections.

See Connecting Data Cables on

Page 15 for more information.

8 × Port Status LEDs.

See Port Status on Page 11 for

more information.

Power supply LEDs.

See Device State on Page 10 for

more information.

6M12 interface used during

manufacture at Pepperl+Fuchs

Ground connection.

See Installing and Grounding the

ICRL-U-8M12-G60 on Page 12

for more information.

8 Mounting hole

Supply voltage connector.

See Wiring the Connector for the

Supply Voltage on Page 14 for

more information.

ICRL-U-8M12-G60 Manual

Product Overview

2021-02

2.2. Ethernet Ports (10BASE-T/100BASE-TX)

You can connect terminal devices and other segments at the ports of the ICRL-U-8M12-G60 using twisted pair

cables.The Ethernet ports are 4-pin, D-coded M12 sockets.

The 10/100 Mbps twisted pair port allows you to connect network components according to the IEEE 802.3

10BASE-T/100BASE-TX standard.This port supports:

•Auto-negotiation

•Auto-polarity

•Auto-crossing

•100 Mbps half-duplex mode, 100 Mbps full duplex mode

•10 Mbps half-duplex mode, 10 Mbps full duplex mode

The screw threads of the M12 ports are electrically connected to the device casing.

2.3. LEDs

After the supply voltage is set up, the software starts and initializes itself. During this process, various LEDs

light up.

2.3.1. Device State

These LEDs provide information about conditions which affect the

operation of the ICRL-U-8M12-G60.

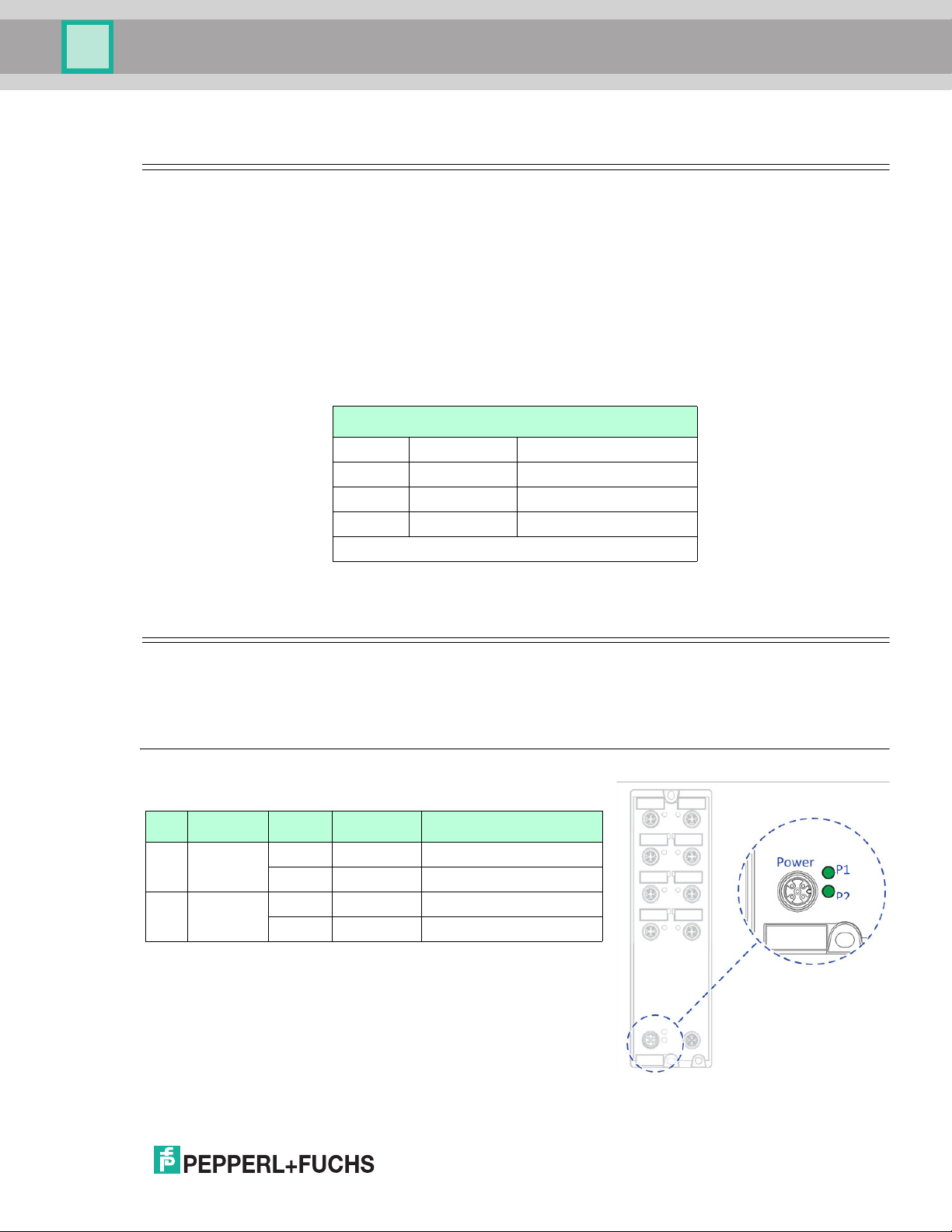

Ethernet Pin Assignment ICRL-U-8M12-G60

1 TD+ Transmit Data+

2 RD+ Receive Data+

3 TD- Transmit Data-

4 RD- Receive Data-

Housing: shield

LED Display Color Activity Meaning

P1 Supply

voltage 1

green lights up Supply voltage is on

none Supply voltage is too low

P2 Supply

voltage 2

green lights up Supply voltage is on

none Supply voltage is too low

Inhaltsverzeichnis

Andere Pepperl+Fuchs Netzwerk-Router Handbücher

Pepperl+Fuchs

Pepperl+Fuchs ICDM-RX/MOD Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
