Pepwave Surf Series Bedienungsanleitung

OPYRIGHT

RADEMARKS

PePWave and t e PePWave logo are trademarks of PePWave Ltd. Ot er brands or products mentioned may be

trademarks or registered trademarks of t eir respective owners.

PePWave Surf Series

PePWave Surf Indoor Series:

Surf 200, AP 200, AP 400

PePWave Surf Outdoor Series:

Surf AP 200/400-X, PolePoint 400-X, Surf 400-DX

User Manual

Document Rev. 1.2

July 07

PePWave Surf Series User Manual

Page 2

Table of Contents

COPYRIGHT ..................................................................................................................................... 3

ISCLAIMER..................................................................................................................................... 3

PRO UCT ESCRIPTION ................................................................................................................. 4

FEATURES .....................................................................................................................................4

HARDWARE SETUP ........................................................................................................................5

LED DESCRIPTION ........................................................................................................................5

USING THE PEPWAVE SURF ............................................................................................................. 7

4.1

FIRST TIME SETUP...........................................................................................................................8

4.2

SETTINGS DETAILS .......................................................................................................................11

INTEGRATED HOME WI-FI ACCESS POINT CONFIGURATION ..........................................................1

4.4

TEST THE SETUP............................................................................................................................20

4.5

FIRMWARE UPGRADE .................................................................................................................21

4.6

RESTORE TO DEFAULT SETTINGS....................................................................................................21

PePWave Surf Series User Manual

Page 3

1 Copyright

T e content of t is documentation may not be reproduced in any part or as a w ole wit out

t e prior written permission of PePWave Ltd.

2 isclaimer

PePWave does not assume any liability arising out of t e application or use of any products,

or software described erein. Neit er does it convey any license under its patent rig t nor

t e patent rig ts of ot ers. PePWave furt er reserves t e rig t to make c anges in any

products described erein wit out notice. T is documentation is subject to c ange wit out

notice.

PePWave Surf Series User Manual

Page 4

3 Product escription

PePWave Surf is a feature-ric Wi-Fi CPE wit WPA, WPA2 and 802.1x supplicant support.

It is designed to act as a Wireless router and connects LAN users wit a Wireless Broadband

Internet Service (suc as Citywide Wi-Fi).

It associates to a service provider and aut enticates using 802.1x (if needed) on start up.

Upon successful association and aut entication, it will acquire an IP address from t e

service provider using DHCP. A DHCP server is built-in on its LAN port. Network Address

Translation is performed for all outbound connections. T us it supports multiple terminals

to access t e Internet simultaneously.

3.1 Features

 10/100 Et ernet interface wit auto-crossover detection

 Reset button for restoring settings to factory defaults

 Signal strengt LED for s owing t e current signal strengt (PePWave indoor serials

only)

 WPA/WPA2-Personal and WPA/WPA2-Enterprise support

 Network Address Translation (NAT) routing

 Built-in DHCP server

 Inbound port range forwarding

 Integrated Wi-Fi Access Point (Surf AP indoor and outdoor only)

Surf 200, AP 200, AP 400

Surf

AP 200/400

X, PolePoint 400

Surf

400

PePWave Surf Series User Manual

Page 5

3.2 Hardware Setup

3.2.1 Surf Indoor Series

1. Attac t e provided antenna to t e left most antenna connector

2. Connect t e LAN port to t e computer’s Et ernet port wit an Et ernet cable.

3. Connect t e end of t e included power adapter to t e power socket (labeled “DC 5V”)

on PePWave Surf.

4. Power on t e power adaptor.

3.2.1 Surf Outdoor Series

Please follow t e installation guide to set up AP 200/400-X, PolePoint 400-X, Surf 400-DX

3.3 LE escription

3.3.1 Surf Indoor Series

LED Color Status Description

Green On Power is on

Power Off Power is off

Green Solid Received signal is Excellent, Very Good and Good

Green Blinking Received signal is Low

Amber Blinking Received signal is Very Low

Amber Solid No wireless signal is detected

Status

Off Booting up / Upgrading firmware

Green On Et ernet is connected

Green Blinking Sending/Receiving data

LAN

Off Et ernet is not connected

PePWave Surf Series User Manual

Page 6

LED Color Status Description

Green On Associated wit an access point

Green Blinking Sending/Receiving data

Wi-Fi

Off Not associated wit any access point

Signal

Bars Green N/A

T e number of lit signal bars depends on t e strengt

of t e received signal. A larger number of lit signal bars

indicate stronger signals.

3.3.2 Surf X Series LE escription

LED Color Status Description

Green On Power is on

PWR Off Power is off

Green On Et ernet is connected

LAN

Off Et ernet is not connected

Green On

Associated wit an access point. T e

number of LED lig ts from “MIN” to

“MAX” indicates t e received signal

strengt level.

Wi-Fi

Off Not associated wit any access point

PePWave Surf Series User Manual

Page 7

4 Using the PePWave Surf

You s ould set up your computer’s LAN interface to obtain an IP address automatically. If

you do so, you s ould ave set it up correctly.

In order to do so, select t e “Start” menu, “Control Panel” and t en “Network Connections”.

Rig t click on t e “Local Area Connection” icon, c oose “Properties”, double-click on t e

item “Internet Protocol (TCP/IP)” from t e list. On t e screen, just set it as follows:

Click t e “OK” button to confirm t e c ange.

PePWave Surf Series User Manual

Page 8

4.1 First Time Setup

On your PC, start a web browser, e.g. Internet Explorer, Mozilla Firefox, etc. Visit an

Internet web site. If you are not associated to an access point, you s ould be redirected to

a logon page. Or you can go also go to t is URL

ttp://192.168.20.1/

T e page will look like t is.

PePWave Surf Series User Manual

Page 9

Click t e “Advanced Config” button to enter t e parameters of t e access point to associate

to. You s ould see t is screen:

In t e field “SSID” under Wireless Settings, input t e access point’s SSID (sometimes it is

called t e “network name”). According to t e setting of t e Access Point you are

associating to, you may c oose a different “Aut entication setting”.

If “Static WEP key” or “WPA/WPA2-Personal” is selected for Aut entication, input t e

Encryption Key field as well. (T ere are also options of “802.1x wit dynamic WEP key” and

“WPA/WPA2-Enterprise”. You do not need to use t ese settings unless instructed to do so

by your ISP.)

Click t e “Save” button at t e bottom to complete.

You can now click t e “Connect” link on t e top bar and t en click t e “Connect” button to

associate wit t e access point.

PePWave Surf Series User Manual

Page 10

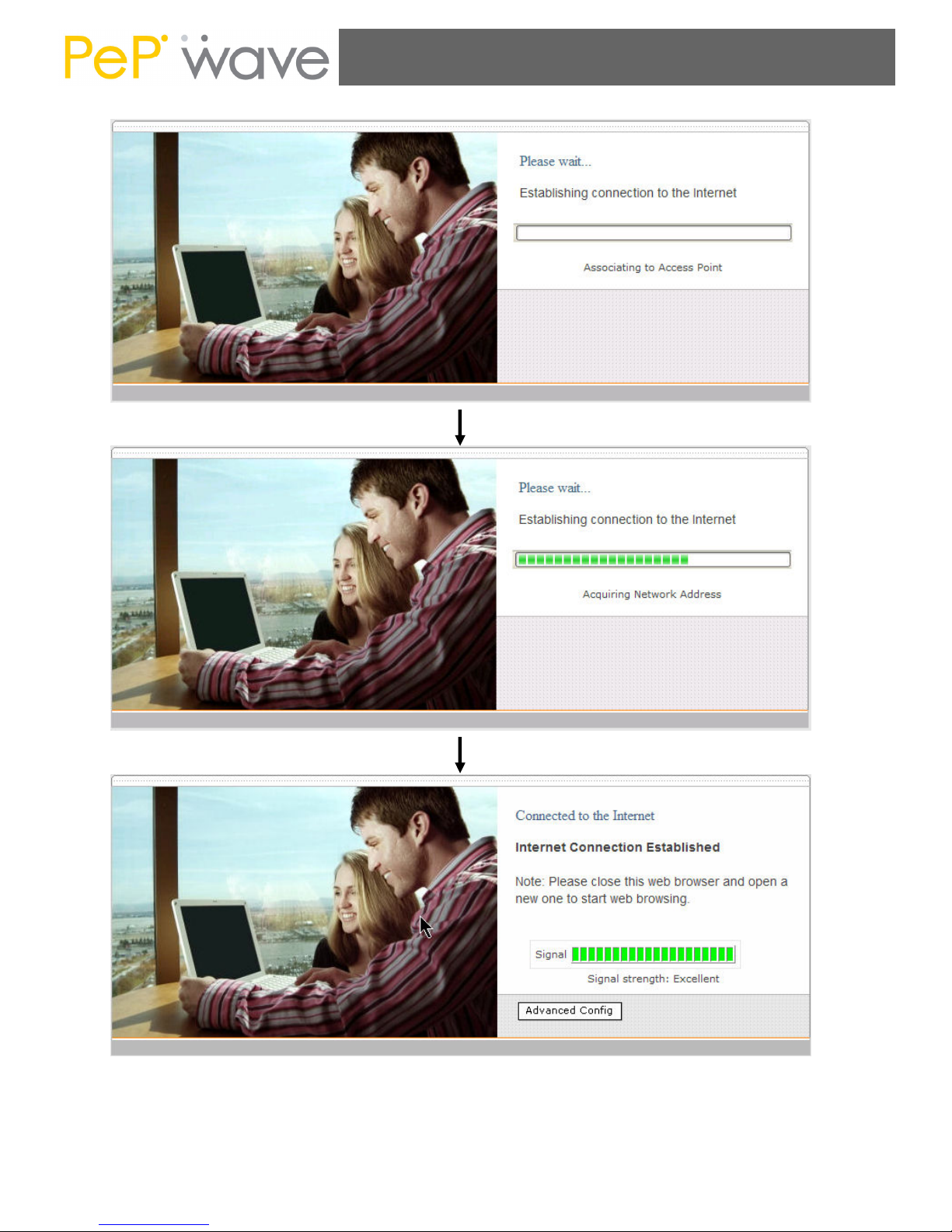

At t is point, you are associated wit t e access point. You may now close t e web browser

and open a new one to start web browsing.
