PerfectVision PV-CRM Bedienungsanleitung
INSTALLATION INSTRUCTIONS
UNPACKING INSTRUCTIONS
Carefully open the packaging, remove contents and lay out parts on a protective surface to avoid damage.
•
Check package contents against the Supplied Parts List in the next page(s) to assure that all components were received
•
undamaged. Do not use damaged or defective parts.
Carefully read all instructions before attempting installation.
•
IMPORTANT SAFETY INFORMATION
Install mount with care. Please read these instructions before beginning this installation, and carefully follow all
instructions contained herein. Use proper safety equipment and protocol during installation.
Please consult Perfect 10 for help if you:
Don't understand these directions or have any doubts about the safety of the installation.
•
Are uncertain or unfamiliar with the nature of the existing structure to be reinforced.
•
For questions and consulting please call Perfect 10 at 1-800-205-8620. Ask for product support.
Note: Please leave instructions in shelter or cabinet on site for future reference.
CONSIDER THE NEXT CREW
AND PLEASE LEAVE
INSTRUCTIONS ON SITE WHEN
INSTALLATION IS COMPLETE
DATE: 3/18/2020
1 OF 6
3 SECTOR CANISTER RING MOUNT
REVISION
PAGE NUMBER
5
NONE
PART #: PV-CRM
998.45
---
DRAWN BY
INT
PV-CRM - T-1
SHEET
Do not use this product for any purpose or in any configuration not explicitly stated in this instruction. We hereby disclaim
any and all liability for injury or damage arising from incorrect assembly, incorrect mounting, or incorrect use of this product.
PV-CRM-INS-01-R5
A097-001-01
PANEL BRACKET SHORT
QTY: 6
WEIGHT: 1.77 LBS
W028-001-01
BEARING PLATE
QTY: 6
WEIGHT: 1.6 LBS
PV-CRM3511-U
3 SECTOR CANISTER RING MOUNT
WEIGHT: 24 LBS TOTAL
H99-0074-35
1/4" X 3-1/2" X 3-1/2" BOLT
QTY: 6
WEIGHT: 0.05 LBS
H04-0004-01
1/4" DIA LOCK WASHER
QTY: 6
WEIGHT: 0.002 LBS
H03-0004-02
1/4" DIA FLAT WASHER
QTY: 6
WEIGHT: 0.002 LBS
DATE: 3/18/2020
2 OF 6
REVISION
PAGE NUMBER
5
DRAWN BY
INT
SHEET

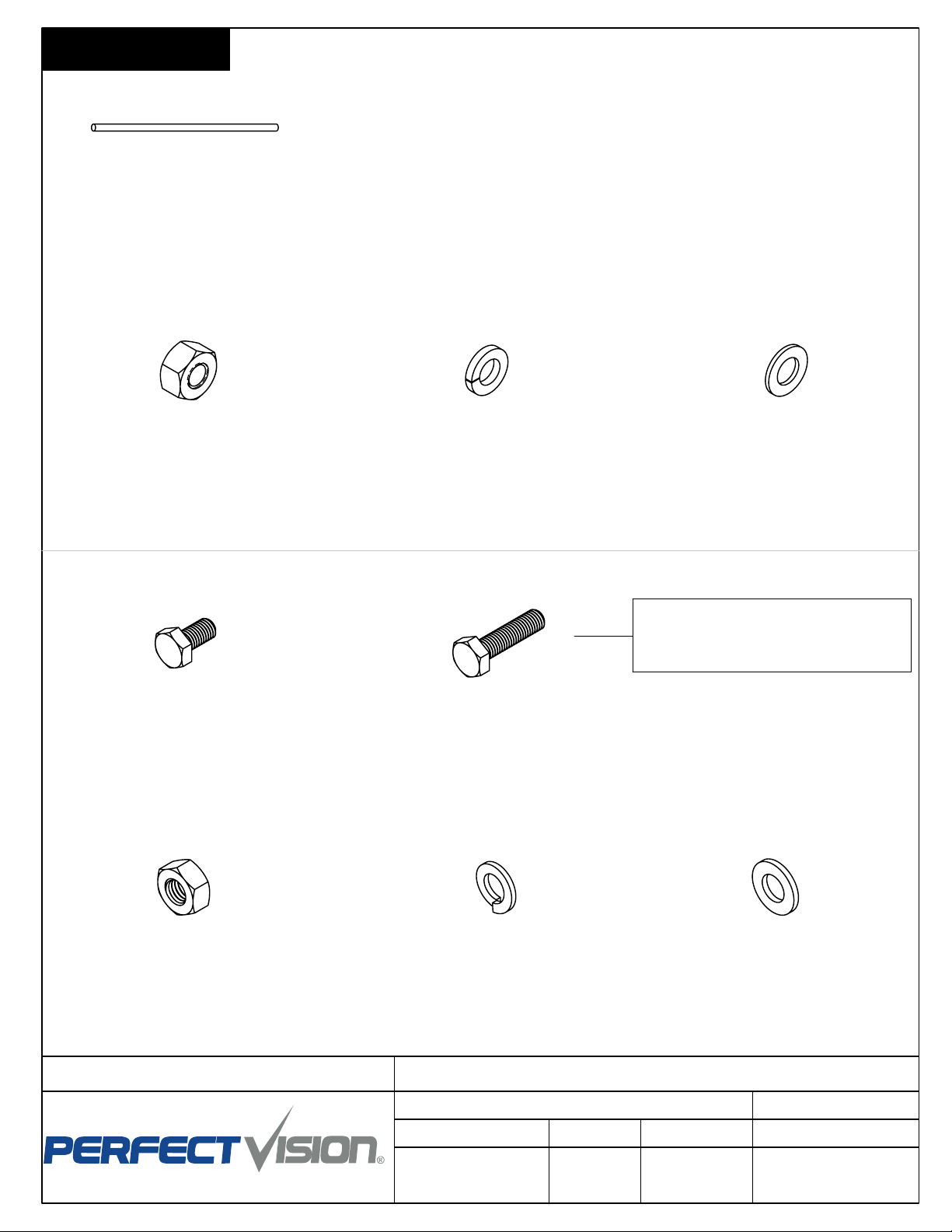

Supplied Parts List
PV-CRM-INS-01-R5
PART #: PV-CRM
3 SECTOR CANISTER RING MOUNT
PV-CRM - PL-1
NOTE:
DRAWINGS NTS
H02-0008-13
1/2" DIA NUT
QTY: 12
WEIGHT: 0.035 LBS
H03-0008-02
1/2" DIA FLAT WASHER
QTY: 12
WEIGHT: 0.005 LBS
H04-0008-01
1/2" DIA LOCK WASHER
QTY: 12
WEIGHT: 0.008 LBS
H10-1010-08
1/2" x 10" ALL THREAD
QTY: 6
WEIGHT: 0.11 LBS
H99-0251-20
M10 x 1.5mm, 20mm HEX BOLT
QTY: 6
WEIGHT: 0.05 LBS
H99-0251-40
M10 X 1.5mm, 40mm HEX BOLT
QTY: 6
WEIGHT: 0.07 LBS
LONGER HARDWARE REQUIRED FOR
PROPER ANTENNA ALIGNMENT TOOL
ATTACHMENT FOR CERTAIN TOOLS
H99-0252-10
M10 x 1.5mm NUT
QTY: 12
WEIGHT: 0.03 LBS
H99-0253-10
M10 FLAT WASHER
QTY: 24
WEIGHT: 0.008 LBS
H99-0254-10
M10 LOCK WASHER
QTY: 12
WEIGHT: 0.01 LBS
DATE: 3/18/2020
3 OF 6
REVISION
PAGE NUMBER
5
DRAWN BY
INT
SHEET
Supplied Parts List
PV-CRM-INS-01-R5
PART #: PV-CRM
3 SECTOR CANISTER RING MOUNT
PV-CRM - PL-2
NOTE:
DRAWINGS NTS
3/8"
3/8"
4 1/2"
1"
10 1/2" C-C MAX
1 7/16"
1 5/8"
DETAIL A
BRACKET COMPATIBILITY
7/16"
1/4"
VERTICAL
BOLT C-C
PANEL ATTACHMENT
BRACKET SHORT
VERTICAL
BOLT C-C
USE M10 X 1.5mm,
20mm HEX BOLT FOR
BOTTOM BRACKET
LONGER HARDWARE
REQUIRED FOR PROPER
ANTENNA ALIGNMENT TOOL
ATTACHMENT FOR CERTAIN
TOOLS
FACTORY HARDWARE
(TYPICALLY INCLUDED WITH ANTENNA)
1/4" X 3-1/2"
FLANGE BOLT
1/4" FLAT WASHER
1/4" LOCK WASHER
M10 x 1.5mm HEX BOLT
(USE 40mm FOR TOP BRACKET)
M10 FLAT WASHER
M10 LOCK WASHER
M10 NUT
SEE DETAIL B
FOR SAME
FLANGE BOLT
INSTALLATIO
N
7/16"
4 1/4"
7 1/16"

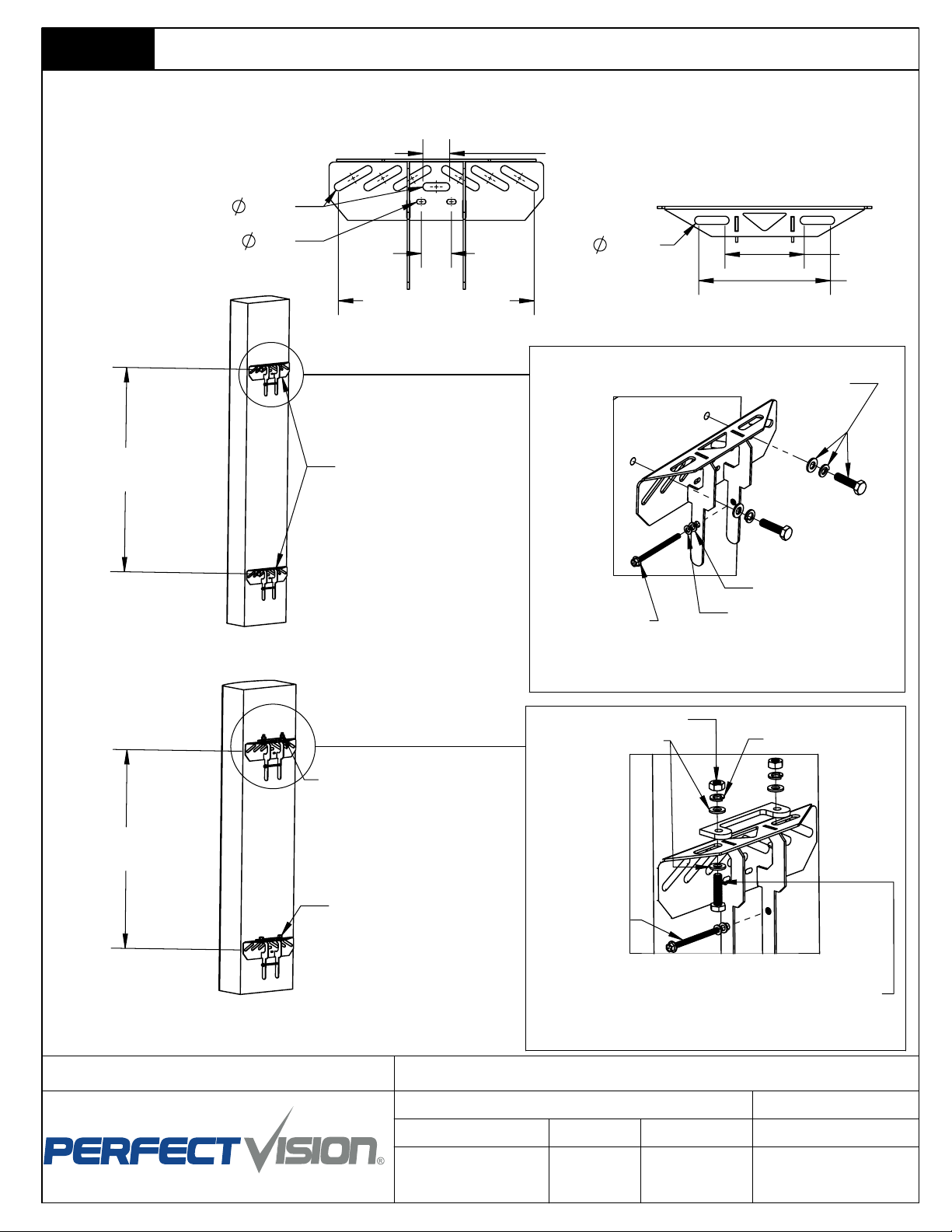

INSTALLING PANEL ATTACHMENT BRACKETS
INSTALLING PANEL ATTACHMENT BRACKETS
Replace factory installed brackets with new Panel Attachment Brackets (A097-001-01). Reuse factory hardware from original
bracket. Apply Blue Loc-Tite to all factory bolts before reinsertion. Pre-Install 1/4" Flange Bolt and hardware into brackets. Do
not fully tighten 1/4" bolt. Repeat for (3) Panels. Note Vertical Bolt C-C.
Note
: See Detail A for bracket compatibility.
OPTION 1
HORIZONTAL
PANEL BRACKET ATTACHMENT
OPTION 2
VERTICAL
PANEL BRACKET ATTACHMENT
(ERICSSON AIR-32 PANEL)
DETAIL B
PANEL BRACKET HARDWARE DETAIL
DETAIL C
PANEL BRACKET HARDWARE DETAIL
DATE: 3/18/2020
4 OF 6
REVISION
PAGE NUMBER
5
GALVANIZED
1.76
---
DRAWN BY
INT
SHEET
PV-CRM-INS-01-R5
PART #: PV-CRM
3 SECTOR CANISTER RING MOUNT
PV-CRM - D-1
STEP 1
3/8"
3/8"
4 1/2"
1"
BOLT C-C
SEE STEP 1
BEARING
PLATE
1/2" x 10" ALL THREAD
(FIELD CUT TO LENGTH:
SEE ALL THREAD TABLE FOR SPECIFICATIONS)
1/2" DIA NUT
1/2" DIA LOCK WASHER
1/2" DIA FLAT WASHER
DETAIL E
CLAMP BRACKET HARDWARE DETAIL
FULLY TIGHTEN
1/4" X 3-1/2" FLANGE BOLT

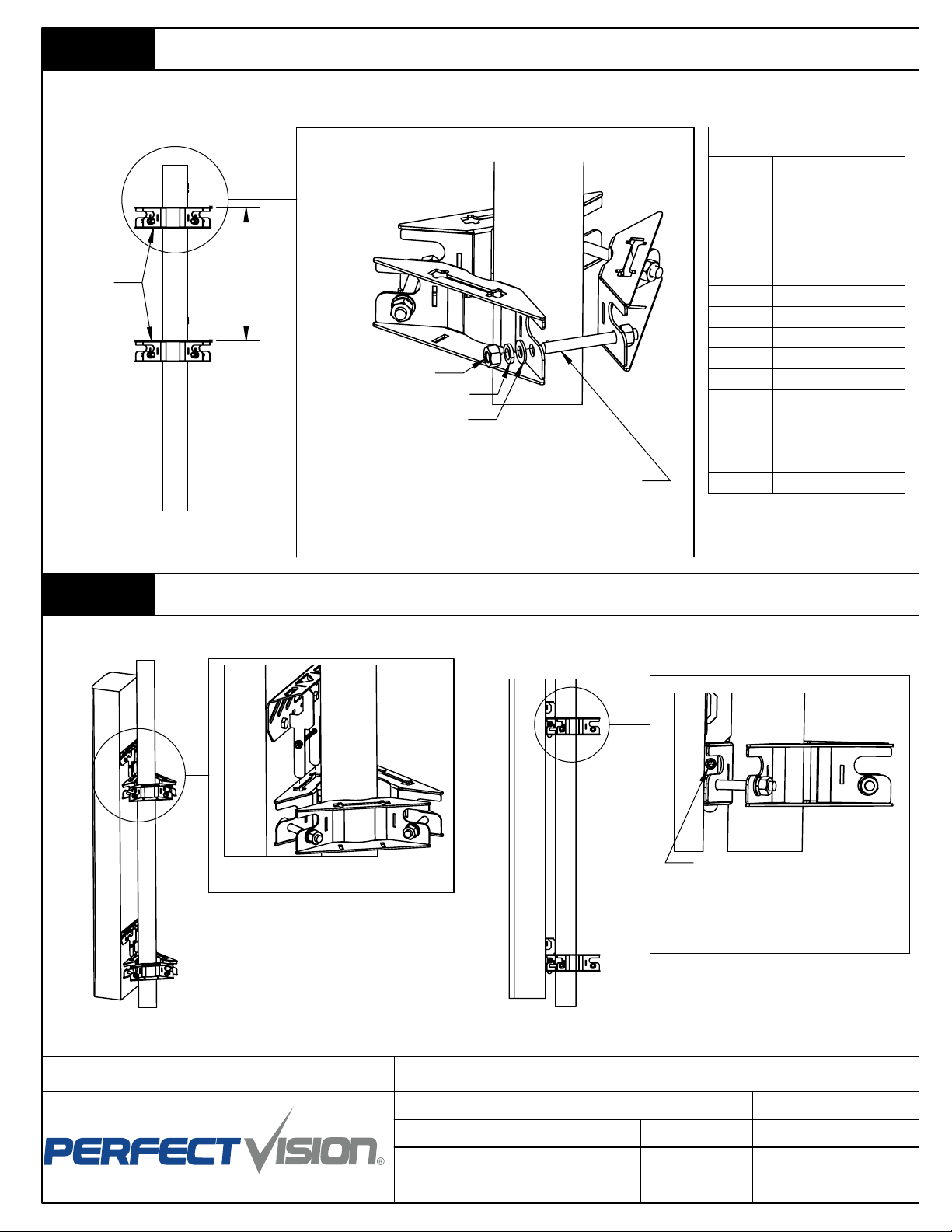

ATTACHING PIPE CLAMP
ATTACHING PANELS TO CLAMP
Slide tabs on panel brackets into slots. Lock panel into place by fully tightening 1/4" bolt. Repeat for all (3) panels.
Attach Clamp Brackets (W028-001-01) to mast pipe. Use 1/2" X 10" All Threads for Bearing Plate Installation. Ensure
Brackets are oriented with openings on top. Space Brackets based on panel vertical bolt C-C (from Step 1).
DETAIL D
CLAMP BRACKET SPACING
DETAIL F
PANEL INSERTION
DETAIL G
DETAIL H
PANEL LOCKING
DETAIL I
PANEL LOCKING HARDWARE
ALL THREAD TABLE
POLE
OD
(IN)
THREADED
ROD
CUT LENGTH
(IN)
3.5 2.5
4 3
4.5 3.5
5 4
5.563
4.5
6.625
5.5
7.625
6.5
8.625
7.5
9.625
8.25
10.75
9.25
DATE: 3/18/2020
5 OF 6
REVISION
PAGE NUMBER
5
NONE
998.45
---
DRAWN BY
INT
SHEET
PV-CRM-INS-01-R5
PART #: PV-CRM
3 SECTOR CANISTER RING MOUNT
PV-CRM - D-2

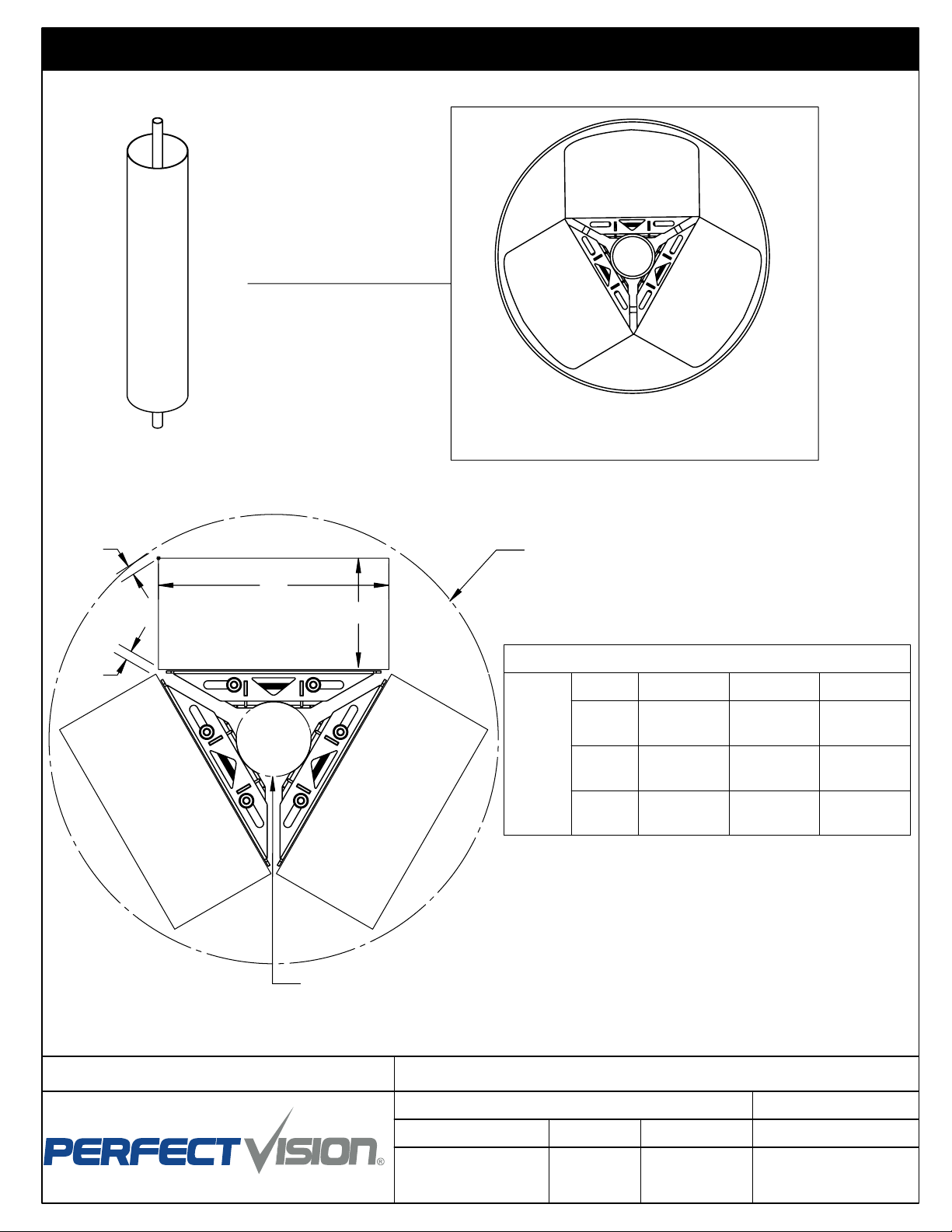

STEP 3
STEP 2
3/8"
3/8"
4 1/2"
1"
DETAIL K
RADOME TOP VIEW
DETAIL J
RADOME
1/2"
W
L
1/2"
SHROUD ID
24", 36", 48"
SPINE OD
3.5", 4", 4.5"
Attach Radome to pole. See site specific drawings for attachment details.
DETAIL L
PANEL COMPATIBILITY
PANEL DIMENSIONS MAY VARY AND SHOULD ADHERE
TO TABLE ABOVE ACCORDINGLY TO AVOID
PANEL/SHROUD INTERFERENCE.
SHROUD ID
SPINE
OD
24" 36" 48"
3.5"
MAX L: 6.36"
MAX W: 11.5"
MAX L: 12.93"
MAX W: 11.5"
MAX L: 19.18"
MAX W: 11.5"
4"
MAX L: 5.85"
MAX W: 12.35"
MAX L: 12.52"
MAX W: 12.35"
MAX L: 18.82"
MAX W: 12.35"
4.5"
MAX L: 5.23"
MAX W: 13.35"
MAX L: 12.05"
MAX W: 13.3"
MAX L: 18.39"
MAX W: 13.35"
DATE: 3/18/2020
6 OF 6
REVISION
PAGE NUMBER
5
NONE
998.45
---
DRAWN BY
INT
SHEET
PV-CRM-INS-01-R5
PART #: PV-CRM
3 SECTOR CANISTER RING MOUNT
PV-CRM - D-3

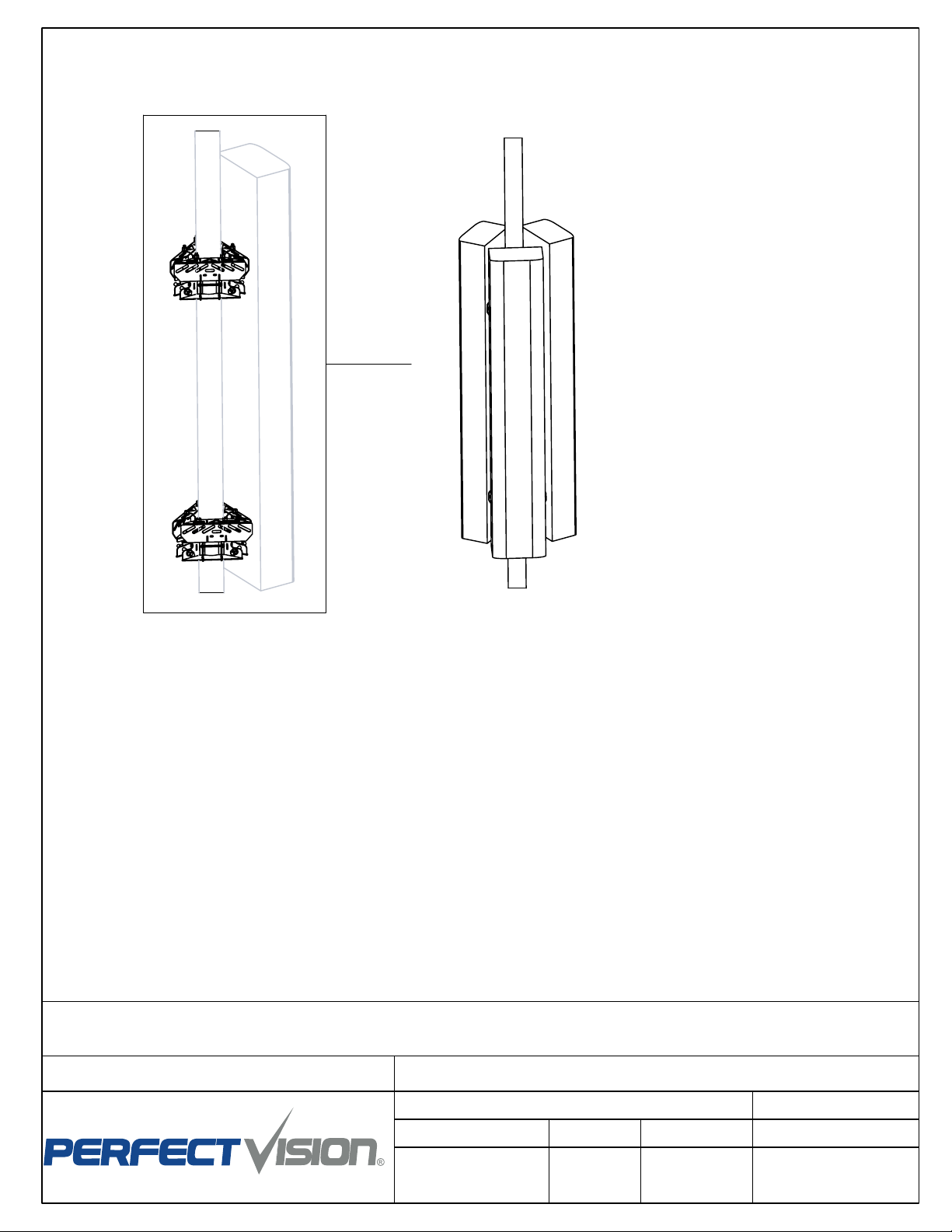

OPTIONAL RADOME INSTALLATION
