Perlesmith PSTM1 Bedienungsanleitung

V1.0

Installation Instruction

Thank you for choosing our product! We strive to provide the

best quality and services for our customers. Would you kindly

share your experience on Amazon if you are satisﬁed? Should

you have any issues, please don't hesitate to contact us.

Telephone：800-5566-806 Mon-Fri 10am - 6pm (PST) (USA) (CAN)

Email：[email protected] (US/CA/DE/UK/FR/IT/ES/JP/AU)

PSTM1

•Carefully open the carton, remove contents and lay out on

cardbard or other protective surface to avoid damage.

•Check to assure that all components were received

undamaged. Do not use damaged or defective parts.lf you

require replacement parts, contact customer service at

[email protected].

•Carefully read all instructions before attempting

installation.

•Install and operate this product with care. Please read this

instruction before beginning the installation, and carefully

follow all instructions contained herein. Use proper tools

during installation.

•

If you do not understand the instructions or have any

concerns or questions, please contact customer service at

[email protected].

•Do not use this product for any purpose or in any

conﬁguration not explicitly speciﬁed in this instruction. We

hereby disclaim any and all liability for injury or damage

arising from incorrect assembly, incorrect mounting, or

incorrect use of this product.

•This product is intended for indoor use only. Use of this

product outdoors could lead to product failure and personal

injury.

Important Safety Instructions

M4x30 (x4)

M6x15 (x4)

M6x30 (x4)

M8x15 (x4)

M8x45 (x4)

(x4)

08.5x18x5 (x8)

08.5x18x10 (x8)

Parts list

Hardware List

K (x2)

I (x1)

J (x1)

L(x3) M(x1)

N(x1)

STEP 1

STEP 2

Please:

Tighten the knob, lnsert the

bolt.

Please:

Tighten the knob.

CAUTION:MAKE SURE

DISTANCE BETWEEN EACH

FOOT MUST BE 600MM/23.6"

CAUTION:TO AVOID ANY

INJURIES,PLEASE TAKE OFF

TV SET BEFORE MAKING

HEIGHT ADJUSTMENT

23.6’’

STEP 3

A C E

B D

FLAT BACK TV

(UNIVERSAL MONITOR PLATE)

screwdriver(Not included)

ROUND BACK TV

(UNIVERSAL MONITOR PLATE)

First, make sure the diameter of the bolt(A-E) ﬁts your TV. Then, please see the diag-

ram above. You will need to thread the bolt into the TV using the correct washer (F)

hole and spacer (G or H) if necessary with a screwdriver(Not included). Please make

sure the monitor brackets(K) are vertically centered and level with each other.

H/G

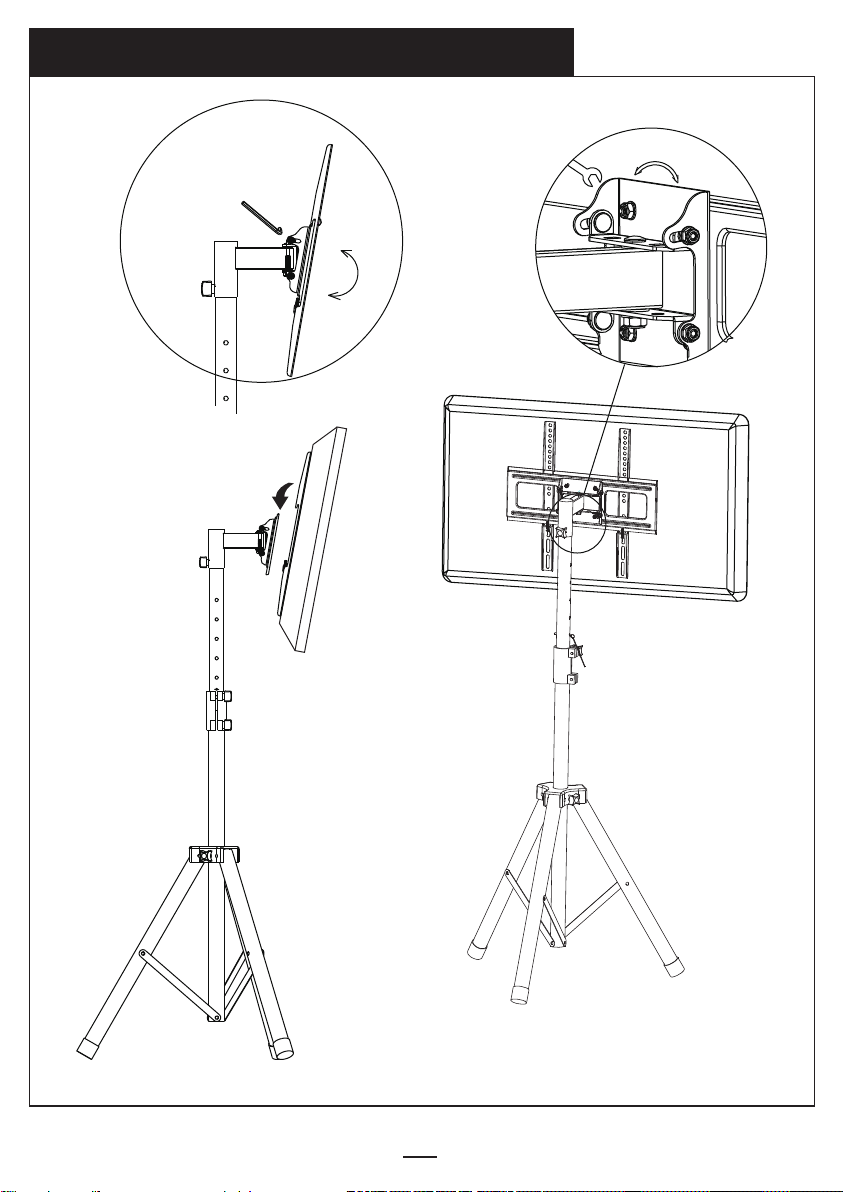

STEP 4 Attach the TV onto the Plate

STEP 5

Please tight the screw

CAUTION:TO AVOID ANY

INJURIES,PLEASE TAKE OFF TV SET

BEFORE MAKING HEIGHT ADJUSTMENT

Magic paste [L] used for

cable management

PRODUCT SPECIFICATIONS

1200mm

1900mm
