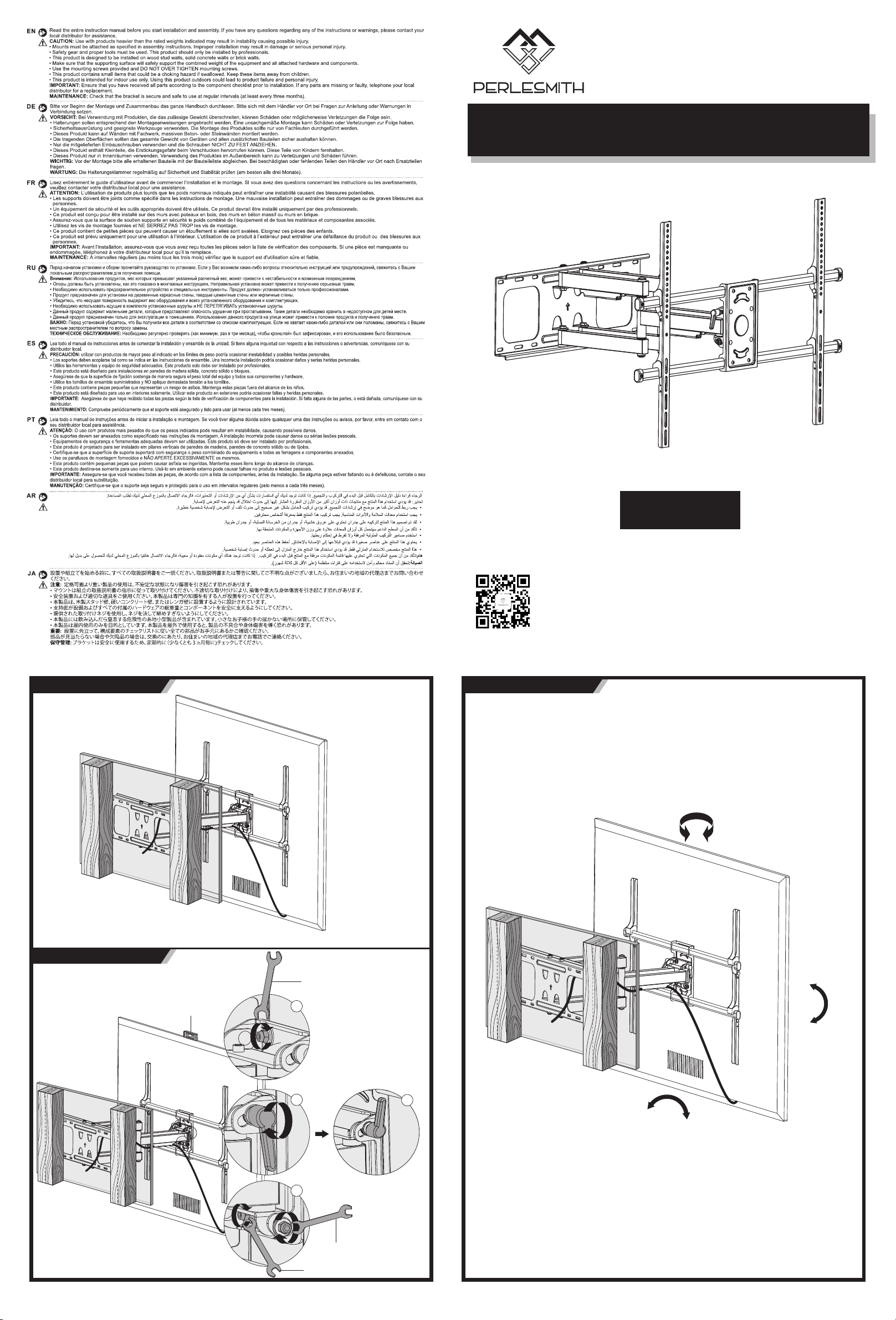

Perlesmith PSXFK1 Bedienungsanleitung

Full Motion LED,LCD TV Wall Mount

INSTALLATION MANUAL

4. Cable Management 6. Angle Display

5. Adjustment

200x200/300x200

300x300/400x200

400x300/400x400

600x400/800x400

800x600

PSXFK1

90"

MAX

75kgs

(165lbs)

RATED

+3° -3°

120°

+5°

-15°

Tilt, swivel and level the TV to the

desired position.

Route your TV cables along the arm

assembly/wall plate and press into

the arms.

Secure the TV

with screws

Loosen the screw

to level the TV.

Turn the knob

clockwise to tilt

up or down.

Turn the knob

counterclockwise

to secure.

Swivel

Tilt

Level adjustment

Thank you for choosing our product! We strive to provide the best quality and services for our

customers. Would you kindly share your experience on Amazon if you are satisfied? Should

you have any issues, please don't hesitate to contact us.

Telephone：800-5566-806 Mon-Fri 10am - 6pm (PST) (USA)

Email：supportus@perlesmith.com（US/CA/DE/UK/FR/IT/ES/JP/AU)

V1.0

Large Full Motion TV Wall Mount

PSXFK1

V2.0

2b. ROUND BACK TV (UNIVERSAL MONITOR PLATE)

1. Wall Plate Install

W-B (x4)

W-A (x4)

D (x2)

F (x1)

E (x1)

3. Hang TV

A (x1)

B (x2)

C (x1)

M-A

M-B

M-F

M-C

M-D

M-F

M-G

2a. FLAT BACK TV (UNIVERSAL MONITOR PLATE)

ø 6mm

(ø 1/4")

90mm

(3.5")

M8x30

M-D

(x4)

M6x30

M-C

(x4)

M6x14

M-B

(x4)

M5x14

M-A

(x4)

M8x50

M-E

(x4)

M-F (x4) M-G (x8) M-H (x8)

X X

√

M-E

M-H

M-C

M-D

M-H

M-G

M-E

M-H

M-G

M-E

M-G

M-H

M-C

M-D

M-F

M-F M-FM-F M-F

Included

Not Included

screwdriver driller pen stud finder

TV bracket

adapter bracket

wall plate

knob

wrench

bubble Level

Washer Small Spacer Large Spacer

Washer

Note: Pilot holes should be

drilled into a depth of

90mm (3.5")

Locate your

stud with a

stud finder.

Mark the

center of it.

Drill the

pilot holes.

Ensure alignment using

a bubble level.

Driller

Connect TV brackets to back of TV screwdriver

Connect TV brackets to back of TV

screwdriver

Hang TV with brackets

onto the arm extensions.

Lock up the TV with wall plate.

Screw the bracket to secure.

W-B

W-A
