Perlesmith PSTVS03 Bedienungsanleitung

Table Top TV Stand Instruction Manual

V4.0

Model: PSTVS03

Thank you for choosing this PERLESMITH product! At PERLESMITH we strive

to provide you with the best quality products and services in the industry.

Should you have any issues, please don't hesitate to contact us at

Technical Support:

(US/CA)1-800-556-6806 Mon-Fri 8am - 8pm(CST)

(UK)44-808-196-3891 Mon-Fri 2pm - 10pm(UTC)

Other Info: [email protected]

Website: www.perlesmith.com

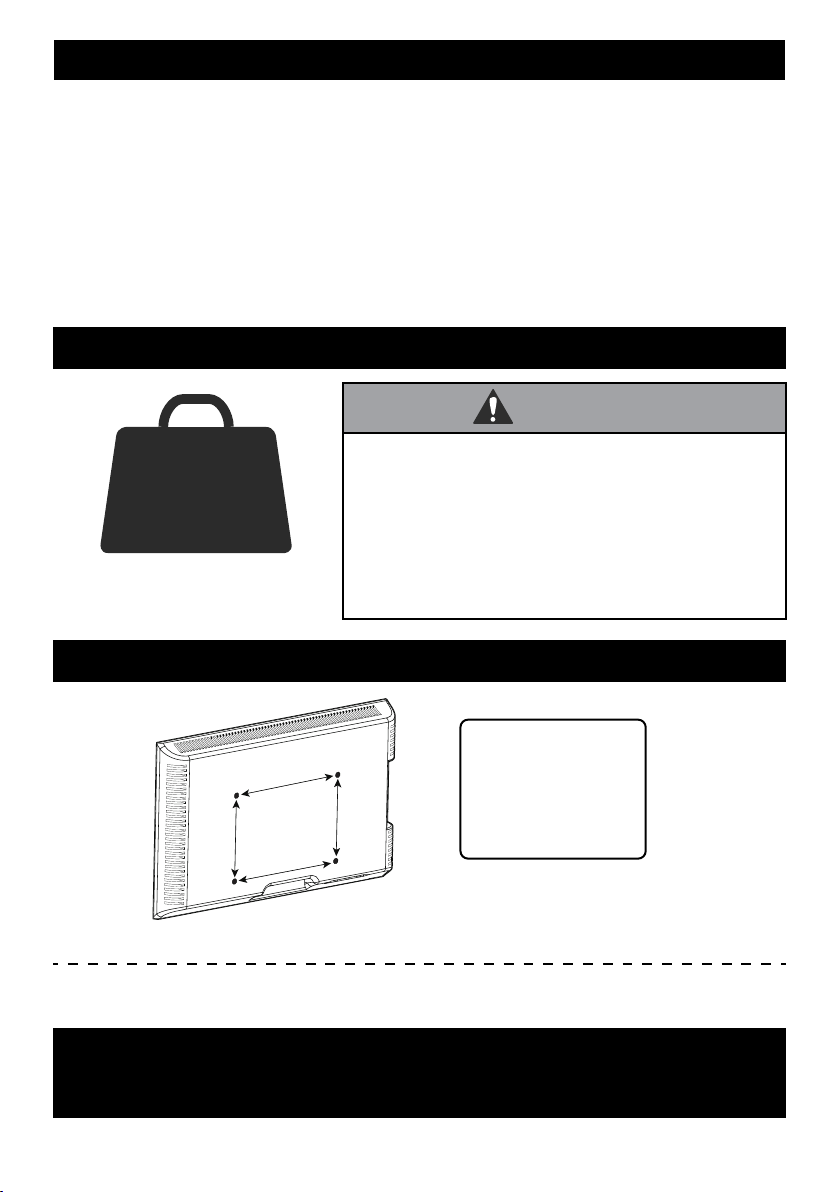

IMPORTANT SAFETY INSTRUCTIONS

Please carefully read all instructions before attempting installation. If you do

not understand the instructions or have any concerns or questions, please

contact our customer service at [email protected].

CAUTION: Avoid potential personal injuries and property damage!

Do not use this product for any purpose that is not explicitly speciﬁed in this

manual. Do not exceed weight capacity. We are not liable for damage or

injury caused by improper mounting, incorrect assembly or inappropriate use.

Weight Restrictions

DO NOT exceed the maximum weight

indicated. This TV stand is intended for use

only within the maximum weights indicated.

Use with products heavier than the

maximum weights indicated may result in

failure of the TV stand and its accessories,

causing possible damage and or injury.

WARNING

Check the VESA Pattern of TV before the Installation

200 mm ≈ 8 in

100 mm ≈ 4 in

300 mm ≈ 12 in

400 mm ≈ 16 in

600 mm ≈ 24 in

MAX:

600mm/24 in

MAX

400mm/16 in

Minimum VESA pattern: 200mm/8 in(W) x 100mm/4 in(H)

If your TV VESA is greater than 600x400 mm/24x16 in or less than

VESA 200x100mm/8x4 in, this TV stand is NOT compatible.

If this TV stand is NOT compatible, please contact customer service at

[email protected] to ﬁnd a compatible product.

88 lbs.

(40 kg)

If your TV weighs more, this

TV stand is NOT compatible.

01 02 03 04 05 06 07 08 09 10 11

Tools Needed [Not Included]

Supplied Parts and Hardware for Step 1

Supplied Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if

swallowed.

Before starting assembly, verify all parts are included and undamaged. Do not use

damaged or defective parts. lf you require replacement parts, please contact our

customer service at [email protected].

• Please note: Not all hardware included in this package will be used.

Plastic Cover

(I) x1

5/32in (4mm)

Allen Key

(B) x3

M6x25mm Bolt

(A) x6

Rubber Foot

(D) x3

φ6.2xφ18x1.5

Plastic Washer

φ6.5xφ16x1.5

Washer

Tempered Glass Base

Support Pillar

Drill

3/8 in(10mm)

Socket Wrench Hammer

Phillips

Screwdriver

5/32 in(4mm)

Wood Drill

5/16 in(8mm)

Concrete Drill

01 02 03 04 05 06 07 08 09 10 11

Note: The bolts are shown in accordance with the actual size

Supplied Parts and Hardware for Step 3

Supplied Hardware for Step 2

(I) x1

5/32in (4mm)

Allen Key

(E) x4

M6x12mm

Bolt

(I) x1

5/32in (4mm)

Allen Key

(E) x4

M6x12mm

Bolt

(F) x4

M5x8mm

Bolt

04 x2

Wall Plate

05 x2

Connection Plate

06 x1

Swivel Component

Supplied Parts and Hardware for Step 4

(H) x1

Cable Clip

(TV2) x4

M6x35mm

Bolt

(TV1) x4

M6x15mm

Bolt

(TV4) x4

M8x35mm

Bolt

(TV5) x4

M8x50mm

Bolt

(TV3) x4

M8x15mm

Bolt

(G) x4

M6x35mm

Bolt

01 02 03 04 05 06 07 08 09 10 11

Supplied Part for

Step 5

Supplied Hardware for Step 7 (Optional)

TV Bracket

(TV6) x4

Washer

[TV7] x4

D8 Steel

Washer

Safety Rope

(Optional)

(TV8) x8

L2.5mm Spacer

(TV9) x4

L10mm Spacer

(TV10) x4

L22mm Spacer

Safety Lock

Place rubber feet [A] on the tempered glass base [01] in the

corners

Note: Kindly note that the tempered glass base is designed to show the

shiny glass side facing up

Step 1-1

Step 1 Assemble the Base

This anchor is for

concrete or brick

walls ONLY. DO NOT

use them in drywall

or wood studs.

CAUTION!

Note: The lag screw is shown in

accordance with the actual size

Lag Screw

ST6x45mm

Wall Anchor

M8x40mm

01 02 03 04 05 06 07 08 09 10 11

Connect the lower support pillar [02b] to tempered glass

base [01]

Step 1-2

Secure the lower support pillar [02b] to tempered

glass base [01] using plastic cover [03], washers [C],

plastic washers [D], bolts [B] and allen key [I].

Stretch the upper support

pillar [02a] from lower

support pillar [02b]

Note: You may need

assistance with this step.

02b

Table

02b

02a

02b

01 02 03 04 05 06 07 08 09 10 11

Step 2 Connect the Upper Support Pillar [02a] to Lower Support

Pillar [02b]

Note: There are three choices for

height adjustment. You can choose

your desired height position while

connecting the upper support pillar

[02a] to lower support pillar [02b]

The First Choice

The Second Choice

The Third Choice

The Second Choice The Third ChoiceThe First Choice

02a

02b

①

②

01 02 03 04 05 06 07 08 09 10 11

You may need

assistance with this

step.

Step 3 Assemble the TV Plate

FrontFront

01 02 03 04 05 06 07 08 09 10 11

Please Note: The provided TV bolts meet most of today's TVs design. However,

some TVs require special bolts which may not be in the hardware bag. In this case

we oﬀer our “PSUHP" Universal Hardware Kit which provides a large selection of

bolts that can meet the demand of older and unique applications.

Please Note: When using the spacers it is important to note that they can be used

in multi-layers (meaning stacked). If you have any diﬃculty understanding how to

install the TV bolts or spacers, please contact customer service at

[email protected].

Step 4 Secure the TV Brackets to a TV

CAUTION: Ensure the

TV bracket [07] is

EQUALLY CENTERED on

your TV and securely

fastened in place.

Please note: The bolt

hole locations on your TV

may vary in accordance

of the manufacturers

design of the TV. We are

only illustrating possible

locations of the bolt

holes.

Option A (For Flat Back TV)

TV6

TV8

TV1/TV3

TV7TV7

(if needed)

(Optional)(Optional)

Note: The spacers

must be used with

steel washers [TV7] to

stop the spacers from

falling down.

Select TV Bolts

Only one bolt size ﬁts your TV.

M6 M8

Bolt length: Verify adequate thread engagement with

bolt or bolt/spacer combination. We recommend

thread engagement by at least 5 turns.

-Too short will not hold the TV.

-Too long will damage the TV.

Too Short Too Long

Correct Correct

UP Note: To avoid any injuries

caused by dumping, it is

recommended to use the

tipping restraint belts [08]

to attach the TV stand

against the wall.

01 02 03 04 05 06 07 08 09 10 11

Option B (For Round Back TV)

Alternate Spacer Setups

Note: The spacers must be used

with steel washers [TV7] to stop

the spacers from falling down.

Note: The spacers must be used

with steel washers [TV7] to stop

the spacers from falling down.

Alternate Spacer Setups

Option D

For cable interference or inset holes, use

spacers [TV8], [TV9] and [TV10] to create

extra space between the TV and TV brackets

Spacers may be necessary for 2 holes ONLY.

Option C (For TV with A “Bump”)

TV6

TV7

TV8(if needed)

TV1/TV3

Alternate Spacer Setups

Note: The spacers must be

used with steel washers

[TV7] to stop the spacers

from falling down.

TV6

TV2/TV4/TV5

TV7TV7

TV8/TV9/TV10TV8/TV9/TV10

TV6

TV2/TV4/TV5

TV7TV7

TV8/TV9/TV10TV8/TV9/TV10

(Optional)(Optional)

TV2/TV4/TV5

TV6

TV10TV7

TV8/TV9

TV10

TV8/TV9

TV10

(Optional)

01 02 03 04 05 06 07 08 09 10 11
