Permobil LapStacker XD Power Bedienungsanleitung
zip.clip.go
Installation Guide
Welcome
Congratulations and thank you for choosing the LapStacker®
Please read this Installation and User Guide carefully to ensure you install and use the
LapStacker®correctly and safely.
Once you’ve installed your LapStacker®we’d love to see how you use it. Please feel
free to send us your videos and images and let us know how the LapStacker®improves
freedom and independence in your life.
You can email me anytime at info@lapstacker.com or simply tag us on social media and
use #lapstacker. Of course, we’d also like to hear about how we can improve, so please
feel free to let us know.
The LapStacker®is made from quality materials to our exacting standards and should last
many years of hard use. I hope you’ll love it as much as I do and look forward to seeing
and hearing how you use it. Wishing you all the very best,
Mike Brown
Inventor | Chief Adaptdefying Ocer | Paraplegic
1
Contents Page
Page
...............................................................................................................1
...............................................................................................................2
..............................................................................................................
..................................................................................................................
............................................................................
.........................................................................................................
.....................................................................................
......................................................................................5
..................................................................................................7
Contents
Welcome
Contents
Warnings
General
Injury
Wheelchair Balance & Vision
Installation
Care of your LapStacker®
LapStacker®Installation
Trouble Shooting
2
Warnings - Please read carefully
●Do not install or operate the LapStacker® without rst reading and understanding
this Installation and User Guide. The current version is available online at
lapstacker.com/installation
●Failure to do so may cause injury to you or those around you.
●By using the LapStacker®you agree to the terms of our Warranty and Product
Disclaimer which can be read online at lapstacker.com/disclaimer
Warnings - General
●The LapStacker®is not a seatbelt, safety device, or medical device.
●The LapStacker®is not intended to be used to secure children or animals to your lap.
●The LapStacker®is designed as an aid only. You will still need to carefully place items
on your lap and monitor them while using the LapStacker®. Items can move even
with the LapStacker®securing them, and we take no responsibility for any damage to
goods or people should items fall while you are using the LapStacker®
●We do not recommend using the LapStacker®for extensive periods of time to hold
items on your lap.
Warnings - Injury
●Please do not use the LapStacker®to secure items on your lap that may cause an
injury to you or others. Some examples include sharp, hot or heavy items.
●Please be aware of the new LapStacker®components on your wheelchair and where
they are relative to your limbs. Be sure to avoid contact with these while using your
wheelchair or transferring in and out of your wheelchair. Failure to do so may result in
injury.
●Please do not pull down too tightly on the straps otherwise it might cause a loss of
circulation or a pressure injury or damage the item/s you are carrying.
3
Warnings - Please read carefully
Care of your LapStacker ®
Warnings - Wheelchair Guidelines & Vision
●Please do not exceed your wheelchair manufacturer’s guidelines for loading or usage
of attachments.
●Please do not stack items too high on your lap so as to reduce your ability to see
where you are going. This could result in a collision that causes you or others an
injury.
Warnings - Installation
●If you are installing the LapStacker®and moving existing components around such as
arm rests or leg restraints please ensure they are reinstalled and secured correctly.
Failure to do so may result in their failure and injury to you or others.
●The Brackets are made of plastic to reduce weight and are not designed to be pulled
on or adjusted without rst loosening the fasteners. Please be gentle with them or
they may break.
●Wipe components clean with a damp cloth and avoid the use of chemical detergents
which may damage the plastic surfaces.
●The LapStacker®Retractor has not been designed for submersion in water. Doing so
will likely result in rusting of the internal components and may void your Warranty.
●The straps may be cleaned using water and a damp cloth. We suggest removing the
retractors, fully extending the straps and letting them dry before retracting the straps
back into their housing again.
4
XD POWER - Installation
IDEAL LAPSTACKER
POSITION
CENTRE OF WEBBING
For Trouble Shooting please see page 7.
BRACKET
EXTRUSION
KEEPER
WEBBING
RETRACTOR
Component Set
3.0mm
Allen Key
4.0mm
Allen Key
1 x
LapStacker Assembly
2 x
1 x M3 x 6mm
screw
5 x
2.0mm
Allen Key
1 x
LapStacker Position
Ideally, the LapStacker is positioned central to where items will be
carried.
!
5
WARNING!
Avoid over tightening the
fasteners as this will strip the
threads.
WARNING!
Avoid over tightening the
fasteners as this will strip the
threads.
Items Required:
●LapStacker Assembly
Items Required:
●LapStacker Assembly
●4.0mm Allen Key
Items Required:
●LapStacker Assembly
●2.0mm Allen Key

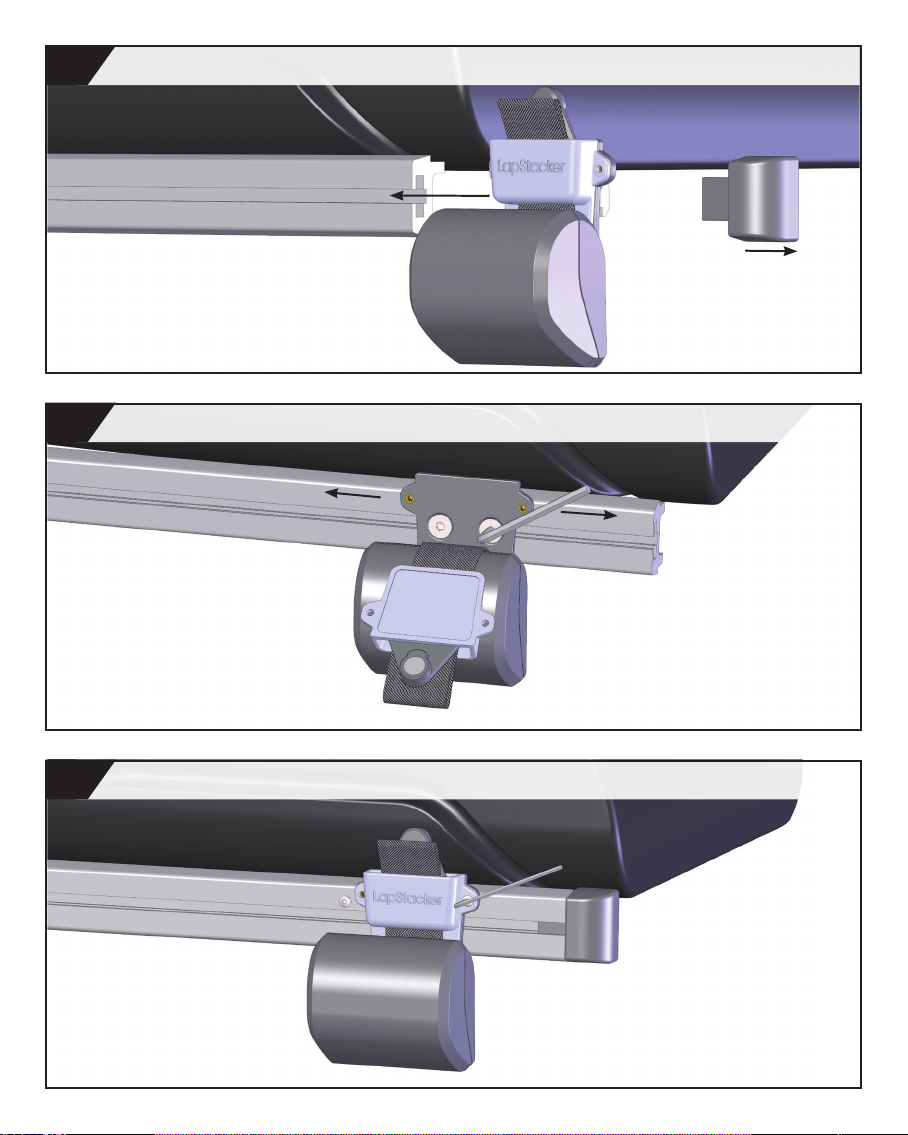

Adjust to ideal position and tighten screws.
Remove end cap. Slide Bracket Assembly onto the seat extrusion.
1.
2.
4.
REPEAT PROCESS FOR OPPOSITE SIDE.
6
Trouble Shooting
Retractor Unit Assembly and Main Components.
●Please reference this illustration when using the trouble shooting guide on the
following page.
TOP HOUSING
LOCKING TAB
WEBBING SPOOL
BASE HOUSING
RETRACTOR WEBBING
FASTENERS
7
Trouble Shooting
NEED HELP?
If your LapStacker® problem is not listed below OR you are having trouble xing the
issue and need help, please contact Adaptdefy® directly and our sta will work with
you to get your LapStacker®working correctly.
1. Webbing folds over itself and jams the Retractor Unit
I. Remove the Retractor Unit from the wheelchair by unscrewing it from the
Bracket using the 3mm Allen Key supplied.
II. Carefully undo the two fasteners holding the Retractor housings together.
III. Remove the Top Housing to reveal the webbing spool.
IV. Locate the Locking Tab and pull this back to release the lock and allow the
spool to turn freely.
V. Pull on the end of the webbing until the folded section is revealed and the
fold is removed.
VI. Release the Locking Tab.
VII. Carefully let the webbing retract back onto the spool. Make sure the webbing
remains at and level with the Retractor Unit to avoid it folding back onto
itself.
VIII. Fasten the Top Housing back in place and reinstall on your chair.
2. Webbing retracts completely inside the Retractor Housing
I. Remove the Retractor Unit from the wheelchair by unscrewing it from the
Bracket.
II. Using the 3mm Allen Key supplied, carefully undo the two fasteners holding
the Retractor enclosure together.
III. Remove the Top Housing to reveal the webbing spool.
IV. Locate the end of the webbing and pull it through the slot in the Base
Housing.
V. Attach the Buckle to prevent the webbing retracting.
VI. Fasten the Top Housing back in place and reinstall on your chair.
8
Trouble Shooting
21
Small Loop
Large Loop
NOT FOR BUCKLE
INSTALL
I. If the webbing has retracted into the housing as a result of the Buckles
coming o, please view section 2 of the trouble shooting guide (page 8).
II. With the webbing outside of the housing, feed the webbing loop back through
the Keeper slot.
III. Attach the Buckle using the small loop (2) adjacent to the end of the sewn
section (see gure below). DO NOT use the large nger loop.
9
