PERPETUUM EBNER PE 1010 Bedienungsanleitung
Tradition verpflichtet
User manual
Turntable
Belt Drive
PE 1010
3
4
5
7
8
10
11
12
14
15
16
CONTENTS:
1. SAFETY INFORMATION ............................................
2. UNPACKING ...............................................................
3. SET-UP and ASSEMBLY ...........................................
4. CONNECTIONS ..........................................................
5. DRIVE SETTINGS ......................................................
6. TONE ARM and PICKUP CARTRIDGE
a.) Tracking force ......................................................
b.) Azimut ................................................................
c.) Anti-skating ..........................................................
7. OPERATION .............................................................
8. TECHNICAL SPECIFICATIONS ...............................
9. SERVICE INFORMATION ........................................
2

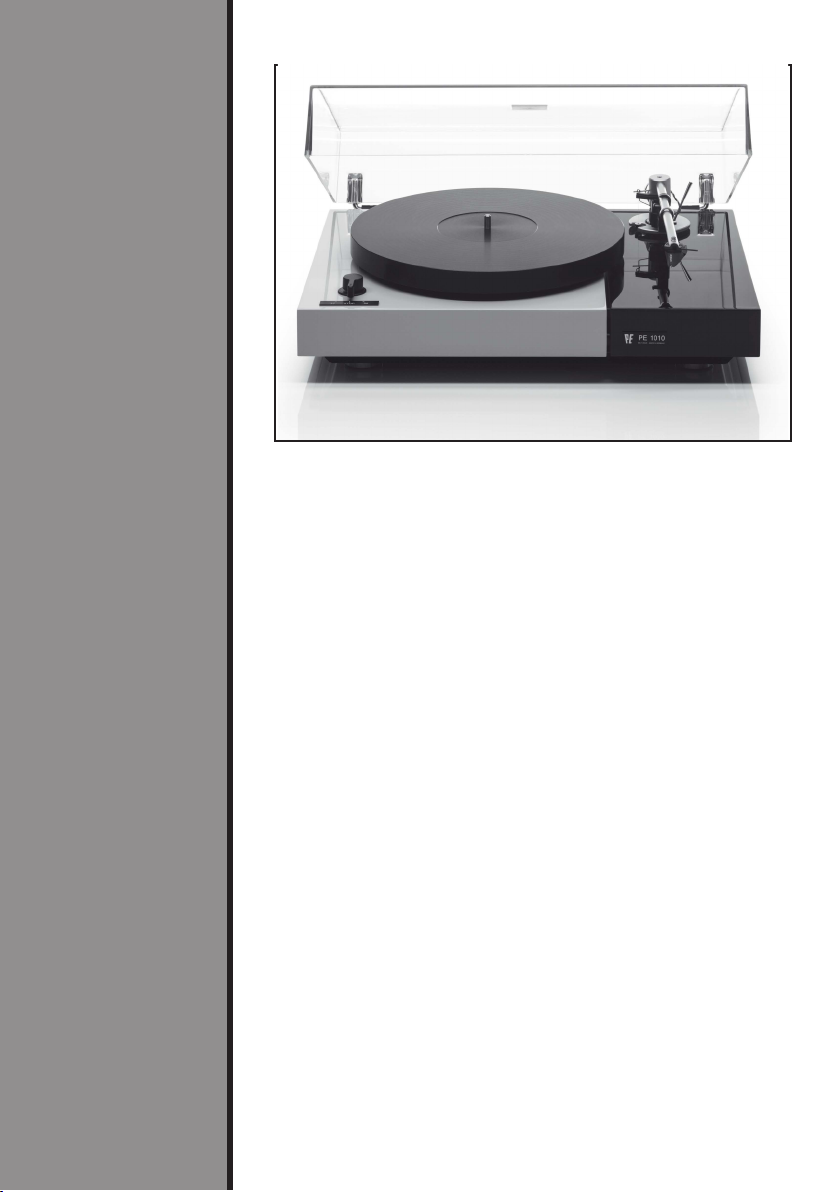

Dear music lover,
Congratulations on the purchase of your new
Perpetuum Ebner (PE) turntable.
This product has been designed and manufactured with
the greatest care.
Please, take note of the enclosed safety information and
read the operating instructions carefully before you set
up and operate the device.
SAFETY INFORMATION:
PLEASE READ CAREFULLY BEFORE OPERATING
YOUR UNIT !
CAUTION:
To reduce risk of electric shock, do not remove the cover.
There are no user-serviceable parts inside.
This symbol on the product or on its packaging indicates that this
product must not be disposed of with your other household waste.
Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for
the recycling of waste electrical and electronic equipment. The
separate collection and recycling of your waste equipment at the
time of disposal will help to conserve natural resources and ensure
that it is recycled in a manner that protects human health and the
environment.
For more information about where you can drop off your waste
equipment for recycling, please contact your local city office, your
household waste disposal service or the shop where you
purchased the product.
This product was tested and complies with all the
requirements for the CE Mark.
IMPORTANT: Disposal of waste equipment by users in
private households in the European Union.
Tradition verpflichtet
3
4
2. Unpacking
We have developed a high-quality packaging, so that
the product arrives you safe and protected. Carefully
remove the unit and accessories from the packaging
and check the contents for completeness.
Items delivered:
1x chassis with pre-assembled tonearm incl. pickup
cartridge
1x sub-platter, 1x platter
1x dust cover
1x flat rubber drive belt
1x RCA cable with ground wire, 1x power supply
1x Hex key SW3 (transport lock)
1x Hex key SW2 (tonearm height adjustment)
1x setup template
1x pair of cotton gloves (white)
Please keep the original packaging in order to protect
the device in case you ever need to ship it or transport
it. Make sure to tighten the locking screws when you
transport the turntable. The 3 x 2 silver-colored locking
screws must be removed completely before first use
(see fig. F 1). For this purpose, please use the
enclosed hex key SW3.
Also the transport protection on the tonearm must be
removed (see fig. F 2).
You can keep the screws and the transport protection
for possible transports in the provided plastic bags.

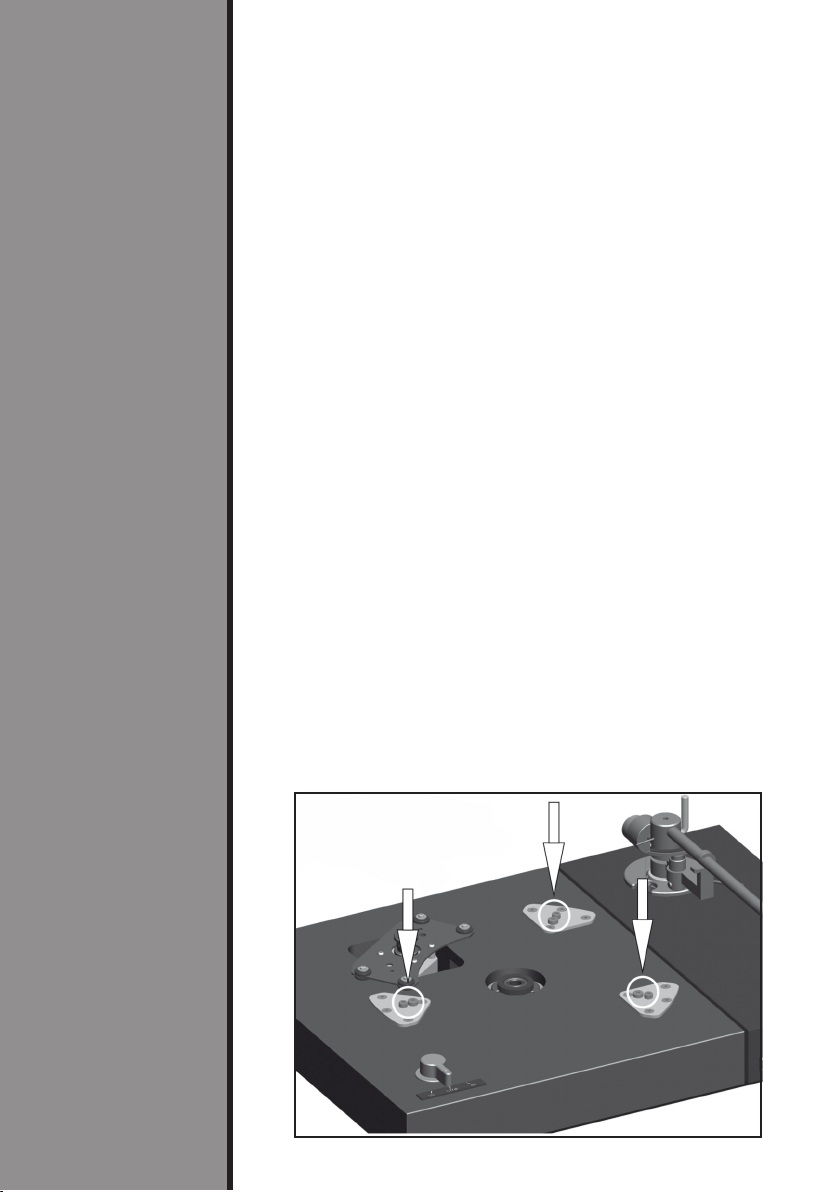

F 1 - Undo and remove
the locking screws
Tradition verpflichtet
5
3. Set-up and assembly
Your new Perpetuum Ebner turntable is a sub-chassis
turntable and is therefore mostly insensitive to external
shocks.
For optimum use of its musical sound qualities you
should always place the device on a flat and stable
surface.
When mounting the device you start with plugging the
sub-platter into the bearing bush after having removed
the covering stopper (see fig. F 3).
The bearing bushes are self-lubricating and therefore do
not require bearing oil.
F 3 - Assembly
of the sub-platter

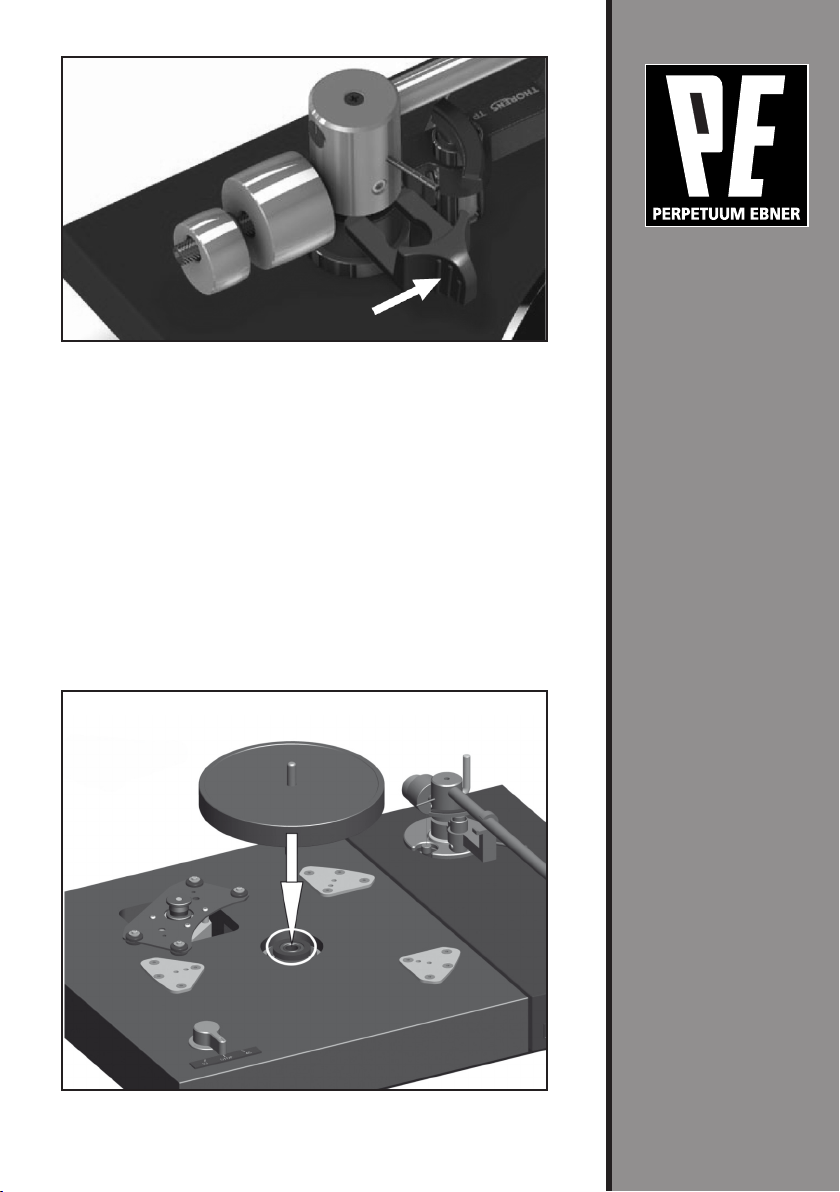

F 2 - Remove the
transport protection
on the tonearm
6
Afterwards, lay the flat belts around the sub-platter
and the motor pulley; please ensure that the belt is not
twisted.
Please use the cotton gloves here in order to avoid
any oil and grease marks.
The belt embraces the sub-platter in the lower area of
the sub-platter scope (see fig. F 4).
Note: If you start the drive of the PE 1010 by turning it on
without having placed the platter, it may happen that the
drive belt falls off due to the low weight!
Next, put the platter on the sub-platter.
We recommend to always use a mat to acoustically
attenuate the platter, to gently playback your records,
and to reduce popping and cracking noises that can
occur because of antistatic charging.

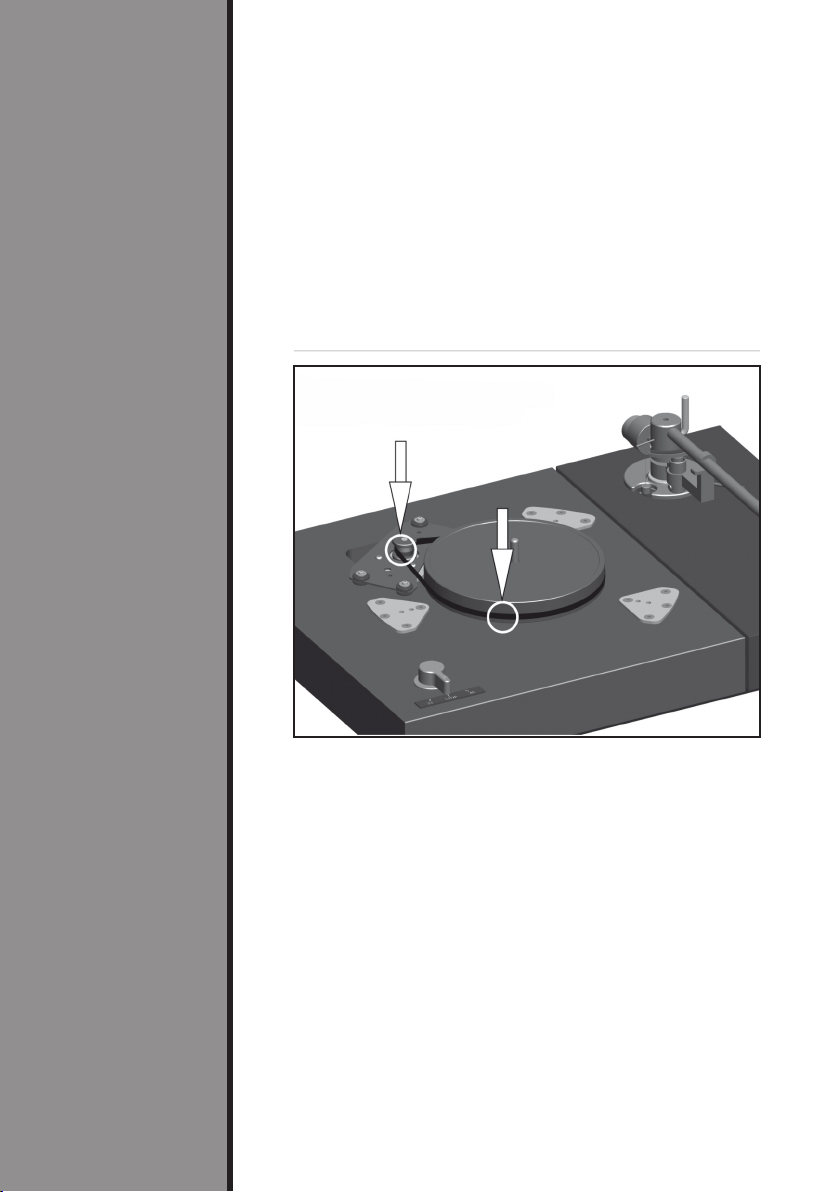

F 4 - Assembly of the drive belt
on the pulley and the sub-platter
4. Connections
a.) Power supply
We equip the PE 1010 turntable with power supply
connectors.
b.) RCA connection
Your new PE 1010 turntable is equipped with RCA
sockets as well as a ground wire. Use the provided
connection cable to connect the turntable to the phono
input of your amplifier, or phono-preamplifier.
In doing so, make sure the polarity is correct (R, red, for
right, L, black, for left) when connecting the device.
The separate earth wire establishes the ground
connection. Connect the ground wire of the turntable to
the ground wire of your amplifier, or phono-preamplifier
(see fig. F 5).
Tradition verpflichtet
7

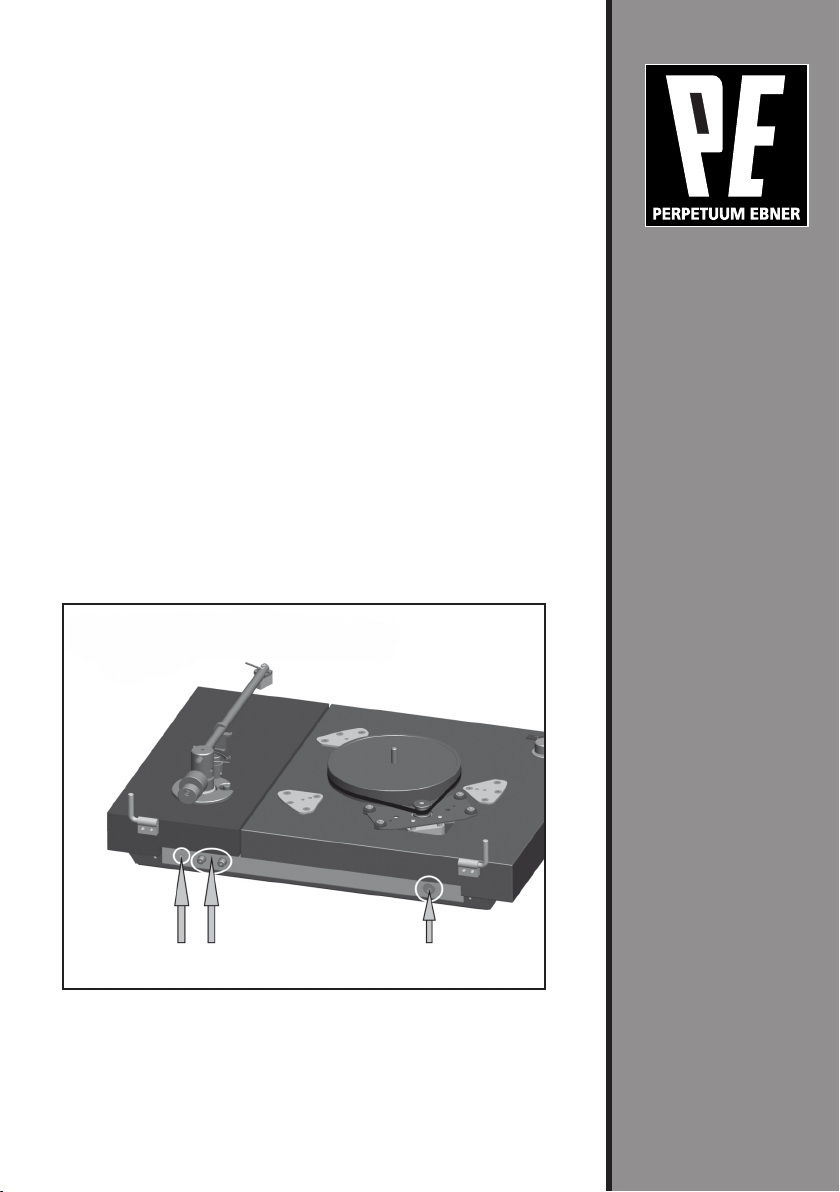

ground connection RCA L+R power supply
F 5 - The connections - power supply
RCA connections and ground connection
With these connection possibilities, the sound quality of
your turntable can be further improved at any time with
the high-quality cables available in specialist shops.
8
5. Drive settings
The sub-chassis drive and the bearing setting are
already set properly at the factory.
However, for individual adjustments it is possible to
customize the following:

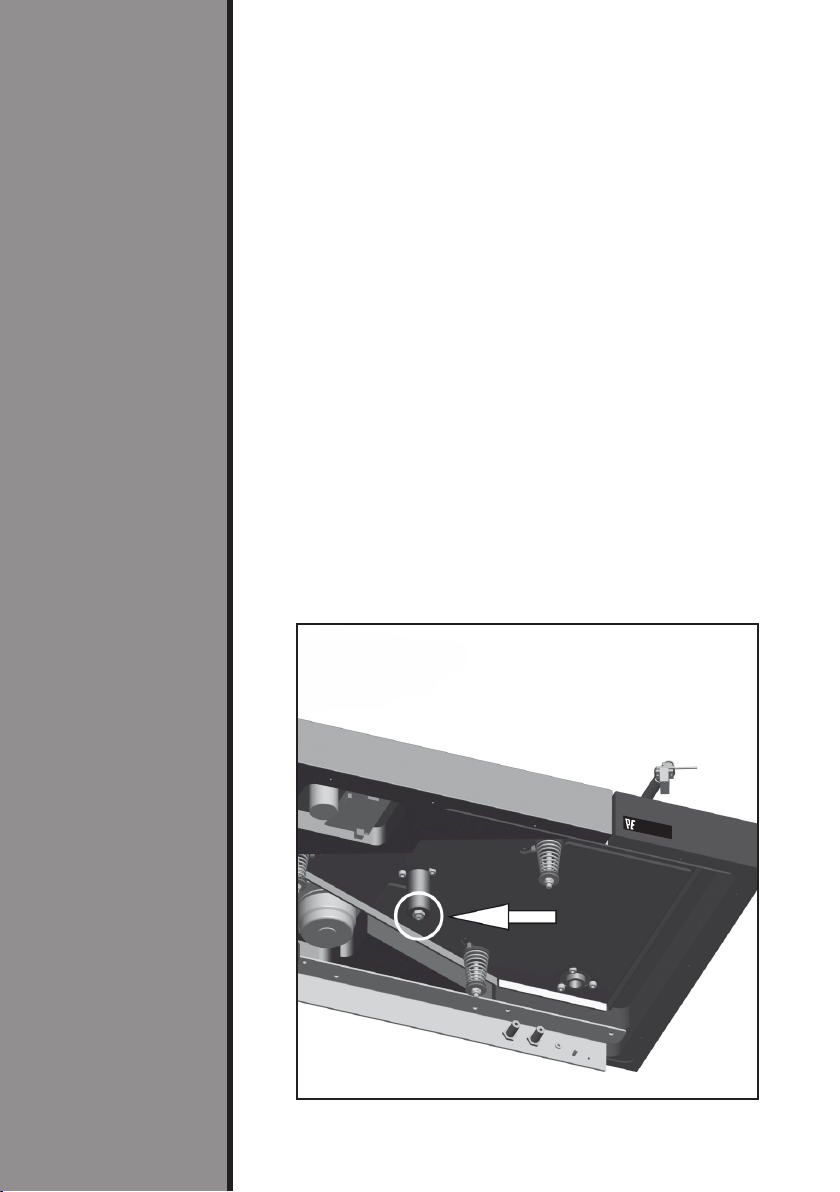

a.) Adjusting the platter bearing:
It is possible to adjust the ratio of the platter bearing
between the bearing on the steel ball or the magnetic
pillow by adjusting the screw M5 on the bottom side of
the device by loosening the counter nut.
You can individually adjust the distance between the
bottom side of the platter and the platter by tightening
or loosening the screw.
This may be necessary after several years because of
the decreasing magnetic effect (see fig. F 6 - platter
bearing).
PE 1010
BELT DRIVE - MADE IN GERMANY

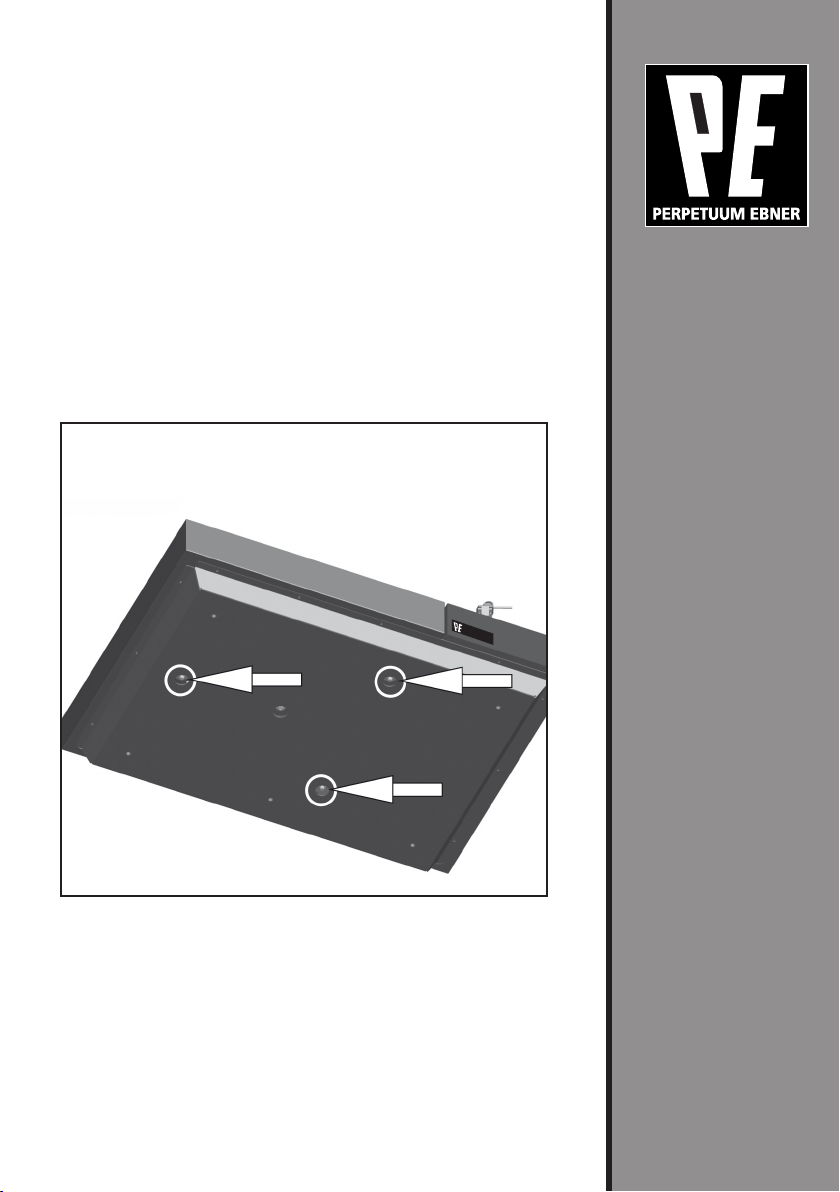

F 6 - Drive setting
Platter bearing
Tradition verpflichtet
9
b.) Adjusting the sub-chassis drive:
The sub-chassis is already preset in the way that there is
a constant distance of approx. 5 mm between the
underside of the platter and the underside of the tone
arm socket.
This distance has the purpose to allow the sub-chassis
to freely oscillate in all directions.
The installation of our suspension bolts permits the sub-
chassis to only oscillate vertically in a limited and
controlled way (see fig. F 7 with bottom tray).
PE 1010
BELT DRIVE - MADE IN GERMANY

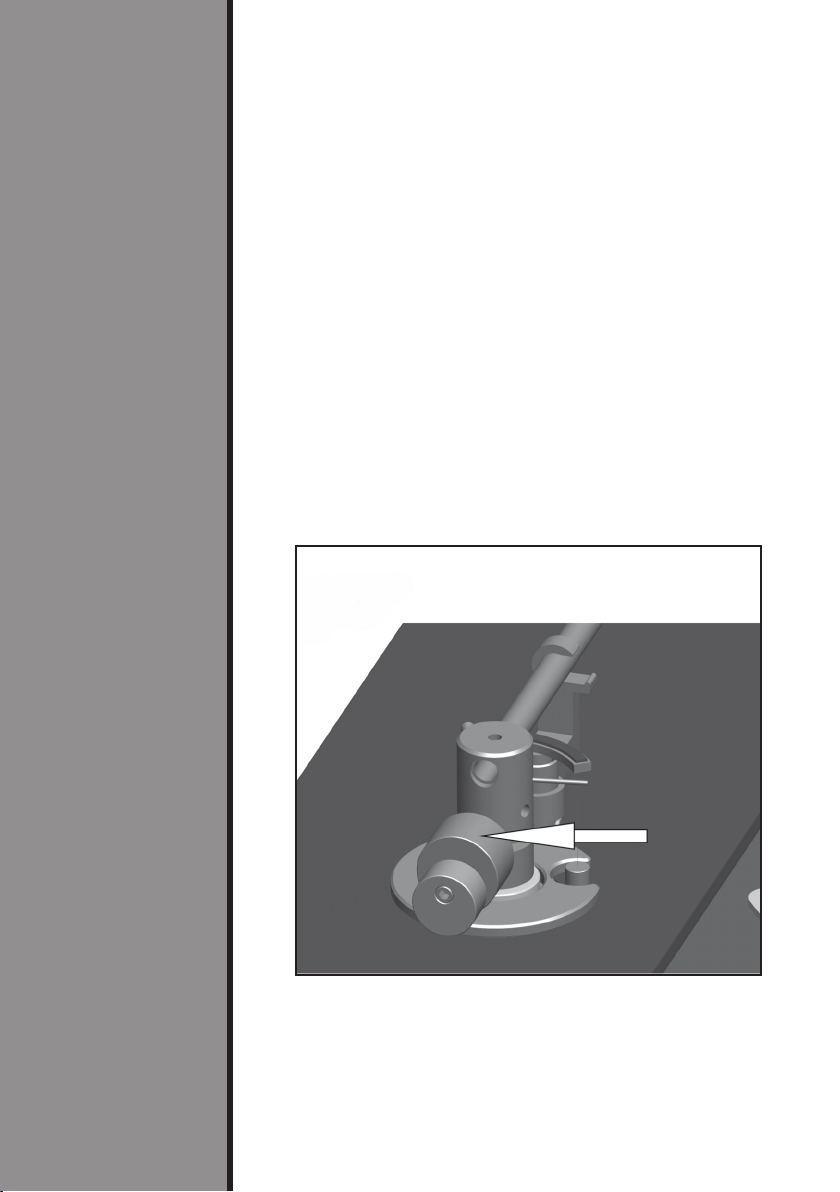

F 7 - Drive setting
Sub-chassis
10
6. Tonearm and pickup cartridge
The PE 1010 is delivered with a preinstalled tone arm
of the producer THORENS, model TP 82, as well as
with an installed ORTOFON pickup, model 2M Red.
All settings have already been made at the factory.
The weights to balance the tone arm have been
removed for transport.
Further details can be found in the following chapters.
The anti-skating weight has to be mounted at the tone
arm as it was removed for transportation.
a.) Tracking force
You can adjust the tracking force by rotating the
weights of the tone arm.
The tracking force increases, the more you turn the
weights forward towards the tone arm (see fig. F 8).
F 8 - Adjusting the
tracking force
The smaller eccentric weight is for adjusting the
azimuth. It should be as close as possible to the back
of the larger weight, without touching it.
You can optimally adjust the tracking force with the
help of a tone arm scale (available in specialist
shops).
