Perreaux Silhouette SXH2 Bedienungsanleitung

SXH2

SXH2SXH2

SXH2

Headphone Amplifier Module

Owners Manual

Perreaux Industries Limited makes no warranty for the use of its products, other

than those expressly contained in the warranty detailed herein. The Company

assumes no responsibility for any errors which may appear in this document,

reserves the right to change products or specifications detailed herein at any time

without notice, and does not make any commitment to update the information

contained herein. No licenses to patents or other intellectual property of Perreaux

are granted by the Company in connection with the sale of Perreaux products,

expressly or by implication.

PERREAUX®is a registered trademark of Perreaux Industries Ltd.

Terms and product names in this document may be trademarks of others.

This page has intentionally been left blank.

iii Introducing the

Perreaux Silhouette Series

Designed as a range of high quality, yet affordable modules; the

‘Silhouette’ series will compliment and enhance your existing

system.

Drawing on our extensive knowledge gained from more than a

quarter of a century of developing highest quality audio products,

the ‘Silhouette’ concentrates our legendary design and build

quality into a compact package without sacrificing performance.

The Perreaux ‘Silhouette’ series provides performance levels

never before seen in its class.

Key Features àClass A signal stages

àHighest quality internal power supply featuring a custom

designed, fully shielded toroidal transformer and 22000µF

of smoothing capacitance

àOptimal internal layout incorporating total separation

between channels

àEnhanced audio design featuring highest quality PCB and

minimal internal wiring

àGain selection switch

àLine-out connections

àHigh power output

àStable down to 4Ω

àDual stereo headphone jacks

àCompact

àStylish

The Perreaux “Silhouette” series takes you even closer to the

elusive goal of “The Perfect Re-Creation of a Musical

Event”.

From all of us at Perreaux Industries Limited, thank you for

choosing the Perreaux Silhouette Series SXH2 Headphone

Amplifier.

iiii

ii Important Safety Instructions

Note: Please read all instructions carefully before attempting to

operate your Perreaux “Silhouette” SXH2 Headphone

Amplifier.

ALWAYS switch off power to your system before attempting to

connect or disconnect cables.

ALWAYS disconnect your system from the mains before

attempting to clean your unit.

ALWAYS keep electrical equipment out of reach of children.

ALWAYS unplug sensitive electronic equipment during

electrical storms.

NEVER disconnect the mains earth from the system.

NEVER operate the SXH2 with the cover removed.

NEVER use any liquid inside the SXH2.

NEVER bypass any fuse.

NEVER attempt to repair the SXH2. In the event of a problem,

please contact your Perreaux dealer.

NEVER expose the SXH2 to extremely high or low

temperatures.

NEVER operate this product in an explosive atmosphere.

iii

iiiiii

iii Table of Contents

iiiIntroducing the Perreaux Silhouette Series .................................... 3

iiii

ii Important Safety Instructions ............................................................. 4

iii

iiiiii

iii Table of Contents .................................................................................. 5

1Unpacking and Placement .................................................................. 6

2Instant Install .......................................................................................... 7

3Front Panel Functions .......................................................................... 9

4Rear Panel Functions ..........................................................................10

5Special Design Philosophies..............................................................12

6Special Design Features .....................................................................14

7Care and Maintenance .......................................................................16

8Warranty Information ........................................................................17

9Extended Warranty Registration Form ..........................................18

1010

10 Troubleshooting Guide ......................................................................19

1111

11 Specifications........................................................................................21

1212

12 Physical Dimensions............................................................................24

1313

13 Contact Details .....................................................................................25

1 Unpacking and Placement

Unpacking

Procedure

The SXH2 is packaged for maximum protection. To open, sit the

box upright and cut the reinforced tape at the top of the box. The

product can now be removed.

Pull the foam protecting end-caps off either side of the unit and

remove the black material covering.

The SXH2 Headphone amplifier is now unpacked and ready for

further installation.

Note: Please retain all packaging material for future transport.

Box

Contents

1 x SXH2 Headphone amplifier

1 x Product manual

3 x Performance analysis charts

1 x Detachable AC power cord

Placing Your

SXH2

The SXH2 should generally be placed close to your source

equipment, thus keeping interconnect cabling between the SXH2

and associated components as short as practical. This will reduce

the systems susceptibility to radio frequency interference and the

negative effects associated with long cables.

Ventilation

Requirements

The SXH2 is a low power amplifier. Ventilation requirements

are not considered an important factor in product placement.

In the event that the SXH2 is to be incorporated into custom

cabinetry, please refer to the dimensional information provided in

the Physical Dimensions section of the manual (Chapter 12).

2 Instant Install

If you are like us, the first thing you will want to do is to play

your favourite piece of music through your new SXH2. The

following instructions are written to enable you to achieve this as

quickly as possible. These are not comprehensive instructions,

but are designed to enable you to play music now!

Note: Please take the time to read the SXH2 manual thoroughly

as it incorporates many features, which will enhance its

operation.

Placement

The SXH2 is a sensitive low power amplifier and best results

will be achieved when placed away from potential interference

from other components and electrical devices, for example AC

mains cords/outlets, transformers, high power amplifiers,

computers, etc.

Place the SXH2 close or near the source component in order to

make as short a connection as possible.

Turn off associated components

This minimises the potential to damage any other components

when connecting your SXH2 into the system.

Connect source to SXH2

Connect the audio output from the source component to the

inputs at the rear of the SXH2. Refer to Chapter 4 for Rear Panel

information.

Connect headphones to SXH2

Connect a set of headphones to one of the jacks on the front

panel. Refer to Chapter 3 for Front Panel information.

Note: Make sure the nominal impedance of the headphones is

not lower than 8Ω.

Switch on SXH2

Insert the power cord supplied into the rear of the SXH2 and into

the wall. Switch on the socket at the wall and turn on the power

of the SXH2 by setting the power switch down.

Caution! Prior to connecting the AC mains, please check the voltage

label on the rear panel to ensure that your unit conforms to

the power supply in your area. Never attempt to connect

the unit to the incorrect voltage.

Switch on source component

Power up your source component and start your favourite

recording. Slowly increase the SXH2 volume to achieve a

comfortable listening level.

CONGRATULATIONS!

Now that you have achieved your first objective, sit back, relax

and please read the rest of the manual at your own pace in your

favourite armchair whilst sipping a hot cup of coffee. You’ll find

the whole experience much more pleasurable whilst listening to

music.

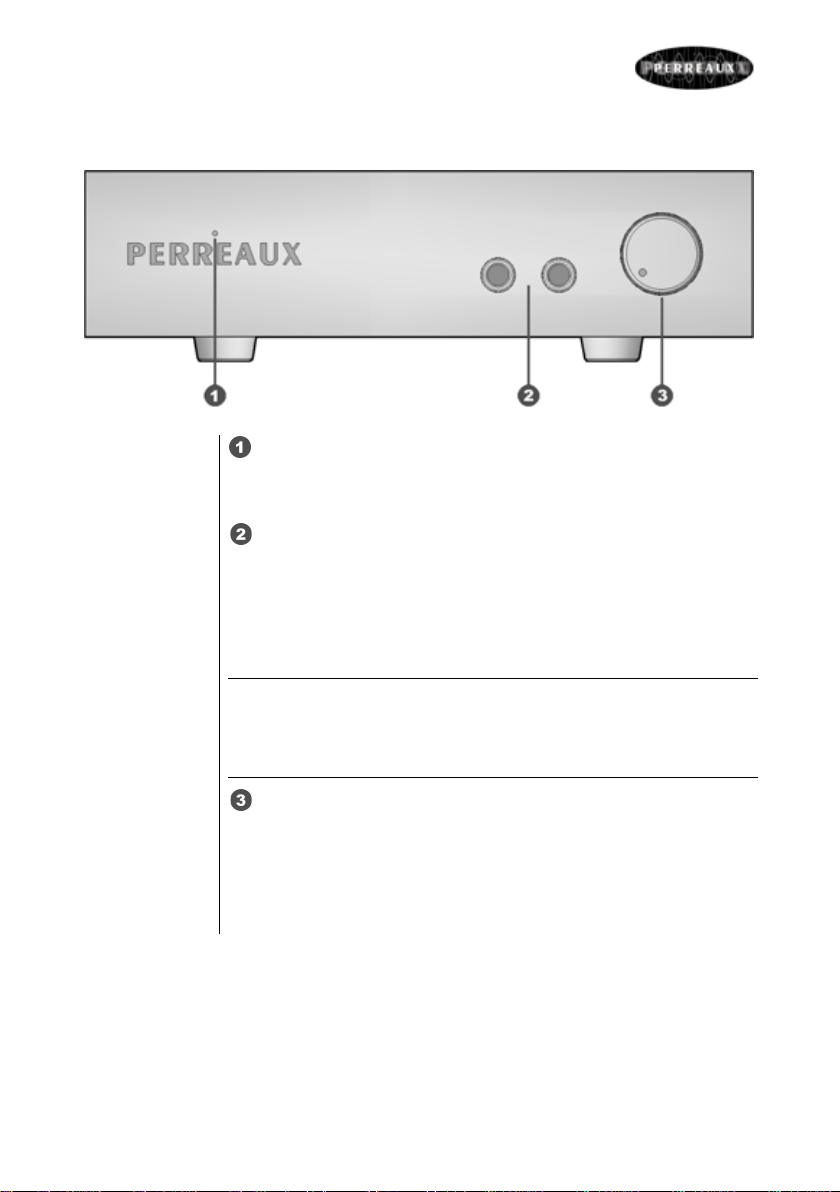

3 Front Panel Functions

Power LED

This blue LED indicates the power status of your SXH2

headphone amplifier.

Headphone Jacks

Two 6.35mm (¼”) stereo headphone jacks are provided,

allowing a second person to enjoy the pure sound offered by the

SXH2. The construction of the jacks makes for effortless,

crackle and pop-free insertion, and will give a lifetime of

continuous contact performance.

Note: Please ensure that the resulting impedance of the two

headphone sets is not below 8Ω. Use the following

equation to calculate the total impedance: RT= (R1* R2) /

(R1+ R2).

Volume Control

The high-quality, machined aluminium knob is the sole user

interface, reminding the user at every touch of the superior build

quality designed into the SXH2. Volume control motion is

smooth and accurate, providing absolute control with near

infinite gain resolution.
