PFAFF® HD screen

3:2

3412 567

Pfaff HD screen

PFAFF® HD screen

Your machine features a PFAFF® HD screen. This

technology provides great resolution and color.

The screen is very easy to work with - just touch it with

your stylus or your ﬁnger tip to make your choices. The

task bar at the bottom of the screen includes the main

functions and help.

Every mode entered will have its own color, to make it

easier to use the machine.

Start view

When turned on, a welcome screen is shown ﬁrst,

then the sewing mode. If the embroidery unit is

connected, the embroidery mode appears. When

turned off, the screen is dark grey.

Main parts

The task bar (A) is used for selecting and activating

different functions. The look of the task bar will

change depending on whether sewing mode or

embroidery mode is active. Change mode by

touching the Sewing/embroidery toggle icon (1).

The task bar will always be located at the bottom of

the screen.

The option bar (B) will be visible in almost every

view, on the right hand side of the screen. The

option bar has different options depending on

which mode is active.

Task bar

Main functions in task bar

1. Sewing/embroidery toggle icon

2. Sequencing/embroidery text editor

3. Stitch Creator

4. Selection menu

5. Settings menu

6. Info menu

7. Quick help

Sequencing/embroidery text editor (2) will open

different windows depending on what mode

is active, and if you are using stitch fonts or

embroidery fonts.

In embroidery mode

8. Embroidery toggle icon

The embroidery toggle icon switches between

embroidery edit and embroidery stitch-out. Since

embroidery edit and embroidery stitch-out are only

available if embroidery mode is active, this icon (8)

will be hidden when sewing mode is active.

Main functions in task bar

Task bar in embroidery mode

3:3

Pfaff HD screen

Use the task bar

Toggle between the sewing mode and the

embroidery mode by using the toggle icon (1).

The icon for the active mode is highlighted and

enlarged.

To activate any function, touch the icon on the task

bar. When a function is activated, the icon will

be selected and you can make your adjustments.

When you are ﬁnished, close the view by touching

the icon again.

When you want to move from embroidery edit to

embroidery stitch-out, just touch the embroidery

toggle icon (8).

Common icons

There are some icons and functions that are

frequently used on the screen. The most common

are described below.

Scroll bar (A)

Use the scroll bar to scroll down the ﬁeld. The

scroll bar is only visible if all items do not ﬁt in the

ﬁeld.

OK (B) and cancel (C)

The OK (B) and cancel (C) icons are used to

conﬁrm your settings and selections. They are also

used to close full screen windows.

To abort an actual process, touch cancel. To

continue, touch OK.

Long touch (D)

Some icons have increased functions, marked

with an arrow at the lower right corner. To access

these functions, touch and hold the icon for a few

seconds.

Touch functions (E)

The touch functions will be used to make

adjustments. There are up to four functions to use;

move (F), rotate (G), scale (H) and pan (I).

When a function is selected, you can make

adjustments by touching the arrows in the wheel,

or by touching your stylus on the screen. The

appearance of the wheel will change depending on

which function is selected. In most cases, the center

icon has a function but when pan is selected, it will

just show the pan symbol.

Embroidery mode - edit

3:4

1a 1b 1c 1d

2a 2b 2c 2d 2e 2f 2g

Pfaff HD screen

Selection menu

The selection menu contains a selection bar at the

bottom with icons for stitches, fonts, designs and

Files & Folders. Read more about Files & Folders in

chapter 10.

Select one of the icons in the selection bar to access

the menus. When a stitch, font or design is selected,

the selection menu will close automatically. To

return to previous view, close by touching cancel.

Selection menu - overview

1. Selection bar

a) Stitches

b) Fonts

c) Designs

d) Files & Folders

2. Stitch categories

a) Utility stitches

b) Quilt stitches

c) Needle art stitches

d) Decorative stitches

e) Maxi stitches

f) Sewing techniques

g) Personal menu

3. Stitch subcategories

4. Stitches

5. Clear personal menu (only visible if personal

menu is selected)

Selecting a stitch

To select a stitch, ﬁrst select a category at the top

(2). For each category, there are one or more

subcategories (3). For each subcategory a list of

stitches is shown (4). Select a stitch by touching it.

Personal menu

To ﬁnd your personal saved stitches, open personal

menu (2g). Each subcategory in the personal

menu has 32 positions to save your own stitches

or sequences. Scroll through the stitches in the

selected subcategory. Select a stitch by touching it.

If you want to delete one stitch, ﬁrst touch the

delete icon (5), and then touch the stitch. The

positon will be emptied. To abort the deletion

before selecting a stitch, deselect the delete icon.

A long touch of the delete icon (5) will empty the

whole subcategory selected.

Note: All stitches in the subcategory will be deleted,

even though they are not visible in the screen.

3:5

Pfaff HD screen

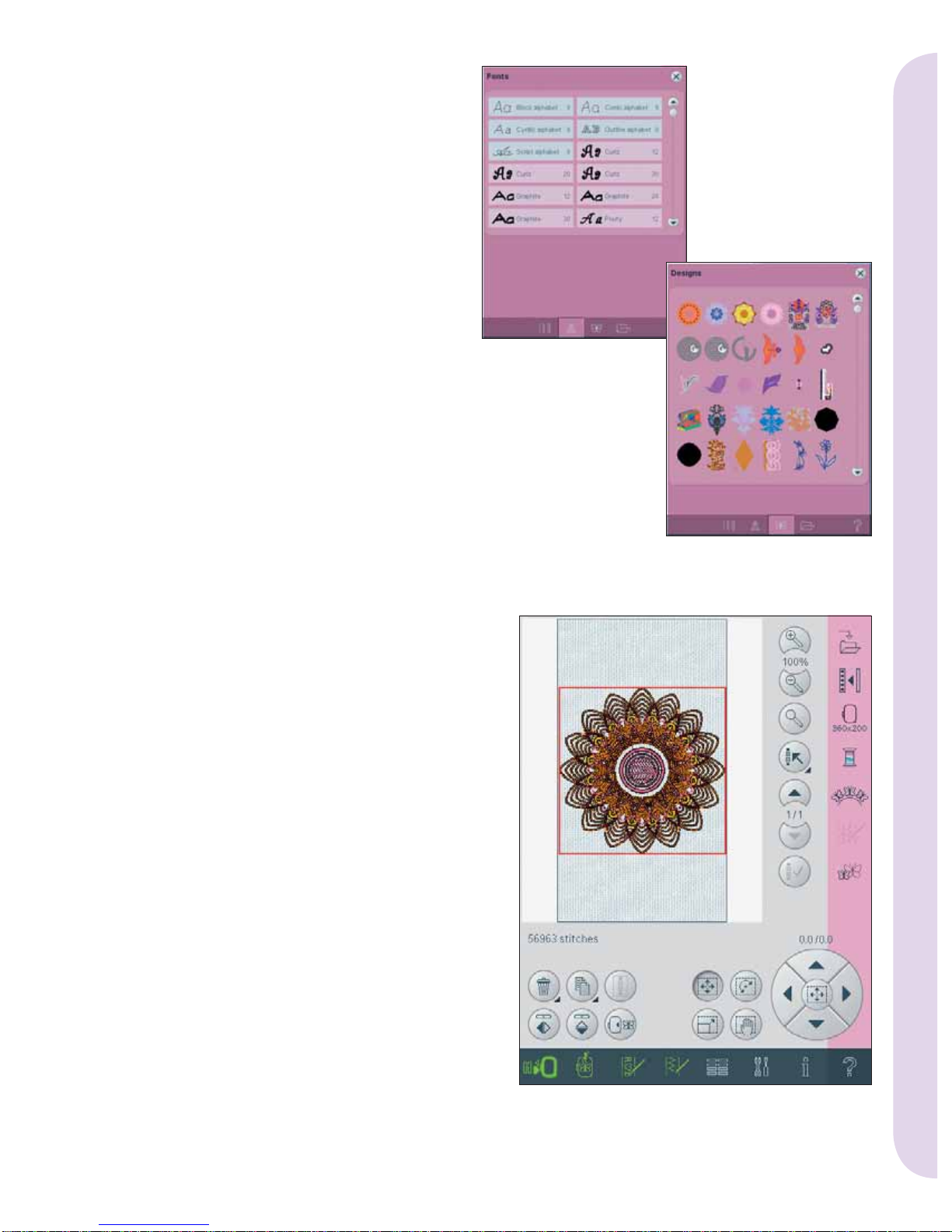

Selecting a font

Stitch fonts are indicated with a grey background

and embroidery fonts have a pink background.

Select a font by touching it. Use the scroll bar to see

additional fonts.

When an embroidery font is selected, the

embroidery text editor will open automatically.

You can select different sizes for each font.

Note: Embroidery fonts are only visible if the embroidery

mode is active and neither sequencing nor Stitch Creator

is active.

Selecting a design

Select an embroidery design by touching it. Use the

scroll bar to browse through additional designs.

Note: When a design is selected, the machine will

automatically switch to embroidery mode and the design

will be loaded into embroidery edit.

Embroidery edit

In embroidery edit you can change colors, size,

shape, position and rotation of your designs. You

can also combine, save, restore and delete. The

designs are shown in 3D in the embroidery ﬁeld.

You can edit your designs with or without the

embroidery unit attached.

3:6

Pfaff HD screen

Embroidery text editor

Used to create or adjust text written by embroidery

fonts.

To open, select an embroidery font in the selection

menu. You can also select an existing text in

embroidery edit and then touch sequencing/

embroidery text editor on the task bar.

Embroidery stitch-out

To embroider your design, change from

embroidery edit to embroidery stitch-out by

touching the embroidery toggle icon on the task

bar.

In embroidery stitch-out you can see functions that

are useful when embroidering.

3:7

Pfaff HD screen

Sequencing

With sequencing you can combine various stitches

and adjust them. You can use built-in stitches,

load stitches from external devices or use stitches

you have created. You can program tie-offs, stops

and thread snips into your sequence. Connection

stitches can be inserted to create endless variations.

Stitch Creator

Stitch Creator allows you to create your own 9mm

stitch or edit built in stitches. Add, delete, move

and adjust your stitch right on screen. Every single

stitch point, marked with an outlined square, can

be edited.

Start with an empty stitch ﬁeld and build your

stitch or insert a stitch for further adjustments.

3:8

ABC

Pfaff HD screen

Settings menu

In the Settings menu, you can override automatic

settings and make manual adjustments to the

machine settings (A), sound settings (B) and screen

and light settings (C).

Touch the icons to activate a function or open a

list of choices. The settings are saved even after

turning off the machine.

Machine settings (A)

Owner’s name

Touch the icon to get a pop-up where you can enter

your name.

Twin needle

Touch the icon to open a list for twin needle width

selections. When a twin needle size is selected, the

width of all stitches is limited for that needle size to

prevent needle breakage. The setting is kept until

you deselect the twin needle width.

When a twin needle size is selected, a pop-up is

shown when turning on your machine. Another

warning pop-up is shown when selecting a stitch

that is too wide for the set twin needle size. The

stitch width of those stitches is automatically

adjusted to ﬁt the twin needle. Deselect twin needle

to go back to normal sewing.

Stitch width safety

Select this function when using a straight stitch

needle plate or a straight stitch presser foot to lock

the center needle position for all stitches to prevent

damage to the needle, presser foot or needle plate.

When turning on the machine with this setting

activated and for every stitch selection that is not

a straight stitch, a pop-up informs you that it is set

to straight stitch. Deselect stitch width safety to go

back to normal sewing.

Note: Twin needle and stitch width safety cannot be

used at the same time.

AutoSave current state

When AutoSave current state is selected, the

machine will save current state periodically

while embroidering and also when you stop

embroidering.

The information about the embroidery will be

saved even after switching the machine off.

Note: If AutoSave current state is selected it can take

longer to go from Embroidery edit to Embroidery stitch-

out.

Pop-up for twin

needle selection.

3:9

ABC

Pfaff HD screen

Cut jump stitches

Your machine features the automatic function

Cut jump stitches. This function saves you time

trimming after the embroidery is completed.

When Cut jump stitches is selected your machine

will trim the top jump stitch thread and pull the

thread end to the underside of the fabric as you

embroider.

Note: Your machine will also cut the thread after you

have changed to a new color. Hold the thread end when

you start embroidering again, so that you can easily

remove the thread end when cut.

Designs marked with this symbol are

programmed for Cut jump stitches. Jump stitch

trim commands can be added to any design

using the 4D™ Organizer Software, included

with your machine.

Timer

Displays the total sewing and embroidery time of

your machine. Touch the icon to reset the timer.

Automatic thread snips

When selected, the automatic thread snips is

activated. The threads are cut automatically and

the presser foot raises at color changes or when

an embroidery is ﬁnished. When deselected, no

automatic thread snips will be performed.

Automatic presser foot lift

When selected, the automatic presser foot lift is

activated. The presser foot will raise to pivot height

for example when stopping with the needle in the

down position. When deselected, the presser foot

will stay lowered even if the machine stops with

the needle in down position.

Defragment machine memory

To optimize the sewing and embroidery

performance you sometimes need to do a

defragmentation. When that needs to be done a

pop-up message appears. To defragment your

machine ﬁrst remove unneccesary ﬁles then go

to the Machine Settings in the Settings menu and

select Defragment machine memory.

The defragmentation can take up to 45 minutes.

3:10

ABC

Pop-up for set

presser foot height in

Sensormatic free-

motion.

Pfaff HD screen

Sensormatic free-motion

Activate to set the machine in Sensormatic free-

motion mode for presser foot 6A. The feed dogs

will lower automatically.

When sewing free-motion at low speed the presser

foot will raise and lower with each stitch to hold

the fabric on the needle plate while the stitch is

being formed. At higher speed, the presser foot

ﬂoats over the fabric while sewing. The fabric must

be moved manually.

To adjust the presser foot height in Sensormatic

free-motion mode, long touch the icon (D) and

make adjustments in the pop-up.

Note: Make sure that the IDT is disengaged.

Spring foot free-motion

Activate to set the machine in Spring foot

free-motion mode. The feed dogs will lower

automatically. A spring foot will raise and lower

with each stitch to hold the fabric on the needle

plate while the stitch is being formed.

Note: Make sure that the IDT is disengaged.

The open-toe free-motion feet are optional and can be

purchased at your local authorized PFAFF® dealer. Do

not use if Sensormatic free-motion is activated, since the

needle might damage the presser foot.

The open-toe free-motion feet, or any spring foot

with light grey plastic housing, can also be used for

embroidery.

Presser foot pressure (E)

In most cases, you do not need to adjust the presser

foot pressure. Specialty techniques may require

an adjustment. The higher the number the more

pressure on the fabric.

Presser foot height embroidery (F)

Adjust the height of the presser foot in embroidery

stitch-out mode.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Pfaff Nähmaschine Handbücher

Pfaff

Pfaff hobbylock 2.5 Bedienungsanleitung

Pfaff

Pfaff QUILT EXPRESSION 4.0 Bedienungsanleitung

Pfaff

Pfaff Tipmatic 1014 Bedienungsanleitung

Pfaff

Pfaff 461 Bedienungsanleitung

Pfaff

Pfaff Coverstyle Bedienungsanleitung

Pfaff

Pfaff Select 3.0 Bedienungsanleitung

Pfaff

Pfaff Punching Machine Hobby 350p Bedienungsanleitung

Pfaff

Pfaff CREATIVE 4.0 - Kurzanleitung

Pfaff

Pfaff hobbylock 4760 Bedienungsanleitung

Pfaff

Pfaff creative 7560 Bedienungsanleitung

Pfaff

Pfaff Powerline 2545 Leitfaden

Pfaff

Pfaff 900/51 Bedienungsanleitung

Pfaff

Pfaff hobby 350 Bedienungsanleitung

Pfaff

Pfaff 571 Bedienungsanleitung

Pfaff

Pfaff 487 Bedienungsanleitung

Pfaff

Pfaff Creative Vision Bedienungsanleitung

Pfaff

Pfaff hobbylock 4762 Bedienungsanleitung

Pfaff

Pfaff 5489 Bedienungsanleitung

Pfaff

Pfaff fashion Bedienungsanleitung

Pfaff

Pfaff EXPRESSION 2038 - Bedienungsanleitung

Pfaff

Pfaff Automatic 260 Bedienungsanleitung

Pfaff

Pfaff 9063 Bedienungsanleitung

Pfaff

Pfaff 481 A Bedienungsanleitung

Pfaff

Pfaff 1211 Bedienungsanleitung

Beliebte Nähmaschine Handbücher anderer Marken

Riccar

Riccar RL634DE Bedienungsanleitung

Singer

Singer 2517 Bedienungsanleitung

Janome

Janome Quilt Maker Pro 18 VERSA Bedienungsanleitung

Siruba

Siruba C007JP Bedienungsanleitung

Husqvarna Viking

Husqvarna Viking Designer SE Bedienungsanleitung

Singer

Singer 148-5 Bedienungsanleitung

IKEA

IKEA SY Bedienungsanleitung

Singer

Singer 15-91 Bedienungsanleitung

Brother

Brother BB370 Bedienungsanleitung

Pegasus

Pegasus WT100 Series Bedienungsanleitung

Reliable

Reliable 7100DB Bedienungsanleitung

Singer

Singer 6038 Bedienungsanleitung

Singer

Singer 413K Bedienungsanleitung

Kenmore

Kenmore 16677 - Serger Sewing Machine Bedienungsanleitung

HIGHLEAD

HIGHLEAD GC2008-M Bedienungsanleitung

Singer

Singer 400W4 Bedienungsanleitung

Singer

Singer Quantum XL-100 Bedienungsanleitung

Singer

Singer 85-10 Bedienungsanleitung
