PheeNet WLn-301 Bedienungsanleitung
802.11n Wireless
USB Adapter
Quick Installation Guide WLn-301
Ver : 1.0
Package Contents .......................................................................... Page 1
Network Card Installation ........................................................... Page 2
Connect to Wireless Access Point.................................................. Page 4
Package Contents
Before you starting to use this USB wireless network card, please check if there’s anything missing
in the package, and contact your dealer of purchase to claim for missing items:
□ USB Wireless Network Card .…………………………………………………… 1
□ Quick installation guide (1 pcs) ………………………………………………… 2
□ User manual / device driver CDROM (1 pcs) …………….…………………….. 3
Network Card Installation
Please follow the following instructions to install your new USB wireless network card:

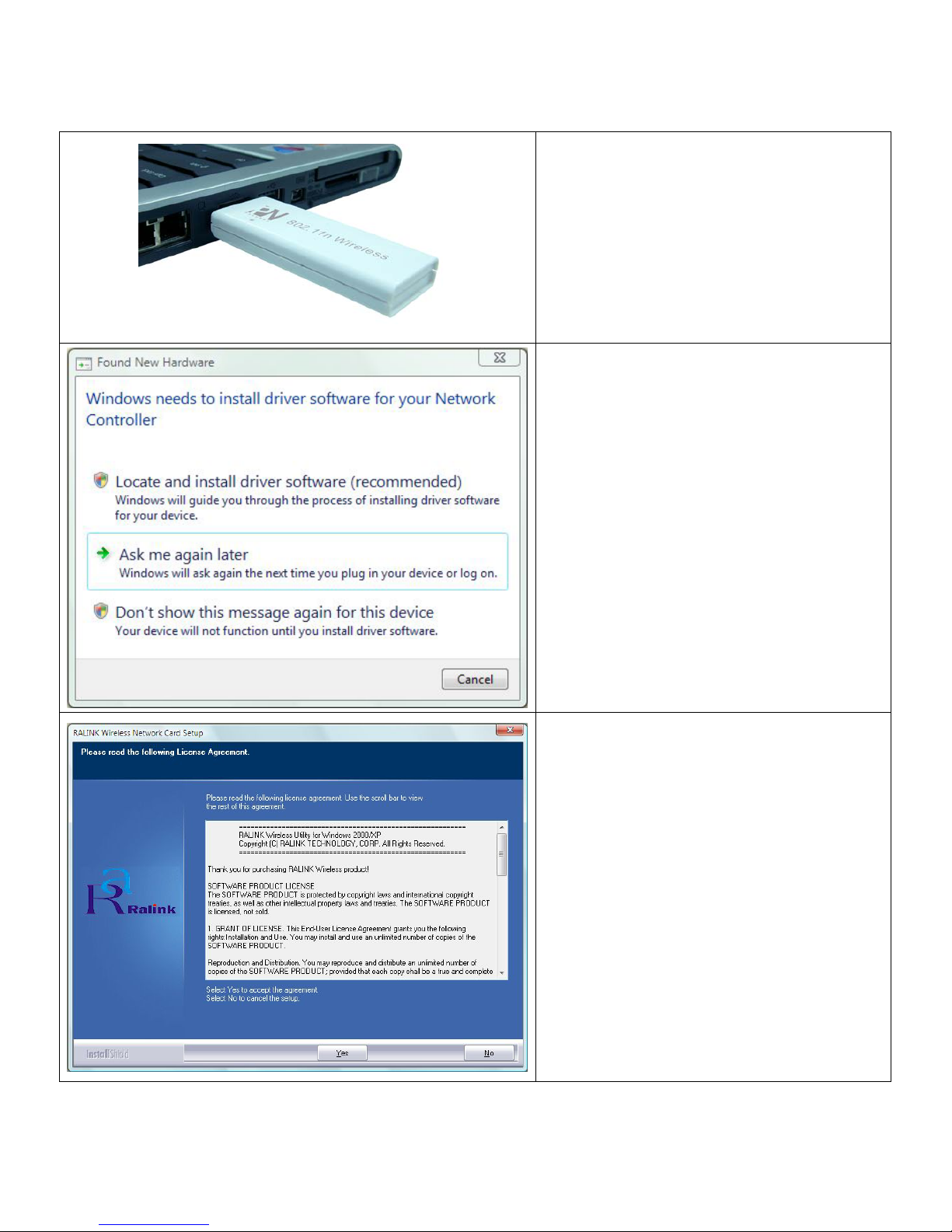

1. Please insert the wireless network card
into an available USB 2.0 port of your
computer. You can insert the card when
the computer is power off or on.
2. The following message will appear on
your computer, click ‘Don’t show this
message again for this device’.
3, Insert device driver CDOM into the
CD/DVD ROM drive of your computer,
and execute ‘Setup.exe’ program in
‘Driver’ folder.
Please select ‘Allow’ if Windows
indicates that ‘an unidentified program
wants access to your computer’.
4. Please read the end user license
agreement and click ‘Yes’ to accept
license agreement.
5. Please select ‘Optimize for WiFi
mode’ for wireless compatibility, then
click ‘Next>’. If you want to enhance
wireless performance, please select
‘Optimize for performance mode’.
However, wireless compatibility is not
guaranteed when you use this mode.
Please refer to user manual for details of
performance mode.
If you see ‘Found New Hardware’
message again, please ignore it and
wait.
6. When you see this message, please
click ‘Finish’ to complete the driver
installation process.
Connect to Wireless Access Point
Using Configuration Utility to Connect to Wireless Access Point
1. After installation is complete, wireless
configuration utility will be shown as an
icon at the lower-right corner of your
windows desktop. Please click the icon by
right mouse key, and select ‘Launch
Config Utilities’.
2. Configuration utility will scan for
wireless access points automatically, and
all found access points will be displayed.
Please select an access point you wish to
connect, and click ‘Connect’.
If the wireless access point you want to
connect does not show here, please click
‘Rescan’
3. You’ll be prompted to input the SSID
(the name of wireless access point) if the
SSID of the access point you want to
connect is hidden, then click ‘OK’.
The SSID you input here must be identical
to the SSID setting of the wireless access
point you want to connect.
4. If the wireless access point uses
encryption, you have to input WEP
passphrase or WPA preshared key. Please
ask the owner of the wireless access point
you want to connect, and input the correct
passphrase / preshared key here, then click
‘OK’. If the value you inputted here is
wrong, you will not be able to connect to
wireless access point.
Authentication type is selected
automatically, please don’t change it.
5. If the wireless access point is
successfully connected, you’ll see a
‘Connected’ message displayed at the
lower-left corner of wireless configuration
utility window. Click ‘OK’ to exit.
For advanced settings and other features of this USB wireless network card, please refer to user
manual enclosed in supplied CD-ROM.
