Philips 2000 PURO/VAPORE Bedienungsanleitung

Coffee Machine

Service

ServiceManual

Rev. 01 August. 2015

All parts of this document are the property of Saeco International Group.

collected, except where express authorisation has been provided in writing or through a contractual agreement.

Published by Saeco International Group Subject to modication

Philips 2000 PURO/VAPORE

28/05/2015

EN 4219 400 00030

General Information

Description Value

Housing material Plastic

Size (w x h x d) 295mm x 325mm x 420mm

Weight 6.9 kg (data may vary depending on the model)

Power Cord length 0.8m -1.2m

Control panel Front type

Cup size Up to 95mm

Water tank 1000ml

Coffee bean hopper capacity 200g (Puro) 170g (Vapore)

Coffee grounds drawer capacity 8

Pump pressure 15 bar

Boiler Stainless steel

Safety devices Thermal fuse

Power rating Inside of maintenance door

Nominal voltage Inside of maintenance door

4. Operating logic

4.1. Water circuit 1

4.2. Control ringnut and valve 3

4.3. Coee cycle operating diagram 4

4.4. Single microswitch 5

4.5. Temperature sensor 5

4.6. Coee grinder function 6

4.7. Low bean level detection, dose quantity adjustment,

coee grinder blocked

4.8. Dose self-learning (SAS) 7

4.9. Water lter 7

5. Troubleshooting

5.1. Test Mode PHI 2000 Puro 1

5.2. Test Mode PHI 2000 Vapore 7

5.3. Steam out PHI 2000 Puro 13

5.4. Steam out PHI 2000 Vapore 14

6. Service and maintenance

6.1. Repair Flow 1

Table of contents Page

History (Modications to service manual)

1. Introduction

1.1. Documentation required 1

1.2. Tools and resources 1

1.3. Material 1

1.4. Safety warnings 1

1.5. Service Policy 3

1.6.1. External machine parts (Puro) 4

1.6.2. External machine parts (Vapore) 5

1.6.3. Internal machine parts 6

2. Technical specications

2.1. Technical specications 1

2.2. Machine parameters and performance 1

2.3. Specication for the measurement of the coee products

temperature

2.3.1. Specication for the measurement of the Milk products

temperature.

2.4. Machine parameters and performance 5

3. User instructions

3.1. Customer menu PHI 2000 Puro 1

3.2. Customer menu PHI 2000 Vapore 5

3.3. Operation, cleaning and maintenance 9

Table of contents Page

History (Modications to service manual)

7. Disassembly

7.1. Outer Shell 1

7.2. KYB interface 2

7.3. e control knob and coee keys 2

7.4. e boiler pin 3

7.5. Gearmotor 4

7.6. e boiler 5

7.7. e ow selector fauced 5

7.8. e pump and turbine 6

7.9 e coee grinder 6

7.10. Grinder adjustment/assembly and disassembly 7

7.11. OETIKER clamps assembly and disassembly 8

8. Notes

9. Water circuit diagram

9.1. Water circuit diagram Puro 1

9.2. Water circuit diagram Vapore 2

10. Electrical diagram

10.1. Electrical diagram PHI 2000 Puro/Vapore 1

MODIFICATIONS TO SERVICE MANUAL

From Rev. To R e v. Chapter Inserted Modied

Rev.00 Rev01

01 Par. 1.4. Safety warnings

02 Par. 2.4 Descaling cycle frequency Par. 2.2.2 Specication for the measure-

ment of the Milk products temperature.

04 Par. 4.9. Water lter

06 Par. 6.1 Repair Flow

CHAPTER 1

INTRODUCTION

PHI 2000 PURO/VAPORE 01 INTRODUCTION

1/6

1.1 Documentation required

The following documentation is needed for repair procedures:

• Instruction booklet for specic model

• Technical documentation for specic model (diagrams, exploded view, sympton cure and service

manual)

1.2 Tools and resources

As well as the standard equipment, the following is required:

Qty. Description Notes

1 Screwdriver Torx T 10

1 Pliers for Oetiker clamps

1 CC -A - Vdc tester

1 Digital thermometer Scale limit > 150°C

1 SSC (Saeco Service Center) Programmer

1.3 Material

Description Notes

Thermal paste Heating element > 200°C

Descaler Saeco Entkalker

Grease solvent Personal preference

Silicone grease Safe to use with food

1.4 Safety warnings

We recommend you consult the technical manual of the machine before performing any mainte-

nance work.

Observe all applicable standards relating to the repair of electrical appliances.

Always disconnect the power plug from the mains before beginning repair work.

PHI 2000 PURO/VAPORE 01 INTRODUCTION

2/6

Disassembling the machine, the operator must pay attention to hot and under

Pressure parts: boiler, pin-boiler, valves, dispensing, steam tube, brew unit,

connections and pipes to avoid burns. Please refer to specic hydraulic circuit

(Image1) to know the parts in detail.

The machine hydraulic circuit can reach maximum pressure of 16/18 bar.

To operate in safety condition is recommended to perform the Steam Out procedure in

order to remove the pressure and hot water inside the hydraulic circuit.

When the machine arrives at the Service Center in descaling mode interrupted, or making Descal-

ing , be very careful not to come into contact with the Descaler.

After the product has been repaired, it should function properly and has to meet the safety re-

quirements and legal regulations as ofcially laid down at this moment

Simply turning off the main machine power switch is not an adequate safety precaution.

This domestic appliance is rated as insulation class I.

On completion of the repair work, insulation and dielectric rigidity tests must be

performed.

Pump

Safety valve

Water

discharge

Steam pipe

ter tank

Two-way solenoid valve

Brewing Unit

Flowmeter

Boiler

Water

Hot water /steam

From this point circuit

High temperaure

From this point circuit

in pressure

Flowmeter

Steam and hot water

Two-way solenoid valve

Pump

Brewing Unit

Boiler

Safety valve

Water

discharge

Water tank

Image 1

PHI 2000 PURO/VAPORE 01 INTRODUCTION

3/6

Components Assembly use Single components available

COFFEE

GRINDER Only for OOW repairs YES, to consult the specic exploded-view of the

machine or of the Coffee Grinder on website

BREWING

UNIT Only for OOW repairs YES, to consult the specic exploded-view of the

machine or of the Brewing unit on website

BOILER Only for OOW repairs YES, to consult the specic exploded-view of the

machine on website

GEAR

MOTOR Only for OOW repairs YES, to consult the specic exploded-view of the

machine on website

FILTER

HOLDER Only for OOW repairs YES, to consult the specic exploded-view of the

machine on website

MILK

CARAFE Only for OOW repairs YES, to consult the specic exploded-view of the

machine on website

THERMAL

CARAFE Only for OOW repairs YES, to consult the specic exploded-view of the

Thermal Carafe on website

MILK ISLAND Only for OOW repairs YES, to consult the specic exploded-view of the

Milk Island on website

List of principal assembly present in all our coffee machines

1.5 Service POLICY grid as used for coffee machines

For IN WARRANTY repairs is mandatory to use the single components (not the assembly) avail-

able in the exploded views of the coffee machines or of the specic components. If you nd the

information “SEE THE EXPLODED VIEW E........” in the assembly description eld, it means that

the single components of the assembly are available in the other pages of the exploded view. It’s

possible to use the assembly only if there is a specic Symptom Cure that include this possibility

or when the single components are not available for the order.

PHI 2000 PURO/VAPORE 01 INTRODUCTION

4/6

1.6.1 External machine parts (Puro)

1 Control panel

2 Espresso button

3 Descaling light

4 Warning light

5 2-cup light

6 ’Water tank empty’ light

7 On/off button with light

8 Water tank

9 Coffee spout

10 Drip tray cover

11 ’Drip tray full’ indicator

12 Drip tray

13 Coffee grounds container

14 Brewing unit

15 Maintenance door

16 Grinding degree adjustment

knob

17 Ceramic coffee grinder

18 Coffee bean container

19 Grinding degree adjustment

tool

20 Lid of coffee bean container

21 Mains cord

12 13 14

21 20

PHI 2000 PURO/VAPORE 01 INTRODUCTION

5/6

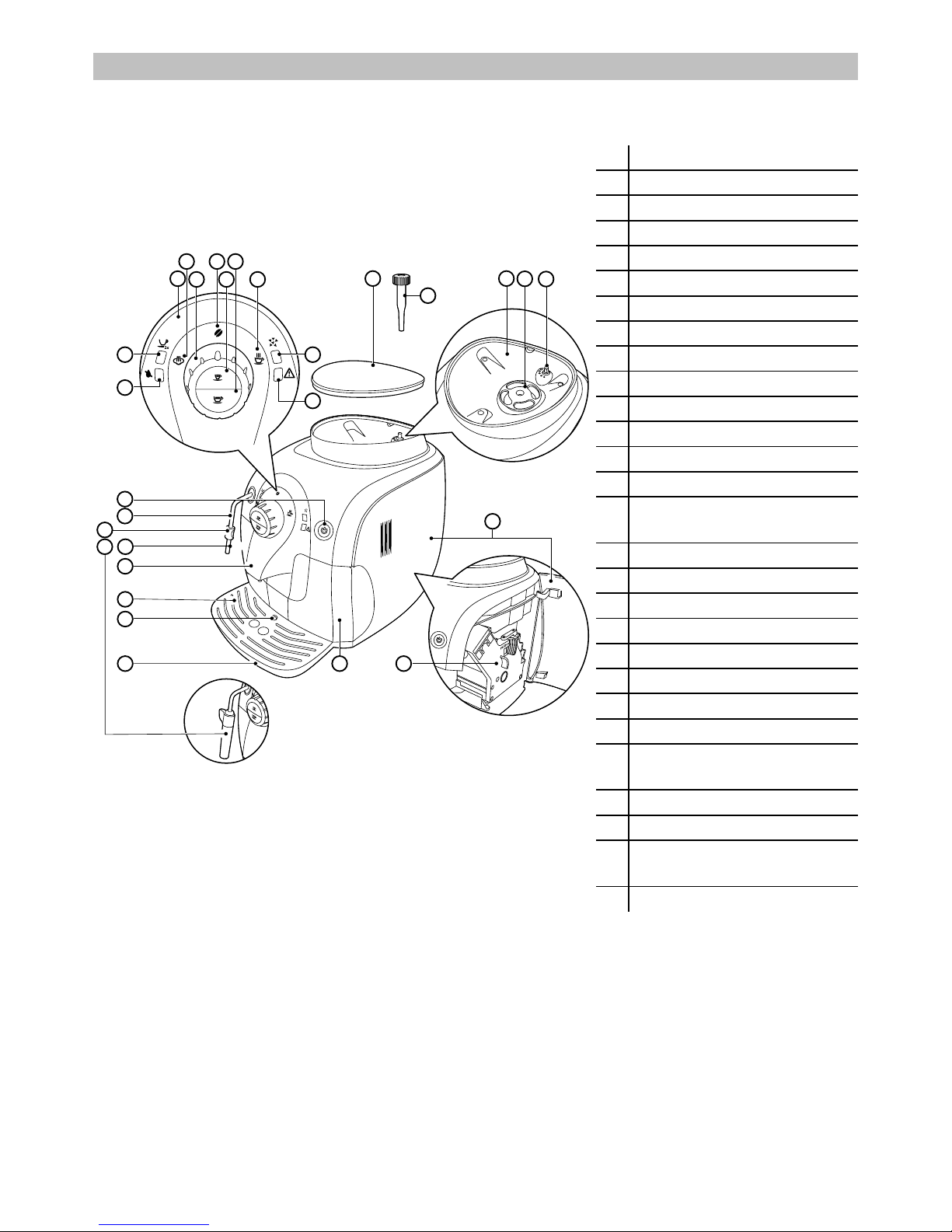

1.6.2 External machine parts (Vapore)

1 Control panel

2 Steam icon

3 Control dial

4 Coffee bean icon

5 Espresso button

6 Regular coffee button

7 Hot water icon

8 Descaling light

9 Warning light

10 2-cup light

11 ’Water tank empty’ light

12 On/off button with light

13 Hot water/steam wand

14 Protective handle

15 classic milk frother (specic

types only)

16 Water tank

17 Coffee spout

18 Drip tray cover

19 ’Drip tray full’ indicator

20 Drip tray

21 Coffee grounds container

22 Brewing unit

23 Maintenance door

24 Grinding degree adjustment

knob

25 Ceramic coffee grinder

26 Coffee bean container

27 Grinding degree adjustment

tool

28 Lid of coffee bean container

20 21 22

2628

PHI 2000 PURO/VAPORE 01 INTRODUCTION

6/6

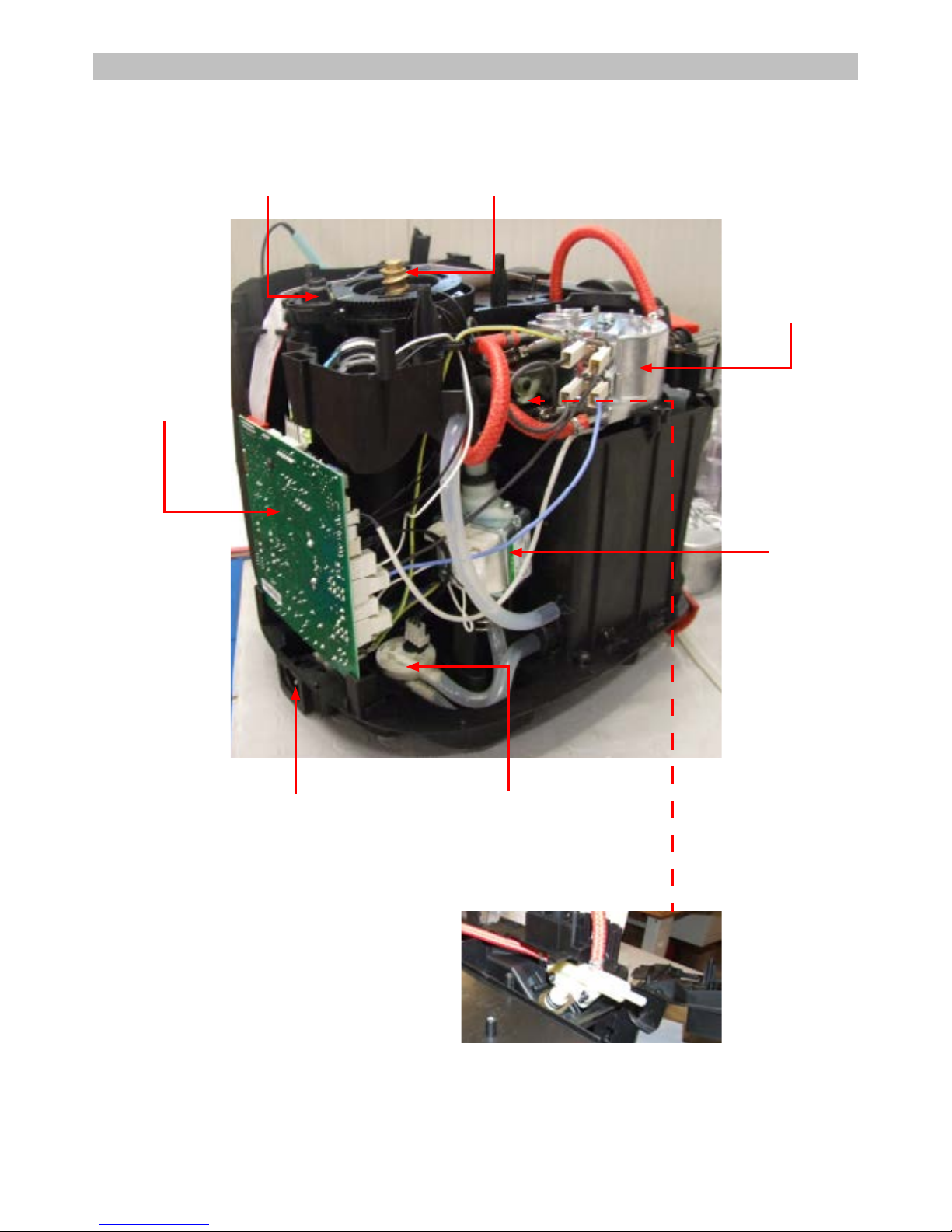

1.6.3 Internal machine parts

Turbine

Pump

PW/CPU P.C.B.

Power cable connector

Valve

Coffee grinder motor

Boiler

Coffee grinder
