Information for users in the UK

(Not applicable outside the UK)

Positioning the TV

For the best results, choose a position where light does not fall directly on the screen, and at some

distance away from radiators or other sources of heat. Leave a space of at least 5 cm all around

the TV for ventilation, making sure that curtains, cupboards etc. cannot obstruct the air flow

through the ventilation apertures.

The TV is intended for use in a domestic environment only and should never be operated or

stored in excessively hot or humid atmospheres.

General Points

Please take note of the section 'Tips' at the end of this booklet.

Interference

The Department of Trade and Industry operates a Radio Interference Investigation Service to help

TV license holders improve reception of BBC and IBA programmes where they are being spoilt by

interference.

If your dealer cannot help, ask at a main Post Office for the booklet "How to improve Television

and Radio Reception".

Mains connection

Before connecting the TV to the mains, check that the mains supply voltage corresponds to the

voltage printed on the type plate on the rear panel of the TV. If the mains voltage is different, con-

sult your dealer.

Important

This apparatus is fitted with an approved moulded 13 Amp plug.

To change a fuse in this type of plug proceed as follows :

1. Remove fuse cover and fuse.

2. Fit new fuse which should be a BS1362 5A,A.S.T.A. or BSI approved type.

3. Refit the fuse cover.

In order to maintain conformity to the EMC directive, the mains plug on this product must not be

removed.

Connecting the aerial

The aerial should be connected to the socket marked x at the back of the set. An inferior aerial is

likely to result in a poor, perhaps unstable picture with ghost images and lack of contrast. Make-

shift or set-top aerials are unlikely to give adequate results.

Your dealer will know from experience the most suitable type for your locality.

Should you wish to use the set in conjunction with other equipment, which connects to the aerial

socket such as TV games, or a video camera, it is recommended that you consult your dealer on

the best method of connection.

Stand (if provided)

Use only the stand provided with the set, making sure that the fixings are properly tightened.A dia-

gram showing how to assemble the stand is packed with the stand. Never use a make-shift stand, or

legs fixed with woodscrews.

cover 2194.1 24-03-2003 13:47 Pagina 2

Contents

Preparation ...................................................................................... 2

Keys on top of the TV ................................................................... 2

Your remote control .................................................................. 3-4

To use the menus ........................................................................... 5

Select the menu language and country ..................................... 5

Store TV channels .......................................................................... 6

Automatic installation ............................................................6

Manual installation................................................................... 6

Give name ................................................................................. 7

Reshuffle the programme list................................................. 7

Select favourite TV channels ................................................. 7

TV setup menu ............................................................................... 7

Speakers .................................................................................... 8

General ................................................................................ 9-10

Source ...................................................................................... 10

Decoder .................................................................................. 10

Demo .............................................................................................. 10

Installation

TV menu

Picture menu .......................................................................... 11

Sound menu ........................................................................... 12

Features menu ....................................................................... 13

Dual screen / PIP / Multipip .................................................. 14-15

NEXTVIEW/Teletext guide ...................................................... 15-17

Teletext ..................................................................................... 18-19

Connect peripheral equipment

Connecting and selecting equipment .................................20-21

Audio and Video equipment keys ............................................. 22

Tips ................................................................................................ 23

Operation

EasyLink features are based on the “one touch operation” approach.

This means that a sequence of actions are executed at the same

time in both the television and the video cassette recorder, provided

both are fitted with the EasyLink function and connected with the

eurocable supplied with your video recorder.

REnd of life directives

Philips is paying a lot of attention to

producing environmentally-friendly in

green focal areas.Your new TV contains

materials which can be recycled and

reused. At the end of its life specialised

companies can dismantle the

discarded TV to concentrate the

reusable materials and to minimise

the amount of materials to be

disposed of.

Please ensure you dispose of your old

TV according to local regulations.

Help?

If this instruction manual does

not give an answer or if ‘Tips’ do

not solve your TV problem, you

can call your Local Philips

Customer or Service Centre. See

the supplied World-wide

guarantee booklet.

Please, have the Model and

Product number which you can

find at the back of your

television set or on the

packaging, ready, before calling

the Philips helpline.

Model: 28/32/36PW9528

Product No: AG ....................................

English

2194.1 gb 24-03-2003 13:53 Pagina 1

&Place the TV on a solid surface.

! 28PW9528: 41 kg; 32PW9528: 59 kg;

36PW9528: 79 kg !

For ventilation, leave at least 5 cm free all

around the TV. Do not place the TV on a

carpet.To prevent any unsafe situations, do not

place any objects on top of the TV. Avoid heat,

direct sunlight and exposure to rain or water.

éInsert the aerial plug firmly into the aerial

socket xat the back of the TV. For best

picture quality use the suppressor-aerial cable

supplied.

“Insert the mains plug of the TV in the wall

socket having a mains voltage of 220V-240V.

Preparation

min.

‘Remote control:Insert the 2 batteries

supplied (Type R6-1,5V).

The batteries supplied do not contain the

heavy metals mercury and cadmium. Please

check on how to dispose of exhausted

batteries according to local regulations.

(Switch the TV on :Press the power switch A

on the front of your TV.

An indicator on the front of the TV lights up

and the screen comes on.

If the TV is in standby mode (red indicator),

press the -P+ keys on the remote control.

Keys on top of the TV

MENU/OK

Should your remote be lost or broken you can still

change some of the basic settings with the keys on

top of your TV.

Press:

•the V- or + key to adjust the volume;

•the -P+ keys to select the TV channels or

sources.

The Mkey can be used to summon the main menu

without the remote control.

Use:

•the V- and + keys and the P- and P+ keys to

select menu items in the directions as shown;

•the Mkey to confirm your selection.

Note:

When activated via the Mkey on top of the TV, only

Exit lets you dismiss the menu.

Navigate to Exit and press the Mkey.

Setup

Demo

Install

Exit

Picture Sound Features

2194.1 gb 24-03-2003 13:53 Pagina 2

Select

VCR DVD SAT AMP CD

123

456

789

‡π

†

Active Control

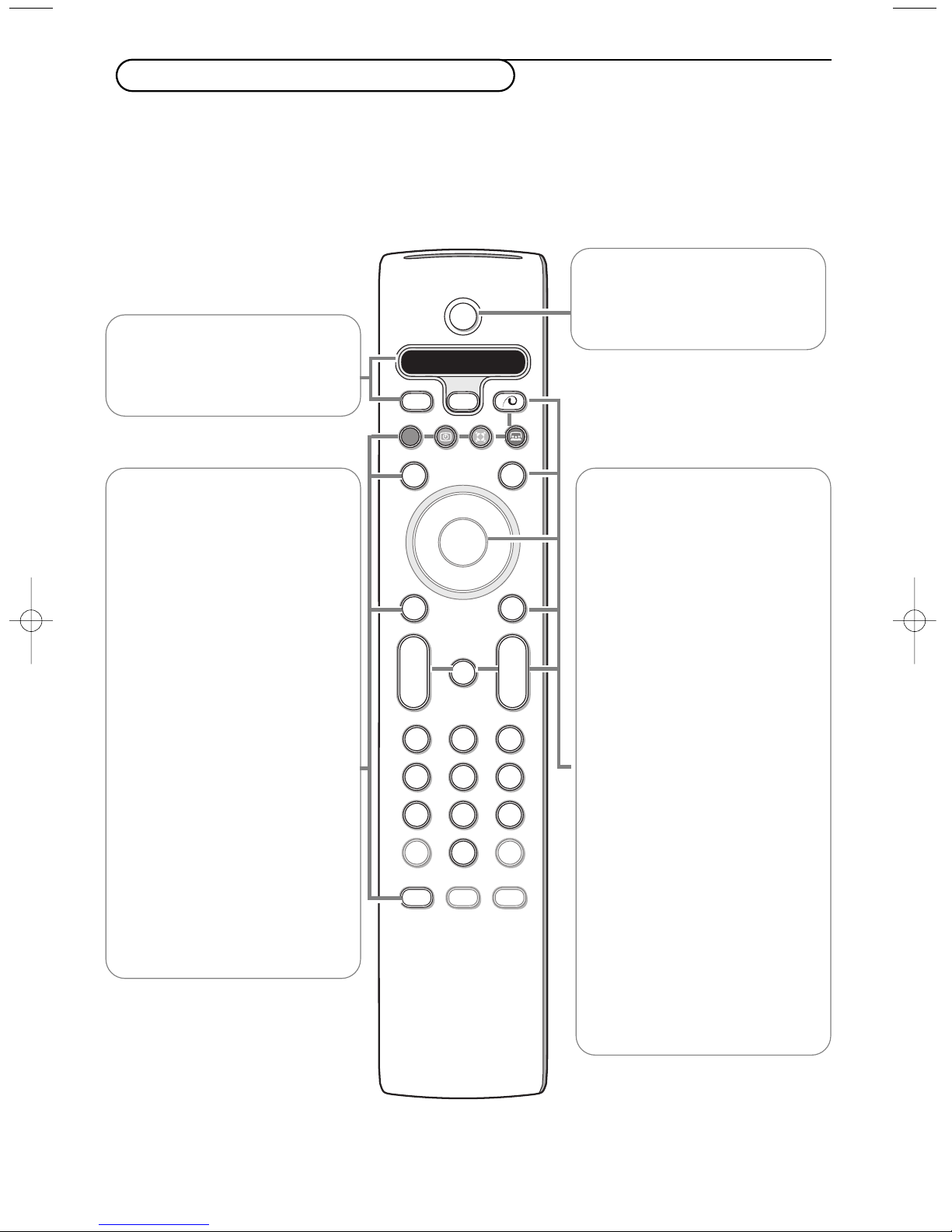

Use of the remote control RC4301

BStandby

Press to switch the TV on or off.

When switched off, a red indicator

on the TV lights up.

®Ò‡π†

Audio- and Video equipment keys

(p. 22)

®Instant record

See Record with your recorder

with EasyLink, p. 22.

UTime display

The time is displayed on the

screen.

QSurround mode

Press this key repeatedly to select

another available surround mode.

ÌCinema Go

See separate Cinema Link booklet

supplied.

æNEXTVIEW on/off p. 16

Press bto show NEXTVIEW/

Teletext Guide on the right half

of the screen.

SFreeze/Replay/Photo finish

To freeze the picture.

See also p. 9.

VCR DVD SAT AMP CD

Audio- and Video equipment keys,

(p. 22)

vSelect peripherals (p. 21)

xPixel Plus demo on/off

In the right part Pixel Plus and

Digital Natural Motion are

switched on.

bTeletext on/off see p. 18

Press the bkey to show

teletext on the right half of the

screen.

OK Press this key

• to activate your choice, when in

the menus.

• to display the programme list.

MENU Main menu on/off see p. 5

VTo adjust the volume.

¬Interrupt the sound or restore it.

PProgramme selection

To browse through the TV

channels and sources stored in

the favourite list.

0/9 Digit keys

To select a TV channel.

For a two digit programme

number, enter the second digit

before the dash disappears.To

switch immediately to a selected

one digit TV channel, keep the

digit key pressed a bit longer.

Note: For most keys pressing a key once will activate the function. Pressing a second time will de-activate it.

When a key enables multiple options, a small list will be shown. Press repeatedly to select the next item in the list.

The list will be removed automatically after 4 seconds or press OK to remove immediately.

2194.1 gb 24-03-2003 13:53 Pagina 3

Select

VCR DVD SAT AMP CD

123

456

789

‡π

†

Active Control

iOn Screen information

Press to display information about the selected TV channel and

programme.

Menu/Remote control info

When a menu is on screen, press ito display info on the selected menu

item. For information on the remote control functions, while the menu

info is displayed, press any key on the remote control.

The normal function of the key is not executed.

0Smart surf / NEXTVIEW themes

With this key you can easily switch between 2 up to 9 different TV

channels or sources or quickly select TV programmes if NEXTVIEW with

defined themes is broadcast. See General, Smart surf, p. 9.

Press the OK key or wait for the time out to dismiss the Smart surf

display.

bDual screen / PIP / Multipip

See p. 9 and p. 14.

hActive control see p. 11.

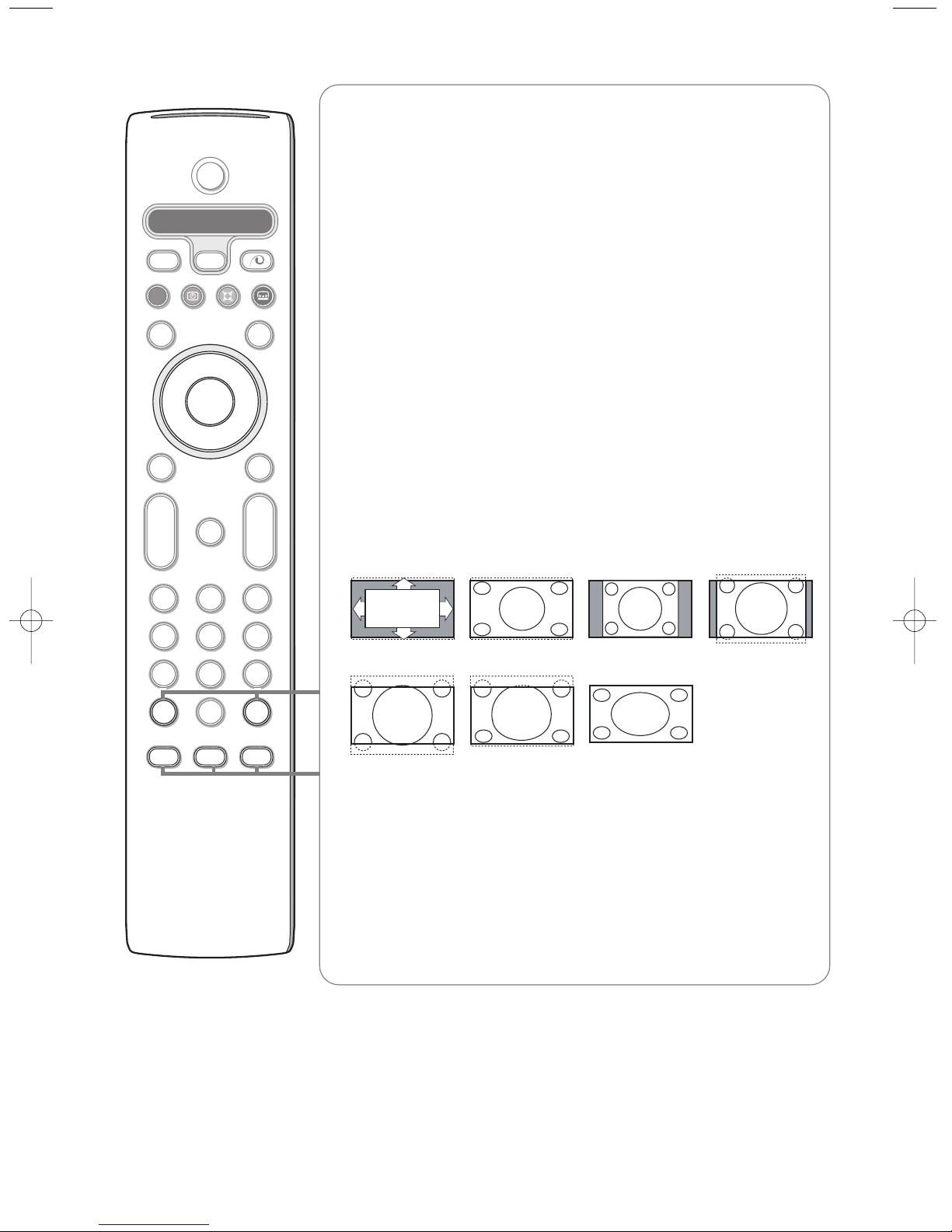

qPicture format

Press this key repeatedly or press the cursor up/down to select another

picture format:Auto format, Super zoom, 4:3, Movie Expand 14:9, Movie

Expand 16:9, Subtitle zoom or Wide screen.

Auto format makes the picture fill the screen as much as possible.

In case of subtitles in the bottom black bar,Auto format makes the

subtitles visible. If subtitles are only partly visible, press cursor up.

In case of a broadcaster logo in the corner of the top black bar, the logo

disappears from the screen.

Super zoom removes the black bars on the sides of 4:3 programs with

minimal distortion.

When in Movie Expand 14:9, 16:9, Super zoom or Subtitle zoom picture

format, you can make subtitles visible with the cursor up/down.

Super zoomAuto format 4:3 Movie Expand 14:9

Movie Expand 16:9 Subtitle zoom Wide screen

2194.1 gb 24-03-2003 13:53 Pagina 4

To use the menus

&Press the MENU key on the remote control to summon the

main menu.At any moment you can exit the menu by

pressing the menu key again.

Note: If you have connected equipment with Cinema Link, more

menu items are present.

éUse the cursor in the up/down direction to select the TV,

Setup,Demo or Install menu.

Use the cursor left/right to select Picture,Sound or

Features.

Note: Sometimes not all the menu items are visible on the screen

(indicated by a cluster of blue balls). Use the cursor down or right

to reveal all items.

“Use the cursor in the left/right direction to select the menu

item.

‘Use the cursor up/down again to select the control you

want to select or to adjust.

Note: Items temporary not available or not relevant are displayed

in a light grey colour and cannot be selected.

vSelect

VCR DVD SAT AMP CD

‡π

†

cursor to select

adjustments

OK key to

activate

return or switch

main menu on/off

Installation

&Press the MENU key on the remote control.

éUse the cursor down to select Install.

“Use the cursor right to select Language.

Follow the instructions on screen.

‘Use the cursor up/down to select your preferred language

and press the OK key to confirm your selection.

(Use the cursor right to select Country.

§Select the country where you are now located and press

the OK key.

Select Other when none of the countries applies.

èProceed with the Install menu.

Setup

Demo

Install

Picture Sound Features

Install

Language Country Automatic Manual Give name Reshuffle Favourite

install install programmes

The installation menu contains the following items:

EasyLink

If your video recorder has an EasyLink function, during installation, the language, country and available channels are

automatically transmitted to the video recorder.

Language

English

Deutsch

Français

Install

Country

Austria

Belgium

Croatia

Install

Select the menu language and country

2194.1 gb 24-03-2003 13:53 Pagina 5

&Select Automatic install in the Install menu.

Note: All channels must be unlocked in order to autoprogram. If

requested, enter your code to unlock all channels. (See TV,

Features menu, Childlock, p. 13.)

éPress the cursor down.

The autoprogramming option label Start appears.

“Press the cursor right.

‘The message Searching appears and the progress of

autoprogramming is displayed.

If a cable system or a TV channel which broadcasts ACI

(Automatic Channel Installation) is detected, a programme list

appears.Without ACI broadcast, the channels are numbered

according your language and country selection.You can use

Reshuffle to renumber them. See p. 7.

It is possible that the cable company or the TV channel displays a

broadcast selection menu. Layout and items are defined by the cable

company or the TV channel. Make your choice with the cursor and

press the OK key.

After language and country are set correctly, you can now search for and store the TV channels in two

different ways: using Automatic Installation or Manual Installation (tuning-in channel by channel).

Select your choice with the cursor right.

Automatic install

Install Start

Install

Manual installation

Automatic installation

Searching for and storing TV channels is done channel by

channel.You must go through every step of the Manual

Installation menu.

&Select Manual install in the Install menu.

éPress the cursor down.

Follow the instructions on screen.

Note: Search or direct selection of a TV channel.

If you know the frequency, the C- or S-channel number, enter the

3 or 2 digits of the frequency or the channel number directly with

the digit keys 0 to 9 (e.g. 048). Press the cursor down to proceed.

Repeat to search for another TV channel.

Manual install

Install

Selection mode

System

Programme

Fine tune

Store

Store TV channels

2194.1 gb 24-03-2003 13:53 Pagina 6

It is possible to change the name stored in the

memory or to assign a name to a TV channel for

which a name has not yet been entered.A name

with up to 5 letters or numbers can be given to

the programme numbers 0 to 99.

&Select Give Name in the Install menu and

press the cursor down.

éSelect the programme number.

Note: keep the cursor up/down pressed to scroll

through the programme list quickly.

“Press the cursor right.

A keyboard appears on the screen.

Press the cursor right to enter the keyboard.

Press the cursor up/down, left/right to select

the first character and press OK.Repeat for

every character you want to enter.

Select Space to enter a space; Delete to erase

the highlighted character in the name entered;

Shift to display upper- or lowercase characters

on the keyboard; Special to display special

characters on the keyboard. Press OK to

confirm.

‘Press the cursor left repeatedly when you have

finished the name giving.

(Select another programme number and repeat

steps “to ‘.

Give name

Reshuffle the programme list

pπ

® Space ® Delete

ABCDEFG 123

HIJKLMN 456

OPQRSTU 789

VWXYZ 0

® Shift ® Special

You can change the order of the stored TV

channels.

&Select Reshuffle in the Installation menu.

éFollow the instructions on screen.

Select Favourite TV channels

&Select Favourite programmes in the Install

menu.

éSelect your programme number with the

cursor up/down.

“Select Ye s or No with the cursor right.

‘Repeat éand “for every TV channel or

external you want to make a favourite or a

non-favourite TV channel or external.

Give name

Install

VCR1

BBC1

BBC2

CNN

TVE

.....

2194.1 gb 24-03-2003 13:53 Pagina 7

Your TV is equipped with integrated front left, right

and centre loudspeakers, capable of reproducing

Stereo, Dolby 3 stereo and 3D Surround modes.

For full Dolby Pro Logic Surround sound you

should use two amplified rear surround speakers

connected to the back of the TV.

See Extra loudspeakers/Amplifier, p. 21.

Depending on the output and Surround mode (see

Main menu,TV, Sound, Sound modes, p. 12)

selected, some menu items may be greyed out and

are not selectable.

Test tone controls

The menu item Test tone enables you to

balance the volume levels of the speakers.

&Select Test tone and press the cursor right.

éOnce turned on, the Test Tone will circulate

through the left, centre, right speakers and both

rear surround speakers (if present).

“Press the cursor up/down to select the desired

speaker for individual volume level adjustment.

‘Press the cursor left/right to adjust the volume

level.

Centre Mode

To enhance the sound reproduction of your TV

you may connect two extra front loudspeakers

via an external amplifier. See Connect extra

loudspeakers/Amplifier, p. 21.

If no External Front Speakers are connected,

do not change the predefined factory settings

which is Centre mode Off.Only if an external

amplifier with Front Speakers is connected,

select Centre mode On.

In this setting, the centre channel in surround

mode is directed to all three internal TV

speakers (left, centre and right).

Surround Speakers

See Connect Peripheral Equipment, Connect

extra loudspeakers/amplifier, p. 21.

If no Surround Speakers are connected do not

change the predefined factory settings which is

Off.If Surround Speakers are connected select

On.

(Dolby Pro Logic and Hall are not available if

Off is selected.)

Auto Surround

Sometimes the broadcaster transmits special

signals for Surround Sound encoded

programmes.

The TV automatically switches to the best

surround sound mode when Auto Surround is

switched On.

However it is possible to overwrite this setting.

Speakers

TV Setup

The Setup menu contains items that control the

settings of the TV’s functions, features, services and

peripherals you may have connected.

The Speakers menu reflects the speaker-related

controls.

The General menu allows you to change settings

that will typically be accessed only occasionally.

The Source menu allows you to select a source.

The Decoder menu allows you to define one or

more programme numbers as decoder programme

numbers.

Speakers General Source Decoder

Test tone

Balance

Centre volume

(Surround volume)

(Centre mode)

Surround speakers

Auto surround

Setup

2194.1 gb 24-03-2003 13:53 Pagina 8

Andere Handbücher für 28PW9528

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips Röhrenfernseher Handbücher

Philips

Philips COVER L9 TS2556C1 Bedienungsanleitung

Philips

Philips 14PT2683 Bedienungsanleitung

Philips

Philips 15PT2536 Bedienungsanleitung

Philips

Philips PR1909B Bedienungsanleitung

Philips

Philips PR0910X Bedienungsanleitung

Philips

Philips 13PR10G99 Bedienungsanleitung

Philips

Philips 21PT6446 Bedienungsanleitung

Philips

Philips 21PT5406 Bedienungsanleitung

Philips

Philips 21PT6446 Bedienungsanleitung

Philips

Philips 28PW9551 Bedienungsanleitung

Philips

Philips 28PW6516 Bedienungsanleitung

Philips

Philips 21PT5217 Bedienungsanleitung

Philips

Philips 29PT8660/12 Bedienungsanleitung

Philips

Philips 21GR1257 Bedienungsanleitung

Philips

Philips 27PT81S Technisches Handbuch

Philips

Philips 21PT5505 Bedienungsanleitung

Philips

Philips Matchline 25ML8305 Bedienungsanleitung

Philips

Philips 25PT5107 Bedienungsanleitung

Philips

Philips COLOR TV 13 INCH PORTABLE PR1317C Bedienungsanleitung

Philips

Philips RD0510C Bedienungsanleitung

Philips

Philips 60PP970199 Betriebsanleitung

Philips

Philips COLOR TV 27 INCH TABLE TS2754C Bedienungsanleitung

Philips

Philips 29PT5005 Bedienungsanleitung

Philips

Philips 21PT4420/01 Bedienungsanleitung

Beliebte Röhrenfernseher Handbücher anderer Marken

JVC

JVC AV-21QS5SP Bedienungsanleitung

Hitachi

Hitachi 27CX01B Bedienungsanleitung

LG 30FZ1DC Bedienungsanleitung

Sony

Sony FD TRINITON WEGA KV-24FS120 Bedienungsanleitung

RCA

RCA F19442 Bedienungsanleitung

Samsung

Samsung CS761 Bedienungsanleitung

Panasonic

Panasonic TC-29P100 Series Bedienungsanleitung

RCA

RCA F19422 Bedienungsanleitung

Sony

Sony WEGA KV 32HS20 Bedienungsanleitung

Samsung

Samsung SlimFit TX R3079WH Bedienungsanleitung

Palsonic

Palsonic MODEL 5179G Bedienungsanleitung

Toshiba

Toshiba CF13H22 Bedienungsanleitung

Magnavox

Magnavox MS3650C - 36" Smart Ctv Handbuch

Toshiba

Toshiba 14AF41 Bedienungsanleitung

Mitsubishi

Mitsubishi CS-35305 Bedienungsanleitung

Hitachi

Hitachi 35UX60B, 35TX10B Bedienungsanleitung

Sony

Sony KD-34XBR970 - 34" Hdtv 16x9 Format Bedienungsanleitung

Toshiba

Toshiba 27A34 - 27" CRT TV Bedienungsanleitung
