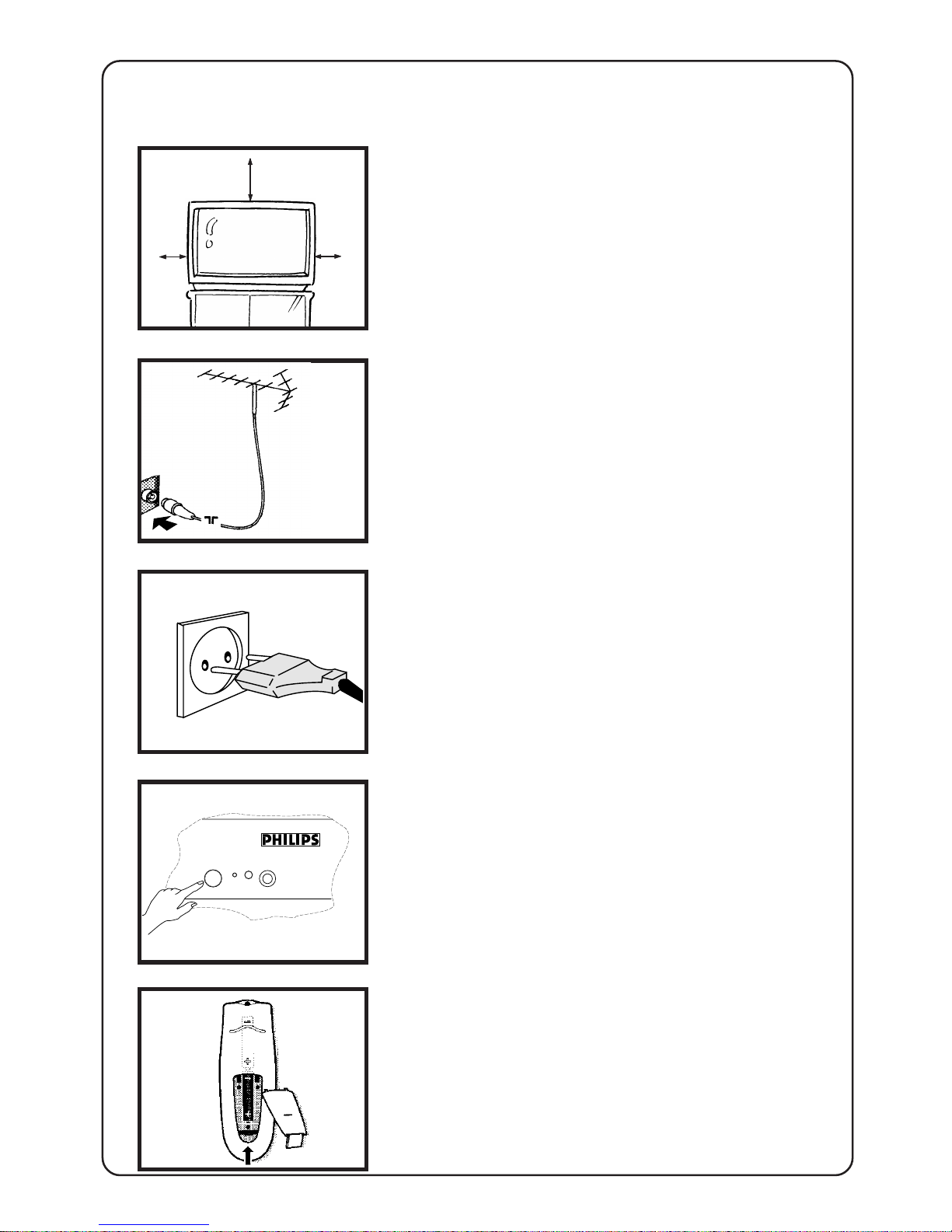

2Preparation

Installing the TV

• Place your TV set on a stable and strong

base.

• Leave at least a free space of 5 cm on both

sides and 10 cm from the top for good

ventilation of the TV set.

• Do not place anything on the TV set which

might damage it e.g. plants or heat sources.

Connecting the aerial

• Insert the aerial plug into the socket g at

the back of the TV.

Connecting the mains

• Insert the mains plug into the wall socket

and switch on.

Refer to the specification at the back of

the TV for the correct operating voltage.

(Picture is only a representation of the actual

plug and socket)

Switching on

• Press the on/off button at the front of the

TV to switch it on.

If the indicator is red, press either the digit,

channel, A/CH, AV or

key.

Installing the remote control

• Remove the cover at the back of the

remote control

• Insert the correct type and size batteries

into the compartment, making sure that

they are the right way around.

10 cm

5 cm

3Useful Tips ✗

✗

Avoid heat and direct sunlight.

Avoid direct exposure to rain or water.

✔

DO NOT leave your TV on standby for a

prolonged period. Switch off your TV if not

in use. This will allow the TV to be

demagnetised giving good picture.

Never repair the TV yourself – get a skilled

personnel!

Clean the TV’s screen with a slightly damp

soft cloth only when necessary.

Note : Do not use abrasive solvent as it can

damage the screen’s coating.

4Connecting peripheral equipment

VCR

VCD

1. Connect to AV sockets

• connect the corresponding sockets of

the equipment to that of the TV.

• to view the playback, select a channel

named AV1 (if connection is made to

sockets at VIDEO 1 in) or AV2 (if

connection is made to sockets at

VIDEO 2 in).

Note : If you have connected a computer

game set to VIDEO 1 in, select a channel

named GAME1 to playback. If your

connection is made to VIDEO 2 in, then

select GAME2 to playback.

2. Connect to aerial socket

(only for VCR)

The playback on your VCR is considered a

TV channel by your TV if you connect via

the aerial socket. You must tune in to

your VCR’s test signal and assign the

channel number 0 to it. Refer to your

VCR’s instruction manual for more

details.

• connect the RF cable to the VCR’s “RF

in” and connect the “RF out” of the VCR

to the aerial socket of the TV.

• select channel 0 and tune in to to your

VCR’s signal.

• to view the playback, select channel 0.

VCR

Laser disc

player

VIDEO 2

MONITOR

out

VIDEO 1

AUDIO

VIDEO

Ω75

VIDEO 2

MONITOR

out

VIDEO 1

AUDIO

VIDEO

Equipment such as VCR, Laser disc player, VCD etc. could be connected to

the video and audio (AV) sockets at the back of the TV. Switch off the TV and

equipment before making any connection.

Connection for playback

…connecting peripheral equipment

VIDEO 2

MONITOR

out

VIDEO 1

AUDIO

VIDEO

VIDEO 2

MONITOR

out

VIDEO 1

AUDIO

VIDEO

1. From the TV channel you are

watching

• connect the corresponding sockets of

the VCR to the sockets at MONITOR out.

2. From one VCR to another VCR

• connect the sockets of the VCR which

you wish to record from to the

corresponding sockets at either VIDEO

in 1 or VIDEO in 2.

• connect the sockets of the receiving

VCR to the corresponding sockets at

MONITOR out.

3. From the TV antenna

• connect the RF cable to the VCR’s “RF

in” and the “RF out” of the VCR to the

aerial socket of the TV.

Ω75

VIDEO 2

MONITOR

out

VIDEO 1

AUDIO

VIDEO

Connection for headphones

• connect the headphones to the socket

at the front of the TV.

The headphones impedance must be

between 8 and 4000 ohms.

Connection for recording

6The TV’s controls

For 25PT models

1. Mains power Switch on or off the TV.

2. Red light indicator When light is on, it indicates that the TV is on

standby. Note :If no signal is detected by the

TV after 10 minutes, it will switch to standby

automatically.

3. Remote control sensor For the remote control to work, it must be

activated within the operating range of this

sensor.

4. Headphone socket For connection of headphones.

5. Volume adjustment To adjust volume level. Press these 2 keys

simultaneously will call up the 1st level

menu. Press these 2 keys again will exit

menu. Works as cursor left (VOLUME L) or

right (VOLUME K) in a menu.

6. Channel selection To select a lower or higher channel number.

Works as cursor up (CHANNEL 6) or down

(CHANNEL 7) in a menu.

For 29PT models

VOLUME

˝˚

CHANNEL ˚

VOLUME

˝˚

CHANNEL ˚

345

7Using the remote control

Press :

Screen

information

Standby

External

source

Mute

Channel

selection/

cursor up

or down

Result :

In TV mode : Display channel

number and sound mode

In a menu : Exit menu.

Switch off TV and a red indicator

lights up. To switch on TV again,

press either the

, CH ,

CH , A/CH

SURF , AV or 2key.

Select the external channels AV1

or AV2.

Switch off the sound of the TV.

Press again to switch on the

sound.

Call up the main menu. If there is

an existing menu, pressing this

key will bring you back to the

previous level menu. If you are

in the 1st level menu, pressing

this will exit the menu.

TV mode : Select a higher or

lower channel number .

In a menu : Scroll up or down.

GAME

VOL VOL

SMART

PICTURE SOUND

OSD

1 2 3

4 5 6

7 8 9

A/CH

ey f

SURF

OSD

GAME

VOL VOL

SMART

PICTURE SOUND

OSD

1 2 3

4 5 6

7 8 9

A/CH

ey f

SURF

10 m

For the remote control to work effectively, it has to be operated within the

recommended operating range to the remote control sensor on the TV.

Press :

Volume

adjustment

/cursor

right or left

Digit

Surf or

alternate

channel

Teletext function:

Sound

mode

Game

Smart

controls

Result :

TV mode : Adjust the volume of

the TV set.

In a menu : Select or execute.

Key in numerals e.g. confidential

code in child lock and in channel

selection. For a 2-digit channel,

the second numeral must be

entered before the dash disap-

pears.

Surf mode : Add or delete

channel from the surf list. View

channel in the surf list.

A/CH mode : Return to the

previous channel.

Refer to the section on

“Teletext”.

Switch from stereo to mono

sound (for stereo transmission)

or choose between first lan-

guage or second language (for

bilingual transmission).

Select preset channels for

games.

Select the presets for sound and

picture.

…using the remote control

GAME

VOL VOL

SMART

PICTURE SOUND

OSD

1 2 3

4 5 6

7 8 9

A/CH

ey f

SURF

A/CH

SURF

GAME

SLEEPTIMER GAME

SMART

PICTURE SOUND

ey f

VOL

SMART

PICTURE SOUND

To call up the 1st level menu :

• Press

key.

To use the menus:

• Press the cursor keys.

scroll up scroll down select or execute

To exit from a menu:

• Press

key to go back to the previous level.

• Press

OSD

key to exit.

GAME

VOL VOL

SMART

PICTURE SOUND

OSD

1 2 3

4 5 6

7 8 9

A/CH

ey f

SURF

Menus

1st level

BRIGHTNESS 44

COLOUR 28

CONTRAST 55

SHARPNESS 53

HUE 0

COLOUR TEMP COOL

CONTRAST PLUS OFF

VOLUME 19

BALANCE 0

TREBLE 50

BASS 50

INCREDIBLE ST OFF

AVL OFF

SLEEPTIMER OFF

CHILD LOCK B

SURF A/CH

INSTALLATION B

2nd level

CODE – – – –

CHANNEL 4

LOCK NO

LANGUAGE ENG

AUTO STORE B

SWAP B

SKIP B

MANUAL B

3rd level

FROM 3

TO 4

EXCHANGE B

CHANNEL 7

SKIP NO

SYSTEM AUTO

SEARCH VHF1B

FINE TUNE

CHANNEL 2

STORE B

VOL VOL

CHILD LOCK B

SURF A/CH

INSTALLATION B

BRIGHTNESS 44

COLOUR 28

Installing the TV

1. Call up 1st level menu with the

key.

2. Scroll up with the key to highlight

INSTALLATION.

3. Select INSTALLATION with the or

key.

LANGUAGE is highlighted.

4. Select the language of your choice with

the or key.

From now on, all menus and screen

information will be in the language that

you have chosen.

5. Exit with the

OSD

key.

CHILD LOCK B

SURF A/CH

INSTALLATION B

BRIGHTNESS 44

COLOUR 28

Tuning in the TV channels

There are 2 ways to tune in channels : automatically (by AUTO STORE) or

manually (by MANUAL menu).

Auto store

Use to tune in channels automatically.

1. Call up 1st level menu with the

key.

2. Scroll up with the key to highlight

INSTALLATION.

3. Select INSTALLATION with the or

key.

4. Scroll down with the key to

highlight AUTO STORE.

5. Select AUTO STORE with the or

key.

A tuning bar appears and the TV will

automatically store all available channels.

Channels will be stored starting from the

next channel number .

LANGUAGE ENG

AUTO STORE B

SWAP B

LANGUAGE ENG

AUTO STORE B

SWAP B

SKIP B

AUTO STORE 15

Selecting the menu language

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips Röhrenfernseher Handbücher

Philips

Philips 28PW9623 Bedienungsanleitung

Philips

Philips Television 34PT8420 Bedienungsanleitung

Philips

Philips 34PW850H/37 Betriebsanleitung

Philips

Philips 25PT4523/25 Bedienungsanleitung

Philips

Philips 21PT9467C Bedienungsanleitung

Philips

Philips 26LW5022/22 Bedienungsanleitung

Philips

Philips 28PW6720D Bedienungsanleitung

Philips

Philips 25SL5766/30S Bedienungsanleitung

Philips

Philips PR1319C Bedienungsanleitung

Philips

Philips 21PT6333 Bedienungsanleitung

Philips

Philips 29PT5221 Bedienungsanleitung

Philips

Philips PL9127C Bedienungsanleitung

Philips

Philips 29PT828C/25 Bedienungsanleitung

Philips

Philips 21PT9467 Bedienungsanleitung

Philips

Philips 14PT4137C Bedienungsanleitung

Philips

Philips 34PW8621 Bedienungsanleitung

Philips

Philips COLOR TV 13 INCH PORTABLE PR1317C Bedienungsanleitung

Philips

Philips MAGNAVOX PS1966C1 Bedienungsanleitung

Philips

Philips 14PT1356 Bedienungsanleitung

Philips

Philips 25/29PT5324 Bedienungsanleitung

Philips

Philips 32PW8739/12 Bedienungsanleitung

Philips

Philips 28PW8807 Bedienungsanleitung

Philips

Philips 25PT900B Bedienungsanleitung

Philips

Philips 29PT9413 - annexe 1 Bedienungsanleitung

Beliebte Röhrenfernseher Handbücher anderer Marken

JVC

JVC AV-21QS5SP Bedienungsanleitung

Hitachi

Hitachi 27CX01B Bedienungsanleitung

LG 30FZ1DC Bedienungsanleitung

Sony

Sony FD TRINITON WEGA KV-24FS120 Bedienungsanleitung

RCA

RCA F19442 Bedienungsanleitung

Samsung

Samsung CS761 Bedienungsanleitung

Panasonic

Panasonic TC-29P100 Series Bedienungsanleitung

RCA

RCA F19422 Bedienungsanleitung

Sony

Sony WEGA KV 32HS20 Bedienungsanleitung

Samsung

Samsung SlimFit TX R3079WH Bedienungsanleitung

Palsonic

Palsonic MODEL 5179G Bedienungsanleitung

Toshiba

Toshiba CF13H22 Bedienungsanleitung

Magnavox

Magnavox MS3650C - 36" Smart Ctv Handbuch

Toshiba

Toshiba 14AF41 Bedienungsanleitung

Mitsubishi

Mitsubishi CS-35305 Bedienungsanleitung

Hitachi

Hitachi 35UX60B, 35TX10B Bedienungsanleitung

Sony

Sony KD-34XBR970 - 34" Hdtv 16x9 Format Bedienungsanleitung

Toshiba

Toshiba 27A34 - 27" CRT TV Bedienungsanleitung
