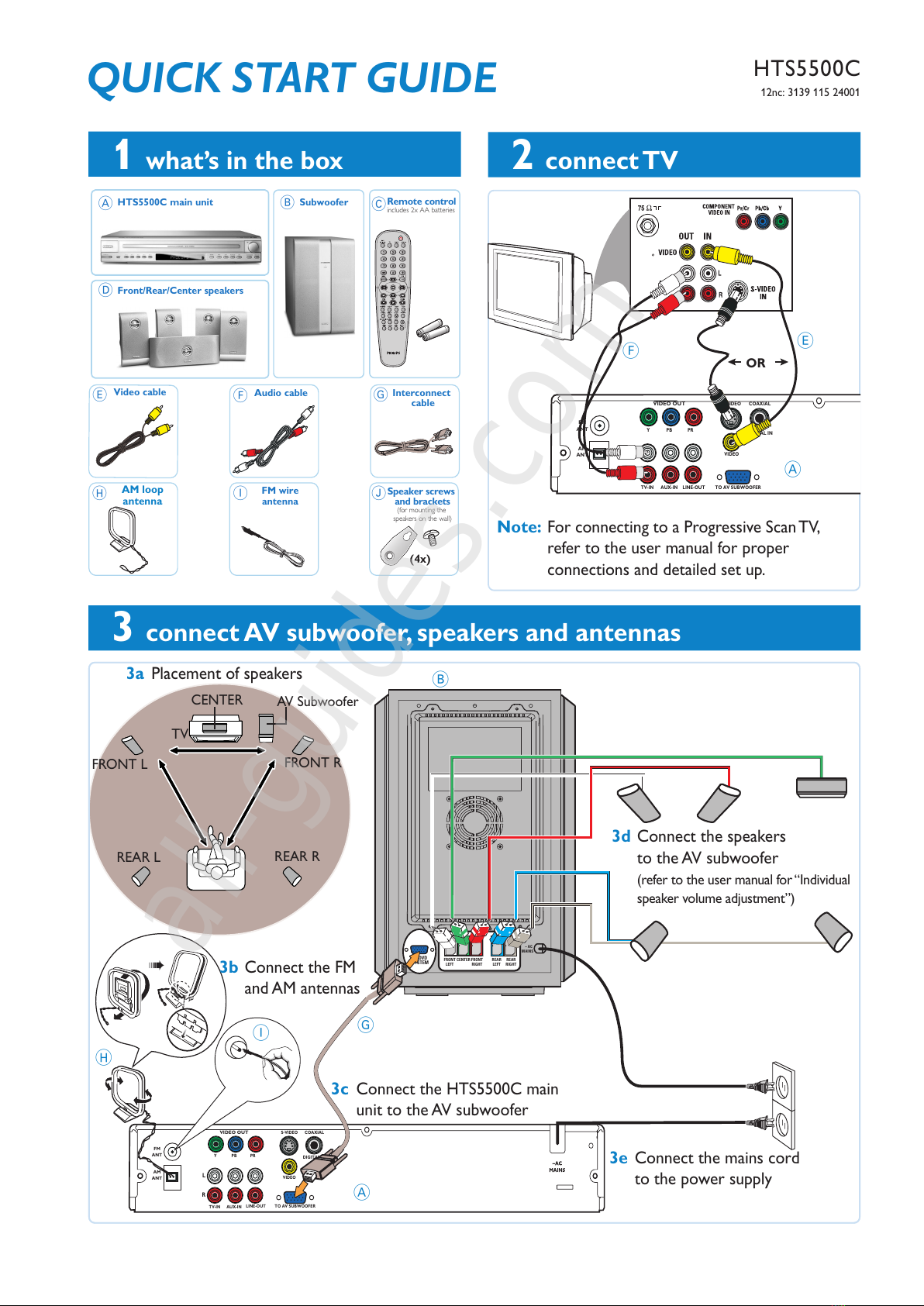

QUICK START GUIDE 12nc: 3139 115 24001

HTS5500C

1 what’s in the box 2 connect TV

3 connect AV subwoofer, speakers and antennas

Note: For connecting to a Progressive ScanTV,

refer to the user manual for proper

connections and detailed set up.

Remote control

includes 2x AA batteries

Subwoofer

HTS5500C main unit

Front/Rear/Center speakers

FM wire

antenna

MW loop

antenna

Video cable

Audio cable

Speaker screws

and brackets

(for mounting the

speakers on the wall)

Interconnect

cable

ANT

S-VIDEO

ANT

COMPONENT

VIDEO OUT

AUX-INTV-IN LINE-OUT

VIDEO

COAXIAL

DIGITAL IN

TO AV SUBWOOFER

ANT

S-VIDEO

ANT

COMPONENT

VIDEO OUT

AUX-INTV-IN LINE-OUT

VIDEO

COAXIAL

DIGITAL IN

TO AV SUBWOOFER

➠

~ AC

MAINS

TO DVD

SYSTEM

FRONT

LEFT

CENTER FRONT

RIGHT

REAR

LEFT

REAR

RIGHT

3a Placement of speakers

3b Connect the FM

and AM antennas

REAR L REAR R

FRONT L

CENTER

FRONT R

AV Subwoofer

3d Connect the speakers

to the AV subwoofer

(refer to the user manual for “Individual

speaker volume adjustment”)

3e Connect the mains cord

to the power supply

3c Connect the HTS5500C main

unit to the AV subwoofer

AM loop

antenna

(4x)

All manuals and user guides at all-guides.com

all-guides.com

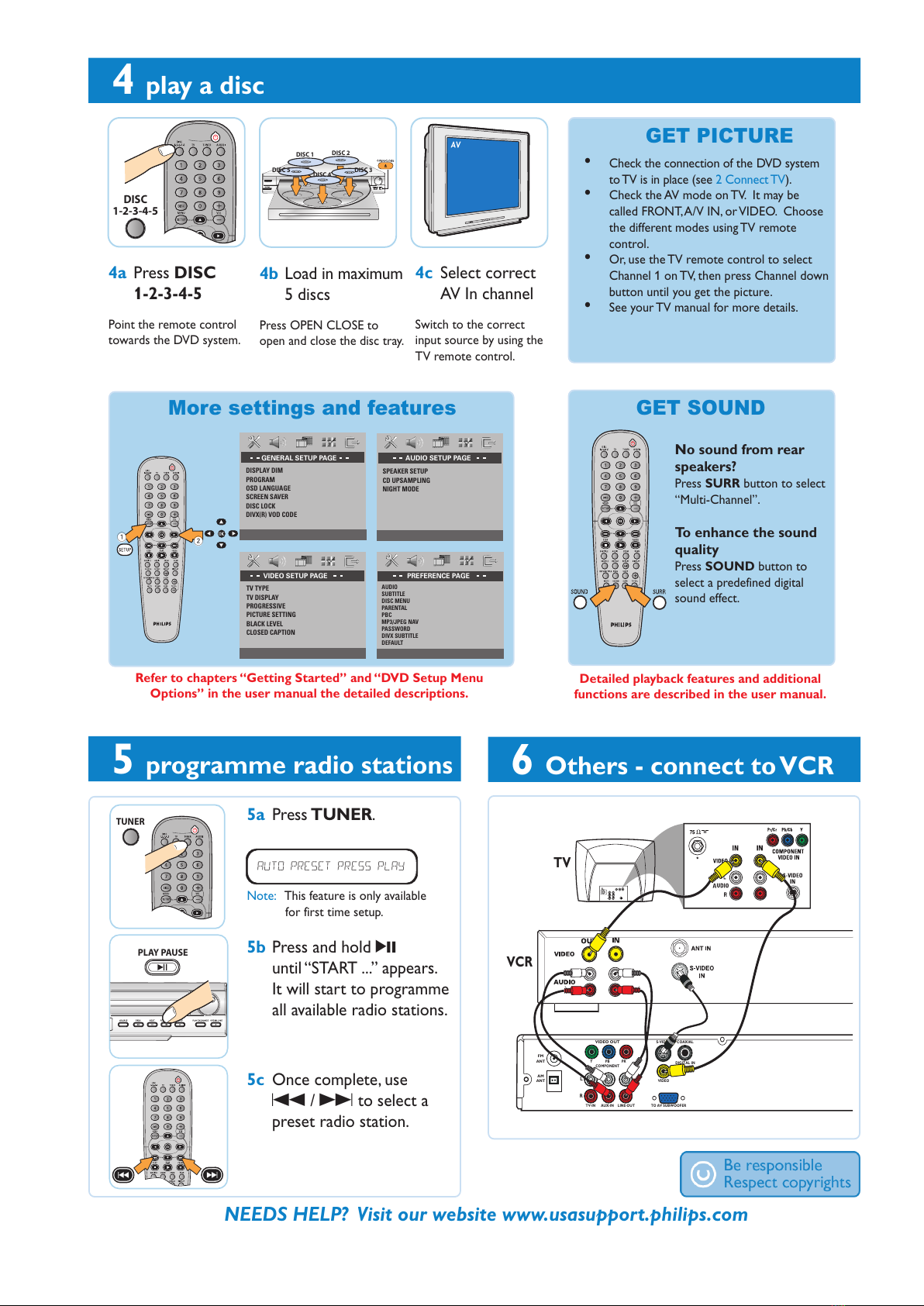

4 play a disc

DISC

1-2-3-4-5

LEVELPHONES

DISC 1 DISC 2

DISC 3

DISC 4

DISC 5

4a Press DISC

1-2-3-4-5

Point the remote control

towards the DVD system.

4b Load in maximum

5 discs

Press OPEN CLOSE to

open and close the disc tray.

4c Select correct

AV In channel

Switch to the correct

input source by using the

TV remote control.

GET PICTURE

•Check the connection of the DVD system

to TV is in place (see 2 Connect TV).

•Check the AV mode on TV. It may be

called FRONT,A/V IN, or VIDEO. Choose

the different modes using TV remote

control.

•Or, use the TV remote control to select

Channel 1 on TV, then press Channel down

button until you get the picture.

•See your TV manual for more details.

AUDIO SETUP PAGE

SPEAKER SETUP

CD UPSAMPLING

NIGHT MODE

VIDEO SETUP PAGE

TV TYPE

TV DISPLAY

PROGRESSIVE

PICTURE SETTING

BLACK LEVEL

CLOSED CAPTION

PREFERENCE PAGE

AUDIO

SUBTITLE

DISC MENU

PARENTAL

PBC

MP3/JPEG NAV

PASSWORD

DIVX SUBTITLE

DEFAULT

GENERAL SETUP PAGE

DISPLAY DIM

PROGRAM

OSD LANGUAGE

SCREEN SAVER

DISC LOCK

DIVX(R) VOD CODE

Refer to chapters “Getting Started”and “DVD Setup Menu

Options”in the user manual the detailed descriptions.

More settings and features GET SOUND

To enhance the sound

quality

Press SOUND button to

select a predefined digital

sound effect.

Detailed playback features and additional

functions are described in the user manual.

No sound from rear

speakers?

Press SURR button to select

“Multi-Channel”.

5 programme radio stations 6 Others - connect to VCR

ANT

S-VIDEO

ANT

COMPONENT

VIDEO OUT

AUX-INTV-IN LINE-OUT

VIDEO

COAXIAL

DIGITAL IN

TO AV SUBWOOFER

NEEDS HELP? Visit our website www.usasupport.philips.com

TUNER

PLAY PAUSE

AUTO PRESET PRESS PLAY

5a Press TUNER.

5b Press and hold 2;

until “START ...” appears.

It will start to programme

all available radio stations.

5c Once complete, use

S/ Tto select a

preset radio station.

Note: This feature is only available

for first time setup.
