Philips AZ1833/12 Bedienungsanleitung

AZ1833MP3-CD Soundmachine

www.philips.com/welcome

User Manual

Manuel d'utilisation

Manual de usuario

Benutzerhandbuch

6 x R14 • UM-2 • C-CELLS

AC MAINS~

AUX IN

USB

DISC

WMA

USB mass

storage device

USB cable

Congratulations on your purchase and wel-

come to Philips!

To fully benefit from the support that Philips

offers, register your product at

www.philips.com/welcome.

Supplied accessories

– AC power cord

– Line in cable

Top and front panels (See 1)

Source selector:CD/USB/AUX, FM,

MW, OFF

–

selects CD/MP3-CD, USB, AUX or radio

–

switches off the set

–

starts or pauses disc/USB playback

∞§

–

For disc

/ USB play:

– skips to the beginning of a current/

previous/ later track

– fast searches backwards and forwards

within a track

–

stops disc/USB playback;

–

erases a program

PROG – programs tracks and reviews the

program

3Display

–

shows disc/USB play functions

4 ALBUM

+/-

–For MP3-CD/ WMA/USB play: select

albums

5USB –enters USB mode

CD – enters disc mode

MODE – selects different play modes:

e.g. REPEAT or SHUFFLE (random order)

8OPEN•CLOSE – opens/ closes the CD

door

TUNING

– tunes to radio stations

VOLUME

–

adjusts volume level

!USB DIRECT – connects an external USB

mass storage device

Back panel (See 1)

@Telescopic antenna – improves FM

reception

# AUX IN jack –connects to external audio

source

$ AC~ MAINS –inlet for power cord

%Battery door – open to insert 6 x 1.5V

R-14/UM2/C-cells

Power Supply

Whenever convenient, use the power supply

cord if you want to conserve battery life.

Make sure you remove the plug from the set

and wall outlet before inserting batteries.

Batteries

Main set (See 1)

•Insert 6batteries, type R-14, UM2 or C-

cells (not included, preferably alkaline) with

the correct polarity.

•Incorrect use of batteries can cause elec-

trolyte leakage and will corrode the compart-

ment or cause the batteries to burst:

•Do not mix battery types: e.g. alkaline with

carbon zinc. Only use batteries of the same

type for the set.

•When inserting new batteries, do not try to

mix old batteries with the new ones.

•Remove the batteries if the set is not to be

used for a long time.

Batteries contain chemical substances, so

they should be disposed of properly.

Using AC power

1Check if the power/mains voltage, as shown

on the type plate located on the

bottom of the set, corresponds to your

local power supply. If it does not, consult your

dealer or service center.

2Connect the power cord to the

AC~ MAINS inlet and the wall socket.The

set is now ready for use.

English Controls / Power Suppy

3To switch the set off completely, withdraw the

power cord from the wall socket.

4Install the unit near the AC outlet and where

the AC power plug can be easily reached.

•Disconnect the power cord from the wall

socket to protect your set during heavy thun-

derstorms. Children could seriously injure

themselves as the free end of the cable may

still be live if only the connector is removed

from the MAINS socket at the back of the

unit.

The type plate is located on the

bottom of the set.

Helpful hints:

– To avoid unnecessary energy consumption,

always adjust the source selector to OFF

after using the set.

CAUTION

Use of controls or adjustments

or performance of procedures

other than herein may result in

unsafe operation.

For users in the U.K., please follow

the boxed instructions ‘Important

notes for users in the U.K.’ .

This set complies with the radio

interference requirements of the

European Community.

Basic functions

Switching on/off the set and selecting

function

1To switch on, adjust the source selector to

CD/USB/AUX,FM or MW as desired.

2To switch off, adjust the source selector to

OFF.

Adjusting volume

Adjust the volume with the VOLUME

control.

Radio reception

1Push the source selector to FM or MW.

2Tu r n TUNING to tune in a radio station.

3To switch off the radio, adjust the source

selector to OFF.

Helpful hints:

To improve reception

•For FM, extend, incline and turn the

telescopic antenna. Reduce its length if the

signal is too strong.

•For MW, uses a built-in antenna. Direct this

antenna by turning the whole set.

Power Supply Basic Function / Radio

About MP3

The music compression technology MP3

(MPEG1 Audio Layer 3) significantly reduce

the digital data of an audio CD while

maintaining CD quality sound.

•Getting MP3 files: you can either download

legal music files from the internet to your

computer hard disc, or create such files by

converting audio CD files in your computer

through appropriate encoder software.

(128kbps bit rate or higher is recommended

for MP3 files.)

•Creating a MP3 CD: burn the music files

from your computer hard disc on a CDR or

CDRW using your CD burner.

Helpful hints:

– Make sure that the file names of the MP3 files

end with .mp3 or .wma.

– Number of albums: maximum 256

– Number of tracks: maximum 511

– The length of file names affects the number of

tracks for playback.With shorter file names,

more files can be burned on a disc.

Playing a disc

This player plays Audio Discs including CD-R/

CD-RW, MP3 CD and WMA. Do not try to

play a CD-ROM, CD-I, CDV,VCD, DVD or

computer CD.

IMPORTANT!

•CDs encoded with copyright protection

technologies by some record companies may

be unplayable by this product.

•DRM-protected WMA disc is not supported.

1Adjust the source selector to

CD/USB/AUX.

➜Display shows - - - with “DISC”(see 2), or

- - - with “USB” (see 3)

2Press CD to enter CD mode if USB is dis-

played.

➜Display will show --- with “DISC”(See 2).

3Open the disc door.

4Insert a disc with the printed side facing up

and press the disc door gently to close.

➜Display:The total number of tracks

appears.

5Press

to start playback.

➜Display:

and the current track number.

For MP3-CD/ WMA only:

➜The current track number “XXX“ and

album number “ALBXXX“ will be

displayed interchangeably (See 45).

6To pause playback press

➜Display:

and the current track number

flash.

7Press

again to resume playback.

8To stop playback, press

Helpful hints:

The disc playback will also stop when:

– you open the disc compartment door;

– you select FM,MW or OFF position;

– the disc has reached the end of the playback.

Selecting a different track

•Press ∞or §once or repeatedly until the

desired track number appears in the display.

For MP3-CD/WMA: First press

ALBUM

+/- once or more to find your

album.

•In the pause/stop position, press 2; to start

playback.

MP3-CD / CD Player

Finding a passage within a

track

1During playback, press and hold down

∞or §

➜The disc is played at high speed and low

volume.

2When you recognize the passage you want,

release

∞or §

➜Normal playback resumes.

Programming tracks

You may store up to 20 tracks in the desired

sequence. If you like, store any track more

than once.

1In the stop position, press PROG to activate

programming.

➜Display shows P01 indicating the start of

the program and PROG flashes. (See 6)

2Press

∞

to select your desired track

number.

For MP3-CD/WMA: First press

ALBUM

+/- once or more to find your album.

3Press PROG to store the desired track.

➜Display shows P02, indicating the next

program location available.

4Repeat steps 2to 3to select and store all

desired tracks.

5Press

to play the program.

To review your program

In the stop position, press and hold PROG 3

seconds.

➜The display shows all the stored tracks in

sequence.

Helpful hints:

– Display shows P01 if no track is

programmed.

– If you try to store more than 20 tracks, no

track can be stored and the display will show

--- with “PROG” .

To erase a program

You can erase a program by:

– pressing

(twice during playback or once

in the stop position);

– selecting FM,MW or OFF position;

– opening the disc door.

➜ Display: PROG disappears.

Selecting different play

modes (See 7)

You can select and change the various play

modes before or during playback, and

combine REP or REP ALL play modes with

PROG.

REP – plays the current track continuously.

REP ALL – plays the entire disc/program

continuously.

SHUF – plays all tracks in random order

(not available with PROG).

1To select play modes,press MODE once or

more.

2Press 2; to start playback if in the stop

position.

3To select normal playback, press MODE

repeatedly until the various modes are no

longer displayed.

–You can also press 9to cancel your play

modes.

MP3-CD / CD Player

USB Connection

Using USB connectivity

• AZ1833 is fitted with a USB port in the front

panel, offering a plug and play feature which

allows you to play, from your AZ1833, digital

music and spoken contents stored on a USB

mass storage device.

• Using a USB mass storage device, you can

also enjoy all the features offered by AZ1833

which are explained and instructed in the

sections of disc operation.

Compatible USB mass storage devices

With the AZ1833, you can use

–USB flash memory (USB 2.0 or USB 1.1)

– USB flash player (USB 2.0 or USB 1.1)

• USB device which requires driver

installation under Windows XP is not

supported.

Note:

In some USB flash players (or memory

devices), the stored contents are recorded

using copyright protection technology. Such

protected contents will be unplayable on any

other devices (such as AZ1833 device).

Supported formats:

–USB or memory file format FAT12, FAT16,

FAT32 (sector size: 512 - 4096 bytes)

–MP3 bit rate (data rate): 32-320 kbps and

variable bit rate

–WMA v9 or earlier

–Directory nesting up to a maximum of 8

levels

–Number of albums: maximum 500

–Number of tracks: maximum 999

–ID3 tag v2.0 or later

–File name in Uicode UTF8 (maximum

length: 30 bytes

The system will not play or support

the following:

• Empty albums: an empty album is an album

that does not contain MP3/WMA files, and

will not be shown in the display.

• Non-supported file formats are skipped.

This means that e.g.: Word documents .doc

or MP3 files with extension. dlf are ignored

and will not be played.

• AAC, WAV, PCM. NTFS audio files

• DRM protected WMA files

• WMA files in Lossless format

Playing a USB mass storage device

1Make sure that your AZ1833 is being

2Adjust the source selector to

CD/USB/AUX.

➜Display shows - - - with “DISC”(see 2),

or - - - with “USB” (see 3)

3Press USB to enter USB mode if USB is

NOT displayed.

➜Display will show “USB” (see 3).

4As shown in figure 9, plug a compatible

USB mass storage device to AZ1833’s USB

port marked . If needed, use a suitable

USB cable to connect between the device

and AZ1833’s USB port.

➜The device will automatically power on.

•If the device is not powered on, turn on the

power manually, then re-connnect it.

➜AZ1833’s display shows USB and the total

number of playable audio files (Max.

displayed track number is 999) stored on

the device.

5Press

2; on your AZ1833 to start play.

➜AZ1833’s display will show USB and share

the display information illustrated in the

disc operation.

Helpful hints:

– Make sure that file names of MP3 files end

with .mp3. and the file names of WMA files end

with .wma.

– For DRM protected WMA files, use Windows

Media Player 10 (or later) for conversion. Visit

www.microsoft.com for details about Windows

Media Player and WM DRM (Windows Media

Digital Rights Management).

– For USB device playing, if the display shows

"OL", it means that the USB device is electrically

overloading AZ1833.You need to change a USB

device.

INFORMATION REGARDING USB DIRECT:

1. Compatibility of the USB connection on this product:

a) This product supports most USB Mass storage devices (MSD) that these devices are compli-

ant to the USB MSD standards.

i) Most common Mass storage class devices are flash drives, memory sticks, jump drives and

etc.

ii) If you see a "Disc Drive" showing up on your computer after you have plugged the mass

storage device into your computer, most likely it is MSD compliant and it will work with this

product.

b) If your Mass storage device requires a battery/power source, please make sure you have a

fresh battery in it or charge the USB device first and then plug it into this product again.

2. Supported Music type:

a) This device only supports unprotected music with file extension: .mp3 .wma

b) Music bought from on-line music stores are not supported because they are secured by

Digital Rights Management protection (DRM).

c) File name extensions that ended with the following are not supported: .wav; .m4a; .m4p; .mp4;

.aac and etc.

3. No Direct connection can be made from a Computer USB port to this product even you have

either or both mp3 or wma file in your computer.

Safety information

• Place the set on a hard, flat and stable surface

so that the system does not tilt.

• Do not expose the set, batteries, CDs to

humidity, rain, sand or excessive heat caused

by heating equipment or direct sunlight.

• Where the MAINS plug or an appliance cou-

pler is used as the disconnect device, the dis-

connect device shall remain readily operable.

• The apparatus shall not be exposed to

dripping or splashing.

• Adequate ventilation with a minimum gap of

15 cm between the ventilation holes and sur-

rounding surfaces is necessary to prevent

heat build-up.

• The ventilation should not be impeded by

covering the ventilation openings with items,

such as newspapers, table-cloths, curtains, etc..

• No objects filled with liquids, such as vases,

shall be placed on the apparatus.

• No naked flame sources, such as lighted can-

dles, should be placed on the apparatus.

• The mechanical parts of the set contain

self-lubricating bearings and must not be oiled

or lubricated.

• To clean the set, use a dry cloth. Do not use

any cleaning agents containing alcohol,

ammonia, benzene or abrasives as these may

harm the housing.

CD player and CD handling

• If the CD player cannot read CDs correctly,

use a cleaning CD to clean the lens before

taking the set to repair.

• The lens of the CD player should never be

touched!

• Sudden changes in the surrounding

temperature can cause condensation on the

lens of your CD player. Playing a CD is then

not possible. Do not attempt to clean the

lens but leave the set in a warm environment

until the moisture evaporates.

• Always close the CD door to avoid dust on

the lens.

• To clean the CD, wipe in a straight line from

the center towards the edge using a soft,

lint-free cloth. Do not use cleaning agents as

they may damage the disc.

• Never write on a CD or attach any stickers

to it.

Safety & Maintenance (See 8)

Andere Handbücher für AZ1833/12

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips MP3-Player Handbücher

Philips

Philips GOGEAR SA2629 Bedienungsanleitung

Philips

Philips GoGEAR SA4DOT02 Bedienungs- und Wartungsanleitung

Philips

Philips EXP101/11 Bedienungsanleitung

Philips

Philips GoGear Spark SA2947 Bedienungsanleitung

Philips

Philips SA2300 Bedienungsanleitung

Philips

Philips GoGEAR SA4VBE08 Bedienungsanleitung

Philips

Philips GoGear RaGa SA1926 Bedienungsanleitung

Philips

Philips PSS110/17 Bedienungsanleitung

Philips

Philips GoGear ViBE SA1VBE02 Bedienungsanleitung

Philips

Philips gogear PI5000316 Bedienungsanleitung

Philips

Philips SA2001/93 Bedienungsanleitung

Philips

Philips GoGear HDD086 Bedienungsanleitung

Philips

Philips GoGear Ariaz Bedienungsanleitung

Philips

Philips GoGear SA1350 Bedienungsanleitung

Philips

Philips SA4345/02 Bedienungsanleitung

Philips

Philips GoGear SA1VBE04W Bedienungsanleitung

Philips

Philips GoGear Muse SA1MUS32K Bedienungsanleitung

Philips

Philips GOGEAR SA6145 Bedienungsanleitung

Philips

Philips ACT101M/97 Bedienungsanleitung

Philips

Philips GoGear SA5245C Bedienungsanleitung

Philips

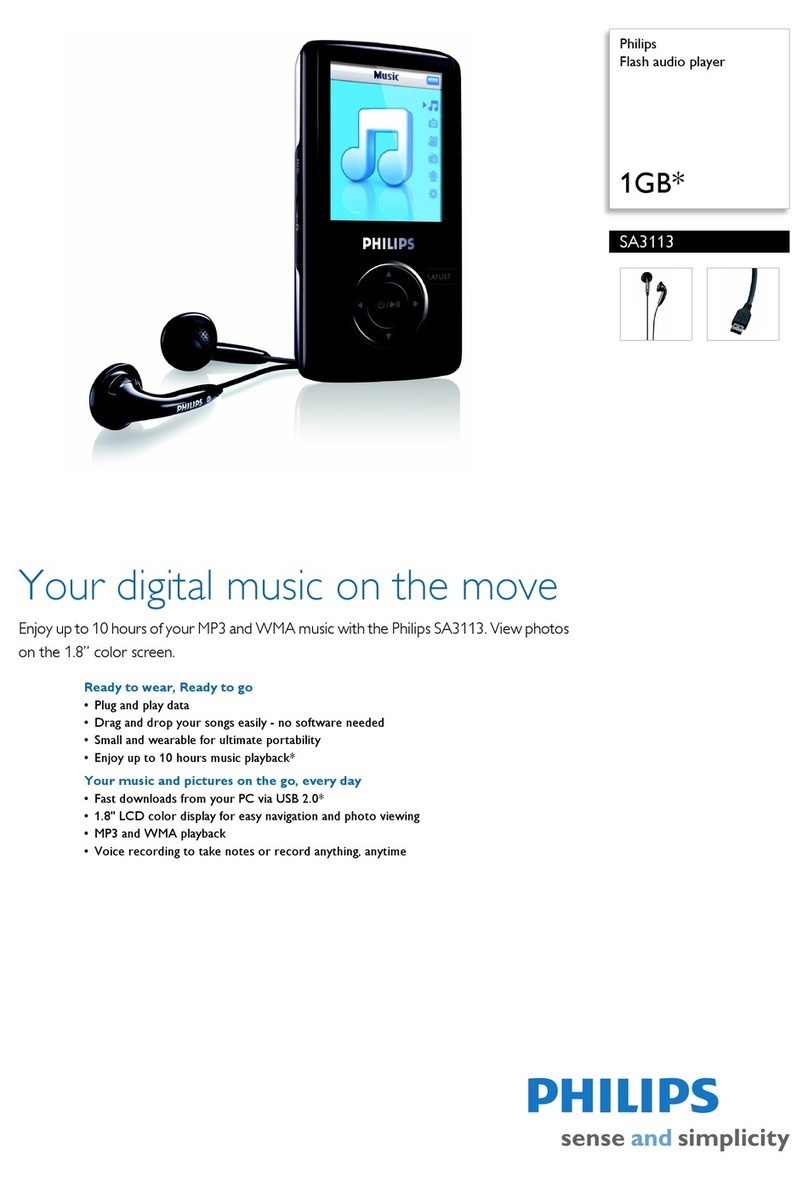

Philips SA3113/02 Bedienungsanleitung

Philips

Philips SA2010 Bedienungsanleitung

Philips

Philips SA2925A Bedienungsanleitung

Philips

Philips SA4124 Bedienungsanleitung

Beliebte MP3-Player Handbücher anderer Marken

Blaupunkt

Blaupunkt Compact Drive MP3 Bedienungsanleitung

Memorex

Memorex MMP9008 - 8GB USB 2.0 Bedienungsanleitung

Meizu Electronic Technology

Meizu Electronic Technology E5 Bedienungsanleitung

Naxa

Naxa NMV-173NX Bedienungsanleitung

Zipy

Zipy go! Waving Bedienungsanleitung

Sylvania

Sylvania SMPK4068 Bedienungsanleitung

Sony

Sony NW-MS7 - Memory Stick Walkman Bedienungsanleitung

Irradio

Irradio RF-42UC Bedienungsanleitung

NABAIJI

NABAIJI SWIM MUSIC 100 Bedienungsanleitung

Laser

Laser MP3-A9-4GB Bedienungsanleitung

Samsung

Samsung YP-T7F Bedienungsanleitung

Savant

Savant SMS-1001-00 Kurzanleitung

Trevi

Trevi XP 71 BT Bedienungsanleitung

AGPtek

AGPtek C2 Bedienungsanleitung

MobiBlu

MobiBlu DAH-1500i Bedienungsanleitung

Denver

Denver MPS-201 Bedienungsanleitung

Steren

Steren MP3-002 Bedienungsanleitung

Kenwood

Kenwood M1GD50 Bedienungsanleitung
