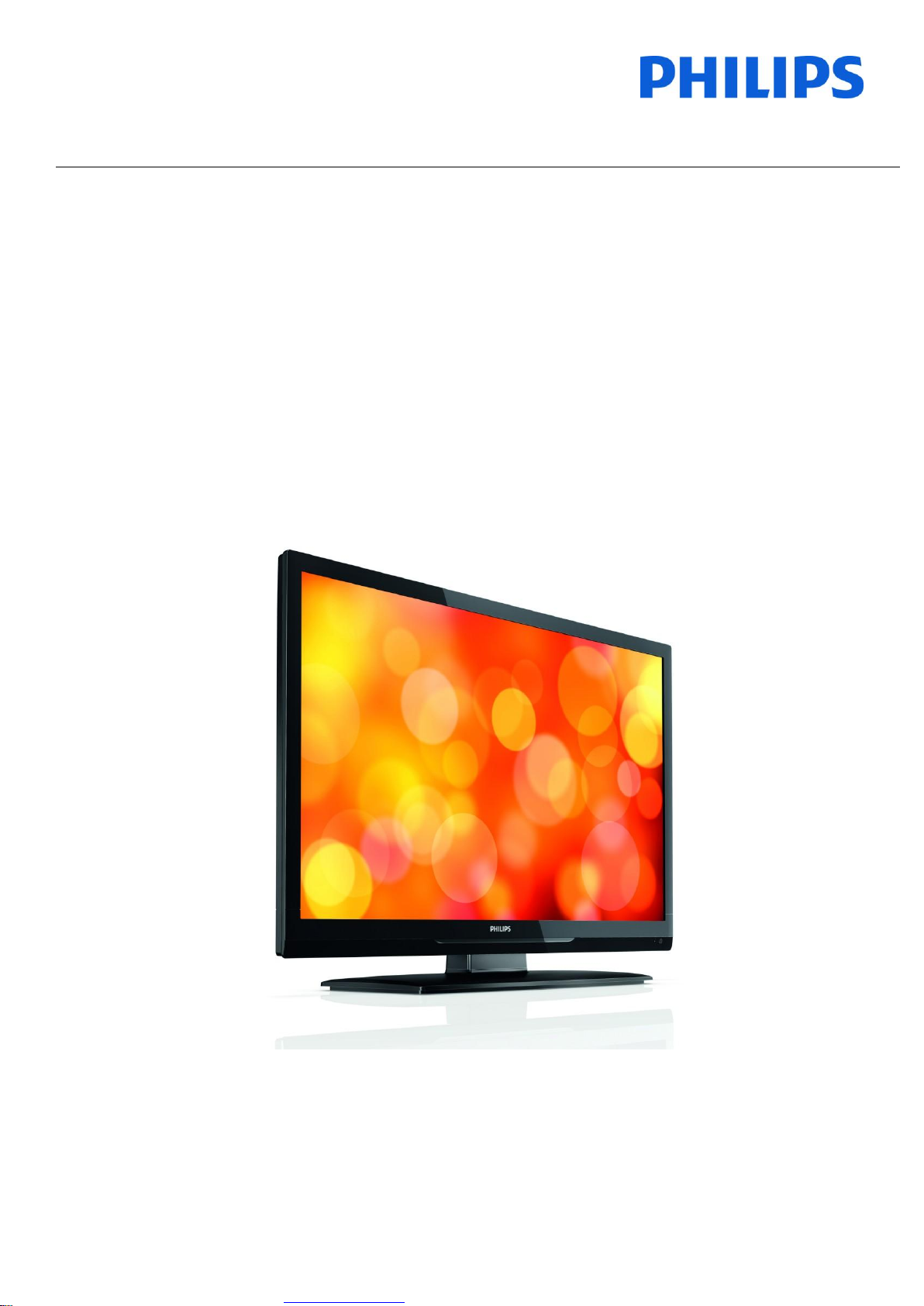

Philips Hospitality TV

Installation Manual for

22HFL30x7x/10

26HFL30x7x/10

32HFL30x7x/10

42HFL30x7x/10

Version 1.1

Great user manuals database on UserManuals.info

Contents

1. Requirements before starting the installation.......................................................................................................... 2

2. Find out the state of the TV ...................................................................................................................................... 3

3. Re-install TV .............................................................................................................................................................. 4

4. Installation wizard..................................................................................................................................................... 6

5. Channel options ...................................................................................................................................................... 13

a. Reordering channels ........................................................................................................................................... 13

b. Rename channels................................................................................................................................................ 15

c. Hide channels......................................................................................................................................................15

6. Professional Settings........................................................................................................................................... 16

7. Welcome Logo ........................................................................................................................................................ 26

7.1 Hotel Information.................................................................................................................................................... 26

8. Clone ....................................................................................................................................................................... 27

9. Feature settings.......................................................................................................................................................28

10. CSM (Consumer Setup menu) ................................................................................................................................. 29

Great user manuals database on UserManuals.info

1. Requirements before starting the installation

Before starting the installation, make sure that you have everything you need at hand.

Master remote control 22AV8573 or Guest remote control 22AV1108A

And

USB stick

You will need the master remote control or the guest remote control to access the menus.

To access the setup menu press the ‘RC5 SETUP’ key, and then press the ‘Home/Menu’ button.

For the guest remote control, press the following keys sequential: 3,1,9,7,5,3, ‘MUTE’.

Note: The sequence: 3,1,9,7,5,3, ‘MUTE’ will not show the Setup Menu if High Security Menu is enabled. For

cloning settings from one TV to another TV, you will need to have a USB stick. This stick needs to be

formatted as FAT32 and should be empty.

For the best guest experience check if the software version on the TV is the latest one. This can be done using the

Master Remote control by pressing Recall Button and checking on page 2.1 - Current Main Software’. This also can

be done with the Guest Remote by pressing 1,2,3,6,5,4.

Go to: http://www.support.philips.com/support

Enter the model number and check to confirm you have the latest version available.

Confirm the software version present on TV is identical with the one from website. If not please download the latest

version from website, unzip and save on to a USB key The USB key must be formatted as FAT32 and preferably

empty to avoid and accidental upload of wrong setting and software. Follow the instruction how to upgrade the

software.

If the software version from your TV is identical with the one available on website it is not necessary to upgrade.

If an upgrade is necessary you can upgrade and clone files at the same time automatically. (Upgrade -> Automatic

Reboot -> Clone) --- See Instant Initial Cloning

Initial instant cloning option can only be used if you reinstall TV or TV is out the box.

Great user manuals database on UserManuals.info

2. Find out the state of the TV

It is important to know if a TV is in ‘virgin mode’ (out of the box) or installed before.

If you can see this screen below, you know that the TV is in ‘virgin mode’ and you can install the set. See chapter 4 of

this manual.

If you power on the set and then press the ‘Home’ button on the guest remote, you will see this screen appear, if the

TV already has been installed or the wizard was already skipped.

Professional Settings ON Professional Settings OFF

You can start the installation wizard again by reinstalling the TV as explained in chapter 3 of this manual.

Disable the Professional Settings

Access the setup menu press the ‘RC5 SETUP’ key, and then press the ‘Home/Menu’ button. (For the guest remote

control, press the following keys in sequence: 3,1,9,7,5,3, ‘MUTE’).

Go to, Professional Mode and select the OFF option and confirm with “OK”. Go back with the arrow keys and select

Store settings. Do confirm with “OK”. After restart the TV will have the PBS mode set to OFF.

Note: All settings can be done without disabling the Professional Mode, but all settings from ‘Professional Settings’ which were not saved will

discarded during the transition to Consumer Mode.

Great user manuals database on UserManuals.info

3. Re-install TV

If you want to start an installation from scratch you can always re-install the TV. This can be done by using the

option: Re-install TV set.

If Professional mode is active you can access the setup menu by pressing the ‘RC5 SETUP’ key, and then press the

‘Home/Menu’ button (For the guest remote control, press the following keys in sequence: 3,1,9,7,5,3, ‘MUTE’) , then

go to TV Setup, confirm with “OK”. This menu will appear:

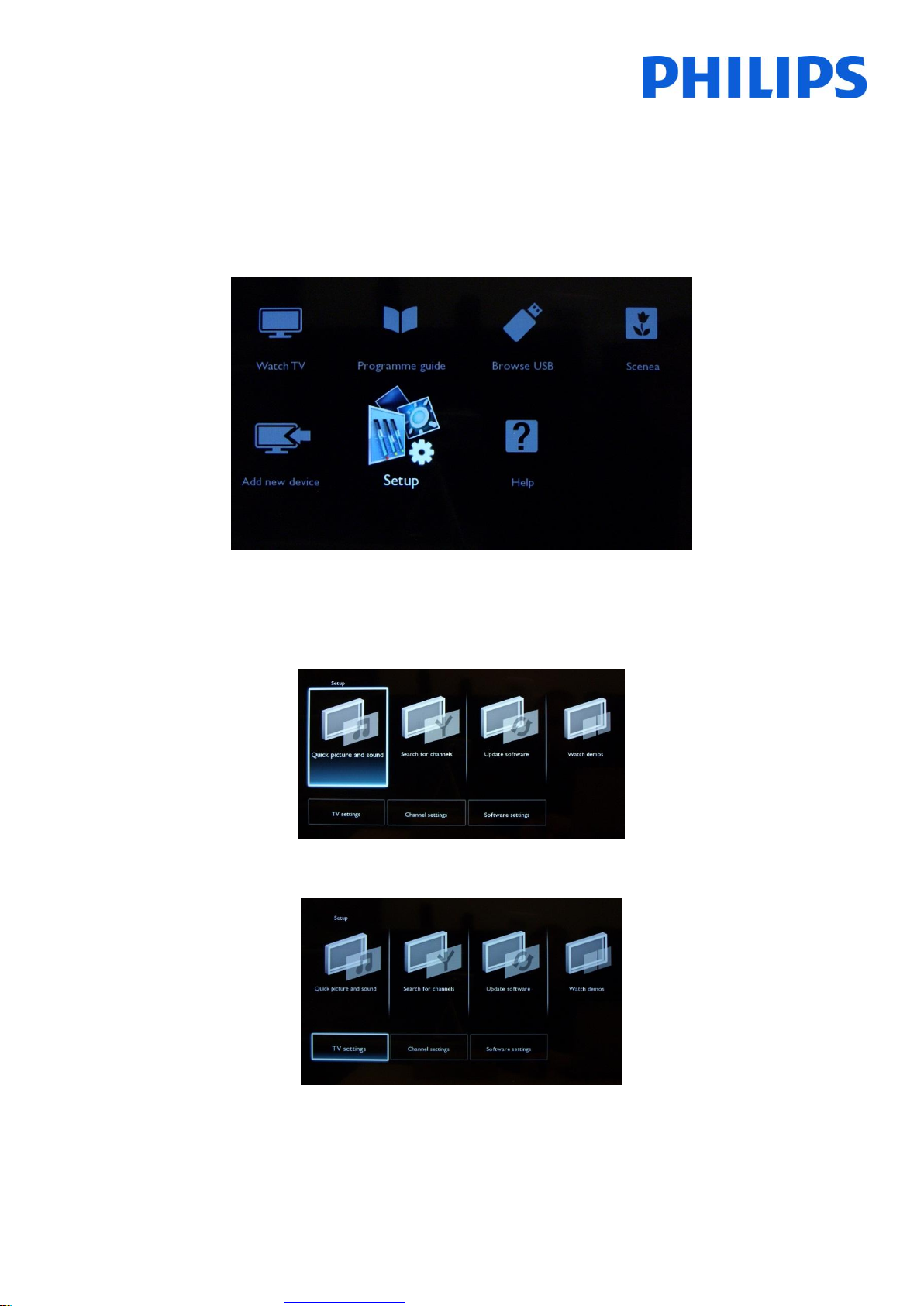

If the Professional mode is disabled, you can access the Setup menu with the guest remote control.

Select “Setup” and press “OK”

Select the option TV settings for this menu

Great user manuals database on UserManuals.info

Press “OK” to access the sub-menu, navigate to “Reinstall TV”.

Press “OK” to reinstall TV set.

If all is correct select “Start now” and press “OK”.

After this operation the TV will power off and on and display the installation wizard.

Note: All settings are at default values and no channel plan is available.

Great user manuals database on UserManuals.info

4. Installation wizard

When you turn on the TV for the first time, or you have reinstalled the TV, you should see the following screen.

Here you will need to select your preferred language. Please select with Up and Down arrow keys and confirm with

‘OK’ or press the Left arrow key.

After this, you will need to select the country. Depending on the country selection, some pre-defined settings will be

activated, because of local broadcast requirements. Example: digital/analog channels could be disabled; reordering

and deleting channels can in some cases not be possible.

Note: If you are experiencing some issues after selecting your country, please select ‘Others’ in the menu.

The next step is to select ‘Wall mounted’ or ‘On a TV stand’. This option changes some settings for the audio and

image of the TV.

Great user manuals database on UserManuals.info

The next step is to choose between ‘Shop’ and Home’ use.

If you select “SHOP” an ‘e-sticker’ banner will be displayed on the TV. This is for commercial purpose only.

Now you can select the visual and hearing impaired options. If you select ‘On’, your TV will automatically turn on

settings to help visual and hearing impaired people. THE MOST COMMON OPTION IS TO TURN THIS FUNCTION OFF.

On the following page we can start the channel installation wizard. You can also press “Back”to correct any previous

setting. We recommend you only select your preferred options as this will result in longer installation times.

Great user manuals database on UserManuals.info

For the channel installations, select ‘Install TV channels’ and press ‘OK’

Then you can select ‘Continue’ and press ‘OK’ again.

Here you can select the type of channels you would like to install and what preference you will use.

Great user manuals database on UserManuals.info

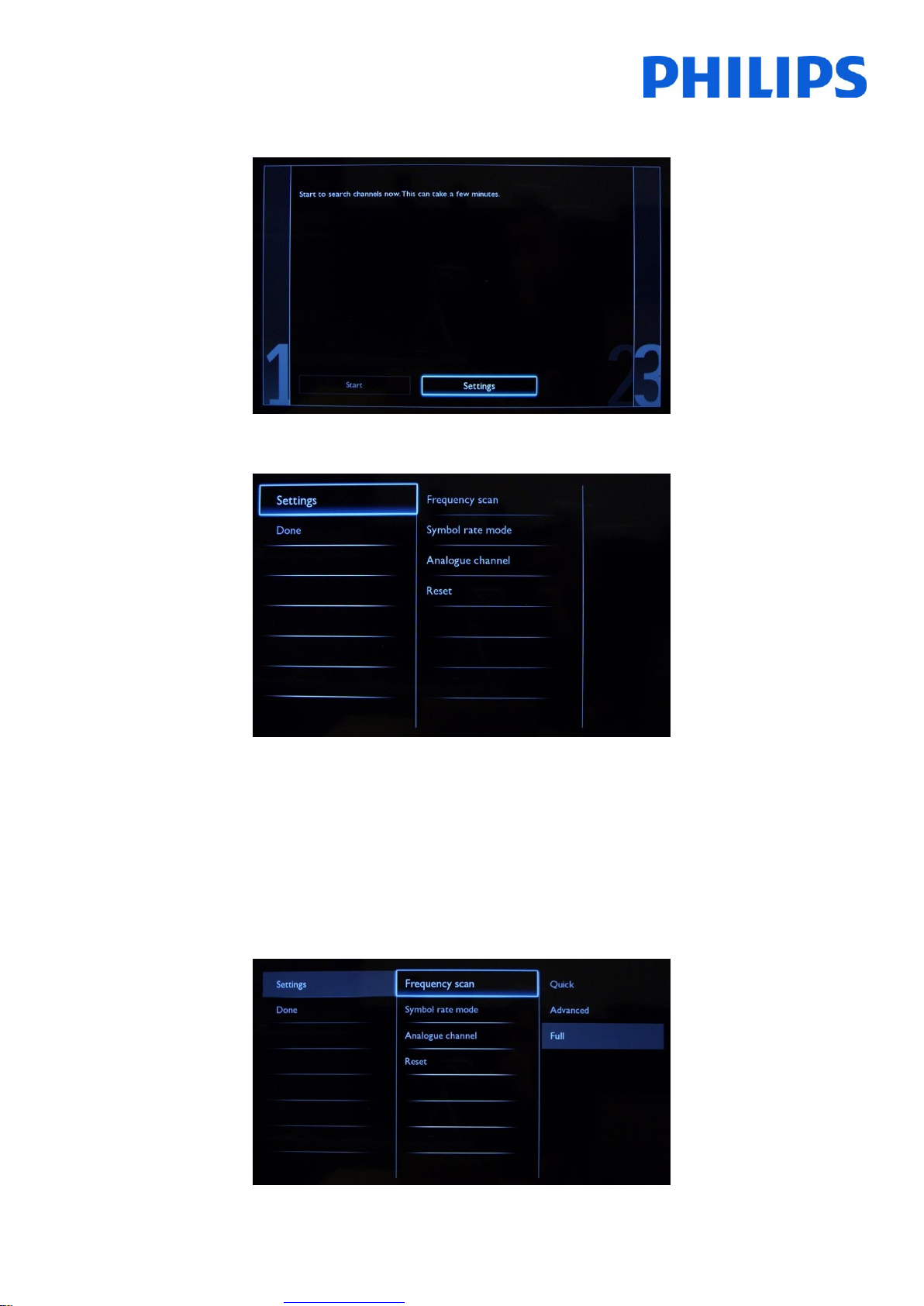

It is advisable to check the settings before starting the search.

The “Frequency scan”contains two options:

-“Quick”: this is a fast method to search channels but it might skip some channels (depending on the

network).

-“Full”: the scan will search on all frequencies and will store all channels available. This is the safe method if

you don’t know the network parameters, but it takes more time.

-Advanced: If you know the network parameters like Network ID, Network Frequency, you can use this

option, otherwise the safe option is tu use the Full option.
