Contents

EN 1

1 Notice 2

2 Important 3

4 Remote Control Functions 7

3 Your TV

5 Use your TV 8

6 FAQ 12

7 Other Information 13

8 Product 14

information

2 EN

1 Notice

Pixel characteristics

This LCD/LED product has a high number of

colour pixels. Although it has effective pixels of

99.999% or more, black dots or bright points of

light (red, green or blue) may appear constantly

on the screen. This is a structural property of

the display (within common industry standards)

and is not a malfunction.

Warranty

No components are user serviceable. Do not

open or remove covers to the inside of the

product. Repairs may only be done by Philips

Service Centres and official repair shops. Failure

to do so shall void any warranty, stated or

implied.

Any operation expressly prohibited in

this manual, any adjustments, or assembly

procedures not recommended or authorised in

this manual, shall void the warranty.

EN 3

When stand mounting the TV, use only

the supplied stand. Secure the stand to

the TV tightly. Place the TV on a , level

surface that can support the combined

weight of the TV and the stand.

When wall mounting the TV, use only a

wall mount that can support the weight of

the TV. Secure the wall mount to a wall

that can support the combined weight of

the TV and wall mount. PE Electronics Ltd

mounting that result in accident, injury or

Risk of injury to children!

Follow these precautions to prevent the

TV from toppling over and causing injury to

children:

Never place the TV on a surface covered

by a cloth or other material that can be

pulled away.

Ensure that no part of the TV hangs over

the edge of the surface.

Never place the TV on tall furniture (such

as a bookcase) without anchoring both

the furniture and TV to the wall or a

suitable support.

Educate children about the dangers of

climbing on furniture to reach the TV.

Risk of overheating!

Never install the TV in a space.

Always leave a space of at least 4 inches

or 10 cm around the TV for ventilation.

Ensure curtains or other objects never

cover the ventilation slots on the TV.

Risk of damage to the TV!

Before you connect the TV to the power

outlet, ensure that the power voltage

matches the value printed on the back

of the TV. Never connect the TV to the

power outlet if the voltage is different.

Never place the TV or any objects on the

power cord.

To disconnect the TV power cord easily

from the power outlet, ensure that you

have full access to the power cord at all

times.

2 Important

Read and understand all instructions before you

use your TV. If damage is caused by failure to

follow instructions, the warranty does not apply.

Safety

Risk of electric shock or fire !

Never expose the TV to rain or water.

Never place liquid containers, such as

vases, near the TV. If liquids are spilt on

or into the TV, disconnect the TV from

the power outlet immediately. Contact

Philips Consumer Care to have the TV

checked before use.

Never place the TV, remote control or. batteries near naked flames or other heat

sources, including direct sunlight.

To prevent the spread of fire, keep

candles or other flames away from the

TV, remote control and batteries at all

times.

Never insert objects into the ventilation

slots or other openings on the TV.

When the TV is swiveled ensure that

no strain is exerted on the power cord.

Strain on the power cord can loosen

connections and cause arcing.

Never expose the remote control or

batteries to rain, water or excessive heat.

Avoid force coming on to power plugs.

Loose power plugs can cause arcing or

Risk of injury or damage to the TV!

Two people are required to lift and carry

a TV that weights more than 25 kg.

fire.

flat

confined

bears no responsibility for improper wall

Risk of electric shock or fire !

damage.

Risk of injury, fire or power cord damage!

Risk of swallowing batteries!

4 EN

Disposal of your old product and

batteries

Your product is designed and manufactured

with high quality materials and components,

which can be recycled and reused.

When you disconnect the power cord,

always pull the plug, never the cable.

Disconnect the TV from the power

outlet and antenna before lightning

storms. During lightning storms, never

touch any part of the TV, power cord or

antenna cable.

Risk of hearing damage!

Avoid using earphones or headphones at

high volumes or for prolonged periods of

time.

Low temperatures

If the TV is transported in temperatures

below 5

until the TV temperature matches room

temperature before connecting the TV to

the power outlet.

Screen care

Avoid stationary images as much as

possible. Stationary images are images

that remain on-screen for extended

periods of time. Examples include:

on-screen menus, black bars and time

displays. If you must use stationary

images, reduce screen contrast and

brightness to avoid screen damage.

Unplug the TV before cleaning.

Clean the TV and frame with a soft,

damp cloth. Never use substances such as

alcohol, chemicals or household cleaners

on the TV.

Risk of damage to the TV screen!

Never touch, push, rub or strike the screen

with any object.

To avoid deformations and colour fading,

wipe off water drops as soon as possible.

C, unpack the TV and wait

EN 5

3 Your TV

1.POWER SOCKET

2.Composite Video and Audio Input (AV1)

3.Component Video (YPbPr) Input

4.HDMI Input

5.USB

6.VGA Port (PC Input)

7.PC Audio Input

Note: 1.Composite video input and component video input share the audio input.

Audio Input for Component is Common with AV1 Audio input.

2.When "DVI to HDMI cable" is used, the audio output for DVI needs to be connected

to the PC Audio Input.

30 30

1. SOURCE: Display source menu.

2. MENU: Display main MENU.

3. CH+/CH-: In TV mode, press "CH+" or

"CH-" to change the channel up and down. In

MENU mode, press "CH+" or "CH-" to select

items. In standby mode, press "CH+" or "CH-"

to turn on the TV.

4. VOL+/VOL-: Adjust sound level. In MENU

mode, press "VOL+" or "VOL-" to adjust the

item that you selected.

5. STANDBY: Press this button to turn the TV

ON from STANDBY mode. Press it again to

turn the set back to STANDBY.

Side controls and indicators (LED 22PFL4556/V7)

Sockets

SOURCE

CH+

CH-

VOL+

VOL-

STANDBY

8.AV2 IN/AV OUT

(The socket can be used to connect

AV2 IN/AV OUT adapter cable).

Note :When connecting the AV Adapter cable,

please make sure the side with triangular

mark towards the inside.

9.Antenna Socket

USB

Y Pb Pr

VIDEO L R

AV1

DC 12V 3A

HDMI1 HDMI2 USB VGA PC AUDIO

INPUT RFAV2 IN AV OUT

1: Remote control sensor.

2: LED Indicator:

No light: In Power ON/Power OFF condition.

Red light: In Standby condition.

3: Key board

6 EN

3 Your TV

1.Composite Video and Audio Input (AV1)

2.Component Video (YPbPr) Input

3.HDMI Input

4.USB

5.VGA Port (PC Input)

6.PC Audio Input

Note: 1.Composite video input and component video input share the audio input.

Audio Input for Component is Common with AV1 Audio input.

2.When "DVI to HDMI cable" is used, the audio output for DVI needs to be connected

to the PC Audio Input.

Side controls and indicators (LED 32PFL4356/V7 & 32PFL4556/V7)

Sockets

7.AV2 IN/AV OUT

(The socket can be used to connect

AV2 IN/AV OUT adapter cable).

Note :When connecting the AV Adapter cable,

please make sure the side with triangular

mark towards the inside.

8.Antenna Socket

SOURCE

CH+

CH-

VOL+

VOL-

STANDBY

30 30

USB

HDMI1 HDMI2 USB VGA RF

PC AUDIO

INPUT AV2 IN AV OUT

Y Pb Pr

L R

AC-INPUT

110-240V~50/60Hz

VIDEO

AV1

1. SOURCE: Display source menu.

2. MENU: Display main MENU.

3. CH+/CH-: In TV mode, press "CH+" or

"CH-" to change the channel up and down. In

MENU mode, press "CH+" or "CH-" to select

items. In standby mode, press "CH+" or "CH-"

to turn on the TV.

4. VOL+/VOL-: Adjust sound level. In MENU

mode, press "VOL+" or "VOL-" to adjust the

item that you selected.

5. STANDBY: Press this button to turn the TV

ON from STANDBY mode. Press it again to

turn the set back to STANDBY.

USB

1: Remote control sensor.

2: LED Indicator:

No light: In Power ON/Power OFF condition.

Red light: In Standby condition.

3: Key board

4: Main Power Switch (Bottom side).

EN 7

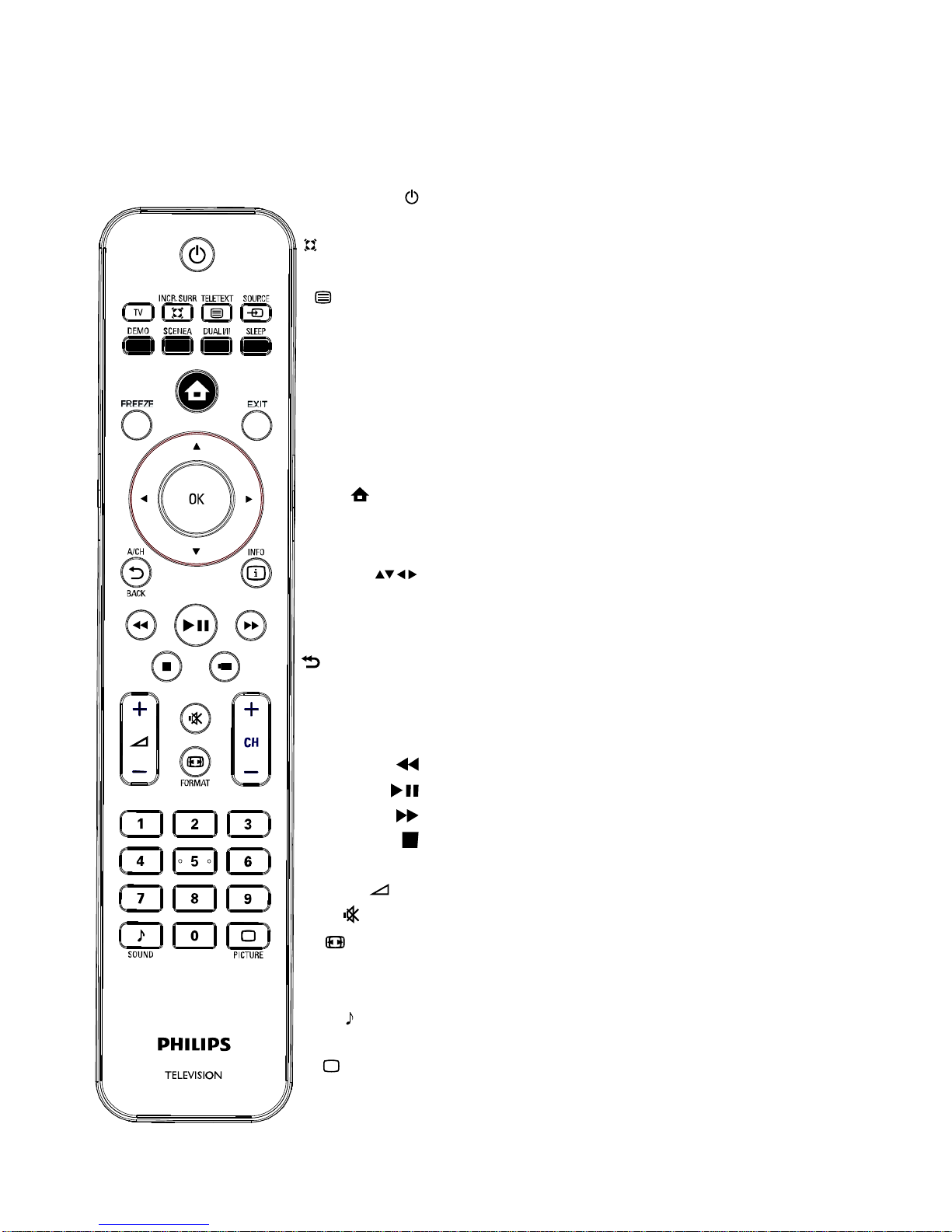

4 Remote Control Functions

Most of your television's functions are available via the menus that appear on the

screen. The remote control supplied with your set can be used to navigate through

the menus and to configure all the general settings.

Note:-Remote Control ( Depending on the models) and operation of remote control

may be affected by bright artifical light near to the TV.

(On/Off button) Turns the TV on or off in standby.

TV Access the TV mode.

INCR. SURR Enables Incredible Surround for stereo

sources. Enables spatial mode for mono sources.

TELETEXT

Toggles teletext on or off.

SOURCE Press to select signal source.

DEMO Toggles the demonstration menu on or off.

DUAL I/II Switches Stereo and Nicam Stereo to

Mono. Selects first language (DualI)

or second language (Dual II) in bilingual programmes

SLEEP Sets a delay after which the TV switches off

FREEZE Freezes the picture

EXIT Exits the menu system.

SCENEA Deletes the selected file in the playlist.

MENU Brings up the menu system.

(up, down, left and right direction buttons) Highlights

different items in the menu system and adjusts the menu

OK Confirms your selection.

BACK A/CH

Returns to a previous screen.

Toggles between the current channel and the last viewed

INFO Displays the status information.

Fast reverse button.

Fast forward button.

Play/Pause button.

Stop button.

USB Access the USB mode.

+/- Increases or decreases volume.

(MUTE)

FORMAT Selects a picture format.

CH +/- Scans up or down through the current channel list.

0-9 (numeric buttons) Enters channel numbers.


SOUND Toggles through the sound modes: Standard, Music,

Toggles through the picture preset settings: Vivid, Bright,

Cinema, and Personal.

Note: - TELETEXT, DEMO. SCENEA, DUAL I/II

INCR. SURR,

keys depend on model.ing

Movie and Personal.

USB

Turns OFF the sound. Press again to restore the volume.

controls.

channel.

Switching on

Follow the instructions on this page on how to switch on your TV set and the remote

control before going on to following pages describing how to use the channel set-up

procedure.

1. Insert two AAA batteries in the remote control.

Precautions on using batteries:

- Only use the battery types specified.

- Make sure you use the correct polarity.

- Do not mix new and used batteries.

- Do not use rechargeable batteries.

- Do not expose batteries to excessive heat such as sunshine, fire or

throw them in a fire, recharge them or try to open them, asthe like,

them to leak or explode.this could cause

- Remove the batteries from the remote control if you are not using it

period of time.for a long

3. Connect the outside aerial or cable network to the ANTENNA IN socket

at the back of the TV set.

The aerial socket (75 OHM - VHF / UHF / cable) can be used for

an external aerial or other equipment fitted with a modulatorconnecting

satellite receiver, etc.). We recommend that you do not(video recorder,

(video recorder, satellite receiver, etc.) to yourconnect other equipment

complicate the set-up procedure withTV set to begin with, so as not to

them when you have finishedthe additional steps involved. Connect

4. Switch the TV on by pressing the power button.

The location and name of the power button on the TV may vary

according to TV model, at back side or bottom side of the back cabinets.

If the TV set is in standby mode, press the button on the remote

control or the CH+/- buttons on the TV set to turn on the TV.

Note:

2. Connect the power cable to a mains socket. (If the power cable is not

to the television, please first connect the power cable to theconnected

Your TV set should only be connected to an AC supply. It must not be

connected to a DC supply. If the plug is detached from the cable, do

not, under any circumstances, connect it to a mains socket, as there is

Note: The figures are for representation only. The location of the power

the back of the television might differ depending on the model.socket at

Switching off

press the power button

To put the TV set into standby mode, press the button on the remote control. The TV set remains

powered up, but with low energy consumption.

To switch off the TV set, .

8 EN

5 Use your TV

television.)

a risk of electric shock.

setting up the channels.

Watch TV Device List

Browse USB Setup

2. PICTURE MENU

You can adjust picture effect here, such as

contrast, brightness, etc.

Digital Crystal Clear: To enhance the picture

quality, You can Switch this feature ON or OFF.

Press to move, and press to adjust.

EN 9

Watch TV: Change source to TV direct.

Browse USB: Change source to USB directly.

Device List: Go into the source list menu.

Setup: Go into the setup menu.


Sound

Features

Installation

Smart Picture

Contrast

Brightness

Color

Hue

Sharpness

Digital Crystal Clear

Format


Sound

Features

Installation

Smart Sound

Balance

Treble

Bass

Auto Volume


Sound

Features

Installation

OSD Duration

Blue Screen

Sleep Time

Factory Settings

When the source is PC, you can adjust H/V-

Position, Clock, and so on.


Sound

Features

Installation

Color Temp.

Noise Reduction

1. MAIN GUIDE MENU 3. SOUND MENU

You can adjust the sound effect here such as

Treble,Bass, Balance etc.

Press to move, and press to adjust.

NOTE:

AVL: Auto Volume leveller: When this parameters

is on, then volume level gets automatically

adjusted, this feature acts as automatic volume

leveler which lower the sound output when the

sound modulation is high or by rising the sound

when the sound modulation is low.

2).There are four Smart Sound modes can be

selected, such as standard, music, movie, and

personal.

4. FEATURES MENU

You can adjust the Blue Screen on/off, OSD

Duration, sleep time etc.

Press to move, and press to adjust.

NOTE:

1) Hue is available in NTSC system only.

2) There are four smart picture modes can be

selected, as Vivid, Cinema, Personal, and

Bright.

3) When Digital Crystal Clear is on, the contrast

and brightness is disabled.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips Fernseher Handbücher

Philips

Philips ROKU 6500 Series Bedienungsanleitung

Philips

Philips 25PT5307 Bedienungsanleitung

Philips

Philips 50PUN6204/61 Bedienungsanleitung

Philips

Philips 8536 Series Bedienungsanleitung

Philips

Philips 24HFL3010T Bedienungsanleitung

Philips

Philips 65PUT8516 Bedienungsanleitung

Philips

Philips OLED937 Series Bedienungsanleitung

Philips

Philips 32PT71B Bedienungsanleitung

Philips

Philips 29PT8457 Bedienungsanleitung

Philips

Philips 55PUD7906 Bedienungsanleitung

Philips

Philips 24PW6321/05 Bedienungsanleitung

Philips

Philips 32PFL5403/93 Bedienungsanleitung

Philips

Philips VES15.1HE LA Bedienungsanleitung

Philips

Philips 5303 series Bedienungs- und Wartungsanleitung

Philips

Philips 19PFL5404/60 Bedienungsanleitung

Philips

Philips Color TV Handbuch

Philips

Philips 40PFL6636T/12 Bedienungsanleitung

Philips

Philips 26-LCD DIGITAL WIDESCREEN FLAT TV PIXEL PLUS... Referenzhandbuch

Philips

Philips SignageSolutions 55BDL3102H Bedienungsanleitung

Philips

Philips 32RF50S Bedienungsanleitung

Philips

Philips Essence 5000 Series Bedienungsanleitung

Philips

Philips 32PT8320 Bedienungsanleitung

Philips

Philips Matchline 36LM8908 Bedienungsanleitung

Philips

Philips 19PFL3404D/05 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Toshiba

Toshiba 27A10 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung

Sanyo

Sanyo CE19LD90N-B Bedienungsanleitung

North State

North State TV2GO Bedienungsanleitung

RCA

RCA RTU7877 Bedienungsanleitung

Sharp

Sharp 21K-FG1RU Bedienungsanleitung

Sony

Sony Esprit TAV-L1 Bedienungsanleitung

Grundig

Grundig 43 VLE 4820 Bedienungsanleitung

Samsung

Samsung LN26C350D1D Bedienungsanleitung
