Contents

Your remote control _____________________________________ 2

Installation

Preparation _______________________________________________ 3

Connect your computer ____________________________________ 4

Switch TV on ______________________________________________ 5

Select your Menu language ___________________________________ 5

Search for and Store TV channels

Automatic installation ___________________________________ 7

Manual installation______________________________________ 8

Reshuffle the programme list ________________________________ 10

Select favourite TV channels_________________________________ 11

Install TV configuration according to the computer or other

peripheral equipment connected _____________________________ 12

Operation

Select TV channels, computer or other external A/V sources ______ 13

Main Menu _______________________________________________ 14

Adjust the picture

in TV mode ____________________________________________ 14

in computer mode ______________________________________ 14

Adjust the sound __________________________________________ 16

Features _________________________________________________ 18

Other Functions __________________________________________22

Teletext _________________________________________________25

Connect peripheral equipment ___________________________28

Reproduce Picture and Sound from connected peripheral equipment

or from your computer ____________________________________ 32

Record with your video recorder_____________________________ 33

Special features for professional use ______________________34

Tips ____________________________________________________35

Index ___________________________________________________36

English

3104 305 4568.1.gb 01-06-1999 09:31 Pagina 1

SMART CONTROLS

PICTURE SOUND

VCR 1

VCR 2

SAT

AMP

TUNER

TAPE

DCC

selection of S/VGA modes

and external sources

selection of connected

peripheral equipment

TV operation

a

volume key

sound temporarily

switched off

a

vertical squeeze

bilingual choice

continuous subtitles

E

e

teletext on/off

direct txt page or

subject selection

txt index page

interrupt txt page

mix tv/txt picture

enlarge

solution to riddles

time display

a



j

g

b

h

f

menu on/off

select your choice

activate your choice

Teletext

Menu p.13

TV channel selection

brightness

123

456

789

J

info on screen

previous programme

fhm

GL

G

B

F

N

stop

rewind

play

wind

programme timer

record

Video recorder

Bstandby on/off

p.32

p.13

p.22

p.27

p.25

p.23

p.34

p.22, 23

p.13

F

H

u

freeze the picture

reduce image noise

this key has no function

personal preference

p.23, 24

SMART

CONTROLS

picture and sound

settings

p.14,16

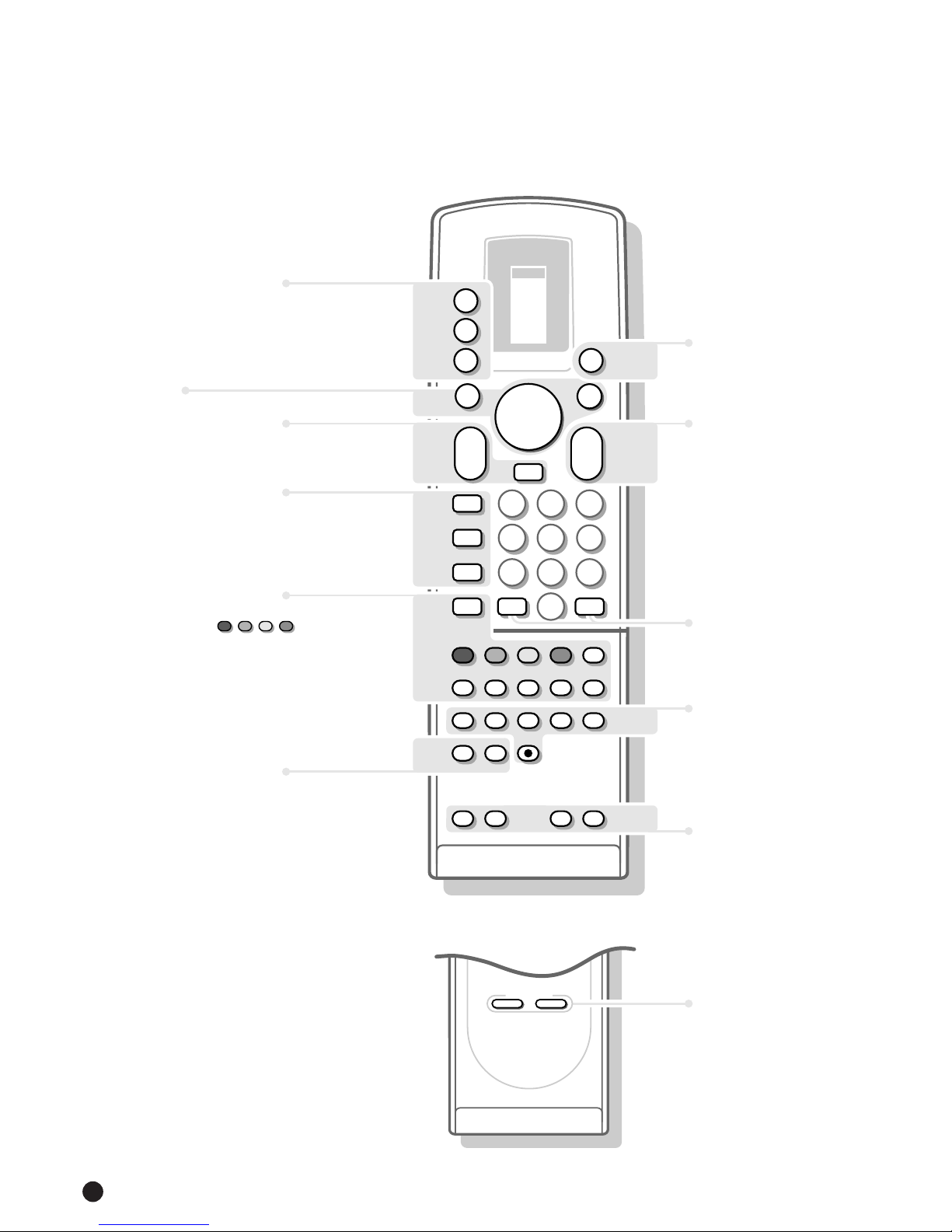

Your remote control

3104 305 4568.1.gb 01-06-1999 09:31 Pagina 2

English

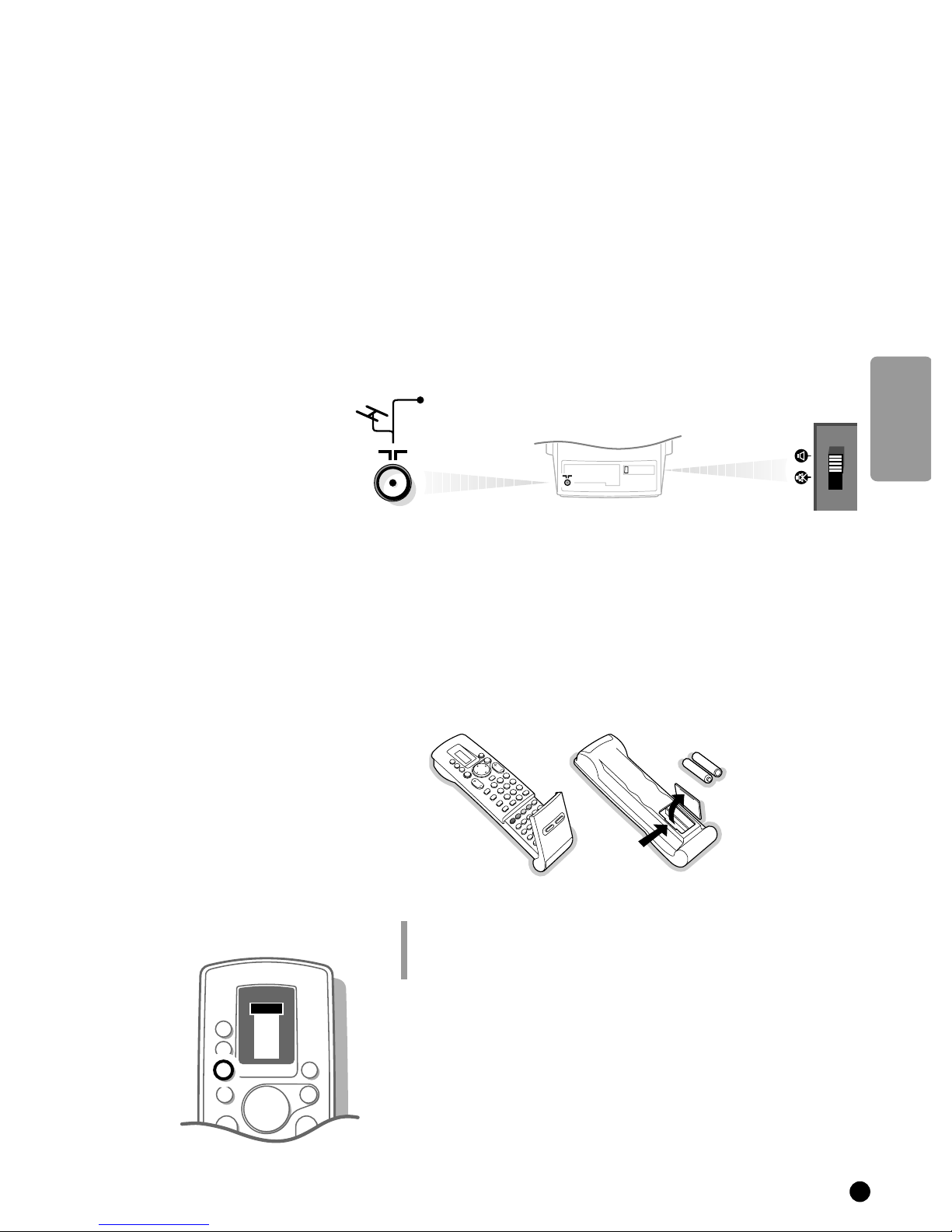

Preparation

Do not insert the mains plug in the wall socket before all connections

are being made.

Place the TV on a solid surface.

For ventilation, leave at least 5 cm free all around the TV.

To prevent any fault and unsafe situation, please do not place any objects on

top of the TV.

Insert the aerial plug tightly into the aerial socket gat the back of the TV

with an aerial cable of good quality.

4Check if the loudspeaker switch at the back of the TV is in the lposition.

CABLE

Installation

Remote control

Remove the cover of the battery compartment on the back of the remote

control.

Insert the 2 batteries supplied (Type R03G/AAA-1,5V).

Click the cover back into place.

The batteries supplied do not contain the heavy metals mercury and cadmium.

Nevertheless in many countries exhausted batteries may not be disposed of with your

household waste. Please inform yourself on how to dispose of exhausted batteries

according to local regulations.

4Press the TV key next to the display.

5In the display of the remote control the letters TV appear in a black block for

a few seconds.

You can now operate your TV with the remote control.

cLL

VCR 1

VCR 2

SAT

AMP

TUNER

TAPE

DCC

R03G/AAA

3104 305 4568.1.gb 01-06-1999 09:31 Pagina 3

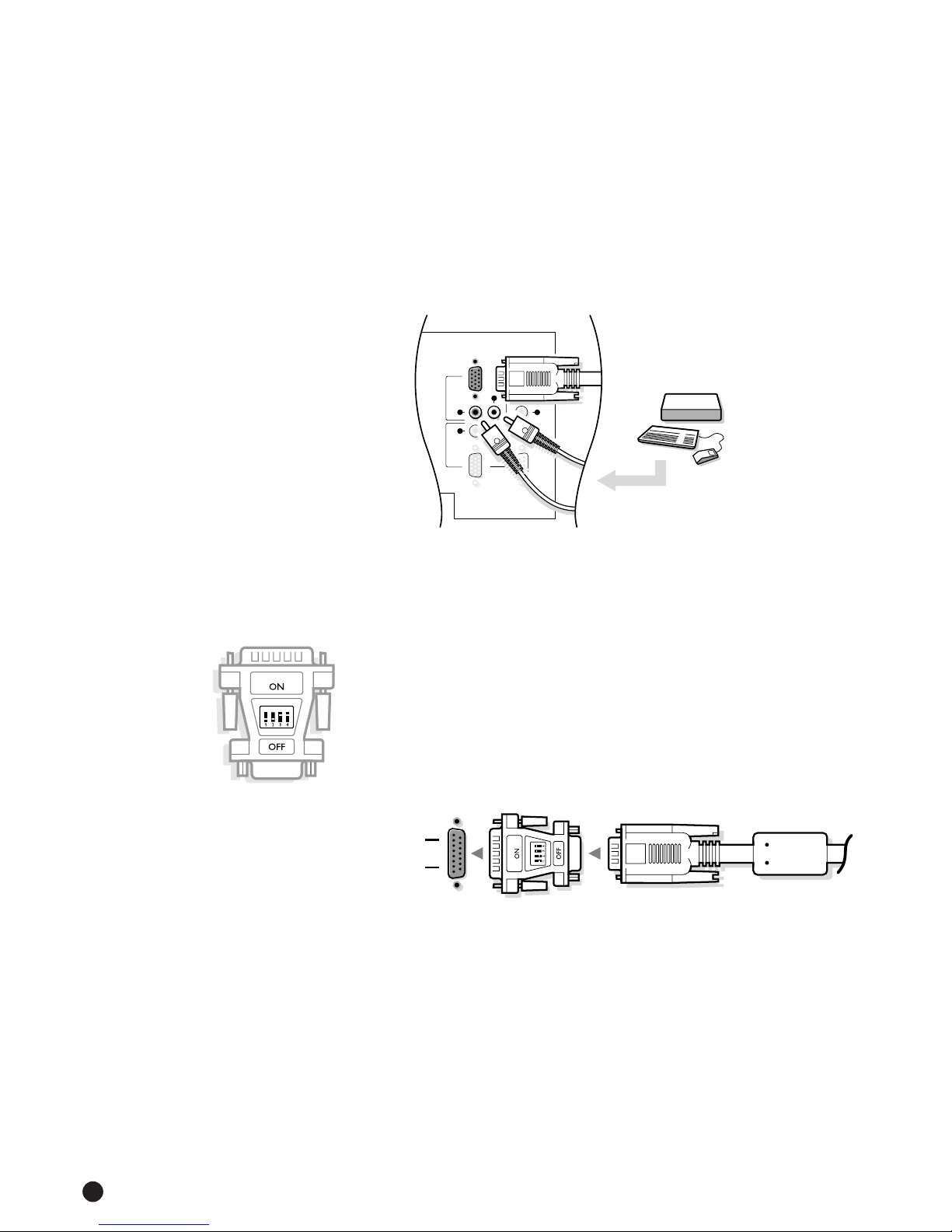

Connect your computer

4Connect one end of the supplied S/VGA cable to the video card of the

computer and the other end to the S/VGA IN connector at the rear side of the

TV set.

4Fix the connectors firmly with the screws on the plug.

Connect your Apple Macintosh* computer

Attention: Macintosh computers with separate H and V synchronisation signals

can be used together with the supplied adapter. Macintosh computers with

Composite Sync and Sync on Green signals may need a special (not

supplied) adapter or cable. Contact your dealer.

<Connect the supplied switchable adapter for Apple video connectors to one

end of the supplied S/VGA cable.

<Put the DIP switches on the adapter in the following positions :

1234

off off on on

<Connect the end of the S/VGA cable with the adapter to the video card of the

computer and the other end to the S/VGA IN connector on the back of the TV.

<Screw the connectors down firmly.

<The supplied audio cables can be connected to the audio outputs of your

Multimedia computer and to the AUDIO R (right) and L(left) inputs below the

S/VGA IN connector.

To reproduce computer screen information and/or programmes, see p. 32.

SVGA

OUT

232

A/V 1

AUDIO

S-VHS

VIDEO

DIO

15-pin D sub

(2-row)

15-pin mini D sub

(3-row)

* Apple Macintosh is a registered trademark of Apple Computer, Inc.

3104 305 4568.1.gb 01-06-1999 09:31 Pagina 4

English

DDC Plug and Play

The S/VGA display supports Plug and Play facilities (DDC 1 or 2 B) as available

in Windows 95.

Note: the graphical board of your computer should be fit for Plug and Play.

RS-232 port

This TV has an RS-232C connection for PC control with an RS-232 signal cable.

Please contact your local Philips organisation for details.

Daisy chaining

The Active Loop Thru facility makes it possible to make a daisy chain (max. 4

TVs). Connect the TVs before inserting the mains plug in the wall socket.

4Connect another S/VGA cable to the S/VGA OUT connector of the TV and to

the S/VGA IN connector of a second S/VGA TV.

In case of a Multimedia computer, also connect the audio cables to the audio

inputs R(right) and L(left) above the S/VGA OUT connector and to the audio

inputs of the second S/VGA TV.

Computer Display modes

• VGA 640x480 31.468kHz 60Hz

• VGA 640x400 31.468kHz 70Hz

• VGA 640x350 31.468kHz 70Hz

• SVGA 800x600 35.156kHz 56Hz

• MAC Z640x480 35.000kHz 67Hz

When a VGA computer is connected, the selection is made automatically.

When a S/VGA or Macintosh computer is connected, make a selection yourself

between PC or MAC Z. See Install TV Configuration, Computer, p. 12.

Insert the mains plug in the wall socket with a mains voltage of 220V-240V.

S/VGA

OUT

S/VGA

OUT

S/VGA

3104 305 4568.1.gb 01-06-1999 09:31 Pagina 5

Menu Language

Country

Automatic Installation

Manual Installation

Give Name

Reshuffle

Favourite Programmes

TV Configuration

Decoder/Descrambler

LANGUAGE

English ••• •••

••• ••• •••

MAIN


SOUND

FEATURES

PROGRAMMES

INSTALLATION

COUNTRY

UK •••

••• •••

••• Other

VCR 1

VCR 2

SAT

AMP

TUNER

TAPE

DCC

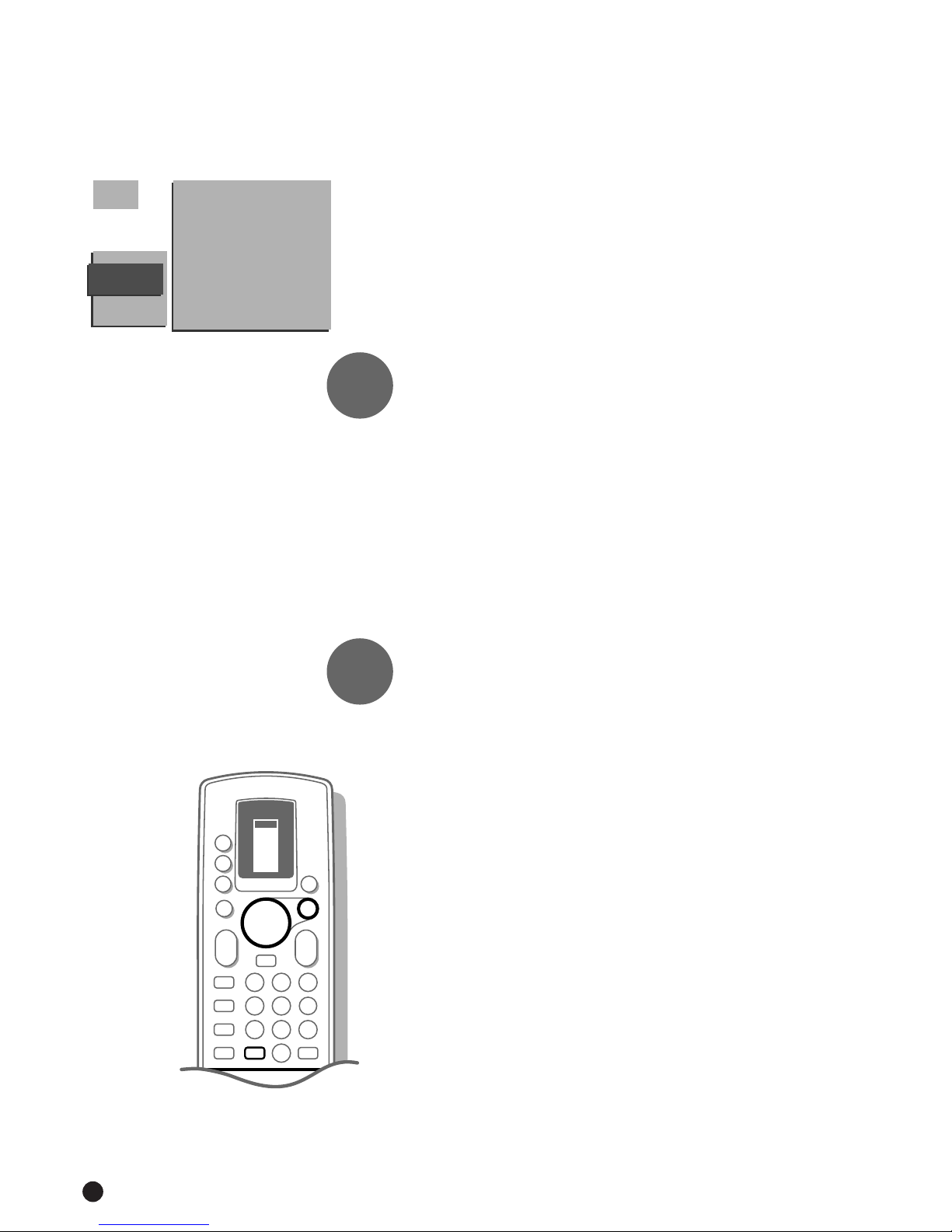

Switch TV on

4Press the power switch Aon the front of your set.

5A green or red lamp lights up on the front of your set.

green ...................................................

5The TV is on.

The screen lights up after a few moments.

red .....................................................................

5The TV is switched on but the screen stays

dark. Your TV is on standby.

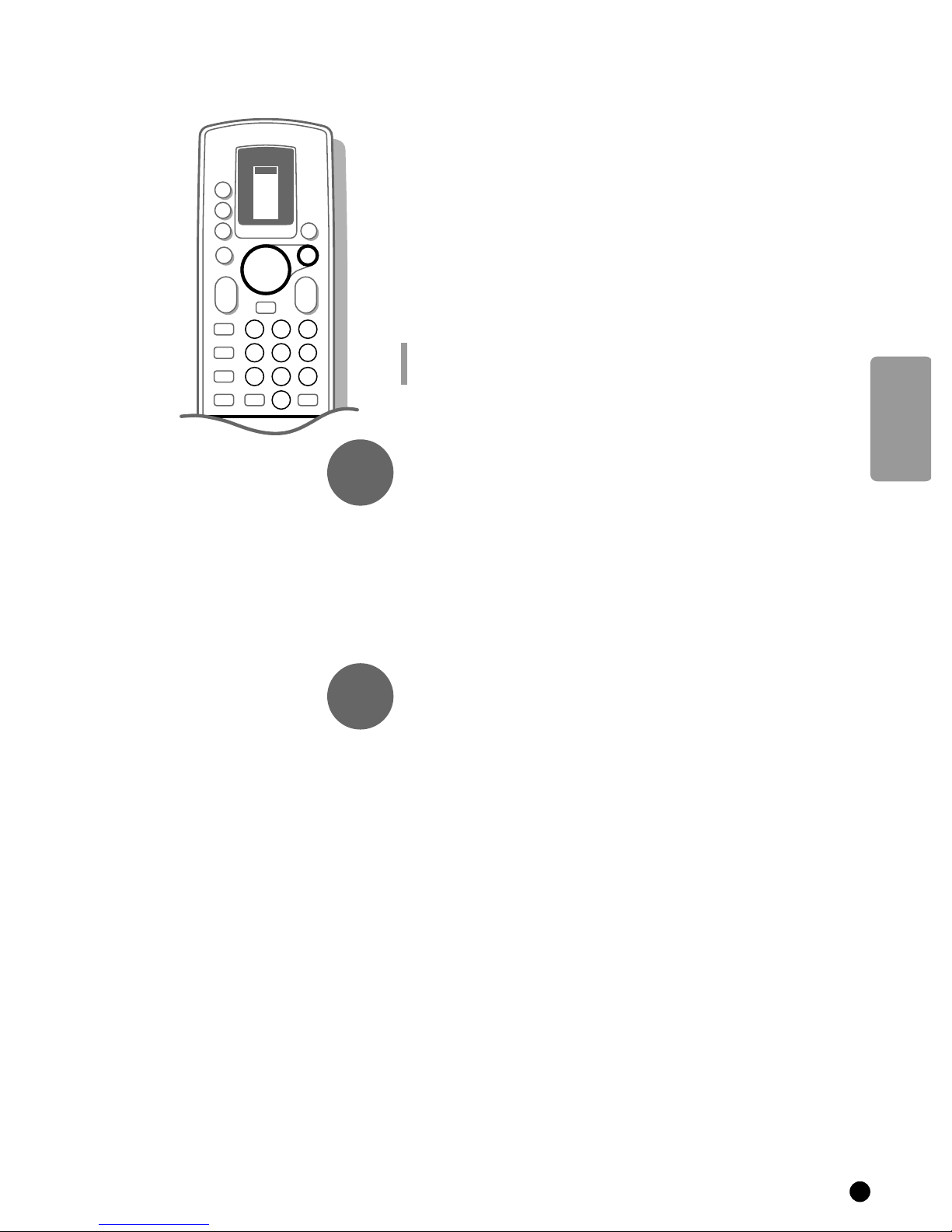

4Press a digit key or the red standby key B

on the remote control.

5The TV is on.

The screen lights up.

5The green lamp blinks every time you press a key on the remote control.

Switch menus on and off

4Press MENU on the remote control.

5The MAIN MENU appears.

4Use the keys Vor Wto make a selection of the Main Menu items.

5Your selection lights up.

4Press the OK key on the remote control to activate the selected menu.

4Press MENU again to return to the previous menu.

4Keep the MENU key pressed to switch off all menus.

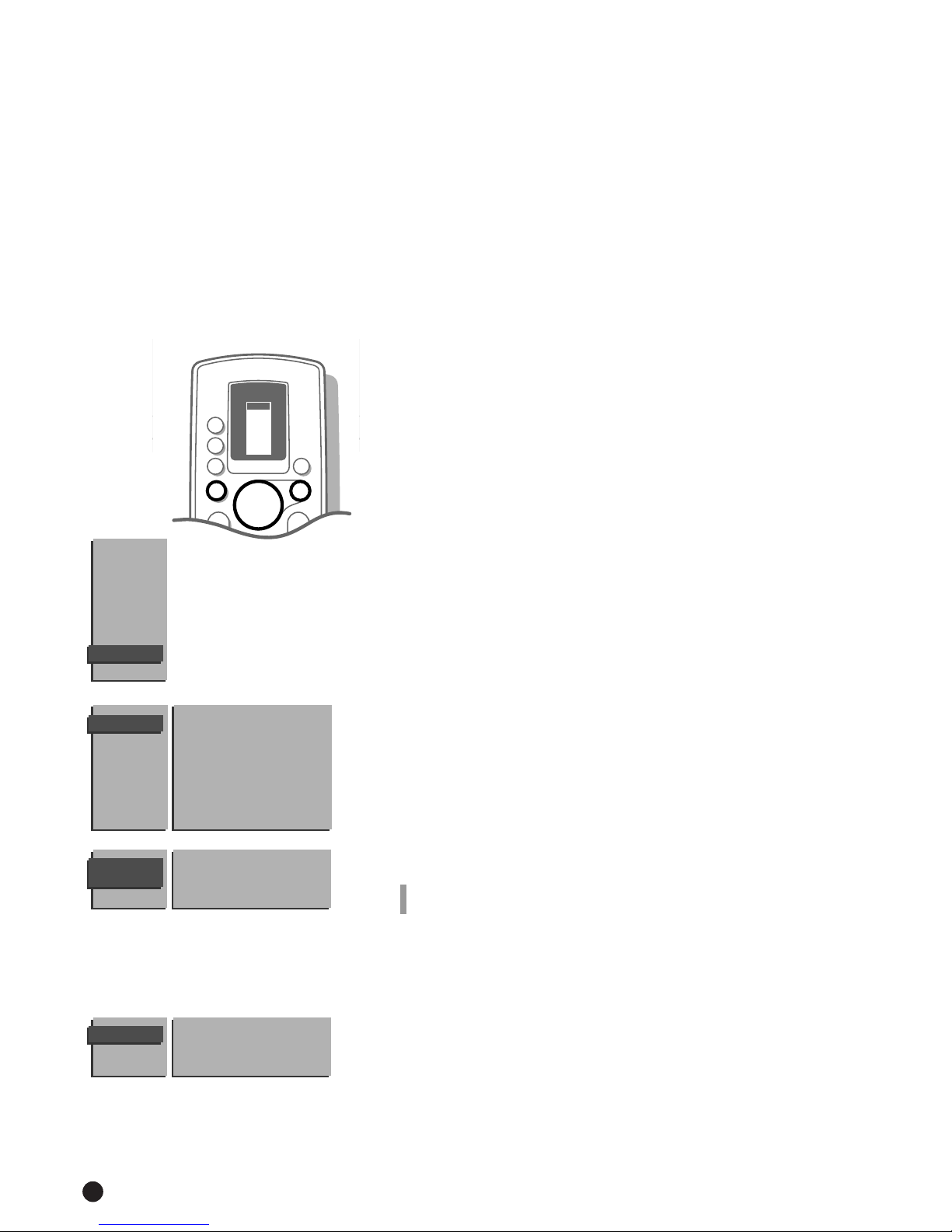

Select the menu language

You can now choose which language the menus are presented in.

4Press MENU on the remote control.

5The MAIN MENU appears on the screen.

4Keep the key Wpressed and select INSTALLATION.

4Press OK.

5The INSTALLATION menu appears and Menu Language lights up.

4Press OK.

4Select the language of your choice with the keys V, W, Cor Band press OK.

5The INSTALLATION menu reappears.

From this point on, all menus are presented in the language of your choice.

Have you pressed the wrong key ?

Press OK again and make a new selection.

Select Country

4Press the keys Wor V to select Country.

4Press OK.

4Select the country where you are now located with the keys

V, W, Cor Band press OK.

Select Other when none of the countries applies.

5The INSTALLATION menu reappears.

3104 305 4568.1.gb 01-06-1999 09:31 Pagina 6

English

Store TV channels

This can be done in two different ways : automatically or manually.

Automatic installation ....................

All TV channels are searched for and

stored automatically. If connected to a

cable system or a TV channel which

transmit the correct information, the

names and channel numbers are also

entered automatically.

If you wish the order of programme

numbers and names of stored TV channels

can be modified afterwards.

Follow very closely and step by step the

instructions of the Automatic Installation.

Manual installation

With manual installation it is possible to

select whether TV channels are searched

for by frequency or channel number.

Follow very closely and step by step the

instructions of the Manual Installation

procedure.

You must go through every step.

Go on to page 8.

4Select Automatic Installation with the keys Vor Wand press OK.

5The menu AUTOMATIC INSTALLATION appears.

4Press OK again.

4Press the keys Cor Bto select On.

5The message Searching appears as the TV searches for all the channels

available in your area.

The automatic installation can be interrupted by pressing the MENU key.

5Every time a TV channel is found it is automatically placed under the next free

programme number in the programme list.

5The message Ready appears on the screen when the automatic installation is

complete. The programmes are stored in the programme list.

If a cable system or a TV channel transmitting a teletext page with the

frequencies and programme names of all the TV channels which can be

received, is detected, the search is stopped and a programme list appears.

The programme list is automatically filled with all the programme numbers and

names of the TV channels transmitted.

It is possible that the cable company or the TV channel displays a broadcast selection

menu. Layout and items are defined by the cable company or the TV channel. Make

your choice of the presented possibilities with the keys Wor V

and press OK.

4Press MENU.

5The INSTALLATION menu reappears.

Go on to page 10.

Automatic installation

AUTOMATIC

INSTALLATION

Automatic Installation

Searching 0 % ............. 100 %

Menu Language

Country

Automatic Installation

Manual Installation

Give Name

Reshuffle

Favourite Programmes

TV Configuration

Decoder/Descrambler

INSTALLATION

3104 305 4568.1.gb 01-06-1999 09:31 Pagina 7

Manual installation

4Select Manual Installation with the keys Vor Wand press OK.

5The MANUAL INSTALLATION menu appears.

In the left upper corner of the screen a programme number, a system,

a frequency or possibly a channel number are displayed.

5Selection Mode is only present and lights up if the country you selected in

the COUNTRY menu also offers the channel option.

In this case you can choose either channel or frequency mode.

4Press the keys Cor Bto select frequency, C-channels (aerial channels) or

S-channels (broadcast by a cable company).

You have your own aerial ................

4Select the country or part of the world

from where you want to receive the TV

channel with the keys Bor C.

Go on to 2.

You are connected to a cable system

4Select the country or part of the world

where you are now located.

Select the TV system

Television pictures are not broadcast in the same way in all countries. We

speak of different television systems (PAL, SECAM, NTSC,...).

4Select System with the keys Vor W.

Search for a TV channel

4Select Search with the keys Vor Wand press OK.

5The TV searches for a channel.

5The frequency or the channel number increases until a TV channel is found.

Dependent on the choice you made in the selection mode the searching stops

at a frequency or at a channel number.

5In the bar, which may appear briefly at the bottom of the screen, the

broadcaster may transmit its programme name or another message.

4Press Jof the remote control to recognise which programme is being

broadcast.

5The menu MANUAL INSTALLATION disappears temporarily.

Is the reception poor ?

You may be able to improve the reception of picture and sound of a TV

channel by adjusting the frequency with the P- or + key on the remote

control. The frequency is adjusted in the block shown in the upper left corner

of the screen.

Go on to 3if you want to store the channel that has been found.

Do you want a different channel ?

4Press OK again to restart the search.

No channel found ?

4Interrupt the search by pressing the keys Vor Wor the MENU key.

Check that you have selected the correct TV system or that the aerial is

connected properly. See Tips p. 35.

MANUAL

INSTALLATION

05 10

16 11

27 12

38 13

4 9 ...

Selection Mode

System

Programme No.

Store

.......

123

456

789

VCR 1

VCR 2

SAT

AMP

TUNER

TAPE

DCC

3104 305 4568.1.gb 01-06-1999 09:31 Pagina 8

English

Direct selection of a TV channel

If you know the frequency, or the C- or S-channel number, it can be entered

directly with the digit keys on the remote control and in this way call up the

TV channel.

Ask for a list from your cable company or dealer, alternatively consult the

Table of frequencies on the inside backcover of this handbook.

4Select Search with the keys Vor W.

4Enter the 3 digits of the desired frequency or the 2 digits in case of

C-or S-channels.

4For frequencies under 100 MHz, first enter a 0. For example : 063.

5The frequency is automatically finetuned.

Have you entered a wrong number ?

First complete the frequency or the channel number with arbitrary numbers and then

start again.

Go on to 3.

Enter the programme number

Now assign a number of your choice to the TV channel you have located. In

this way you decide the order of all your TV channels.

4Select Programme Number with the keys Vor W.

4Select with the keys Cor Bor with the digit keys the desired programme

number.

Go on to 4.

Store steps 1 to 3

Now the steps 1 to 3 must be stored in the memory.

4Select Store with the keys Vor Wand press OK.

5Stored appears briefly at the bottom of the screen.

5The programme number and probably the programme name are stored in the

programme list after the message has disappeared.

If you want to store another TV channel.

4Repeat &to ‘.

If you are connected to a cable system.

4Begin immediately with é. You have already selected the TV system in &

for all channels.

If you have finished storing TV channels.

4Press MENU.

5The INSTALLATION MENU reappears.

repeat

end

123

456

789

VCR 1

VCR 2

SAT

AMP

TUNER

TAPE

DCC

3104 305 4568.1.gb 01-06-1999 09:31 Pagina 9

It is possible to change the name stored in the memory or to assign a name to

a TV channel which has not yet been entered. A name with a maximum of 5

letters or numbers can be given to the programme numbers 0 to 99. For

example SUPER, BBC1,...

Between 99 and 0, you can also name your computer or any peripherals that

are connected.

4Select Give Name with the keys Vor Wand press OK.

5The GIVE NAME menu appears.

4Select the TV channel to be modified or assigned a name with the keys V, W,

Bor Cand press OK.

5A block appears on the first position of the name.

4Select with the keys Bor Cthe position of the letter or number you want

to change or to enter.

4Select with the keys Vor Wthe letter or number you want to enter or to

correct. A space, numbers or other special characters are located between

Z and A.

Did you fill in a wrong letter or number ?

Select with the keys Bor Cthe position of the letter or number you want to modify.

Select with the keys Vor Wthe correct letter or number.

When the complete name is filled in.

4Press OK.

4Select another TV channel to be modified or assigned a name with the keys

V, W, Bor Cand press OK.

4Repeat as described above.

When you have finished entering or modifying programme names.

4Press MENU.

5The INSTALLATION menu reappears.

GIVE NAME 90

S/VGA 0

91 FRONT 1 BBC1

92 A/V 1 2 BBC2

93 A/V 2 3 ....

94 A/V 3 4 ....

95 A/V 4 5 ....

96 .......

Enter or modify a programme name

Reshuffle the programme list

According to your preference you can change the order of the stored TV

channels.

When you are satisfied with the order of the programme list, go to page 11.

4Select Reshuffle with the keys Vor Wand press OK.

5The menu RESHUFFLE appears.

4Select the TV channel you want to change the programme number of with the

keys V, W, Cor Band press OK.

4Use the keys Cor Bto select another column of the programme list.

5The programme number and the name of the TV channel appear in a black

block.

4Use the keys V, W, Bor Cto move to the number where you want to locate

the TV channel.

4Press OK.

5The TV channel moves to the selected programme number.

The TV channel which was located on that position automatically moves to the

programme number of the TV channel you have modified.

4Repeat this for all the other TV channels you want to swap.

When all the TV channels are allocated as you like.

4Press MENU.

5The INSTALLATION menu appears again.

90 ...

0 ... 10 ...

91 1 BBC1 11 ...

92 2 BBC2 12 ...

93 3 ... 13 ...

94 ...... 14 ...

95 ...... 15 ...

96 ...... ......

VCR 1

VCR 2

SAT

AMP

TUNER

TAPE

DCC

RESHUFFLE

3104 305 4568.1.gb 01-06-1999 09:31 Pagina 10

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips Fernseher Handbücher

Philips

Philips 32PT543S/17 Handbuch

Philips

Philips 43PFT5503 Bedienungsanleitung

Philips

Philips 32PHD4503 Bedienungsanleitung

Philips

Philips OLED807 Series Bedienungsanleitung

Philips

Philips 37PFL4007T/12 Bedienungsanleitung

Philips

Philips 52PFL7403/93 Bedienungsanleitung

Philips

Philips 25PS40S Bedienungsanleitung

Philips

Philips MG5.1E Bedienungsanleitung

Philips

Philips 50PFP5332D/37 Bedienungsanleitung

Philips

Philips MatchLine 29PT9006 Bedienungsanleitung

Philips

Philips Smart Series PS1955C Bedienungsanleitung

Philips

Philips 40PFL4707/F7 Bedienungsanleitung

Philips

Philips 50PUT6102/98 Bedienungsanleitung

Philips

Philips 25PT4103 - annexe 1 Bedienungsanleitung

Philips

Philips L01H.2E Bedienungsanleitung

Philips

Philips em2e Bedienungs- und Montageanleitung

Philips

Philips Matchline 28PW960A Bedienungsanleitung

Philips

Philips Cineos 52PFL9432D Bedienungsanleitung

Philips

Philips 6233 Series Bedienungsanleitung

Philips

Philips 40PFL4707/F7 Bedienungsanleitung

Philips

Philips 29PT9413 - annexe 1 Bedienungsanleitung

Philips

Philips 7906 Series Bedienungsanleitung

Philips

Philips 65PML9118 Bedienungsanleitung

Philips

Philips 42PF9631D - 2 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Toshiba

Toshiba 27A10 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung

Sanyo

Sanyo CE19LD90N-B Bedienungsanleitung

North State

North State TV2GO Bedienungsanleitung

RCA

RCA RTU7877 Bedienungsanleitung

Sharp

Sharp 21K-FG1RU Bedienungsanleitung

Sony

Sony Esprit TAV-L1 Bedienungsanleitung

Grundig

Grundig 43 VLE 4820 Bedienungsanleitung

Samsung

Samsung LN26C350D1D Bedienungsanleitung
