Philips 34PT4822/71R Bedienungsanleitung

Instructions for use

Colour Television

L9 2000 3139 125 28241

34PT4822

28241/cover 7/6/00, 3:08 PM1

2Preparation

Installing the TV

4Place your TV set on a stable and strong

base.

4Leave at least a free space of 5 cm on both

sides and 10 cm from the top for good

ventilation of the TV set.

4Do not place anything on the TV set which

might damage it e.g. plants or heat sources.

Connecting the aerial

4Insert the aerial plug into the socket g at

the back of the TV.

Connecting the mains

4Insert the mains plug into the wall socket

and switch on.

Refer to the specification at the back of the

TV for the correct operating voltage.

(Picture is only a representation of the actual

plug and socket)

Switching on

4Press the on/off button at the front of the

TV to switch it on.

If the indicator is red, press either the digit,

channel, A/CH, AV or

key.

Installing the remote control

4Remove the cover at the back of the remote

control.

4Insert the correct type and size batteries

into the compartment, making sure that

they are the right way around.

10 cm

5 cm

28241/p2-9 7/6/00, 3:10 PM2

3Useful Tips

4Avoid heat and

direct sunlight.

4Avoid direct

exposure to rain

or water.

4Never repair the TV yourself – get a skilled

personnel!

4DO NOT leave your TV on standby for a

prolonged period.

4Switch off your TV if not in use.

5This will allow the TV to be demagnetised,

giving good picture.

4Clean the TV’s screen with a slightly damp

soft cloth ONLY WHEN NECESSARY.

Note : Do not use abrasive solvent as it can

damage the screen’s coating.

28241/p2-9 7/6/00, 3:10 PM3

4Connecting peripheral equipment

VCR

VCD

1. Connect to AV sockets

You may choose to connect up AV1 in or

AV2 in or both.

4connect the corresponding sockets of the

equipment to that of the TV.

5to view the playback, select the first AV

channel (if connection is made to sockets

at AV1 in) or the second AV channel (if

connection is made to sockets at AV2 in).

Note: For mono equipment, connect to the

VIDEO and L sockets only.

2. Connect to S-Video sockets

If you have a S-Video equipment, connect to

the S-Video socket for better picture quality.

4connect the corresponding socket of the

equipment to that of the TV.

5to view the playback, select the Y/C

channel.

Note: If both the S-Video socket and the

Video socket of AV2 are connected, S-Video

input precedes the Video input

3. Connect to aerial socket

(only for VCR)

The playback on your VCR is considered a

TV channel by your TV if you connect via

the aerial socket. You must tune in to your

VCR’s test signal and assign a channel

number to it. Refer to your VCR’s instruction

manual for more details.

4connect the RF cable to the VCR’s “RF in”

and connect the “RF out” of the VCR

to the aerial socket of the TV.

4select the channel and tune in to to your

VCR’s signal.

5to view the playback, select the channel.

VCR

Laser disc

player

AV 2

Monitor

out

AV 1

S-VIDEO

AUDIO

VIDEO

VIDEO 2

MONITOR

out

VIDEO 1

S-VIDEO

AUDIO

VIDEO

Ω75

Equipment such as VCR, Laser disc player, VCD etc. could be connected to

the video and audio (AV) sockets at the back of the TV. Switch off the TV and

equipment before making any connection.

Connection for playback

AV 2

Monitor

out

AV 1

S-VIDEO

AUDIO

VIDEO

VCR

28241/p2-9 7/6/00, 3:10 PM4

…connecting peripheral equipment

AV 2

Monitor

out

AV 1

S-VIDEO

AUDIO

VIDEO

AV 2

Monitor

out

AV 1

S-VIDEO

AUDIO

VIDEO

1. From the TV channel you are

watching

4connect the corresponding sockets of

the VCR to the sockets at MONITOR out.

Note: For mono equipment, connect to

the VIDEO and L sockets only.

2. From one VCR to another VCR

4connect the sockets of the VCR which

you wish to record from to the

corresponding sockets at either AV1 in

or AV2 in.

4connect the sockets of the receiving

VCR to the corresponding sockets at

MONITOR out.

Note: For mono equipment, connect to

the VIDEO and L sockets only.

3. From the TV antenna

4connect the RF cable to the VCR’s “RF

in”and the “RF out”of the VCR to the

aerial socket of the TV.

AV 2

Monitor

out

AV 1

S-VIDEO

AUDIO

VIDEO

‰75

VIDEO

AUDIO

Connection for headphones

4connect the headphones to the socket

at the side of the TV.

The headphones impedance must be

between 8 and 4000 ohms.

Connection for recording

VCR

VCR 1

VCR 2

VCR

Headphones

28241/p2-9 19/6/00, 8:52 AM5

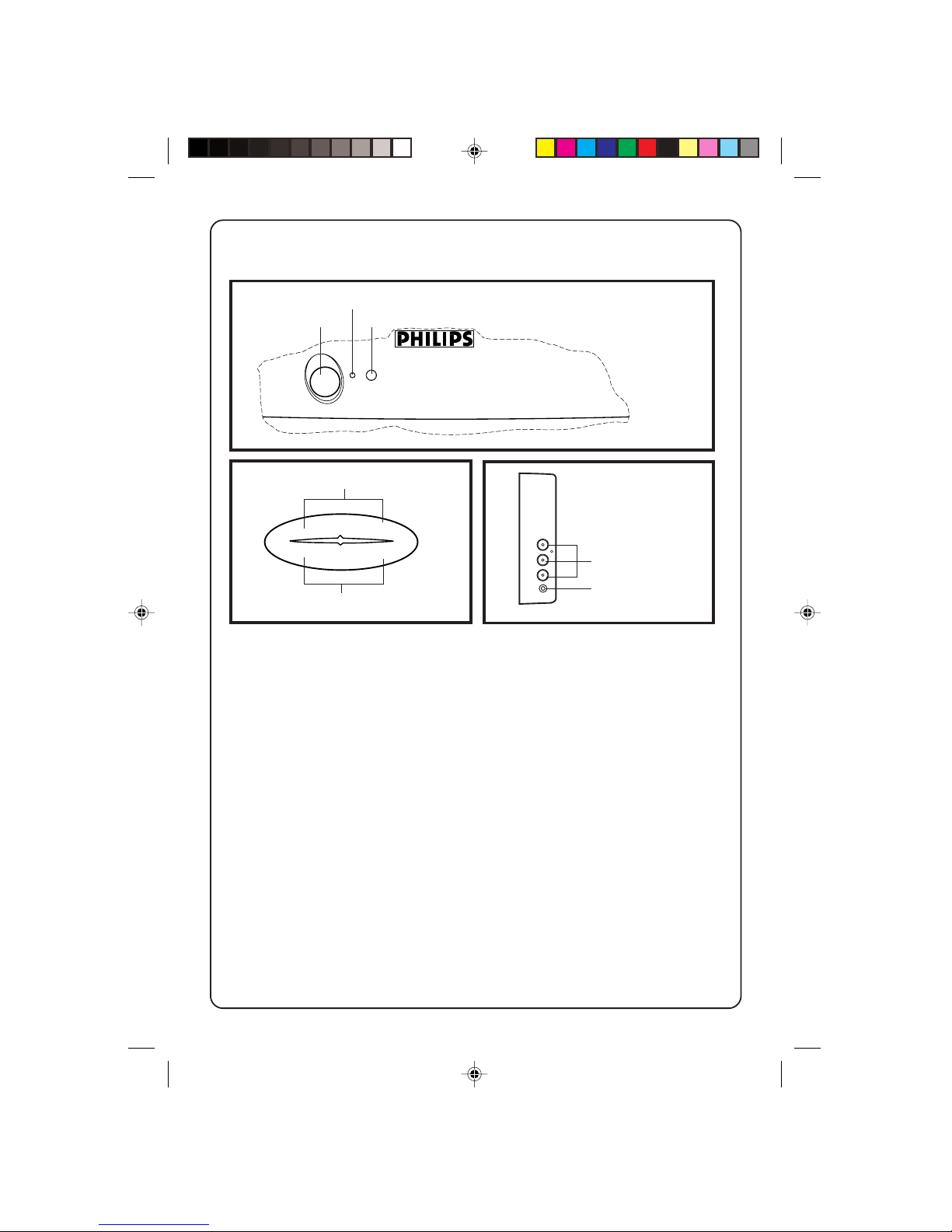

6The TV’s controls

1. Mains power Switch on or off the TV.

2. Red light indicator When light is on, it indicates that the TV is on

standby. Note :If no signal is detected by the

TV after 10 minutes, it will switch to standby

automatically.

3. Remote control sensor For the remote control to work, it must be

activated within the operating range of this

sensor.

4. Headphone socket For connection of headphones.

5. AV “in” sockets Connect to Video “out” and Audio “out”sockets

of VCR, laser disc player etc.

6. Volume adjustment To adjust volume level. Press these 2 keys

simultaneously will call up the 1st level menu.

Press these 2 keys again will exit menu. Works

as cursor left (AL) or right (AK) in a menu.

7. Channel selection To select a lower or higher channel number.

Works as cursor up (P+) or down (P-) in a

menu.

Front control

Top control Side sockets

VIDEO

AUDIO

28241/p2-9 7/6/00, 3:10 PM6

7Using the remote control

Press :

Standby

AV channel

selection

Screen

information

Sleeptimer

Digit

Surf or

alternate

channel

Result :

Switch off TV and a red indicator

lights up. To switch on TV again,

press either the

to 9,

AV or

key.

Select the AV channels .

In TV mode : Display channel

number and sound mode

In a menu : Exit menu.

Sets timer (from 15 to 240

minutes) to switch TV to standby.

To disable timer, set to “OFF”.

Key in numerals e.g. confidential

code in child lock and in channel

selection. For a 2-digit channel,

the second numeral must be

entered before the dash disap-

pears.

Surf mode : Add or delete channel

from the surf list. View channel in

the surf list.

A/CH mode : Return to the

previous channel.

OSD

123

456

789

INC.

SURR.

SLEEPOSDAV

SAP

SMART SMART

A/CH

SURF

45°45°10 m

For the remote control to work effectively, it has to be operated within the

recommended operating range to the remote control sensor on the TV.

SLEEP

123

456

789

MENU INC.

SURR.

SLEEPOSDAV

SAP

SMART SMART

A/CH

SURF

A/CH

SURF

28241/p2-9 7/6/00, 3:10 PM7

…using the remote control

Press :

Channel

selection

Volume

adjustment

Incredible

Surround

Mute

Smart

Picture/

Smart

Sound

mode

Result :

Select a higher or lower channel

number.

Adjust the volume of the TV set.

Call up the main menu. If there is

an existing menu, pressing this

key will bring you back to the

previous level menu. If you are in

the 1st level menu, pressing this

will exit the menu.

Switch on to enhance stereo

sound from your TV.

Switch off the sound of the TV.

Press again to switch on the

sound.

Select the presets for sound and

picture.

Switch to stereo, SAP (second

audio programme) or mono

sound.

SAP

INC.

SURR.

123

456

789

INC.

SURR.

SLEEPOSDAV

SAP

SMART SMART

A/CH

SURF

SMART

28241/p2-9 7/6/00, 3:10 PM8

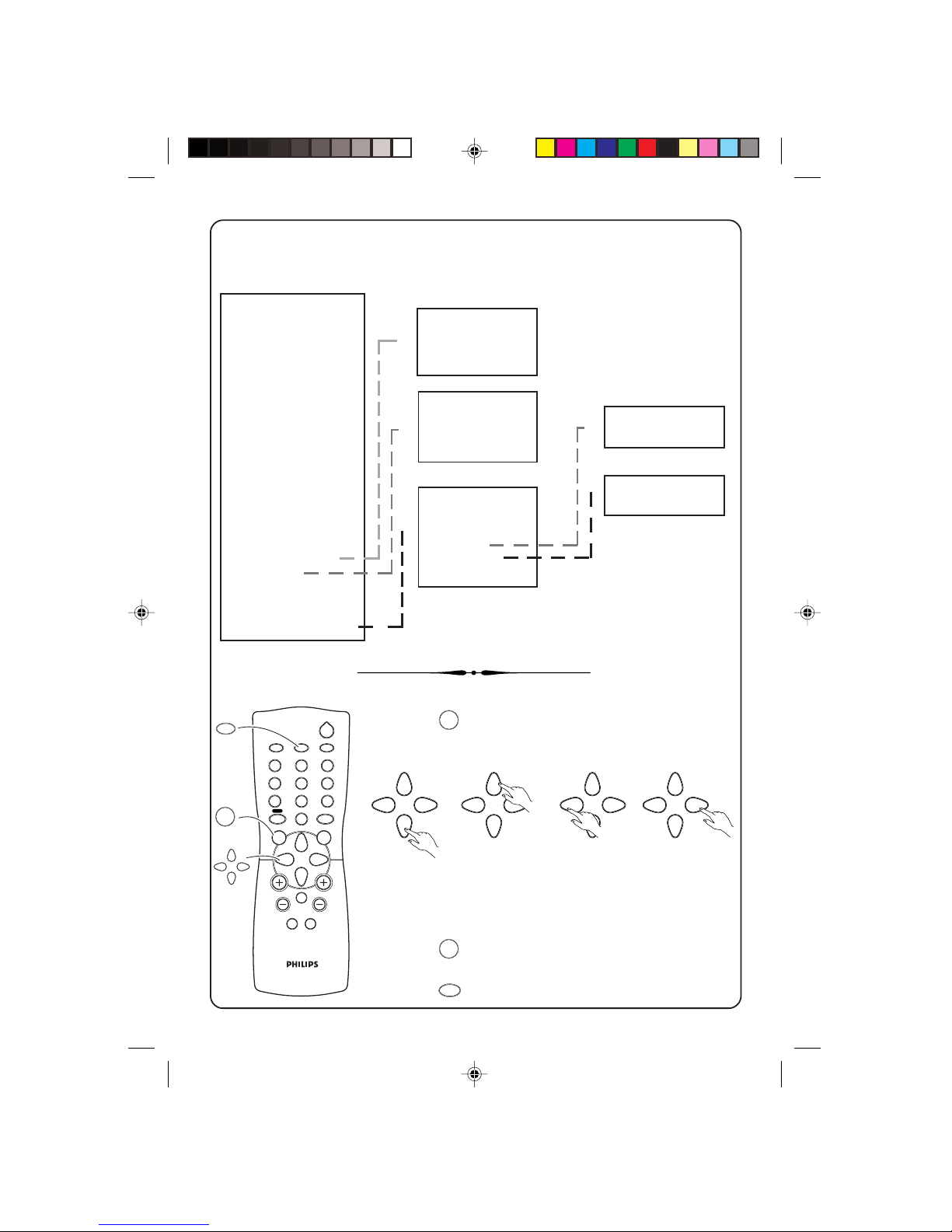

To call up the 1st level menu :

4Press MENU key.

To use the menus:

4Press the cursor keys.

scroll up scroll down go down to the next

level or to select or

to execute

To exit from a menu:

4Press MENU key to go back to the previous level.

4Press

OSD

key to exit.

123

456

789

INC.

SURR.

SLEEPOSDAV

SAP

SMART SMART

A/CH

SURF

Menus

1st level

BRIGHTNESS

COLOUR

CONTRAST

SHARPNESS

HUE

COL TEMP

CONTRAST PLUS

NOISE REDUCE

4:3 EXPAND

16:9 COMPRESS

VOLUME

BALANCE*

TREBLE*

BASS*

INCR SURROUND*

ULTRA BASS*

AVL

SLEEPTIMER

CHILD LOCK

CLOCK

SURF

BLUE MUTE

INSTALLATION

2nd level

CHANGE CODE

CHANNEL

LOCK

CLEAR ALL

TIME

TIMER ACTIVE

CHANNEL

LANGUAGE

TUNER

AUTO INSTALL

SKIP

MANUAL

EXTERNAL

3rd level

CHANNEL

SKIP

FINE TUNE

STORE

OSD

Note* : You may not see these items on your

menu because it is applicable to certain models

only.

28241/p2-9 7/6/00, 3:10 PM9

10 Installing the TV

In order to view the programmes broadcasted, you have to do some simple

installation on the TV. Go into the INSTALLATION menu by using the keys

on your remote control.

Follow the steps below to enter INSTALLATION menu:

&Call up 1st level

menu with the

key.

éPress the key to

highlight

INSTALLATION.

“Select INSTALLATION

with the or

key.

SURF A/CH

INSTALLATION B

BRIGHTNESS

❙ ❙ ❙ ❙ ❙ ❙ ❙

■ ■ ■ ■ ■ ■ ■ ■

COLOUR

❙ ❙ ❙ ❙ ❙ ❙ ❙

■ ■ ■ ■ ■ ■ ■ ■

CONTRAST

❙ ❙ ❙ ❙ ❙ ❙ ❙

■ ■ ■ ■ ■ ■ ■ ■

LANGUAGE ENGLISH

TUNER ANTENNA

AUTO INSTALL B

CLOCK B

SURF A/CH

INSTALLATION B

BRIGHTNESS

❙ ❙ ❙ ❙ ❙ ❙ ❙

■ ■ ■ ■ ■ ■ ■ ■

COLOUR

❙ ❙ ❙ ❙ ❙ ❙ ❙

■ ■ ■ ■ ■ ■ ■ ■

Selecting the menu language

The TV is pre-set to a language for display of menus and screen information.

You may change it to another available language.

LANGUAGE ENGLISH

TUNER ANTENNA

AUTO INSTALL B

&Go into INSTALLATION menu.

LANGUAGE is highlighted.

éSelect a language with

the or key.

LANGUAGE ENGLISH

TUNER ANTENNA

AUTO INSTALL B

➧

Selecting the tuner type

&Press the key to highlight

TUNER.

LANGUAGE ENGLISH

TUNER ANTENNA

AUTO INSTALL B

SKIP B

➧

éSelect CABLE or ANTENNA

with the or key.

LANGUAGE ENGLISH

TUNER CABLE

AUTO INSTALL B

SKIP B

➧

28241/p10-14 7/6/00, 3:11 PM10

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips Fernseher Handbücher

Philips

Philips 22PFL5403D/10 Bedienungsanleitung

Philips

Philips 32PFL3205H/12 Bedienungsanleitung

Philips

Philips 32MF338B/27 Bedienungsanleitung

Philips

Philips 28PW6332 - annexe 1 Bedienungsanleitung

Philips

Philips 5603 series Bedienungsanleitung

Philips

Philips 19PR16C Bedienungsanleitung

Philips

Philips Essence 5000 Series Bedienungsanleitung

Philips

Philips 28PT4408 Bedienungsanleitung

Philips

Philips 26-LCD DIGITAL WIDESCREEN FLAT TV PIXEL PLUS... Referenzhandbuch

Philips

Philips HFL4014/12 Series Bedienungsanleitung

Philips

Philips PUS7855 Bedienungsanleitung

Philips

Philips 7181 Series Bedienungsanleitung

Philips

Philips L04E Bedienungsanleitung

Philips

Philips LC4.8A Bedienungsanleitung

Philips

Philips EasySuite 19HFL3233D/10 Bedienungsanleitung

Philips

Philips 19PFL3504D/F7 Bedienungsanleitung

Philips

Philips 32PW9788 Bedienungsanleitung

Philips

Philips 32PF4321/96 Bedienungsanleitung

Philips

Philips 32PF7320A Kurzanleitung

Philips

Philips 21HT3312 Bedienungsanleitung

Philips

Philips 7906 Series Bedienungsanleitung

Philips

Philips 15GR2730 Bedienungsanleitung

Philips

Philips 65OLED804/78 Bedienungsanleitung

Philips

Philips SK7.0L Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Toshiba

Toshiba 27A10 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung

Sanyo

Sanyo CE19LD90N-B Bedienungsanleitung

North State

North State TV2GO Bedienungsanleitung

RCA

RCA RTU7877 Bedienungsanleitung

Sharp

Sharp 21K-FG1RU Bedienungsanleitung

Sony

Sony Esprit TAV-L1 Bedienungsanleitung

Grundig

Grundig 43 VLE 4820 Bedienungsanleitung

Samsung

Samsung LN26C350D1D Bedienungsanleitung
