Chassis name Platform Model name

TPM17.7E LA MTK5802

43PUS6162/12

43PUT6162/12

43PUT6162/60

43PUS6262/12

43PUT6262/12

49PUS6162/12

49PUT6162/12

49PUT6162/60

49PUS6262/12

49PUT6262/12

50PUS6162/12

50PUT6162/12

50PUS6262/12

50PUT6262/12

55PUS6162/12

55PUT6162/12

55PUT6162/60

55PUS6262/12

55PUT6262/12

55PUS6272/12

65PUS6162/12

65PUT6162/12

65PUS6262/12

65PUT6262/12

Published by AMY /SC 1747 Quality Subject to modification 3122 785 20353

2017-Nov-24

2017 © TP Vision Netherlands B.V.

property of Koninklijke Philips Electronics N.V. or their respective owners.

TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust

earlier supplies accordingly.

PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Philips Electronics N.V.

1.Product inforamtion……….……………………………………………………………………………………3

2.Connections overview……..…..…..………………..…………………………………………………………5

3.Mechanical Instructions………………….…………………………………………………………………….6

Cable dressing (43" 6162 series)………………………………………………………………………………6

Cable dressing (49" 6162/6262 series)………………………………………………………………………7

Cable dressing (50"/55" 6162 series)…………………………………………………………………………7

Cable dressing (50"/55" 6262/6272 series)……………………………………………………………………8

Cable dressing (65" 6162/6262 series)………………………………………………………………………9

Assembly/Panel Removal ……………………………………………………………………………………10

4.Service Modes…………….……………….………………….…………………………………………….….16

5.Software upgrading, Error Code and Panel Code………...……………………………………………..20

6.Circuit Descriptions…..……………………….………………………………………………………………25

7.IC Data Sheet……...……………………………………………………………………………………….…..32

8.Circuit Diagrams……………...……………………………………………………………………………….36

8.1 715G8620 PSU………………………………………………………………………..……………………36

8.2 715G8672 PSU………………………………………………………………………..……………………40

8.3 715G8682 PSU………………………………………………………………………..……………………44

8.4 715G8709 SSB………………………………………………………………………..……………………48

8.5 715G8623 IR/LED Panel………………………………………………..…………………………………67

8.6 715G7088 Keyboard control panel……………………………………………………………………….68

8.7 715G8555 Keyboard control panel……………………………………………………………………..69

8.8 715G6981 AMBI Panel………………………………………………..……………………………….70

8.9 715G7004 AMBI Panel………………………………………………..……………………………….72

8.10 715G7006 AMBI Panel…………………………………………………..……………………………….74

8.11 715G7007 AMBI Panel…………………………………………………..……………………………….76

8.12 715G7008 AMBI Panel…………………………………………………..……………………………….78

8.13 715G7865 AMBI Panel…………………………………………………..……………………………….82

9.Styling Sheet……………….…………………….……………………………………………………………..84

9.1 6162 series 43"…………..………..……………………………………………………………………….84

9.2 6162 series 49"/50"/55"….….…………………………………………………………………………….85

9.3 6262 series 49"/50"/55"…………………………………………………………………………………….86

9.4 6272 series 55"………………………………………………………………………………………………87

9.5 6162 series 65"………………………………………………………………………………………………88

9.6 6262 series 65"………………………………………………………………………………………………89

1. Product information

Product specifications are subject to change without notice.

For more specification details of this product,see

www.philips.com/support

Display Resolution

Diagonal screen size

 43PUx6x62: 108cm/43inch

 49PUx6x62: 123cm/49inch

 50PUx6x62: 126cm/50inch

 55PUx6xx2: 139cm/55inch

 65PUx6x62: 164cm/65inch

Display resolution

 3840 x 2160

Supported Input Resolution-Video

HDMI

 480i – 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

 480p– 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

 576i – 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

 576p– 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

 720p– 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

 1080i– 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

 1080p – 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

 3840 x 2160p– 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

HDMI - UHD

(HOME) > Settings > General settings >

HDMI Ultra HD

This TV can display Ultra HD signals.Some devices –

connected with HDMI – do not recognize a TV with Ultra

HD and might not work correctly or show distorted picture

or sound.

To avoid the malfunctioning of such a device,you can set

the signal quality to a level the device can handle.If the

device is not using Ultra HD signals,you can switch off Ultra

HD for this HDMI connection.

An HDMI connection with the setting UHD 4:4:4/4:2:2

allows maximum up to UHD(50Hz or 60Hz) RGB 4:4:4 or

YCbCr 4:4:4/4:2:2/4:2:0 signals.The setting UHD 4:2:0

allows maximum up to UHD(50Hz or 60Hz) YCbCr 4:2:0

signals.

Component,Composite

Composite

 PAL,NTSC,SECAM

Component

 480i – 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

 480p– 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

 576i – 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

 576p– 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

 720p– 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

 1080i– 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

 1080p – 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

Supported Input Resolution – Computer

 640 x 480 – 60Hz

 800 x 600 – 60Hz

 1024 x 768 – 60Hz

 1280 x 800 – 60Hz

 1280 x 960 – 60Hz

 1280 x 1024 – 60Hz

 1366 x 768 – 60Hz

 1440 x 900 – 60Hz

 1920 x 1080 – 60Hz

 3840 x 2160 – 60Hz

Sound

 Incredible Surround

 Clear sound

 Smart sound

 Output power(RMS): 20W

 Dolby® Digital

 DTS 2.0 + Digital out

Multimedia

Connections

 USB 2.0 / USB 3.0

 Ethernet LAN RJ-45

 Wi-Fi 802.11n(built-in)

Supported USB file systems

FAT,NTFS

Playback formats

 Video Codec:

AVI,MKV,HEVC,H.264/MPEG-4,AVC,MPEG1,MPEG2,M

PEG4,WMV9/VC1,VP9

 Audio Codec: MP3,WAV,AAC,WMA(v2 up to

v9.2),WMA-PRO(v9 and v10)

 Subtitles:

- Format: SRT,SMI,SSA,SUB,ASS,TXT

- Character encodings: UTF-8,Central Europe and Eastern

Europe (Windows-1250).Cyrillic (Windows-1251),Greek

(Windows-1253),Turkish (Windows-1254),Western

Europe (Windows-1252)

 Image Codec: JPEG,GIF,PNG,BMP

Wi-Fi Certified

This TV supports Miracast certified devices

Performance may vary,depending on the capabilities of the

mobile device and the software used.

Connectivity

TV Side

 Common Interface slot: CI+/CAM

 USB 2 – USB 2.0

 HDMI 3 in – MHL –UHD – HDR

 Headphones – Stereo mini-jack 3.5mm

TV Rear

 YPbPr: Y Pb Pr,Audio L/R

 CVBS: CVBS,Audio L/R(Shared with YPbPr)

TV Bottom

 Audio out – Optical Toslink

 USB 1 – USB 3.0

 Network LAN – RJ45

 Satellite tuner

 Antenna (75 ohm)

 HDMI 1 in – ARC – UHD

 HDMI 2 in – UHD - HDR

2. Connections Overview

USB2

SERV.U

HDMI3

Headphone

HDMI1

HDMI2

YPbPr

SAT

NETWORK

TUNER

AUDIO

OUT

USB3

3. Mechanical Instructions

3.1 Cable Dressing

Cable dressing (43" 6162/6262 series)

Back cover view (43"/ 49"/ 55" 6262 series)

ECN701

ECN601

ECN415

ECN601

ECN408

ECN401

CN701

SPEAKER (1184) SPEAKER (1184)

ECN412

Ambilight (1061)

Keyboard (1057)

EXA02

ECN02

415

408

601

8601

9102

Cable dressing (49" 6162/6262 series)

Cable dressing (50"/55" 6162 series)

CN701

ECN

408

ECN

601

ECN401

ECN415

ECN701

ECN408

ECN401

ECN415

ECN601

ECN412

SPEAKER(1184) SPEAKER(1184) SPEAKER(1184)

CN701

SPEAKER(1184) SPEAKER(1184)

412

CN415

CN4

601

ECN

601

CN4

8601

9101

412

601

8601

9101

Cable dressing (50"/55" 6262/6272 series)

Back cover view (55" 6272 series)

ECN701

ECN401

ECN415

ECN601

ECN408

ECN601

ECN412

Ambilight (1061)

Ambilight (1062)

Keyboard

057

)

EXA02-1

EXA04

EXA02-2

ECN02

CN701

412

401

601

408

415

CN8601

CN9101

Cable dressing (65" 6162/6262 series)

Back cover view (65" 6262 series)

ECN415

ECN601

ECN701

ECN401

ECN601

ECN408

ECN412

Ambilight (1061)

Ambilight (1061) Ambilight (1061)

Ambilight (1061)

Ambilight (1063)

Ambilight (1062)

Keyboard

057

)

EXA02

ECN02

CN701

412

415

601

8602

9101

IR Module

(1056)

3.2 Assembly/Panel Removal

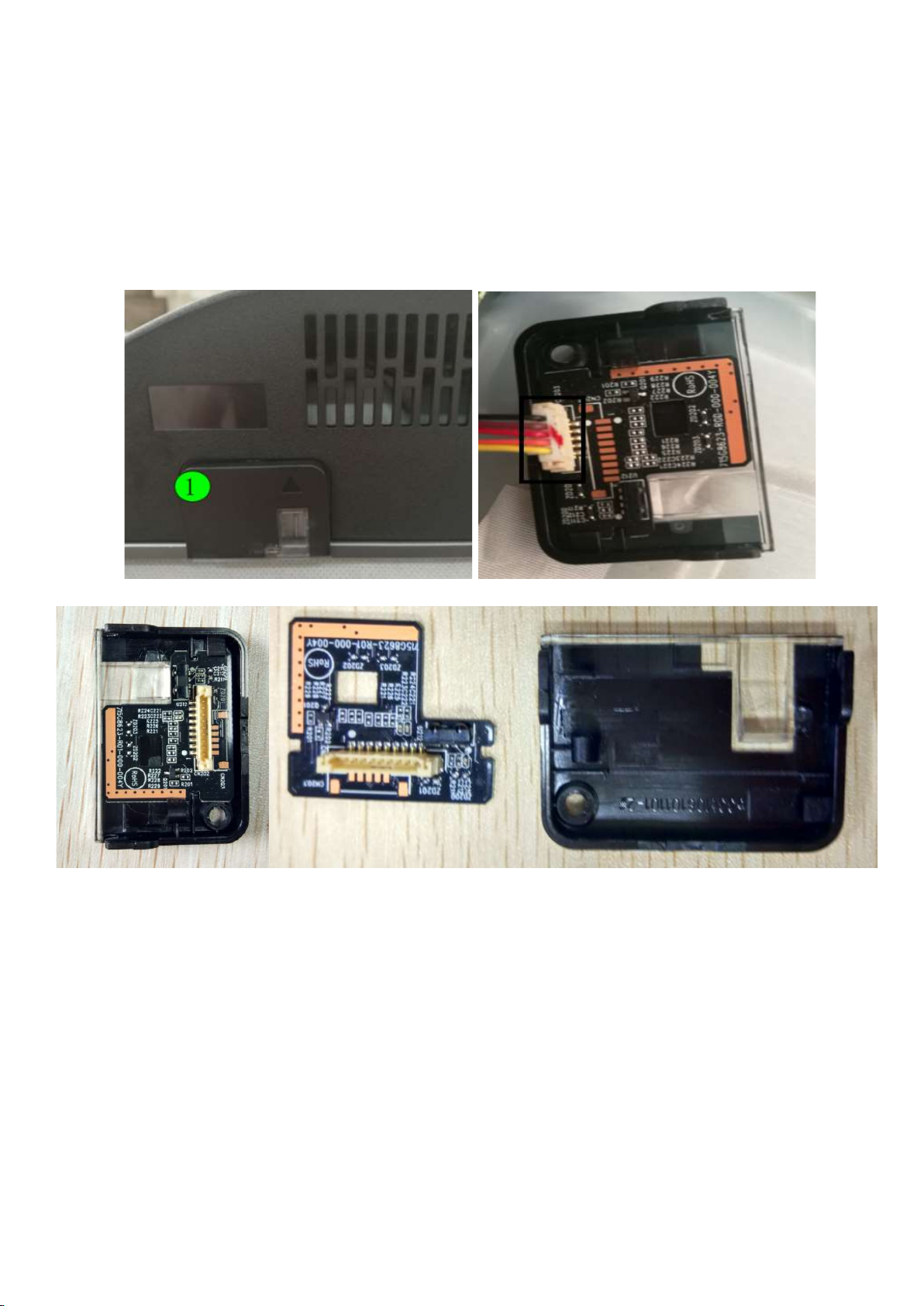

3.2.1 IR board Control Unit

1. Unplug the connector from the SSB.

Caution: be careful, as these are very fragile connectors!

2. Remove all the fixation screws [1] and connector from the IR board control unit.

3. Remove the IR lens, IR board from the DECO_REAR_COVER.

When defective, replace the whole unit.
