Philips 50PUN6102/61 Bedienungsanleitung

Published by Amy.ma 1752 Quality Subject to modification 3122 785 20550

2017-Dec-27

2017 © TP Vision Netherlands B.V.

property of Koninklijke Philips Electronics N.V. or their respective owners.

TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust

earlier supplies accordingly.

PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Philips Electronics N.V.

Chassis name

Platform

Model name

TPS17.3A LA

MSD91H

50PUN6102/61

55PUN6102/61

TPS17.3A

Published by Amy.ma 1752 Quality Subject to modification 3122 785 20550

2017-Dec-27

2017 © TP Vision Netherlands B.V.

property of Koninklijke Philips Electronics N.V. or their respective owners.

TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust

earlier supplies accordingly.

PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Philips Electronics N.V.

1.Product information……….……………………………………………………………………………………3

2.Connections overview……..…..…..………………..…………………………………………………………4

3.Mechanical Instructions………………….…………………………………………………………………….5

Cable dressing (50" 6102 series)………………………………………………………………………………5

Cable dressing (55" 6102 series)………………………………………………………………………………5

Assembly/Panel Removal ………………………………………………………………………………………6

4.Service Modes…………….……………….………………….…………………………………………….….10

5.Software upgrading, Error Code and Panel Code………...……………………………………………..12

6.Circuit Descriptions…..……………………….………………………………………………………………13

7.IC Data Sheet……...……………………………………………………………………………………….…..34

8.Circuit Diagrams……………...……………………………………………………………………………….39

8.1 A 715G7374 PSU…………………………………………………………………..……………………39

8.2 A 715G9324 PSU…………………………………………………………………..……………………43

8.3 B 715G9070 SSB………………………………………………………………………………………..55

8.4 J 715G8623 IR/LED Panel…………………………………………..…………………………………101

8.5 E 715G7088 Keyboard control panel………………………………………………………………102

9.Styling Sheet……………….…………………….………………………………………………………….112

6102 series 50"………………………………………………………………………………………………112

6102 series 55"………………………………………………………………………………………………113

1. Product information

Product information may be subject to change without

prior notice. For detailed product information, please go to

www.philips.com/support

Display & Sound

Intrinsic resolution

•3840 x 2160

Sound power

•8W x 2

Display resolutions

Video formats

Resolution —Refresh rate:

•480i - 60 Hz

•480p - 60 Hz

•• 720p - 60 Hz

•1080i - 60 Hz

•1080p - 24 Hz, 30 Hz, 60 Hz

•2160p - 24 Hz, 30 Hz, 60 Hz

Computer formats

Resolution —Refresh rate:

•720 x 400 - 70 Hz

•640 x 480 - 60 Hz

•800 x 600 - 60 Hz

•1024 x 768 - 60 Hz

•1280 x 720 - 60 Hz

•1280 x 768 - 60 Hz

•1280 x 1024 - 60 Hz

•1440 x 900 - 60 Hz

•1680 x 1050 - 60 Hz

•1920 x 1080 - 60 Hz

Note:When the TV set does not support resolution and

refresh rate, there will be a black screen or flower screen.

Please switch to the TV set to display resolution and

refresh rate.

Connectivity

TV Side

•USB

•HDMI 2

•HDMI 3

TV Bottom

•Audio out (L/R)

•Optical

•Antenna

•Y/AV, Pb, Pr, Audio L/R

•HDMI(ARC)

Multimedia

Supported storage device: USB (Supports FAT 32/FAT 16

USB storage devices.)

Playback formats

Video Codecs: MPEG1/2, MPEG4, H.264, HEVC,

Motion MPEG

Audio Codecs: MPEG1/2 layer1, MPEG1/2 layer2,

MPEG1/2 layer3, AC3, AAC

Image Codecs: png, jpeg, bmp

Power supply/ tuner/ reception/

transmission

Power supply

•Mains: 220V~, 60Hz

•Standby power consumption: ≤0.5W

•Ambient temperature : 5°C to 45°C

•Power consumption:

–50PUN61x2: 130W

–55PUN61x2: 160W

Tuner/ reception/ transmission

Aerial input: 75ohm coaxial (IEC75)

TV system: ATSC

Video Playback: NTSC

Tuner bands: UHF, VHF

2. Connections Overview

（For 715G9070M）

YPBPR

HDMI

SCALER

USB

HDMI

Antenna

Optical

Audio out (L/R)

3. Mechanical Instructions

3.1 Cable Dressing

Cable dressing (50" 6102 series)

Cable dressing (55" 6102 series)

LOUDSPEAKER

(1184)

ECN701

ECN102

ECN105 TO IR & Connector(to KEY)

KEY BOARD

CONTROL

CN102

CN8603

MAIN POWER

SUPPLY

(1054)

SSB

(1053)

CN701

CN602

CN105

CN9101

ECN8603

Connector

ECN01

IR/LED

BOARD

(1056)

LOUDSPEAKER

(1184)

ECN602

MAIN POWER

SUPPLY

(1054)

CN701

CN9103

CN8601

CN102

CN105

CN602

SSB

(1053)

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

IR/LED

BOARD

(1056)

KEY BOARD

CONTROL

Connector

ECN01

ECN105

ECN602

ECN701

ECN102

3.2

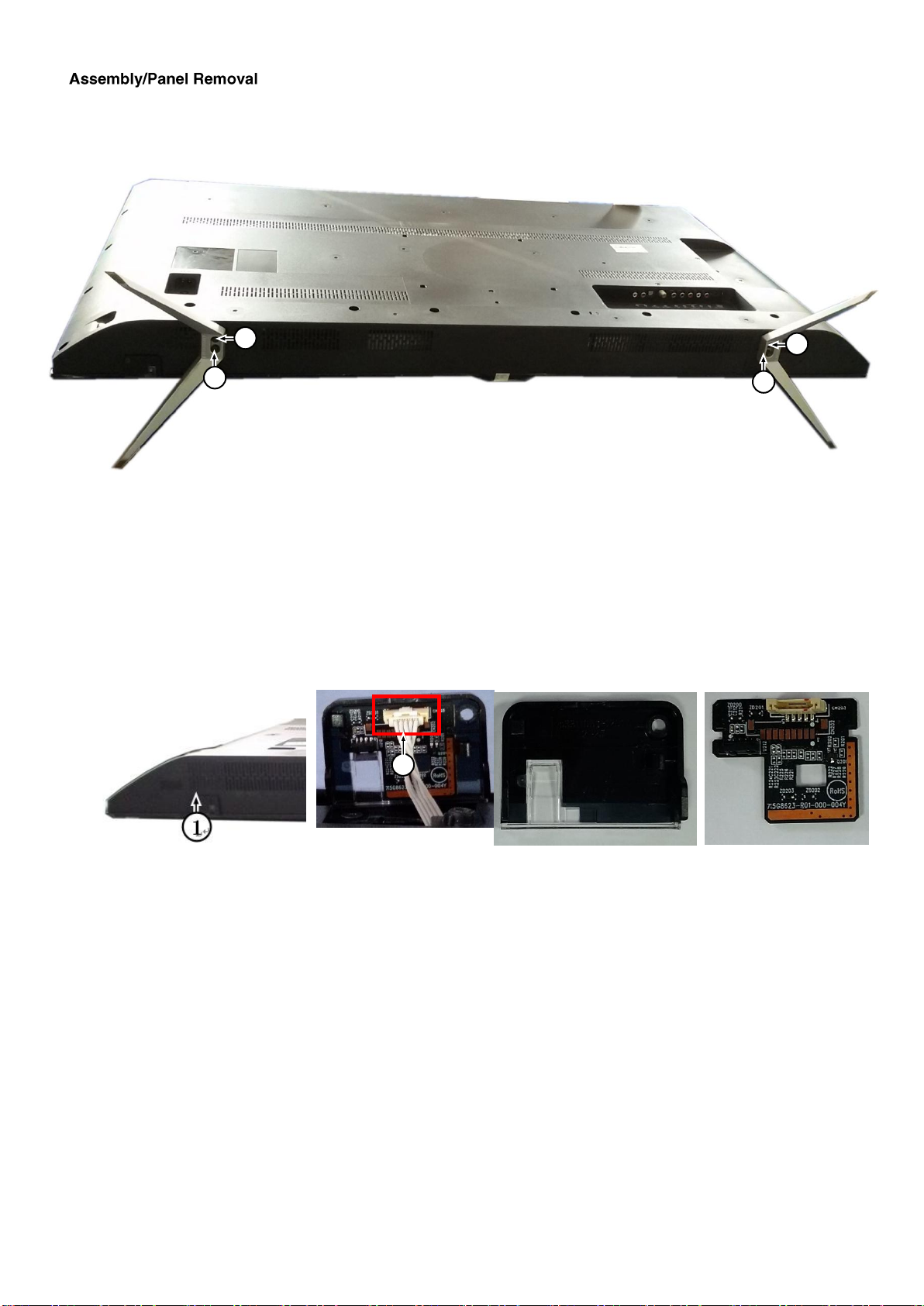

3.2.1 Stand removal

1. Remove the fixation screws [1] that secure the stand

2. Take the stand bracket out from the set.

3.2.2 IR board Control Unit

1. Unplug the connector from the SSB.

Caution: be careful, as these are very fragile connectors!

2. Remove all the fixation screws [1] and connector [2] from the IR board control unit.

When defective, replace the whole unit.

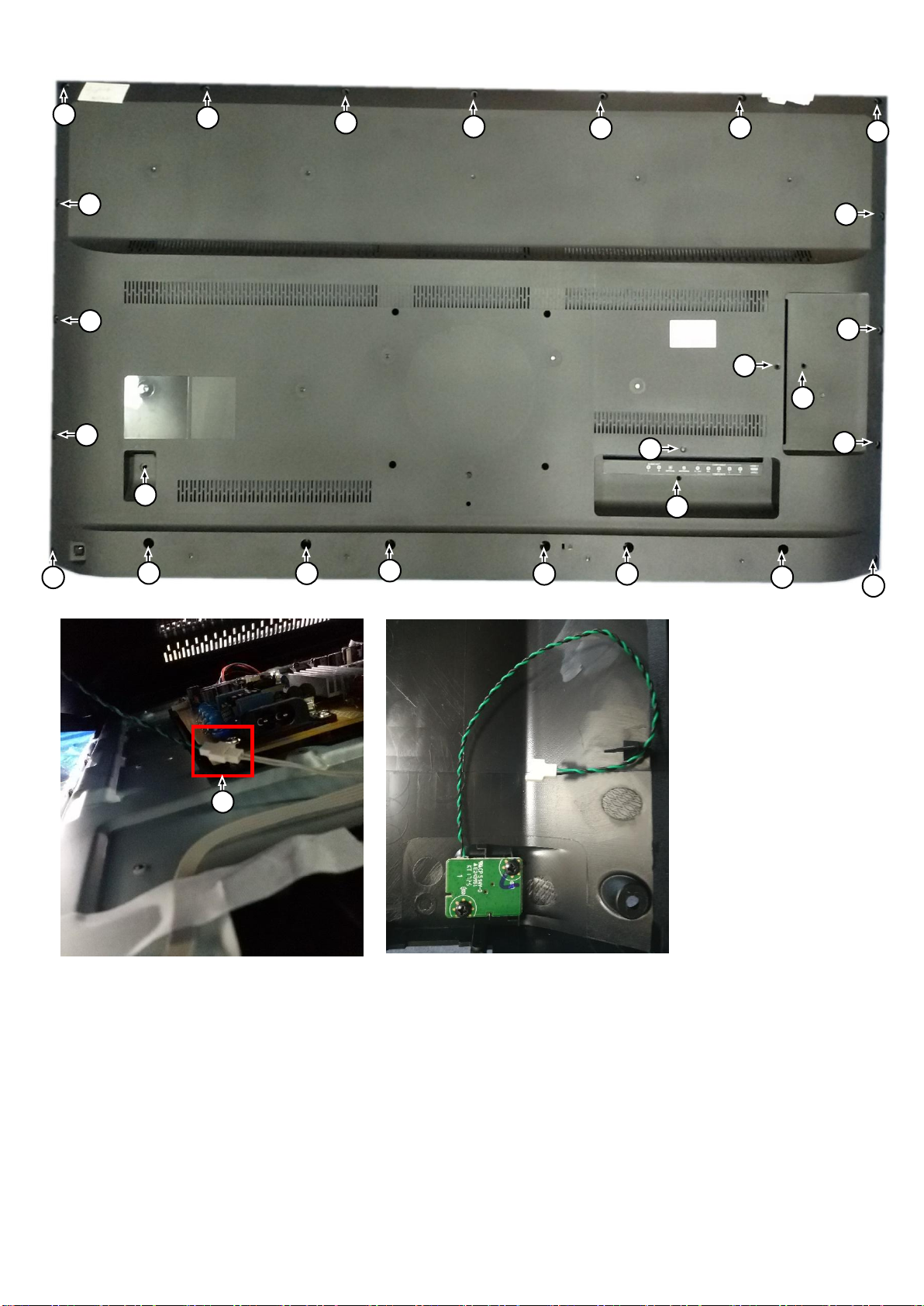

3.2.3 Rear Cover

Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [2] and [3] that secure the back cover.

2. Unplug connector [2] carefully as key board is catch on back cover.

3. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

3.2.3 Keyboard Control Unit

1. Release the connector from the SSB Board.

Caution: be careful, the Keyboard is catch on the Back cover, please be careful to avoid damage the fragile connectors!

2. Remove all the fixation screws[1] and connector [2] from the keyboard control panel and take it out from the Back cover

When defective, replace the whole unit.

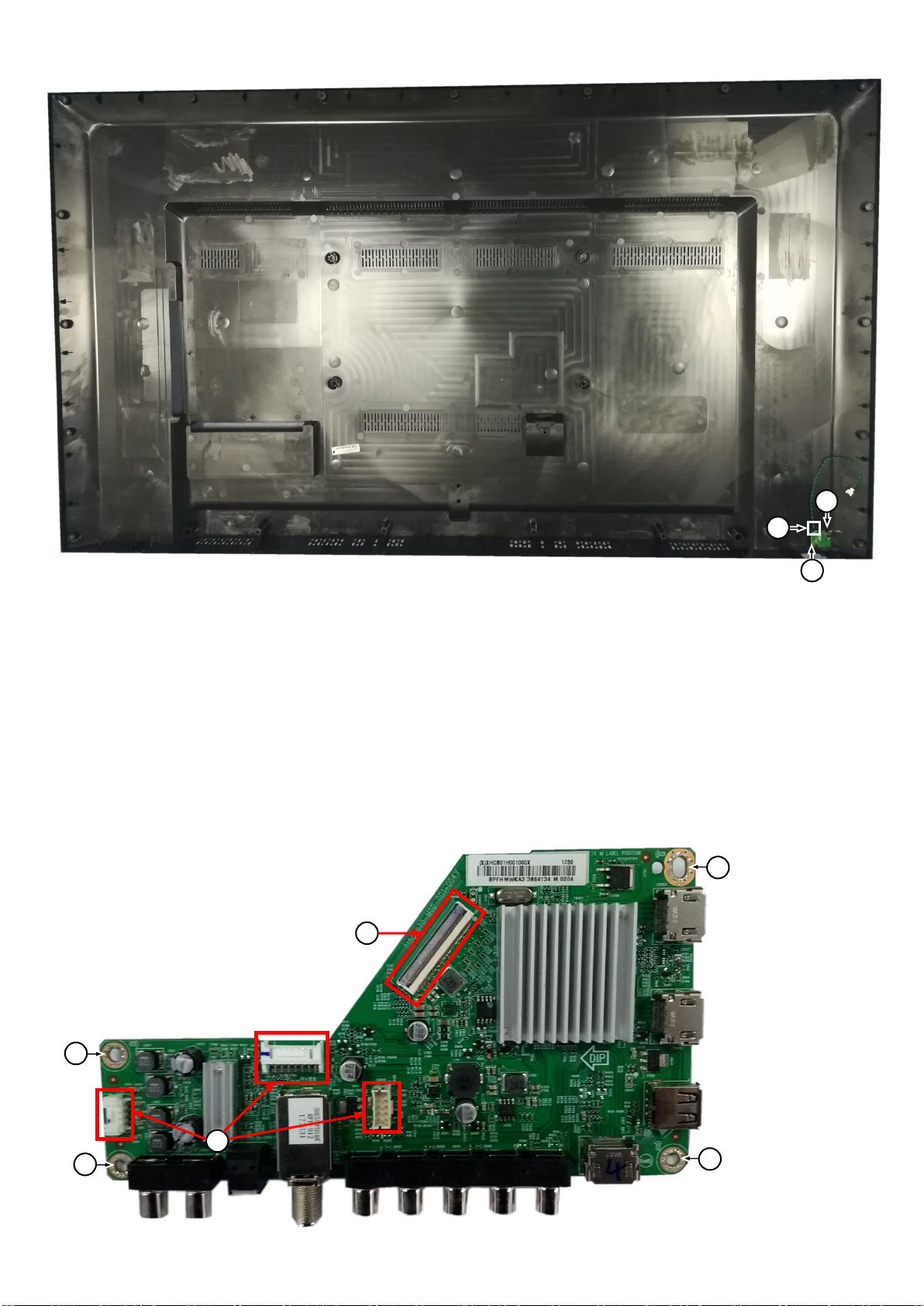

3.2.4 Small Signal Board (SSB)

Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the

SSB.

1. Release the clips from the LVDS connector that connect with the SSB[1].

Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2] .

3. Remove all the fixation screws from the SSB [3].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket.

3.2.5 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the

PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

3.2.7 Speakers

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

3. Take the speakers out.

When defective, replace the both units.

3.2.8 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

7. Remove all other metal parts not belonging to the panel.

8. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

4. Service Modes

4.1 Service Modes

The Service Mode feature is split into following parts:

Factory Mode.

Customer Service Mode (CSM).

Factory mode offer features, which can be used by the Service engineer to repair/align a TV set. Some features are:

Make alignments (e.g. White Tone).

Display information.

The CSM is a Service Mode that can be enabled by the consumer. The CSM displays diagnosis information, which the customer can forward to the

dealer or call centre. The information provided in CSM and the purpose of CSM is to:

Increase the home repair hit rate.

Decrease the number of nuisance calls.

Solved customers’ problem without home visit.

Note: For the new model range, a new remote control (RC) is used with some renamed buttons. This has an impact on the activation of the Service

modes. For instance the old “MENU” button is now called “HOME” (or is indicated by a “house” icon).

4.2Factory mode:

Purpose

To perform extended alignments.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

Press the following key sequence on the remote control transmitter: from the “menu/home” press “1999”, directly followed by the

“Back/Return” button. Do not allow the display to time out between entries while keying the sequence.

After entering the Factory mode, we can see many items displayed, use the UP/DOWN keys to display the next/previous menu items

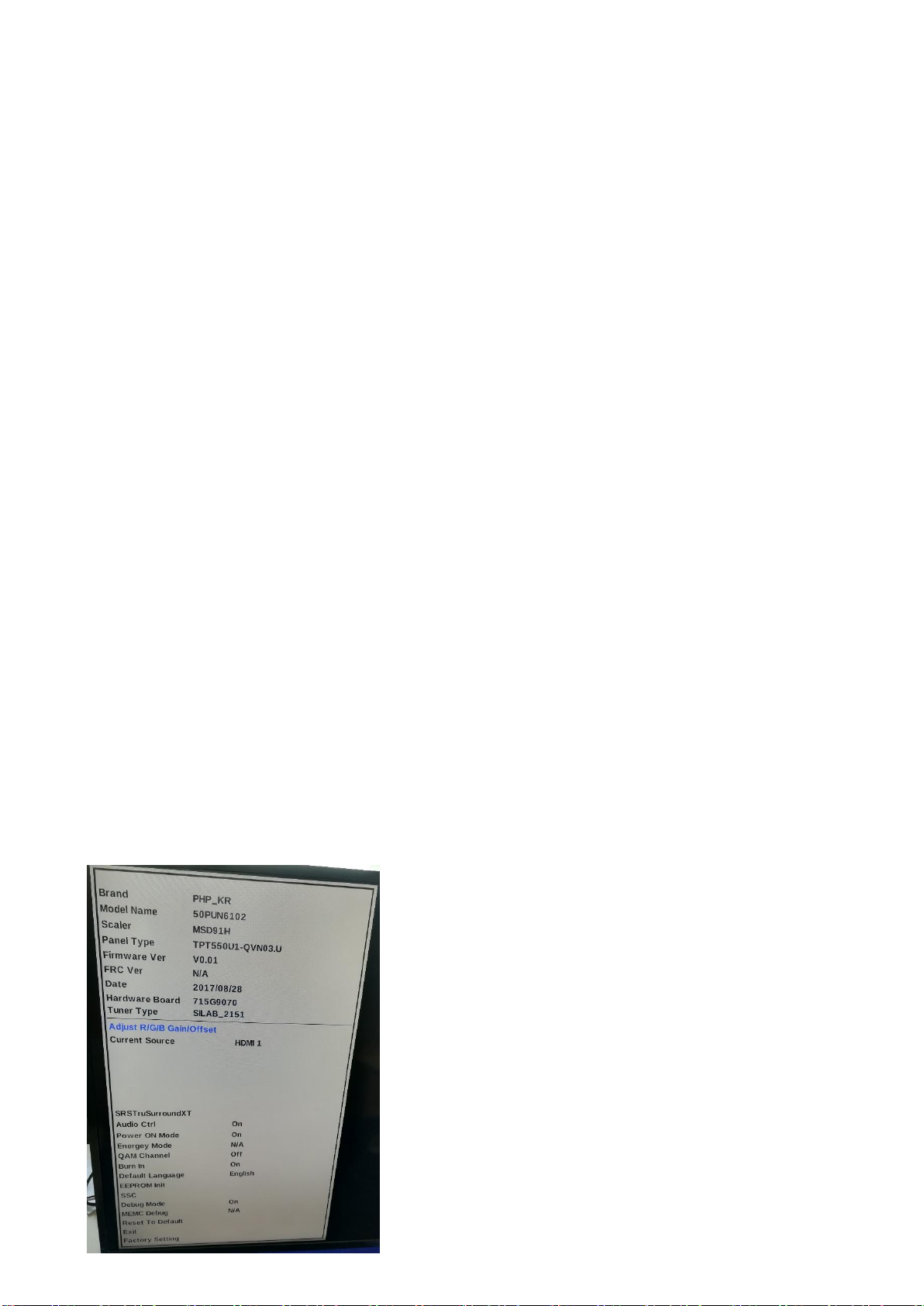

Factory mode overview
