Philips 50PUT6102/98 Bedienungsanleitung

Published by Amy.ma 1748 Quality Subject to modification 3122 785 20382

2017-Dec-01

2017 © TP Vision Netherlands B.V.

property of Koninklijke Philips Electronics N.V. or their respective owners.

TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust

earlier supplies accordingly.

PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Philips Electronics N.V.

Chassis name Platform Model name

TPM17.2A LA MTK5596L

50PUT6102/98

50PUT6102/79

50PUT6102/56

50PUT6102S/98

55PUT6102/79

55PUT6102/56

55PUT6102/98

55PUT6102S/98

65PUT6162/98

65PUT6162/79

65PUT6162/56

65PUT6162S/98

TPM17.2A

Published by Amy.ma 1748 Quality Subject to modification 3122 785 20382

2017-Dec-01

2017 © TP Vision Netherlands B.V.

property of Koninklijke Philips Electronics N.V. or their respective owners.

TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust

earlier supplies accordingly.

PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Philips Electronics N.V.

1.Product information……….……………………………………………………………………………………3

2.Connections overview……..…..…..………………..…………………………………………………………5

3.Mechanical Instructions………………….…………………………………………………………………….6

Cable dressing (50" 6102 series)………………………………………………………………………………6

Cable dressing (55" 6102 series)………………………………………………………………………………6

Cable dressing (65" 6162 series)………………………………………………………………………………7

Assembly/Panel Removal ………………………………………………………………………………………7

4.Service Modes…………….……………….………………….…………………………………………….….13

5.Software upgrading, Error Code and Panel Code………...……………………………………………..17

6.Circuit Descriptions…..……………………….………………………………………………………………22

7.IC Data Sheet……...……………………………………………………………………………………….…..30

8.Circuit Diagrams……………...……………………………………………………………………………….35

8.1 A 715G8672 PSU…………………………………………………………………..……………………35

8.2 A 715G6973 PSU…………………………………………………………………..……………………39

8.3 A 715G8682 PSU…………………………………………………………………..……………………43

8.4 B 715G8132 SSB………………………………………………………………………………………..47

8.5 J 715G8623 IR/LED Panel…………………………………………..………………………………71

8.6 E 715G7088 Keyboard control panel………………………………………………………………72

9.Styling Sheet……………….…………………….………………………………………………………….73

6102 series 50"………………………………………………………………………………………………73

6102 series 55"………………………………………………………………………………………………74

6161 series 65"……………………………………………………………………………………………..75

1. Product information

Product information is subject to change without notice.

For detailed product information, please visit

www.philips.com/support

Display

Type

Diagonal screen size

• 50PUT6102 : 123 cm / 50 inch

• 55PUT6102 : 139 cm / 55 inch

• 65PUT6162 : 164 cm / 65 inch

Display resolution

• 3840 x 2160p

Input resolution

• 800 x 600p - 60 Hz

• 1024 x 768p - 60 Hz

• 1280 x 768p - 60 Hz

• 1360 x 765p - 60 Hz

• 1360 x 768p - 60 Hz

• 1280 x 1024p - 60 Hz

• 1920 x 1080p - 60 Hz23.5

Video formats

Resolution — Refresh rate

• 480i - 60 Hz

• 480p - 60 Hz

• 576i - 50 Hz

• 576p - 50 Hz

• 720p - 50 Hz, 60 Hz

• 1080i - 50 Hz, 60 Hz

• 1080p - 24 Hz, 25 Hz, 30 Hz

• 2160p - 24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz

Computer formats

Resolutions (amongst others)

• 640 x 480 - 60 Hz

• 800 x 600 - 60 Hz

• 1024 x 768 - 60 Hz

• 1280 x 768 - 60 Hz

• 1360 x 765 - 60 Hz

• 1360 x 768 - 60 Hz

• 1280 x 1024 - 60 Hz

• 1920 x 1080 - 60 Hz

• 3840 x 2160 - 60 Hz

Dimensions and Weights

50PUT6102

• without TV stand:

Width 1129.54 mm - Height 656.45 mm - Depth 83.17

mm - Weight ± TBD kg

• with TV stand:

Width 1129.54 mm - Height 717.72 mm - Depth 259.18

mm - Weight ± TBD kg

55PUT6102

• without TV stand:

Width 1239.20 mm - Height 714.04 mm – Depth

90.26 mm - Weight ± 15.28 kg

• with TV stand:

Width 1239.20 mm - Height 780.34 mm - Depth

259.06 mm - Weight ± 15.6 kg

65PUT6162

• without TV stand:

Width 1462.30 mm - Height 844.70 mm - Depth

92.50 mm - Weight ± 24.5 kg

• with TV stand:

Width 1462.30 mm - Height 906.70 mm - Depth

271.50 mm - Weight ± 26.2 kg

Connectivity

TV Side

• HDMI 3 in

• HDMI 4 in - MHL

• USB x 2

• Headphones - Stereo mini-jack 3.5mm

TV Rear

CVBS/Y Pb Pr : CVBS/Y Pb Pr, Audio L/R

Serv.U

Audio in: DVI

TV Bottom

• HDMI 1 in - ARC

• HDMI 2

• USB x 1

• Digital Audio out-Optical

• Network LAN - RJ45

• Antenna (75 ohm)

Reception

Aerial input : 75 ohm coaxial (IEC75)

• Tuner bands : Hyperband, S-Channel, UHF, VHF

• DVB : DVB-T2, DVB-C (cable) QAM

• Analogue video playback : SECAM, PAL

• Digital video playback : MPEG2 SD/HD (ISO/IEC

13818-2), MPEG4 SD/HD (ISO/IEC 14496-10)

• Digital audio playback (ISO/IEC 13818-3)

Sound

• HD Stereo

• Output power (RMS) : 20W

• Dolby® Digital Plus

• DTS 2.0+ Digital out ™

Multimedia

Connections

• USB 2.0 / USB 3.0

• Ethernet LAN RJ-45

• Wi-Fi 802.11b/g/n (built-in)

Supported USB file systems

• FAT 16, FAT 32, NTFS

Playback formats

• Containers : 3GP, AVCHD, AVI, MPEG-PS, MPEG-TS,

MPEG-4, Matroska (MKV), Quicktime (MOV, M4V,

M4A), Windows Media (ASF/WMV/WMA)

• Video Codecs : MPEG-1, MPEG-2, MPEG-4 Part 2,

MPEG-4 Part 10 AVC (H.264), VC-1, WMV9

• Audio Codecs : AAC, HE-AAC (v1/v2), AMR-NB,

Dolby Digital, Dolby Digital Plus, DTS 2.0 + Digital

Out™, MPEG-1/2/2.5 Layer I/II/III (includes MP3),

WMA (v2 to v9.2), WMA Pro (v9/v10)

• Subtitles :

– Formats : SAMI, SubRip (SRT), SubViewer (SUB),

MicroDVD (TXT), mplayer2 (TXT), TMPlayer (TXT)

• Image Codecs : JPEG

• Limitations :

– Maximum supported total bit rate for a media file is

30Mbps.

– Maximum supported video bit rate for a media file

is 20Mbps.

– MPEG-4 AVC (H.264) is supported up to High

Profile @ L4.1.

– VC-1 is supported up to Advanced Profile @ L3.

Wi-Fi Certified

This TV supports Miracast certified devices.

Supported media server software (DMS)

• You can use any DLNA V1.5 certified media server

software (DMS class).

• You can use the Philips TV Remote app (iOS and

Android) on mobile devices.

Performance may vary, depending on the capabilities

of the mobile device and the software used.

Power

• Mains power: AC 110-240V +/-10%

• Ambient temperature: 5°C to 35°C

• Power saving features: Eco mode, Picture mute (for

radio), Auto switch-off timer, Eco settings menu.

The power rating stated on the product typeplate is

the power consumption for this product during

normal household use (IEC 62087 Ed.2). The

maximum power rating, stated between brackets, is

used for electrical safety (IEC 60065 Ed. 8.0).

2. Connections Overview

（For 715G8132M）

NETWORK

SERVICE

CONNECTOR

YPBPR

TUNER

HDMI

Digtal

Audio

Out

USB

HDMI

HDMI USB

SCALER

TUNER

DDR

3. Mechanical Instructions

3.1 Cable Dressing

Cable dressing (50" 6102 series)

Cable dressing (55" 6102 series)

LOUDSPEAKER

(

1184

)

CN701

MAIN POWER SUPPLY

(1054)

IR/LED

BOARD

(1056)

LOUDSPEAKER

(

1184

)

WIFI MODULE

(

Wifi01

)

ECN701

ECN4605

ECN401 TO KEY/IR

SSB

(10

)

ECN601

ECN418

LOUDSPEAKER

(

1184

)

IR/LED

BOARD

(1054)

LOUDSPEAKER

(

1184

)

WIFI MODULE

(

Wifi01

)

SSB

(10

)

MAIN POWER SUPPLY

(1054)

601

ECN701

ECN418

ECN401

ECN601

ECN4605

KEY BOARD

CONTRO

ECN601

KEY BOARD

CONTRO

ECN401

ECN601

CN412

CN418

CN4605

CN401

CN601

CN9101

CN8601

CN701

CN418

CN4605

CN401

CN601

CN8101

CN9101

Cable dressing (65" 6162 series)

3.2 Assembly/Panel Removal

3.2.1 Stand removal

1. Remove the fixation screws [1] that secure the stand

2. Take the stand bracket out from the set.

3.2.2 IR board Control Unit

1. Unplug the connector from the SSB.

Caution: be careful, as these are very fragile connectors!

2. Remove all the fixation screws [1] and connector [2] from the IR board control unit.

When defective, replace the whole unit.

LOUDSPEAKER

(

1184

)

CN701

MAIN POWER SUPPLY

(1054)

LOUDSPEAKER

(

1184

)

WIFI MODULE

(

Wifi01

)

ECN701

ECN4605

ECN401 TO KEY/IR

ECN418

SSB

(10

)

ECN601

ECN9203

KEY BOARD

CONTRO

IR/LED

BOARD

(105

)

ECN601

418

CN4605

CN401

CN601

8601

CN9102

3.2.3 Rear Cover

Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [2] and [3] that secure the back cover.(6102 series)

Remove fixation screws [2] and [3] that secure the back cover. Unplug the connector [4].(6162 series)

2. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

(6102 series)

(6162 series)

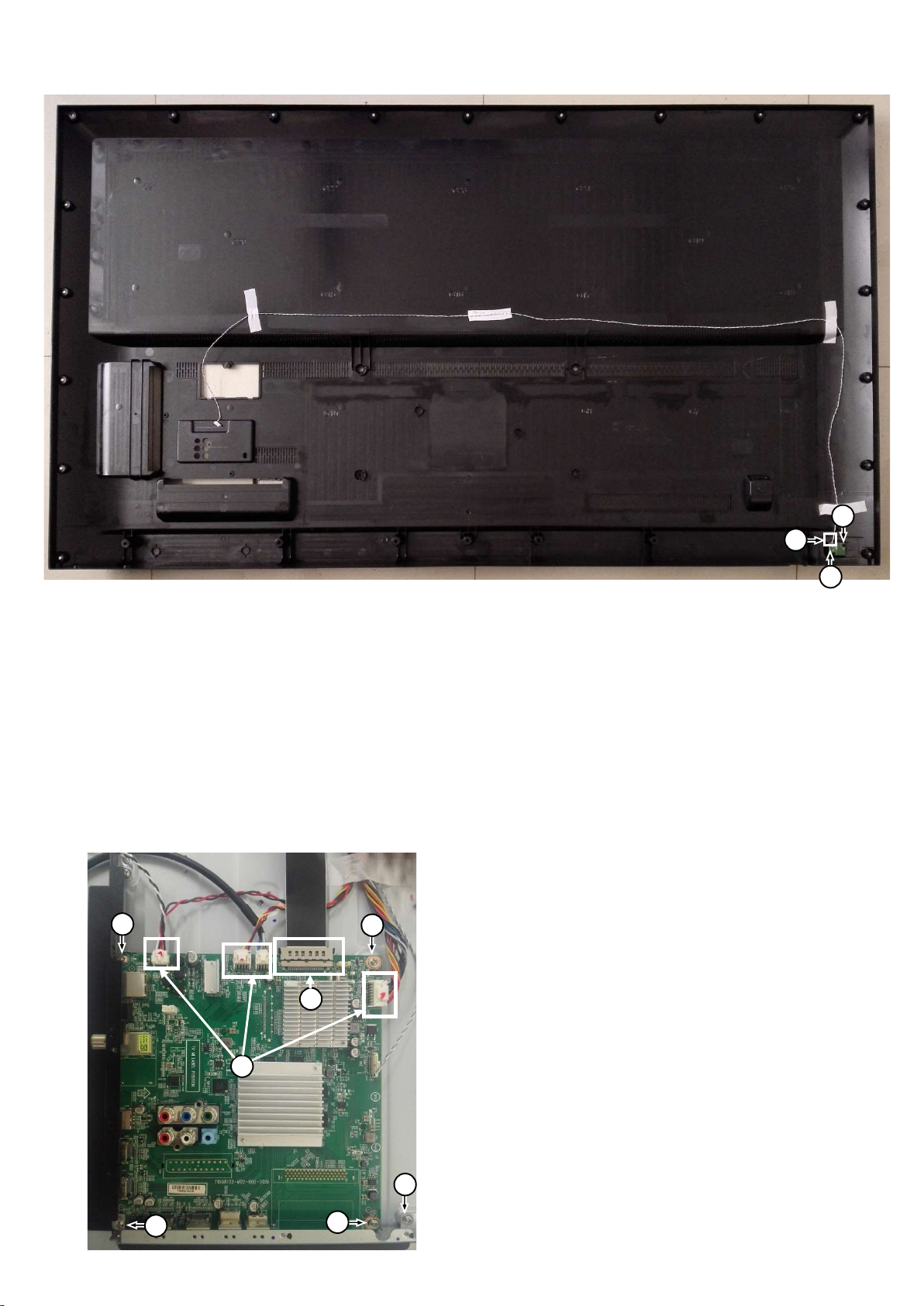

3.2.3 Keyboard Control Unit

1. Release the connector from the SSB Board.

Caution: be careful, the Keyboard is catch on the Back cover, please be careful to avoid damage the fragile connectors!

2. Remove all the fixation screws[1] and the connector [2] from the keyboard control panel and take it out from the Back cover.

When defective, replace the whole unit.

3.2.4 Small Signal Board (SSB)

Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the

SSB.

1. Release the clips from the LVDS connector that connect with the SSB[1].

Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2] .

3. Remove all the fixation screws from the SSB [3].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket.

Andere Handbücher für 50PUT6102/98

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips Fernseher Handbücher

Philips

Philips 55PW9383 Bedienungsanleitung

Philips

Philips 32PFL5404/12 Bedienungsanleitung

Philips

Philips 7263 Series Bedienungsanleitung

Philips

Philips 14AA3527-01B Bedienungsanleitung

Philips

Philips Matchline 32PW9586/05 Bedienungsanleitung

Philips

Philips 14CE1000 Bedienungsanleitung

Philips

Philips 65PUL7672 Bedienungsanleitung

Philips

Philips 4101 series Bedienungsanleitung

Philips

Philips 32PT8320 Bedienungsanleitung

Philips

Philips 19-MONO COLOR TV W-REM CONT-CHARCOAL-20LL200 Bedienungsanleitung

Philips

Philips 21ST2730 Bedienungsanleitung

Philips

Philips 55PFL6007G Bedienungsanleitung

Philips

Philips 32MF337B Bedienungsanleitung

Philips

Philips RD0945 Bedienungsanleitung

Philips

Philips L04HU Bedienungsanleitung

Philips

Philips 6100 series Bedienungsanleitung

Philips

Philips 17PF9946 Bedienungsanleitung

Philips

Philips 19PR19C Bedienungsanleitung

Philips

Philips PFL42 Bedienungsanleitung

Philips

Philips 32PFL6007T Bedienungsanleitung

Philips

Philips 8548 Series Bedienungsanleitung

Philips

Philips 32PF7320A Kurzanleitung

Philips

Philips 42FD9932 - annexe 2 Bedienungsanleitung

Philips

Philips 29PT8004 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Toshiba

Toshiba 27A10 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung

Sanyo

Sanyo CE19LD90N-B Bedienungsanleitung

North State

North State TV2GO Bedienungsanleitung

RCA

RCA RTU7877 Bedienungsanleitung

Sharp

Sharp 21K-FG1RU Bedienungsanleitung

Sony

Sony Esprit TAV-L1 Bedienungsanleitung

Grundig

Grundig 43 VLE 4820 Bedienungsanleitung

Samsung

Samsung LN26C350D1D Bedienungsanleitung
