Preparation

&Wall mounting instructions

For the wall mounting instructions follow the

illustrated steps xx to xx printed on the

separate template.

Make sure that the wall mount is being fixed

securely enough so that it meets safety

standards.The weight of the TV (excl.

packaging) is about 17 kg.

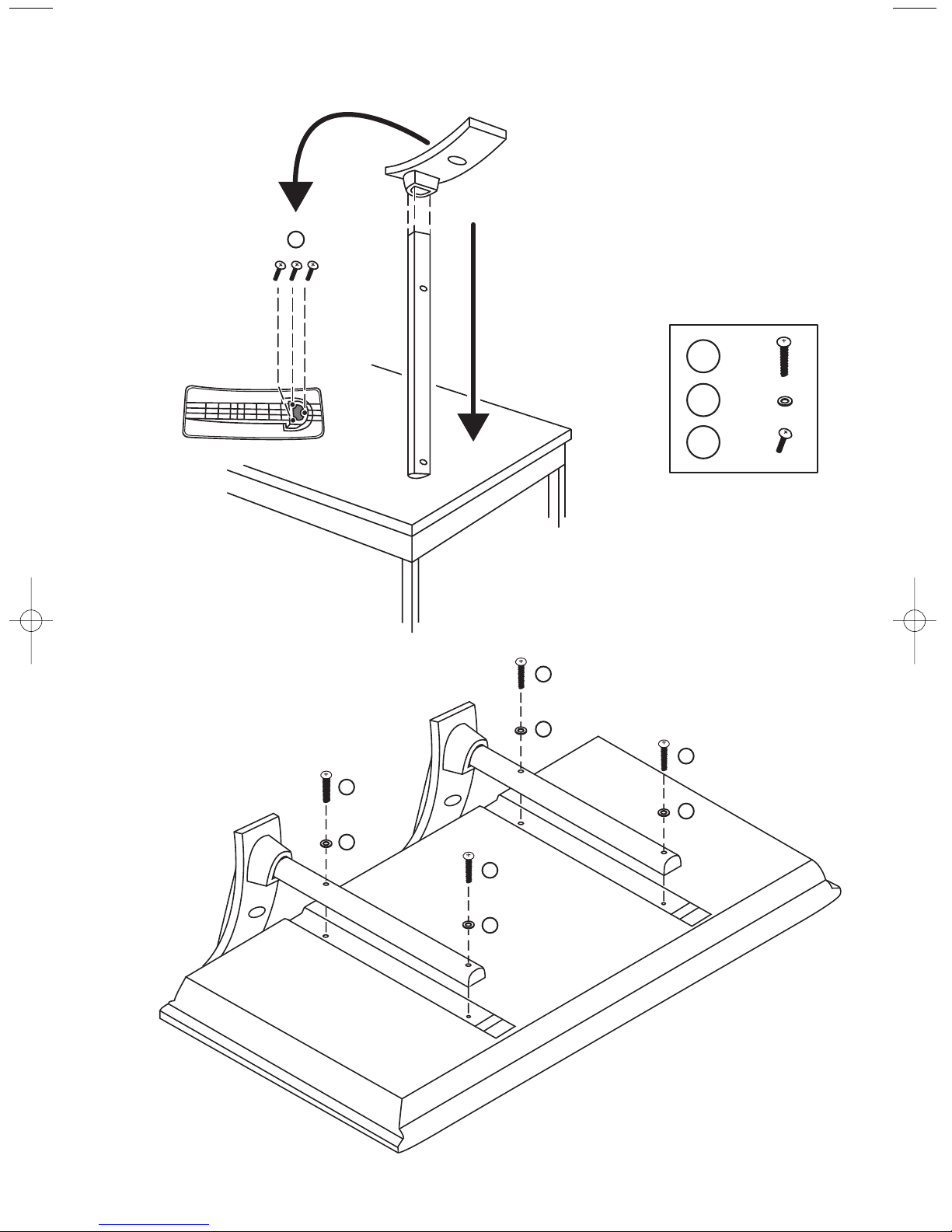

How to mount the supplied stand, see the

separate leaflet.

Note: other (not supplied) stands are optional

accessories. Consult your dealer.

éPlace or hang the TV wherever you want, but

make sure that air can circulate freely through

the ventilation slots. Do not install the TV in a

confined space such as a book case or a

simular unit.

To prevent any unsafe situations, no naked

flame sources, such as lighted candles, should

be placed on or in the vicinity.Avoid heat,

direct sunlight and exposure to rain or water.

The equipment shall not be exposed to

dripping or splashing and no objects filled with

liquids, such as vases, shall be placed on it.

“Insert the aerial plug firmly into the aerial

socket xat the bottom of the TV. For best

picture quality use the suppressor-aerial cable

supplied.

‘To connect your computer, see p. 20.

To connect other peripherals, see p. 17.

If you dispose of a Cinema Link combination

(Cinema Link Audio receiver and/or Cinema

Link video recorder and/or DVD player), see

the separate supplied instruction manual.

In order to obtain the best result, please use

only the supplied antenna cables between the

TV and videorecorder, and between

videorecorder and antenna connector.

(Insert the mains cord supplied into the mains

at the bottom of the TV and in the wall socket

having a mains voltage of 220-240V.

To prevent damaging the power (AC) cord

which could cause a fire or electric shock, do

not place the TV on the cord.

§Remote control:Insert the 2 batteries

supplied (Type R6-1,5V).

The batteries supplied do

not contain the heavy

metals mercury and

cadmium. Please check on

how to dispose of

exhausted batteries

according to local regulations.

èSwitch the TV on :Press the power switch B

at the right side of the TV.

An indicator on the front of the TV lights up

and the screen comes on. If the TV is in

standby mode, press the -P+ keys or the B

key on the remote control.

min.

Keys on top of the TV Should your remote be lost or broken you can still

change some of the basic settings with the keys on top

of your TV.

Press:

•the V-or +key to adjust the volume;

•the -P/CH+ keys to select the TV channels or sources.

The MENU/OK key can be used to summon the main

menu without the remote control.

Use:

•the V- and + keys and the P/CH- and P/CH+ keys

to select menu items in the directions as shown;

•the MENU/OK key to confirm your selection.

Note:

When activated via the MENU/OK key on top of the TV,

only Exit lets you dismiss the menu.

Navigate to Exit and press the MENU/OK key.

MENU/OK- V + - P/CH +

Setup

Install

Exit

Picture Sound Features

2240.1 en 19-06-2003 13:57 Pagina 2

Use of the remote control RC4301

BStandby

Press to switch the TV on or off.

When switched off, a red indicator on

the TV lights up.When acquiring

NEXTVIEW,see p. 14, an orange

indicator lights up and after a period

of max. 1 hour the TV is switched to

full standby and the red indicator

lights up.

®Ò‡π†

Audio and Video equipment keys,

see p. 21.

®Instant record

See Record with your recorder

with EasyLink, p. 21.

UTime display

The time is displayed on the

screen.

QSurround mode

Incredible surround

With stereo transmission, and

when Incredible surround is

selected, it seems as though the

loudspeakers are spread further

apart from one another.

Virtual Dolby surround

Optimal with Dolby surround

signals. Enables you to

experience the effect of Dolby

surround Pro Logic, reproducing

a rear sound effect. See Sound

menu, 3D effect, p. 11.

Note:You can make the same

selection in the Sound menu,

surround mode, p. 11.

ÌCinema Go

See separate Cinema Link

booklet supplied.

æNEXTVIEW On/Off see p. 13

SFreeze

To freeze the picture.

Dependent on the input signal,

the function may not be possible.

VCR DVD SAT AMP CD

See ‘Audio- and Video equipment

keys’, p. 21.

vSelect your computer or

other peripherals

See p. 18.

xPixel Plus demo on/off

In the right part Pixel Plus and

Digital Natural Motion are

switched on.

bTeletext On/Off see p. 15

OK Press this key

• to activate your choice, when in

the menus.

• to display the programme list.

MENU Main menu on/off see p. 5

VTo adjust the volume.

¬Interrupt the sound or restore it.

PProgramme selection

To browse through the TV

channels and sources stored in

the favourite list.

0/9 Digit keys

To select a TV channel.

For a two digit programme

number, enter the second digit

before the dash disappears.To

switch immediately to a selected

one digit TV channel, keep the

digit key pressed a bit longer.

0Previous TV channel

Press to display the previously

selected TV channel.

Note: For most keys pressing a key once will activate the function. Pressing a second time will de-activate it.

When a key enables multiple options, a small list will be shown. Press repeatedly to select the next item in the list.

The list will be removed automatically after 4 seconds or press OK to remove immediately.

Remark: in VGA mode only some keys are valid.

Select

VCR DVD SAT AMP CD

123

456

789

‡π

†

Active Control

2240.1 en 19-06-2003 13:57 Pagina 3

iOn Screen information

Press to display (when available) information about the selected TV

channel and programme.

Menu/Remote control info

When a menu is on screen, press ito display info on the selected menu

item.While the menu info is displayed, press any key to display remote

control info.The normal function of the key is not executed.

bno function

hActive control see p. 11.

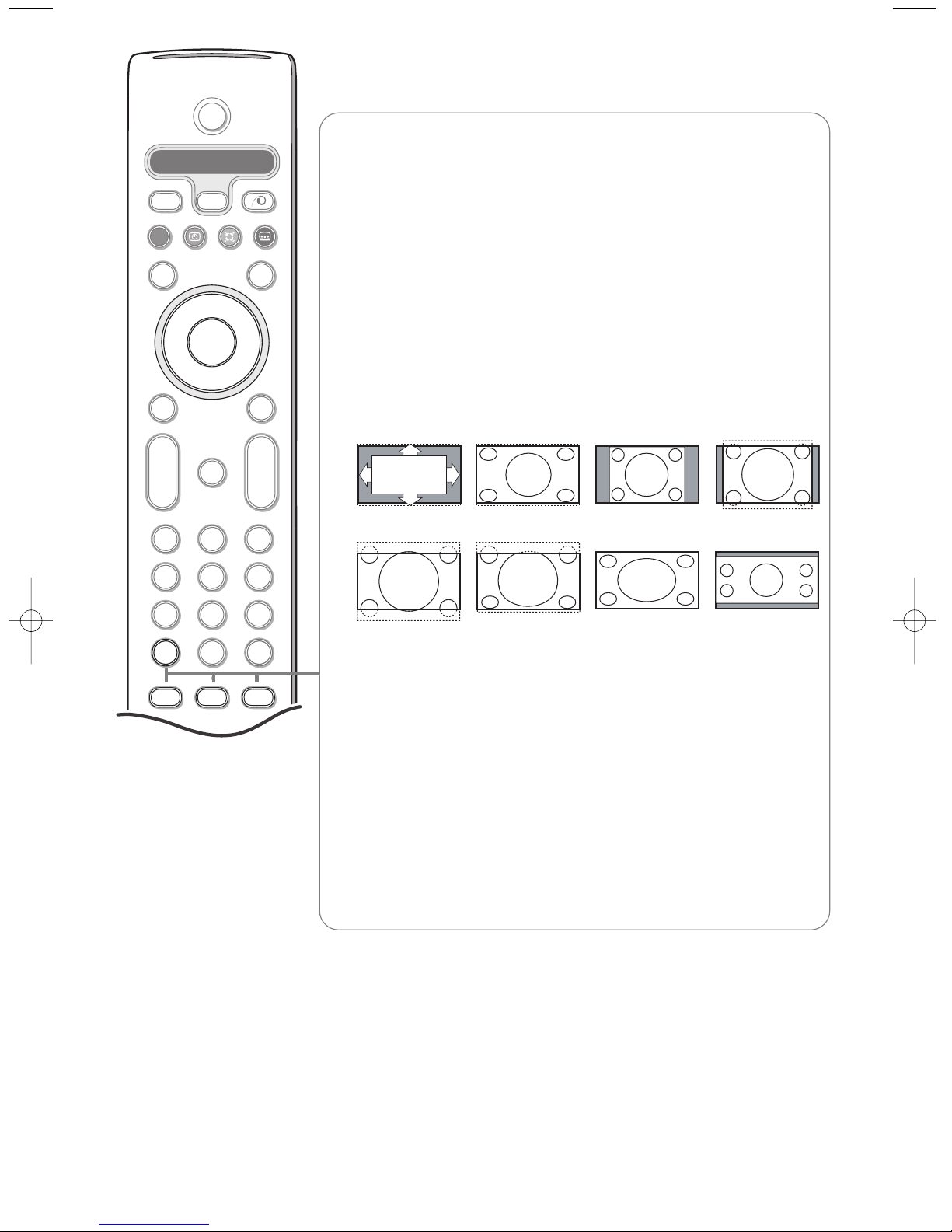

qPicture format

Press this key repeatedly or press the cursor up/down to select another

picture format:Auto format, Super zoom, 4:3, Movie Expand 14:9, Movie

Expand 16:9, Subtitle zoom,Wide screen or 16:9.

Auto format makes the picture fill the screen as much as possible.

In case of subtitles in the bottom black bar,Auto format makes the

subtitles visible.

In case of a broadcaster logo in the corner of the top black bar, the logo

disappears from the screen.

Super zoom removes the black bars on the sides of 4:3 programs with

minimal distortion.

When in Movie Expand 14:9, Movie Expand 16:9, Super zoom or Subtitle

zoom picture format, you can make subtitles visible with the cursor

up/down.

Note:With signals via EXT5 or the VGA IN connector less picture formats are

selectable.

Auto format Super zoom 4:3 Movie Expand 14:9

Movie Expand 16:9 Subtitle zoom Wide screen 16:9

Select

VCR DVD SAT AMP CD

123

456

789

‡π

†

Active Control

2240.1 en 19-06-2003 13:57 Pagina 4

To use the menus

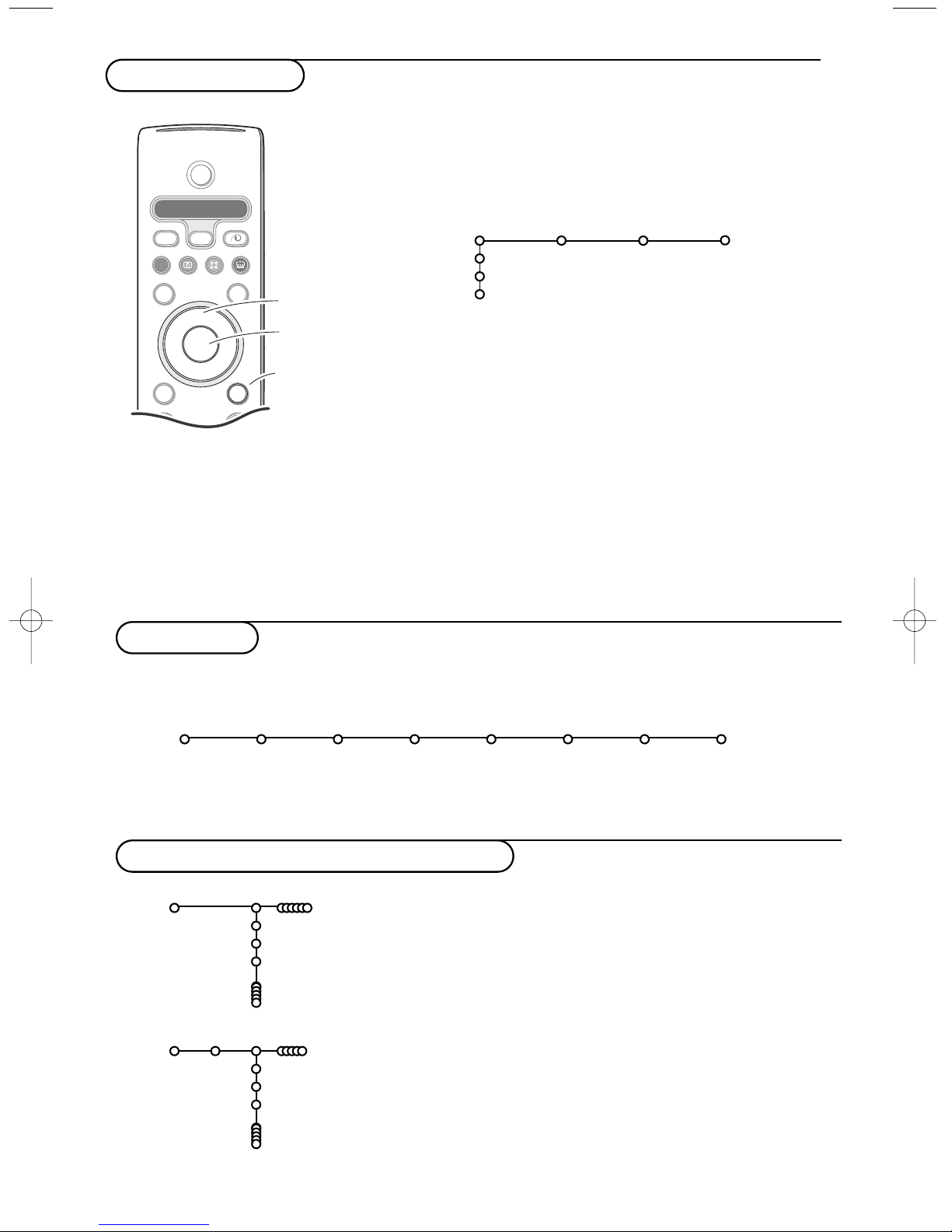

&Press the MENU key on the remote control to summon the

main menu.At any moment you can exit the menu by

pressing the MENU key again.

Note: If you have connected equipment with Cinema Link, more

menu items are present.

éUse the cursor in the up/down direction to select the TV,

Setup, Demo or Install menu.

Use the cursor left/right to select Picture,Sound or

Features.

Note: Sometimes not all the menu items are visible on the screen

(indicated by a cluster of blue balls). Use the cursor down or right

to reveal all items.

“Use the cursor in the left/right direction to select the menu

item.

‘Use the cursor up/down again to select the control you

want to select or to adjust.

Note: Items temporary not available or not relevant are displayed in a

light grey colour and cannot be selected.

vSelect

VCR DVD SAT AMP CD

‡π

†

cursor to select

adjustments

OK key to

activate

return or switch

main menu on/off

Installation

&Press the MENU key on the remote control.

éUse the cursor down to select Install.

“Use the cursor right to select Language.

Follow the instructions on screen.

‘Use the cursor up/down to select your preferred language

and press the OK key to confirm your selection.

(Use the cursor right to select Country.

§Select the country where you are now located and press

the OK key.

Select Other when none of the countries applies.

èProceed with the Install menu.

Setup

Demo

Install

Picture Sound Features

Install

Language Country Automatic Manual Give name Reshuffle Favourite

install install programmes

The installation menu contains the following items:

EasyLink

If your video recorder has an EasyLink function, during installation, the language, country and available channels are

automatically transmitted to the video recorder.

Language

English

Deutsch

Français

Install

Country

Austria

Belgium

Croatia

Install

Select the menu language and country

2240.1 en 19-06-2003 13:57 Pagina 5

&Select Automatic install in the Install menu.

Note: All channels must be unlocked in order to autoprogram. If

requested, enter your code to unlock all channels. (See TV,

Features menu, Childlock, p. 12.)

éPress the cursor down.

The autoprogramming option label Start appears.

“Press the cursor right.

‘The message Searching appears and the progress of

autoprogramming is displayed.

If a cable system or a TV channel which broadcasts ACI

(Automatic Channel Installation) is detected, a programme list

appears.Without ACI broadcast, the channels are numbered

according your language and country selection.You can use

Reshuffle to renumber them. See p. 7.

It is possible that the cable company or the TV channel displays a

broadcast selection menu. Layout and items are defined by the cable

company or the TV channel. Make your choice with the cursor and

press the OK key.

After language and country are set correctly, you can now search for and store the TV channels in two

different ways: using Automatic Installation or Manual Installation (tuning-in channel by channel).

Select your choice with the cursor right.

Automatic install

Install Start

Install

Manual installation

Automatic installation

Searching for and storing TV channels is done channel by

channel.You must go through every step of the Manual

Installation menu.

&Select Manual install in the Install menu.

éPress the cursor down.

Follow the instructions on screen.

Note: Search or direct selection of a TV channel.

If you know the frequency, the C- or S-channel number, enter the

3 or 2 digits of the frequency or the channel number directly with

the digit keys 0 to 9 (e.g. 048). Press the cursor down to proceed.

Repeat to search for another TV channel.

Manual install

Install

Selection mode

System

Programme

Fine tune

Store

Store TV channels

2240.1 en 19-06-2003 13:57 Pagina 6

It is possible to change the name stored in the

memory or to assign a name to a TV channel or

external for which a name has not yet been

entered.A name with up to 5 letters or numbers

can be given to the programme numbers 0 to 99.

Note : It is not possible to rename the VGA source.

&Select Give Name in the Install menu and

press the cursor down.

éSelect the programme number.

Note: keep the cursor up/down pressed to scroll

through the programme list quickly.

“Press the cursor right.

A keyboard appears on the screen.

Press the cursor right to enter the keyboard.

Press the cursor up/down, left/right to select

the first character and press OK.Repeat for

every character you want to enter.

Select Space to enter a space; Delete to erase

the highlighted character in the name entered;

Shift to display upper- or lowercase characters

on the keyboard; Special to display special

characters on the keyboard. Press OK to

confirm.

‘Press the cursor left repeatedly when you have

finished the name giving.

(Select another programme number and repeat

steps “to ‘.

Give name

pπ

® Space ® Delete

ABCDEFG 123

HIJKLMN 456

OPQRSTU 789

VWXYZ 0

® Shift ® Special

Give name

Install

VCR1

BBC1

BBC2

CNN

TVE

.....

Reshuffle the programme list

You can change the order of the stored TV

channels.

&Select Reshuffle in the Installation menu.

éFollow the instructions on screen.

Select Favourite TV channels

A VGA source always belongs to the list of

Favourite programmes.

&Select Favourite programmes in the Install

menu.

éSelect your programme number with the

cursor up/down.

“Select Yes or No with the cursor right.

‘Repeat éand “for every TV channel or

external you want to make a favourite or a

non-favourite TV channel or external.

TV Setup

The Setup menu contains items that control the settings

of the TV’s functions, features, services and peripherals

you may have connected.

The General menu allows you to change settings that

will typically be accessed only occasionally.

The Source menu allows you to select a source.

The Decoder menu allows you to define one or more

programme numbers as decoder programme numbers.

General

Menu background

Factory settings

NEXTVIEW provider

OSD

Programme title

Teletext level 2.5

Auto surround

Set/Change code

Setup

2240.1 en 19-06-2003 13:57 Pagina 7

General

Menu background

Select Yes or No to turn the menu background

on or off.

Factory settings

This resets the picture and sound settings to

their predefined factory values, but maintains

the channel installation settings.

NEXTVIEW provider

Select a TV broadcaster that provides

NEXTVIEW data. How to make use of NEXTVIEW,

see p. 13.

OSD (On Screen Display)

&Select OSD.

éSelect Normal to activate extended channel

and programme information. Minimum will

display reduced channel information.

Note:When subtitles is switched on, see Features,

p.12, display of the programme number is not

possible

Programme title

Select Programme title Yes or No.

When selected Yes,after the selection of a TV

programme or after pressing the ikey on

the remote control, a TV channel which

broadcasts teletext may transmit the name of

the TV channel or the programme title.

When selected No,the programme title will

only appear after pressing the ikey, and not

after the selection of a TV channel.

Teletext level 2.5

Some broadcasters offer the opportunity to

see more colours, other background colours

and nicer pictures in the teletext pages.

&Select Teletext level 2.5.

éPress the cursor right to select Teletext level

2.5 On to take advantage of this feature.

“Press the cursor right again to select Teletext

level 2.5 Off if you like the more neutral

teletext layout.

The selection made is valid for all channels

which broadcast teletext level 2.5.

Note: It may take a few seconds before teletext

broadcast switches over to Teletext level 2.5.

Auto Surround

Sometimes the broadcaster transmits special

signals for Surround Sound encoded

programmes.

The TV automatically switches to the best

surround sound mode when Auto Surround is

switched On.

Set/Change code

The Child lock feature (see TV, Features, p. 12)

allows you to lock channels to prevent others

from watching certain programmes.To watch

locked channels, a 4-digit code must be

entered.The Set/Change code menu item

allows you to create or change a Personal

Identification Number (PIN).

&Select Set/Change code.

éIf no code exists yet, the menu item is set to

Set code.

If a code has previously been entered, the menu

item is set to Change code.Follow the

instructions on screen.

Important:You have forgotten your code !

&Select Change code in the General menu and

press OK.

éPress the cursor right and enter the overriding

code 8-8-8-8.

“Press the cursor again and enter a new

personal 4-digit code.The previous code is

erased and the new code is stored.

This menu allows you to change various settings that are presumably adjusted less frequently than most

other settings.

Press the ikey on the remote control to get information about the selected menu item.

2240.1 en 19-06-2003 13:57 Pagina 8

Source

This menu allows you to indicate the peripheral

you connected to one of the external inputs.

&Press the cursor right to enter the list of types

of peripherals attached to the selected input.

éSelect the peripheral device with the cursor

up/down.

Once you have selected the source type, e.g. DVD,

this source will automatically be selected when

your remote control is in DVD mode, see p. 3, and

when you press the vkey on the remote

control.

Centre input - Centre in volume

When you have connected a surround receiver

to the TV, see p. 18, the loudspeakers of the TV

can act as centre speaker, making a separate

centre speaker unnecessary.

Select Centre input On or Cinema Link (in

case you have connected a Cinema Link

Surround receiver).

When having selected On you can adjust the

Centre in volume with the cursor left/right to

correct volume level differences of the external

audio receiver and speakers.

Note:This is not the case with a Cinema Link

surround receiver.

Source

EXT1

EXT2

EXT3

EXT4

YPbPr

FRONT

Centre input

Centre in volume

Setup

If a decoder or a descrambler is connected, see

p. 17, you can define one or more programme

numbers as decoder programme numbers.

&Select Decoder with the cursor right.

éSelect Programme.

“Select the programme number under which

you have stored the programme coming from

your decoder.

‘Select Status.

•Select the input used to connect your

decoder: None,EXT1 or EXT2.

•Select None if you do not want the selected

programme number being activated as a

decoder programme number.

Note: Select EXT2 when the decoder is connected to

your EasyLink video recorder.

Decoder

Programme

Status

Setup

Demo The Demo menu allows to demonstrate the TV

features separately or in a continuous loop.

If Auto demo has been selected the demo will

automatically present the features sequentially in a

loop. Press one of the cursor keys to stop the Auto

demo.

If one of the features has been selected, this

particular feature demo will run only once, and the

Demo menu will reappear.

Note:The Dealer demo is not part of the automatic

sequence and can only be activated separately.

Auto demo

......

Dealer demo - Digital options

- Light sensor

- Comb filter

Setup

Demo

Install

2240.1 en 19-06-2003 13:57 Pagina 9

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips Fernseher Handbücher

Philips

Philips 32PF9968/10 Bedienungsanleitung

Philips

Philips 52PFL7762D/05 Bedienungsanleitung

Philips

Philips 7906 Series Gebrauchsanweisung

Philips

Philips 25DC2660 Bedienungsanleitung

Philips

Philips 26PF5321D Handbuch

Philips

Philips 50PFL5901/F8 Bedienungsanleitung

Philips

Philips 50PFL3707/F8 Bedienungsanleitung

Philips

Philips OLED856 Series Bedienungsanleitung

Philips

Philips 20RF50S Handbuch

Philips

Philips 27PT541S Bedienungsanleitung

Philips

Philips 30 IN WIDESCREEN HDTV MONITOR 30PW862H Handbuch

Philips

Philips OLED973 Series Bedienungsanleitung

Philips

Philips 42PFL3403/98 Bedienungsanleitung

Philips

Philips TS3256C Bedienungsanleitung

Philips

Philips 32PT91S1 Bedienungsanleitung

Philips

Philips 32PFL5404/12 Bedienungsanleitung

Philips

Philips MAGNAVOX PR1911B Bedienungsanleitung

Philips

Philips 65PFL8900/F7 Bedienungsanleitung

Philips

Philips 32-REAL FLAT SDTV 32PT9005D - Hook Up Guide Bedienungsanleitung

Philips

Philips 28PW6008/01 Bedienungsanleitung

Philips

Philips Magnavox TS3659C1 Bedienungsanleitung

Philips

Philips 8100 series Bedienungsanleitung

Philips

Philips 22PFL2978H Bedienungsanleitung

Philips

Philips 32PM8822 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Toshiba

Toshiba 27A10 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung

Sanyo

Sanyo CE19LD90N-B Bedienungsanleitung

North State

North State TV2GO Bedienungsanleitung

RCA

RCA RTU7877 Bedienungsanleitung

Sharp

Sharp 21K-FG1RU Bedienungsanleitung

Sony

Sony Esprit TAV-L1 Bedienungsanleitung

Grundig

Grundig 43 VLE 4820 Bedienungsanleitung

Samsung

Samsung LN26C350D1D Bedienungsanleitung
