Phoenix Contact PDR-1000 Bedienungsanleitung
This Quick Start guide is valid for:
Quick Start Guide
PDR-1000 (Order No. 1041980)
MNR 1095666 DNR 01169622_00
iPHOENIX CONTACT 4010_en_C
General information
User group of this manual
The use of products described in this manual is oriented exclusively to
qualified electricians or persons instructed by them, who are familiar with
applicable standards and other regulations regarding electrical engineer-
ing and, in particular, the relevant safety concepts.
Phoenix Contact accepts no liability for erroneous handling or damage to
products from Phoenix Contact or third-party products resulting from
disregard of information contained in this manual.
Explanation of symbols used and signal words
The following types of messages provide information about possible prop-
erty damage and general information concerning proper operation and
ease-of-use.
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
DANGER
This indicates a hazardous situation which, if not avoided, will
result in death or serious injury
WARNING
This indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION
This indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
NOTE
This symbol and the accompanying text alerts the reader to a
situation which may cause damage or malfunction to the device,
either hardware or software, or surrounding property.
4010_en_C PHOENIX CONTACT ii
General terms and conditions of use for technical
documentation
Phoenix Contact reserves the right to alter, correct, and/or improve the
technical documentation and the products described in the technical doc-
umentation at its own discretion and without giving prior notice, insofar as
this is reasonable for the user. The same applies to any technical changes
that serve the purpose of technical progress.
The receipt of technical documentation (in particular data sheets, installa-
tion instructions, manuals, etc.) does not constitute any further duty on the
part of Phoenix Contact to furnish information on alterations to products
and/or technical documentation. Any other agreement shall only apply if
expressly confirmed in writing by Phoenix Contact. Please note that the
supplied documentation is product-specific documentation only and that
you are responsible for checking the suitability and intended use of the
products in your specific application, in particular with regard to observing
the applicable standards and regulations.
Although Phoenix Contact makes every effort to ensure that the informa-
tion content is accurate, up-to-date, and state-of-the-art, technical inaccu-
racies and/or printing errors in the information cannot be ruled out.
Phoenix Contact does not offer any guarantees as to the reliability, accu-
racy or completeness of the information. All information made available in
the technical data is supplied without any accompanying guarantee,
whether expressly mentioned, implied or tacitly assumed. This informa-
tion does not include any guarantees regarding quality, does not describe
any fair marketable quality, and does not make any claims as to quality
guarantees or guarantees regarding the suitability for a special purpose.
Phoenix Contact accepts no liability or responsibility for errors or omis-
sions in the content of the technical documentation (in particular data
sheets, installation instructions, manuals, etc.).
The aforementioned limitations of liability and exemptions from liability do
not apply, in so far as liability must be assumed, e.g., according to product
liability law, in cases of premeditation, gross negligence, on account of
loss of life, physical injury or damage to health or on account of the viola-
This symbol and the accompanying text provides additional
information to the reader. It is also used as a reference to other
sources of information (manuals, data sheets, literature) on the
subject matter, product, etc.
iii PHOENIX CONTACT 4010_en_C
tion of important contractual obligations. Claims for damages for the viola-
tion of important contractual obligations are, however, limited to contract-
typical, predictable damages, provided there is no premeditation or gross
negligence, or that liability is assumed on account of loss of life, physical
injury or damage to health. This ruling does not imply a change in the bur-
den of proof to the detriment of the user.
Statement of legal authority
This manual, including all illustrations contained herein, is copyright pro-
tected. Use of this manual by any third party is forbidden. Reproduction,
translation, and public disclosure, as well as electronic and photographic
archiving or alteration requires the express written consent
of Phoenix Contact. Violators are liable for damages.
Phoenix Contact reserves all rights in the case of patent award or listing of
a registered design. Third-party products are always named without refer-
ence to patent rights. The existence of such rights shall not be excluded.
How to contact us
Internet
Up-to-date information on Phoenix Contact products and our Terms and
Conditions can be found on the Internet at:
phoenixcontact.com.
Subsidiaries
If there are any problems that cannot be solved using the documentation,
please contact your Phoenix Contact subsidiary.
Subsidiary contact information is available at www.phoenixcontact.com.
Published by
Should you have any suggestions or recommendations for improvement
of the contents and layout of our manuals, please send your comments to
PHOENIX CONTACT
P.O. Box 4100
Harrisburg, PA 17111-0100
USA
Telephone +1-717-944-1300
1PHOENIX CONTACT 4010_en_C
Device power-up
Wiring the controller
Refer to the documentation provided with the ILC 191 ETH 2TX controller
(Order no. 2700976) for installation instructions.
Installing the input modules
Up to ten modules can be used on the bus at a time. The following
modules are applicable for this application:
Refer to the individual module documentation for wiring instructions to
field devices.
Information for the ILC 191 ETH 2TX can be found at
phoenixcontact.net/product/2700976
WARNING:
Always remove power from the device before installation or
removal of modules.
Table 1 Available modules
Order No. Descriptor Provides
2861302 IB IL AI 2/SF-PAC Two analog channels
2861386 IB IL TEMP 2 UTH-PAC Two thermocouple channels
2861328 IB IL TEMP 2 RTD-PAC Two RTD channels
2700173 IB IL 24 DI8/HD-PAC Eight digital inputs
2700172 IB IL 24 DO8/HD-PAC Eight digital outputs
4010_en_C PHOENIX CONTACT 2
SD flash card memory
The PDR-1000 includes a pre-installed 2 GB SD card required for
operation.
Only Phoenix Contact 2 GB cards are supported.
3PHOENIX CONTACT 4010_en_C
Connecting the user interface
1. Connect an Ethernet cable between an RJ45 port on the ILC 191
ETH 2TX controller and a computer.
2. Set the IP address of the computer to 192.168.0.100 or any unused
IP address in 192.168.x.x subnet with a subnet mask of
255.255.255.0.

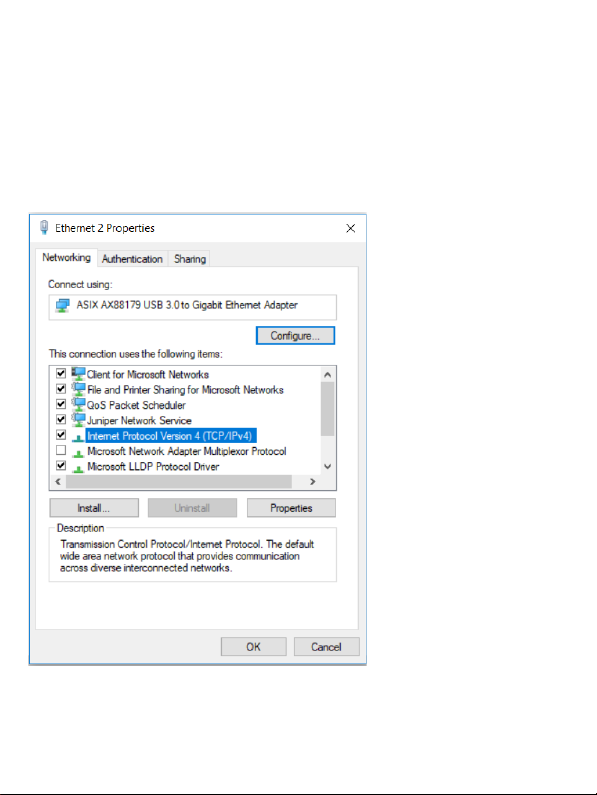

Figure 1 “Ethernet 2 Properties” dialog box
4010_en_C PHOENIX CONTACT 4

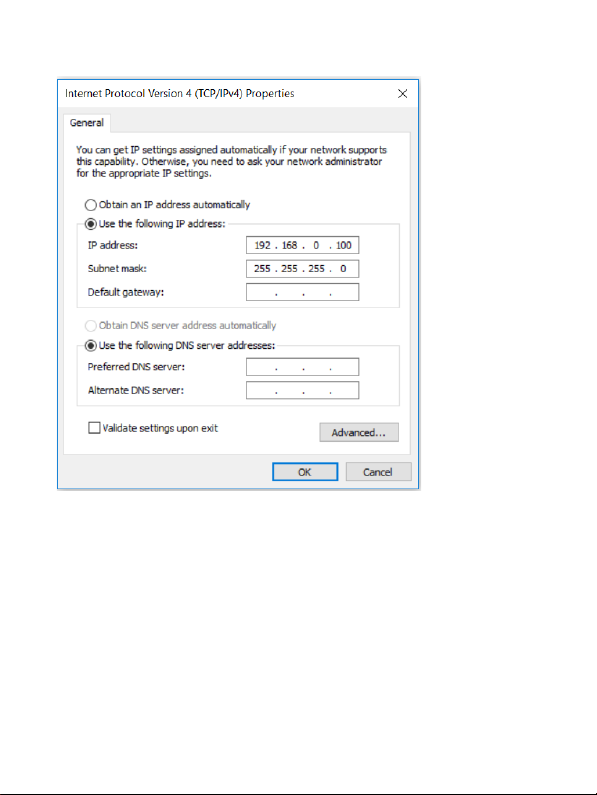

Figure 2 “Internet Protocol Version 4 (TCP/IPv4) Properties” dialog box
5PHOENIX CONTACT 4010_en_C
3. Open a browser (Google Chrome™or Mozilla®Firefox®are
recommended) and enter http://192.168.0.5 in the “Address” field to
load the user interface.

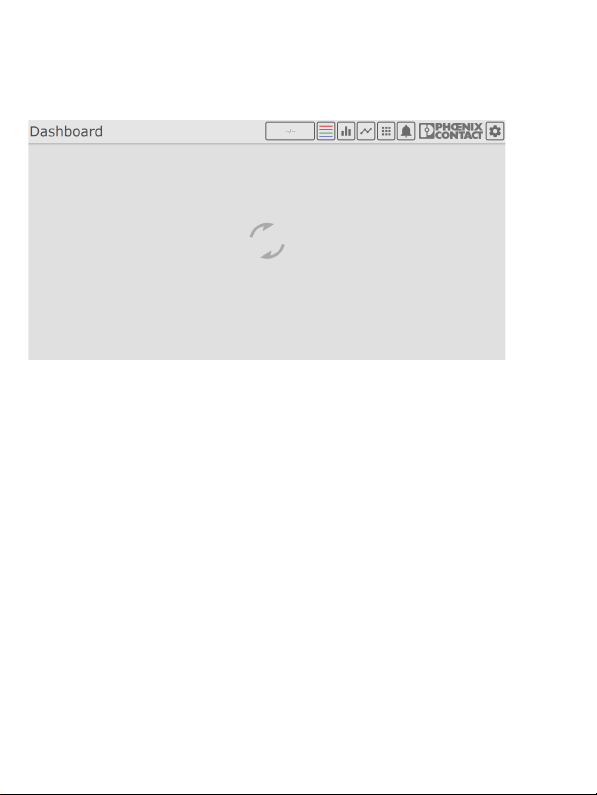

Figure 3 Initial connection loading screen
The loading screen will display with the application is loaded. This
may take some time, depending on the network connection.
