Quick start guide Digital Wireless Earpiece

The Phonak Roger system is a particularly efficient covert digital wireless earpiece system that operates in the 2.4

Ghz frequency band.

The main characteristics are as follows:

No interference with other systems working in 2.4GHz band

Excellent sound quality with an audio bandwidth of 100 Hz - 7200 Hz

Distortion < 0.8% to 1 kHz

No background noise, signal-to-noise ratio of 55 dB

No more frequency programming

Fast pairing with the earpiece

Unlimited number of earpieces on a transmitter

Low latency

The system consists of four elements: the Roger Earpiece, the Roger BaseStation (stationary transmitter), the Roger

Touchscreen Mic (mobile transmitter and remote control) and the Roger Repeater.

1 Roger system, the key points

Quick start guide Digital Wireless Earpiece

2.15 Beeps

2.16 system description

2.17 Roger base station

2.18 Rear

2.19 Front 2.20 XLR pinout

2.21 Jack 6.35 pinout 2.22 Power supply BaseStation

2.24 Tool imbus

2.23 rack kit

2.25 Screws M5 + rondelle Rack kit 2.27 Chablon wall mount

Refer to studio_tx_chablon_20151022.pdf

2.29 Foot standalone

2.30 How to mount single rack kit

2.31 How to mount wall mount 2.32 How to use secure lock

2.28 Screws + tampon wall mount

2.33 Input level low/middle/high

2.34 Adjust volume control 2.35 Exchange wax ﬁlter

2.26 Screws M6+ rondelle Rack kit

Roger for studio illustrations

cinq-neuf 10.2015

…

Input level

5V 0.5A

Balanced Audio IN

RogerTM BaseStation

Hot (+)

Cold (-)

GND

Hot (+)

Cold (-)

GND

Hot (+)

Cold (-)

GND

Hot (+)

Cold (-)

GND

5V 0.5A

Balanced Audio IN

RogerTM BaseStation

Input level

0 7

1 6

2 5

3 4

0 7

1 6

2 5

3 4

9ewq78r

2.15 Beeps

2.16 system description

2.17 Roger base station

2.18 Rear

2.19 Front 2.20 XLR pinout

2.21 Jack 6.35 pinout 2.22 Power supply BaseStation

2.24 Tool imbus

2.23 rack kit

2.25 Screws M5 + rondelle Rack kit 2.27 Chablon wall mount

Refer to studio_tx_chablon_20151022.pdf

2.29 Foot standalone

2.30 How to mount single rack kit

2.31 How to mount wall mount 2.32 How to use secure lock

2.28 Screws + tampon wall mount

2.33 Input level low/middle/high

2.34 Adjust volume control 2.35 Exchange wax ﬁlter

2.26 Screws M6+ rondelle Rack kit

Roger for studio illustrations

cinq-neuf 10.2015

…

Input level

5V 0.5A

Balanced Audio IN

RogerTM BaseStation

Hot (+)

Cold (-)

GND

Hot (+)

Cold (-)

GND

Hot (+)

Cold (-)

GND

Hot (+)

Cold (-)

GND

5V 0.5A

Balanced Audio IN

RogerTM BaseStation

Input level

0 7

1 6

2 5

3 4

0 7

1 6

2 5

3 4

153246

1On/off button

2Connect button

3Connect indicator LED

2s Earpiece connected

1s 1s no earpiece in range

1s 1s 1s incompatible receiver

4Audio input monitoring before volume setting

5Volume setting

6Antenna

7Balanced audio input connector (XLR and 6.35 jack)

√ Nominal 0 dBu / 0.77 VRMS

√ Max +20 dBu / 7.75 VRMS

8Non-balanced audio input connector 3.5 mini-jack

√ Nominal -27 dBu / 0.035 VRMS

√ Max 0 dBu / 0.77 VRMS

9Power supply socket

10 USB connector (for maintenance)

11 NewNet button (Define a new Roger network, erase all paired devices)

2s NewNet successful

12 NewNet indicator LED

13 Anti-theft lock

2.1 Description

2 Roger BaseStation

Quick start guide Digital Wireless Earpiece

Roger for studio illustrations

cinq-neuf 10.2015

Dual rack mount kit

2.15 Beeps

2.16 system description

2.17 Roger base station

2.18 Rear

2.19 Front 2.20 XLR pinout

2.21 Jack 6.35 pinout 2.22 Power supply BaseStation

2.24 Tool imbus

2.23 rack kit

2.25 Screws M5 + rondelle Rack kit 2.27 Chablon wall mount

Refer to studio_tx_chablon_20151022.pdf

2.29 Foot standalone

2.30 How to mount single rack kit

2.31 How to mount wall mount 2.32 How to use secure lock

2.28 Screws + tampon wall mount

2.33 Input level low/middle/high

2.34 Adjust volume control 2.35 Exchange wax ﬁlter

2.26 Screws M6+ rondelle Rack kit

Roger for studio illustrations

cinq-neuf 10.2015

…

Input level

5V 0.5A

Balanced Audio IN

RogerTM BaseStation

Hot (+)

Cold (-)

GND

Hot (+)

Cold (-)

GND

Hot (+)

Cold (-)

GND

Hot (+)

Cold (-)

GND

5V 0.5A

Balanced Audio IN

RogerTM BaseStation

Input level

0 7

1 6

2 5

3 4

0 7

1 6

2 5

3 4

2.2 Installation

2.2.1 Installation advice

2.2.2 In-rack mounting

The given theoretical range of the transmitter is from 15 to 40 m. Ideally, it should be positioned at the centre of the

area to be covered. In view of the transmission frequency (2.4 Ghz), absorption by the human body is substantial and

the transmitter needs to be positioned high up to ensure a better range.

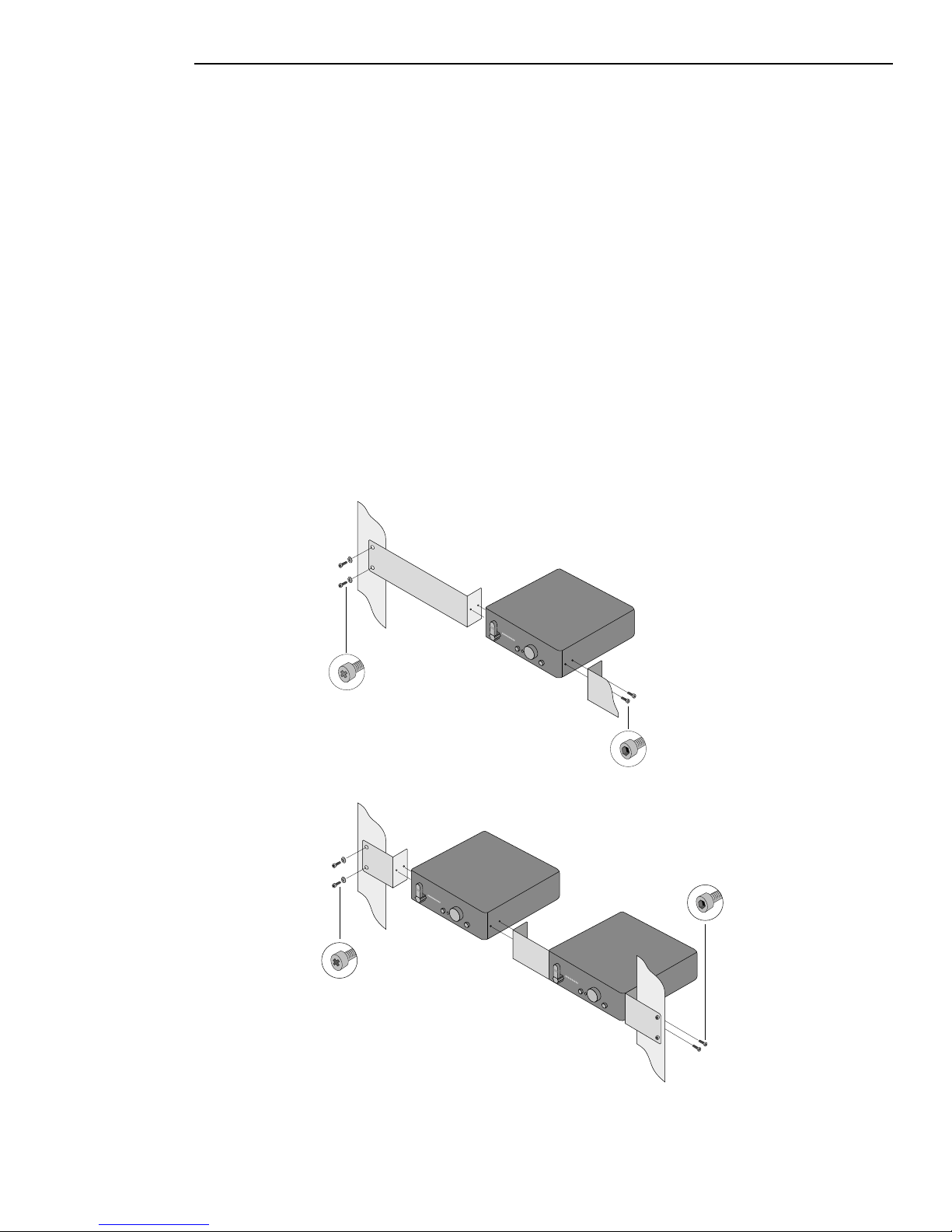

One or two transmitters can be mounted in a 19’’ rack; the single mounting accessories are provided.
