EX2 Display Controller

QUICK REFERENCE

Windows XP

Windows 2000

EX2-qs-ug-1 8/27/04 8:06 AM Page 1

Before You Begin

Check that your system meets these requirements and

runs one of these Microsoft operating systems.

You must install the correct AGP chipset driver

before you install the EX2 controller and driver.

To check the chipset on your computer

1Right-click My Computer and select Properties.

2Click the Hardware tab and select Device

Manager.

3Scroll the list to select System Devices.

4Scroll to list to AGP controller. The name of

the chipset manufacturer appears as the

device name.

System Requirements

•Intel Pentium 4, Xeon AMD

Athlon XP/MP/Opteron or

compatible

•Motherboard with free

AGP 8x/4x slot

•256 MB RAM

•Correct AGP GART chipset

driver installed for motherboard

•CD-ROM drive

•Power supply, 300 watts or

greater

Operating System

•Windows XP

•Windows 2000 with

Service Pack 1

(or higher) Warning

Avertissement

Avvertenza

Advertencia

Warnung

Wear an antistatic heel or wrist

strap when installing the board

to avoid damage to computer

components.

EX2-qs-ug-1 8/27/04 8:06 AM Page 2

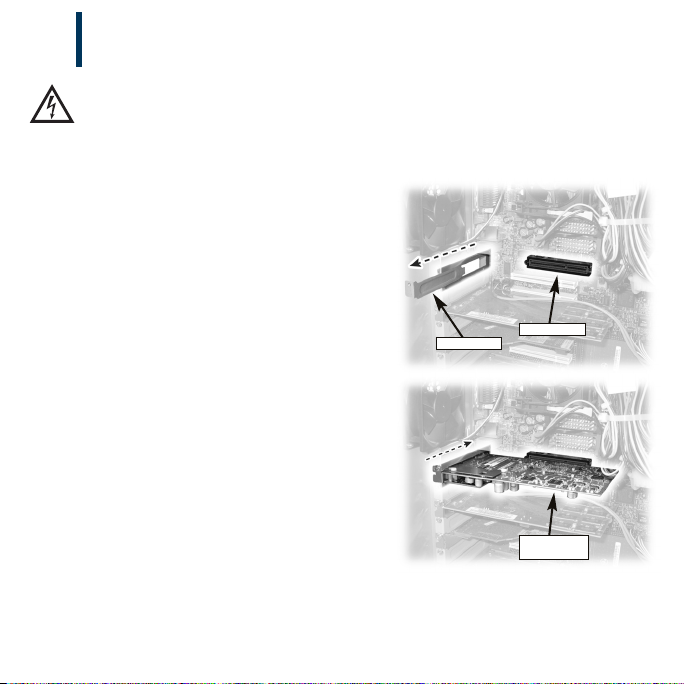

Installing the EX2 Display Controller

Open AGP slot

EX2 controller

installed

Blank bracket

Turn your computer off. Leave the power cord plugged into the grounded outlet.

Remove any existing graphics card and its driver from your computer system

before you install the EX2 controller and driver. Also disable any onboard

graphics capability on the motherboard.

To install the controller

1Turn off your computer and all peripherals.

Disconnect all cables from your computer.

2Remove the computer cover.

3Remove any existing graphics card and

video signal cable, if necessary.

4Remove the blank bracket from the available

AGP slot.

5Insert the EX2 controller into the AGP slot,

align the connector pins, and press the

board down until it is firmly seated.

6Use the power extension cable to connect the

EX2 controller to the computer's hard drive

power connector. See page 4.

7Secure the mounting bracket.

8Reattach the computer cover and the peripherals.

EX2-qs-ug-1 8/27/04 8:06 AM Page 3

Connecting the Power Extension Cable

Connect the Aplug to the controller, the Bplug to the computer power supply, and

the Cplug to the hard drive power connector. See step 6 on page 3.

EX2-qs-ug-1 8/27/04 8:06 AM Page 4

Use only the cables and power cord supplied with your display.

To connect the display

1Plug one end of the DVI signal cable to

the DVI port on the display. Tighten the

thumbscrews to secure the connection.

2Plug the power cord into the power

connector on the connector plate.

3Plug the other end of the DVI cable into the

video port on the installed EX2 controller.

Use DVI port #1 if you are installing only

one display.

4Plug the other end of the power cord into

a grounded outlet.

5Power on your display first, then

the computer.

Connecting the Display

Connection

for a single

display

DVI cable

EX2 controller

installed

EX2-qs-ug-1 8/27/04 8:06 AM Page 5

Installing the Display Driver

Upon restarting your computer system, you must log on with administrator privileges.

On Windows 2000 systems, Service Pack 1 or higher must be installed.

To install the display driver

1Click Cancel on the Found New Hardware Wizard dialog box. Click No on the

System Settings Change window when prompted to restart the computer.

2Insert the Planar Installation CD to run the SETUP.EXE utility.

3Click Install under Software Install, then click Next.

4Click Yes to the license agreement.The installation starts.

5Follow the onscreen instructions to complete the installation. Planar recommends that

you select the Express installation option.

6When the Setup complete message appears, select Yes, I want to restart my computer

now and click Finish.

After restarting, you may see the message Digital Signature Not Found. Click Yes or Continue

to complete the driver installation.

To configure the display

1Right-click the desktop and select Properties > Settings.

2Use the native resolution of your display.

3Click OK until you return to the desktop.

EX2-qs-ug-1 8/27/04 8:06 AM Page 6

The display driver installs two additional tabs on the Display Properties dialog in the

Control Panel. Use the Rotation tab to select the display orientation. Use the Information

tab to retrieve controller-specific hardware and driver information. Also use the dialog to

make changes to the video settings or to set up a dual-display configuration.

To set the display orientation

1Right-click the desktop and select Properties > Settings.

2Select the monitor that you want to change.Then click Advanced.

3Click the Monitor tab. Make sure the check box for Hide modes that this monitor

cannot display is empty (unchecked).

4Click the Rotation tab.

•Check Standard Landscape for landscape mode.

•Check Rotate 90 Left or Right for portrait mode.

5Click Yes to save the setting.Then click OK until to return to the desktop.

To retrieve controller and driver information

Click Display Properties > Settings > Advanced > Information.

To use a dual-display configuration

1Right-click the desktop and select Properties > Settings.

2Click the monitor icon 2.Then select Extend my Windows desktop onto this monitor.

3Set the resolution and color quality for the second display.

4Click Apply or OK.

Adjusting the Display Properties

EX2-qs-ug-1 8/27/04 8:06 AM Page 7

America Sales

Planar Systems, Inc.

1195 NW Compton Drive

Beaverton, OR 97006-1992 USA

phone + 1 (503) 748-1100

fax + 1 (503) 748-1493

Medical Sales

Planar Systems, Inc.

400 Fifth Avenue

Waltham, MA 02451-8738 USA

phone + 1 (781) 895-1155

fax + 1 (781) 895-1133

Europe & Asia-Pacific Sales

European Representative

Planar Systems, Inc.

Olarinluoma 9, P. O. Box 46

FIN-02201 Espoo, Finland

phone + 358 9 420 01

fax + 358 9 420 0200

For more information

See the full version of the EX2 Display Controller guide on the Planar web site.

Customer Support

•Visit www.planar.com

•E-mail [email protected]

•Call (866) PLANAR1

Technical information in this document is subject to change without notice.

020-0369-00A
