Planar Dome E2c Bedienungsanleitung

Dome E2c Display

Quick Reference

Windows XP

Windows 2000

020-0458-00A_3.indd 1020-0458-00A_3.indd 1 4/12/06 5:36:29 PM4/12/06 5:36:29 PM

System Requirements

•Intel Pentium 4/Xeon;

AMD Athlon 64/K7/XP or

compatible

•PCI Express x16 lane slot

•50 MB hard disk space

•256 MB RAM

•CD-ROM drive

•Power supply, 350 watts

or greater

•Windows XP or Windows 2000

with Service Pack 4 or higher

Read all instructions before setting up the Dome E2c display. Improper use of

the display can result in electric shock, re, or damage to display components.

For more product information, go to www.planar.com/support.

Warning

Avertissement

Avvertenza

Advertencia

Warnung

Wear an antistatic heel or wrist strap when

installing the controller and display to

avoid damage to computer components.

020-0458-00A_3.indd 2020-0458-00A_3.indd 2 4/12/06 5:36:35 PM4/12/06 5:36:35 PM

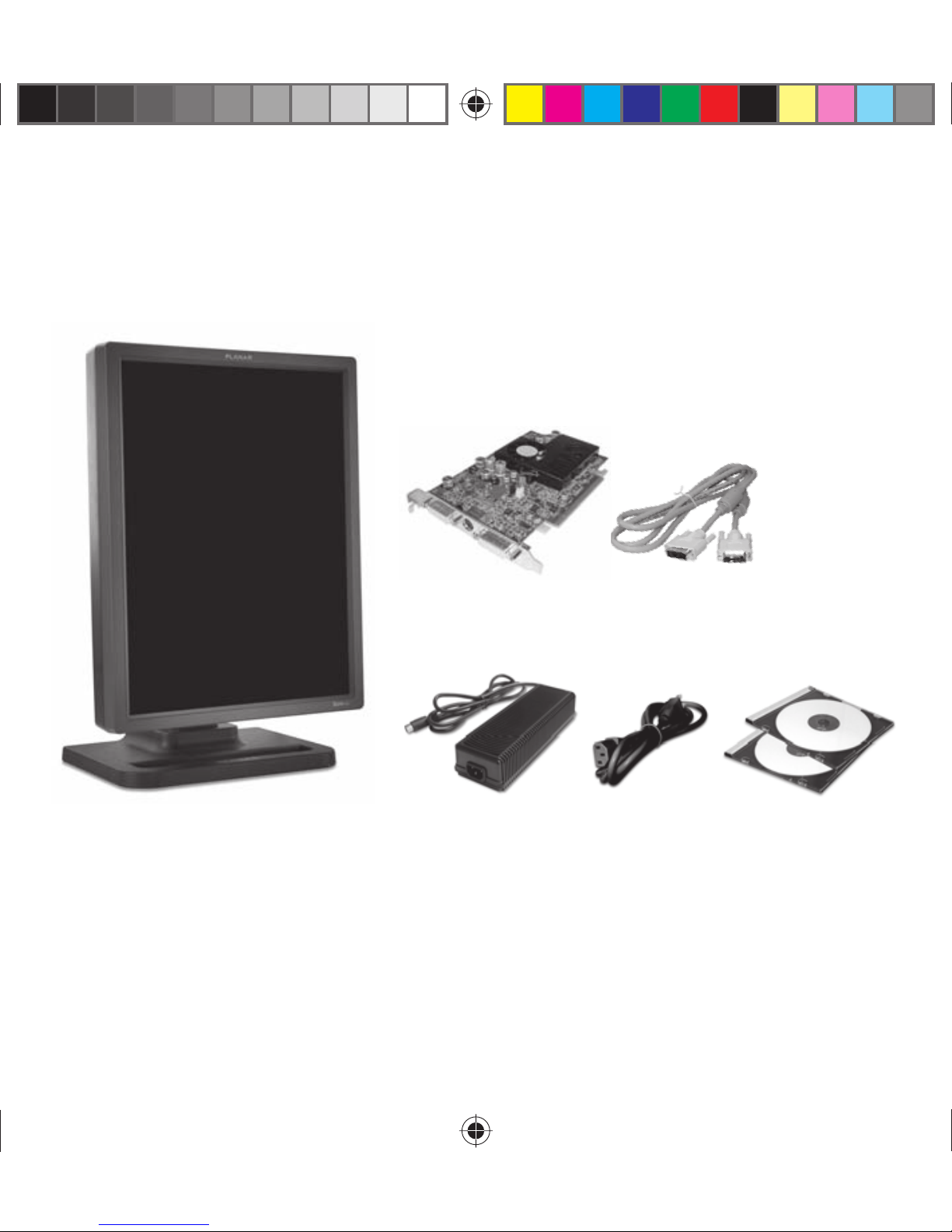

Check the contents of your Dome E2c display package for all the items shown

here. Save the original packaging materials for storage and shipping.

Unpacking the Display

Power adapter

Video card

Power cord Software CDs

DVI cable

Also included: Composite Video, S-Video, and VGA cables.

Dome E2c display

020-0458-00A_3.indd 3020-0458-00A_3.indd 3 4/12/06 5:36:35 PM4/12/06 5:36:35 PM

Display Components

The high-bright UXGA 1200x1600

AMLCD panel is sized to a 541 mm

(21.3 in.) display screen. The reset

button, LED indicator, and input

power and video ports are located

on the back of the display. No

other user-accessible controls

are available.

You can change the brightness of

the Dome E2c display in the Display

Properties dialog of the Windows

operating system. However, when

DICOM auto-calibration is running,

you must control display bright-

ness via the Dome CXtra software.

NOTE: Diagnosis requiring

calibration with the Dome CXtra

software can only be supported

on the DVI-D interface.

Front view

2-megapixel AMLCD screen

020-0458-00A_3.indd 4020-0458-00A_3.indd 4 4/12/06 5:36:38 PM4/12/06 5:36:38 PM

8 9

1 3 4 5 6 7

Legend

1Reset. Restores default

display setting.

2LED indicator. Shows

display status.

3DIN 8-pin port. Drives

power to the display.

4S-Video, separate video

analog input port. Requires

a 4-pin mini-DIN connector.

5C-Video, composite

video analog input port.

Requires an RCA or phono

connector.

6DVI, DVI-I video input port.

Supports DVI-D digital

or DVI-A analog video.

Requires DVI connector.

7VGA. VGA video analog

input port. Requires an

HD15 D-Sub or VGA

connector.

8USB-B port

9USB-A port (2)

Back view

020-0458-00A_3.indd 5020-0458-00A_3.indd 5 4/12/06 5:36:39 PM4/12/06 5:36:39 PM

Installing the Display Controller

To install the controller

1 Turn o your computer and all

peripherals. Disconnect all cables

from your computer. Leave the

power cord plugged into the

grounded outlet.

2 Remove the computer cover.

3 Remove any existing graphics card

and video signal cable, if necessary.

4 Remove the blank bracket from the

available PCI Express slot.

5 Insert the controller into the

slot, align the connector pins,

and press the board down until

it is rmly seated.

6 Secure the mounting bracket.

7 Reattach the computer cover

and the peripherals.

Remove any existing graphics card and its driver from your computer

system before you install the controller and driver. Also disable any onboard

graphics capability on the motherboard. See safety precautions on page 2.

Open PCI Express slot

Blank bracket

Controller installed

020-0458-00A_3.indd 6020-0458-00A_3.indd 6 4/12/06 5:36:40 PM4/12/06 5:36:40 PM

Connecting the Display

To connect the display

1 Plug one end of the DVI signal cable to

the DVI port on the display. Tighten the

thumbscrews to secure the connection.

2 Plug the power cord into the power

connector on the connector plate.

3 Plug the other end of the DVI cable

into the video port on the installed

controller. (Use DVI port #1 for

the rst display if you are installing

only one display.)

4 Plug the other end of the power

cord into a grounded outlet.

5 Repeat steps 1 to 4 to

connect a second display

to the controller.

6 Power on your

display rst,

then the

computer.

Use only the cables and power cord

supplied with your display.

Power cord DVI cable

DVI

port 2

DVI

port 1

Connection

for a single

display or

the rst

display of a

dual setup

Controller

installed

DVI cable

020-0458-00A_3.indd 7020-0458-00A_3.indd 7 4/12/06 5:36:40 PM4/12/06 5:36:40 PM

Upon restarting your computer system, you must log on with administrator

privileges. On Windows 2000 systems, Service Pack 4 or higher must be

installed.

To install the display driver

1 Start the system. Click Cancel on the Found New Hardware Wizard dialog box.

2 Insert the Planar Installation CD and run the SETUP.EXE utility.

3 Click Next on the Welcome dialog.

4 Click Yes to the license agreement. The installation starts.

5 Follow the onscreen instructions to complete the installation.

Planar recommends that you select the Express installation option.

6 When the Setup complete message appears, select Yes, I want to restart

my computer now and click Finish.

To congure the display

1 Right-click the desktop and select Properties > Settings.

2 Use the native resolution of your display.

3 Click OK until you return to the desktop.

Installing the Display Driver

020-0458-00A_3.indd 8020-0458-00A_3.indd 8 4/12/06 5:36:41 PM4/12/06 5:36:41 PM

Use the Display Properties dialog to make changes to the video settings or

to set up dual-display conguration.

To set the display orientation

1 Right-click the desktop and select Properties > Settings.

2 Select the monitor that you want to change. Then click Advanced.

3 Click the Monitor tab. Make sure the check box for Hide modes that this

monitor cannot display is empty (unchecked).

4 Click the Rotation tab.

• Check Standard Landscape for landscape mode.

• Check Rotate 90 Left or Right for portrait mode.

5 Click Yes to save the setting. Then click OK until to return to the desktop.

To use a dual-display conguration

1 Right-click the desktop and select Properties > Settings.

2 Click the monitor icon 2. Then select Extend my Windows desktop

onto this monitor.

3 Set the resolution and color quality for the second display.

4 Click Apply or OK.

Adjusting the Display Properties

020-0458-00A_3.indd 9020-0458-00A_3.indd 9 4/12/06 5:36:42 PM4/12/06 5:36:42 PM

Handling the Display

•Set up your display on a stable,

level surface away from any direct

light or heat source, but near a

grounded AC outlet.

•Choose a well-ventilated location

with an adequate amount of space.

Do not block the vents on the back

of the display.

•Never lift the display by the desk

stand. Use both hands to lift or

move the display. Avoid touching

the screen.

•Never apply pressure to the screen

or touch the screen with bare ngers

or with any objects.

•Allow the display unit to reach room

temperature before powering on.

•Avoid sudden temperature changes

in the environment, as this may

cause condensation, which damages

the display.

•Never remove the back cover or

disassemble the display. There are

no user-serviceable parts inside.

•In locations where 240V outlets

are used, connect the Dome E2c

display only to a center-tapped,

240V, single-phase supply.

•When troubleshooting, check that

all cables are properly connected

and that your computer is turned

on and not in power-saving mode.

•Follow your local governing

ordinance for proper disposal or

recycling of electronic components.

020-0458-00A_3.indd 10020-0458-00A_3.indd 10 4/12/06 5:36:42 PM4/12/06 5:36:42 PM
