PLANAR LCD MONITOR PQ150 MANUAL www.planar.com

This unit has been engineered and manufactured to ensure your personal

safety, however improper use may result in electrical shock or fire hazards.

In order to allow the proper operation of all safeguards incorporated in this

display, observe the following basic rules for its installation, use, and

servicing.

On Safety

Use only the power cord supplied with the unit. In case you use another power

cord, make sure that it is certified by the applicable national standards if not being

provided by the supplier. If the power cable is faulty in any way, please contact the

manufacturer or the nearest authorized repair service provider for a replacement.

The power supply cord is used as the main disconnection device. Ensure that the

socket-outlet is easily accessible after installation.

Operate the display only from a power source indicated in the specifications of

this manual or listed on the display. If you are not sure what type of power supply

you have in your home, consult with your dealer.

Overloaded AC outlets and extension cords are dangerous. So are frayed power

cords and broken plugs. They may result in a shock or fire hazard. Call your service

technician for replacement.

Do not Open the Display.

There are no user serviceable components inside.

There are Dangerous High Voltages inside, even when the power is OFF.

Refer first to the Troubleshooting section of this manual in case of difficulty.

To Avoid Personal Injury :

Do not place the display on a sloping shelf unless properly secured.

Use only a stand recommended by the manufacturer.

To Prevent Fire or Hazards:

Always turn the display OFF if you leave the room for more than a short period

of time. Never leave the display ON when leaving the house.

Keep children from dropping or pushing objects into the display's cabinet

openings. Some internal parts carry hazardous voltages.

Do not add accessories that have not been designed for this display.

During a lightning storm or when the display is to be left unattended for an

extended period of time, unplug it from the wall outlet.

Important Precautions

On Installation

Do not allow anything to rest upon or roll over the power cord, and do not place

the display where the power cord is subject to damage.

Do not use this display near water such as near a bathtub, washbowl, kitchen

sink, laundry tub, in a wet basement, or near a swimming pool.

Displays are provided with ventilation openings in the cabinet to allow the release

of heat generated during operation. If these openings are blocked, built-up heat

can cause failures which may result in a fire hazard. Therefore, NEVER:

Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.

Place the display in a built-in enclosure unless proper ventilation is provided.

Cover the openings with cloth or other material.

Place the display near or over a radiator or heat source.

Do not rub or strike the Active Matrix LCD with anything hard as this may scratch,

mar, or damage the Active Matrix LCD permanently.

Do not press the LCD screen with your finger for a long time as this may cause

some afterimages.

Some dot defects may appear as Red, Green or Blue spots on the screen.

However, this will have no impact or effect on the display performance.

If possible, use the recommended resolution to obtain the best image quality for

your LCD display. If used under any mode except the recommended resolution,

some scaled or processed images may appear on the screen. However, this is

characteristic of the fixed-resolution LCD panel.

On Cleaning

Unplug the display before cleaning the face of the display screen.

Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display

screen because over-spraying may cause electrical shock.

On Repacking

Do not throw away the carton and packing materials. They make an ideal

container in which to transport the unit. When shipping the unit to another

location, repack it in its original material.

Connecting the Display

Before setting up the monitor, ensure that the power to the monitor, the

computer system, and other attached devices is turned off.

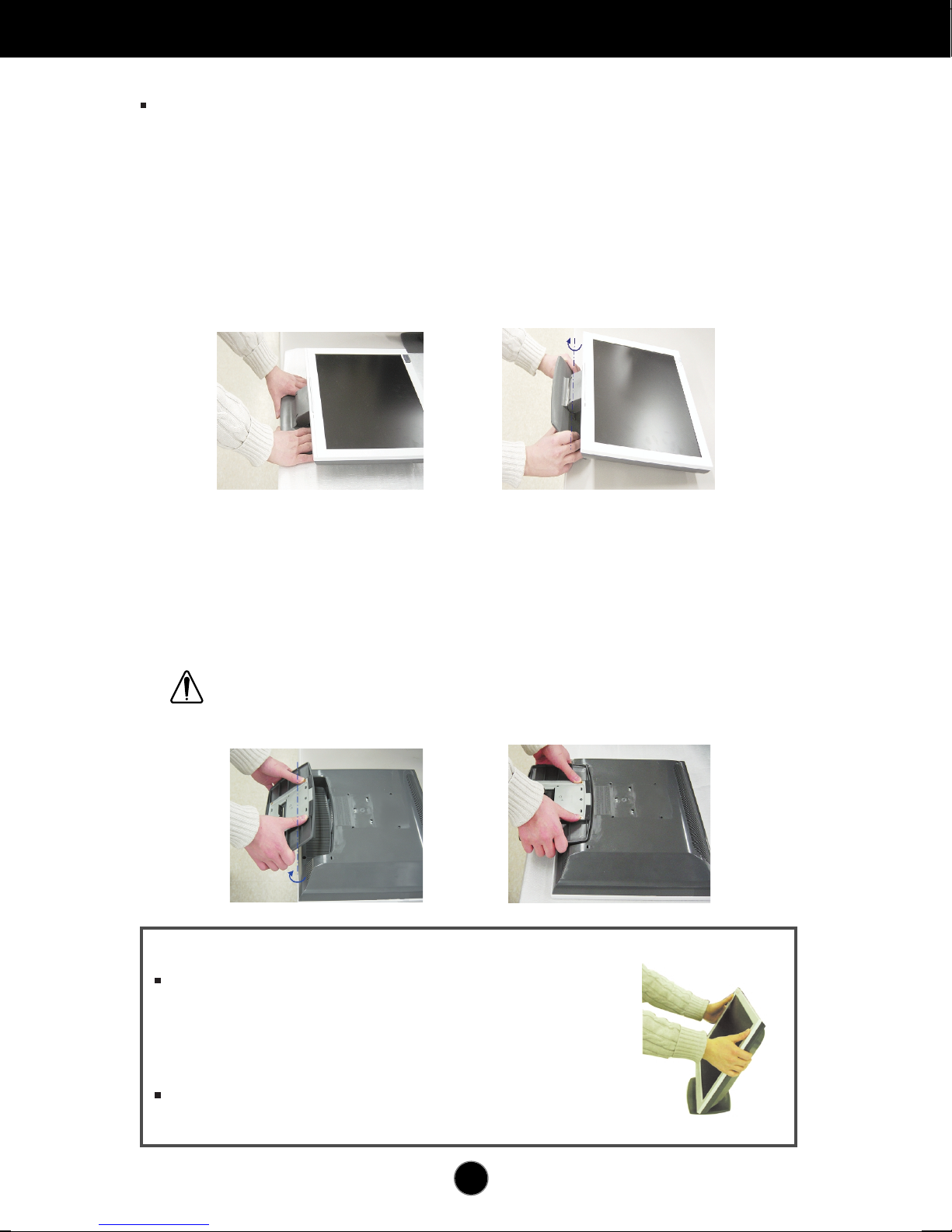

Unfolding the stand base

1. Lay the monitor on a cushion or piece of soft cloth with its front side

facing upward.

2. Grasp the stand firmly with both hands as shown in the picture and

unfold the base by swiveling it out. Significant force is required.

Folding the stand base

1. Lay the monitor on a cushion or piece of soft cloth with its front side facing

downward.

2. Grasp the stand firmly with two hands and rotate the base while pulling out its

underside.

Caution : If you try to fold the stand base in any other way, be careful to avoid

catching your hand at the rear of the unit or you may sustain injury.

Important

If the stand base is wrenched with excessive force when

being folded or unfolded the monitor may be damaged.

Handle with care.

Adjust the angle of the stand base holding the monitor screen

with two hands.

Connecting the Display

Using the Computer

1.Connect the signal cable. When attached, tighten the thumbscrews to secure

the connection.

2.Connect the power cord into a proper power outlet that is easily accessible and

close to the display.

Mac adapter

For Apple Macintosh use, a separate plug adapter is needed to

change the 15 pin high density (3 row) D-sub VGA connector

on the supplied cable to a 15 pin 2 row connector.

Wall-outlet type*

NOTE

This is a simplified representation of the rear view.

This rear view represents a general model; your display

may differ from the view as shown.

PC-outlet type*

MAC

Power Cord Signal Cable

Analog signal

D-sub*

Varies according to model.

Control Panel Functions

Front Panel Controls

Buttons

Use these buttons to choose or adjust items in

the On Screen Display.

MENU Button

Use this button to enter or exit the On Screen

Display.

Use this button to turn the display on or off.

This Indicator lights up green when the display

operates normally. If the display is in DPM (Energy

Saving) mode, this indicator color changes to amber.

Power Button

Power (DPMS)

Indicator

Use this button to enter a selection in the On Screen

Display.

SELECT/AUTO

Button

Control Function

Control Panel Functions

Control Direct Access Function

When adjusting your display settings, always press the

SELECT/AUTO button before entering the On Screen

Display(OSD). This will automatically adjust your display image

to the ideal settings for the current screen resolution size

(display mode).

The best display mode is 1024x768.

AUTO adjustment function

This function allows you to secure the current control settings,

so that they cannot be inadvertently changed. Press and hold

the MENU button and button for 3 seconds: the message

“CONTROLS LOCKED” appears.

You can unlock the OSD controls at any time by pushing the

MENU button and button for 3 seconds:

the message “CONTROLS UNLOCKED” will appear.

CONTROLS LOCKED/UNLOCKED

MENU and

This function optimizes the brightness, contrast or color value to

the surrounding conditions and settings and enables you to

enjoy the most suitable picture by adjusting the surroundings

(DAY/NIGHT/USER MODE).

•

TEXT: For viewing letters

•

MOVIE: For viewing movies

•

PHOTO: For viewing pictures or the photographs

•

USER MODE: This function memorizes the manual

adjustment -Brightness, Contrast and Color value on the

On Screen Display.

100

Bring up Contrast and Brightness adjustment.

On Screen Display (OSD) Control Adjustment

Screen Adjustment

Making adjustments to the image size, position and operating parameters of

the display is quick and easy with the On Screen Display Control system. A

short example is given below to familiarize you with the use of the controls.

The following section is an outline of the available adjustments and selections

you can make using the OSD.

To make adjustments in the On Screen Display, follow these steps:

Press the MENU Button, then the main menu of the OSD appears.

To access a control, use the or Buttons. When the icon you want

becomes highlighted, press the SELECT/AUTO Button.

Use the Buttons to adjust the item to the desired level.

Accept the changes by pressing the SELECT/AUTO Button.

Exit the OSD by Pressing the MENU Button.

NOTE

Allow the display to stabilize for at least 30 minutes before making image adjustments.

SELECT/AUTO

NOTE

The order of icons may differ depending on the model (A8~A10).

On Screen Display(OSD) Selection and Adjustment

To adjust the brightness and

contrast of the screen

BRIGHTNESS

CONTRAST

COLOR

POSITION

TRACKING

SETUP

Main menu Sub menu Reference

The following table indicates all the On Screen Display control, adjustment,

and setting menus.

PRESET

9300K

6500K

R/G/B(User Color)

GAMMA

To adjust the position of the

screen

To customize the color of the

screen

To customize the screen status

for a user's operating environment

To improve the clarity and

stability of the screen

: Adjustable

BRIGHTNESS

CONTRAST

V POSITION

H POSITION

CLOCK

PHASE

LANGUAGE

OSD POSITION

FACTORYRESET

On Screen Display(OSD) Selection and Adjustment

You were introduced to the procedure of selecting and adjusting an item

using the OSD system. Listed below are the icons, icon names, and icon

descriptions of the all items shown on the Menu.

OSD Adjust Description

BRIGHTNESS

To adjust the brightness of the screen.

CONTRAST

To adjust the contrast of the screen.

Vertical Position

To move image up and down.

Horizontal Position

To move image left and right.

To adjust the brightness and contrast of the screen

To adjust the position of the screen

OSD Adjust Description

PRESET

RED

GREEN

BLUE

GAMMA

9300K/6500K

Select the screen color.

•9300K: Slightly bluish white.

•6500K: Slightly reddish white.

Set your own color levels.

Set your own gamma value. (-50~50)

On the monitor, high gamma values

display whitish images and low gamma

values display high contrast images.

To customize the color of the screen

OSD Adjust Description

NOTE

OSD (On Screen Display) menu languages on the monitor may differ from the manual.

Inhaltsverzeichnis

Andere Planar Monitor Handbücher

Planar

Planar m52L Bedienungsanleitung

Planar

Planar PL150M Bedienungsanleitung

Planar

Planar Helium PCT2485 Bedienungsanleitung

Planar

Planar PL2010MW Bedienungsanleitung

Planar

Planar PLL1920M Bedienungsanleitung

Planar

Planar PL1520M Bedienungsanleitung

Planar

Planar PLL2710W Bedienungsanleitung

Planar

Planar PY5500 Bedienungsanleitung

Planar

Planar PLL1900W Bedienungsanleitung

Planar

Planar PT1700M Bedienungsanleitung

Planar

Planar LT3200 Bedienungsanleitung

Planar

Planar ICEBrite EL480.240-PR2 Bedienungsanleitung

Planar

Planar UltraRes X RS232 Series Bedienungsanleitung

Planar

Planar PZN3410Q Bedienungsanleitung

Planar

Planar EL320.256-FD7 Bedienungsanleitung

Planar

Planar PDP42HD Bedienungsanleitung

Planar

Planar UltraRes UR8450-MX Bedienungsanleitung

Planar

Planar Dome E Series Bedienungsanleitung

Planar

Planar Clarity Matrix MX55HDU Bedienungsanleitung

Planar

Planar PT1945R Bedienungsanleitung

Planar

Planar EL640.400-CB1 Bedienungsanleitung

Planar

Planar CT1904Z Bedienungsanleitung

Planar

Planar LA1710R Bedienungsanleitung

Planar

Planar Clarity Bobcat X Bedienungsanleitung

Beliebte Monitor Handbücher anderer Marken

Linear Acoustic

Linear Acoustic LQ-1000 Bedienungsanleitung

AOC

AOC I2579V Bedienungsanleitung

Gateway

Gateway FPD1520 Bedienungsanleitung

Furuno

Furuno Mu 120c Bedienungsanleitung

Asus

Asus VB171D - 17" LCD Monitor Bedienungsanleitung

Dell

Dell S2230MX Gebrauchsanweisung

Philips

Philips 107C64 Bedienungsanleitung

Dell

Dell S2409WFP Bedienungsanleitung

EverFocus

EverFocus EN-7517E Bedienungsanleitung

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Bedienungsanleitung

Dell

Dell Precision 7680 Bedienungsanleitung

LG 50PM1M - - 50" Plasma Panel Bedienungsanleitung

Bosch

Bosch DDU 9 Bedienungsanleitung

Acer

Acer A231HL Bedienungsanleitung

Philips

Philips 86BDL4152T Bedienungsanleitung

NEC

NEC AccuSync LCD5V Bedienungsanleitung

Emay

Emay SleepO2 Bedienungsanleitung

IBM

IBM 6360 Montageanleitung
