Planar PT1910MX Bedienungsanleitung

PT1910MX / PT1915MU

Touch Screen LCD Monitors

USER’S GUIDE

www.planar.com

Important Recycle Instructions:

Lamp(s) inside this product contain mercury. This product may contain other

electronic waste that can be hazardous if not disposed of properly. Recycle or

dispose in accordance with local, state, or federal Laws. For more information,

contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp specific

disposal information check WWW.LAMPRECYCLE.ORG.

Table of Contents

Usage Notice

Precautions........................................................................................2

Introduction

About Planar’s PT1910MX/PT1915MU.. ............................................3

Touch Screen for

PT1910MX/PT1915MU……………..…………………………………….4

Package Overview .............................................................................5

Installation

Product Overview...............................................................................6

VESA Mount for your Monitor…………………………………………….8

Start Your Installation………………………………………………………9

Connecting the Display………………………………..…………………10

User Controls

Front Panel Controls ........................................................................12

How to Use the OSD Menus ............................................................13

On-Screen Display Menus ...............................................................14

Appendix

Troubleshooting ...............................................................................15

Warning Signal.................................................................................16

Product Dimensions.........................................................................17

Compatibility Modes.........................................................................18

Touch Screen Driver Installation………………………………………..19

Product Registration and Technical Support…………………………..21

Usage Notice

Warning

-To prevent the risk of fire or shock hazards, do not

expose this product to rain or moisture.

Warning

-Please do not open or disassemble the product as

this may cause electric shock.

Precautions

Follow all warnings, precautions and maintenance as recommended

in this user’s manual to maximize the life of your unit.

Do:

Turn off the product before cleaning.

Touch screen surface may be cleaned using a soft clean cloth

moistened with mild window glass commercial cleaners or 50/50

mixture of water and isopropyl alcohol.

Use a soft cloth moistened with mild detergent to clean the display

housing.

Use only high quality and safety approved AC/DC adapter.

Disconnect the power plug from AC outlet if the product is not going

to be used for an extended period of time.

Don’t:

Do not touch the LCD Display screen surface with sharp or hard

objects.

Do not use abrasive cleaners, waxes or solvents for your cleaning.

Do not operate the product under the following conditions:

- Extremely hot, cold or humid environment.

- Areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- In direct sunlight.

Introduction

About PT1910MX/PT1915MU

The PT1910MX / PT1915MU is a 19” flat panel screen with an active

matrix, thin-film transistor (TFT) liquid crystal display (LCD).

Features include:

Direct Analog signal input

Direct Digital signal input

Active matrix TFT LCD technology

1280x1024 SXGA resolution

19” viewable display area

31.5 ~ 80 kHz horizontal scan

56 ~ 75 Hz high refresh rate

0.294mm x 0.294mm Pixel pitch

Auto adjustment function

Multilingual OSD user controls

VESA DPMS power saving

Kensington security slot

75 mm / 100 mm VESA mount

Removable base for flexible mounting solutions.

PT1910MX - 5-wire resistive touch screen with dual RS-232 Serial/USB

controllers

PT1915MU - SAW touch screen with USB controller

Built-in speakers-1W X 2

Touch Screen for PT1910MX

Analog 5-wire resistive touch screen for finger and stylus input

Surface: Anti-glare treatment

Interface: Dual RS-232 Serial/USB controller

Durability: 35 million touches at a single point

Hardness of surface: 3H Typical

Operating force: 40g~200g when using a silicon rubber tipped pen with a 1

mm diameter minimum and a hardness of 60 degree.

Transmittance: 80±2%

Driver: Windows

VISTA, XP, 2000, ME, 98, CE, XP Embedded, Linux,

Apple

Mac OS

Touch Screen for PT1915MU

Surface Acoustic Wave (SAW) touch screen for finger and stylus input

Surface: Anti-glare treatment

Interface: USB controller

Durability: 30 million touches at a single point

Hardness of surface: Mohs’ Hardness rating of 7

Operating force: Less than 100 gram

Transmittance: 88% (Min.)

Driver: Windows® VISTA, XP, 2000, 98

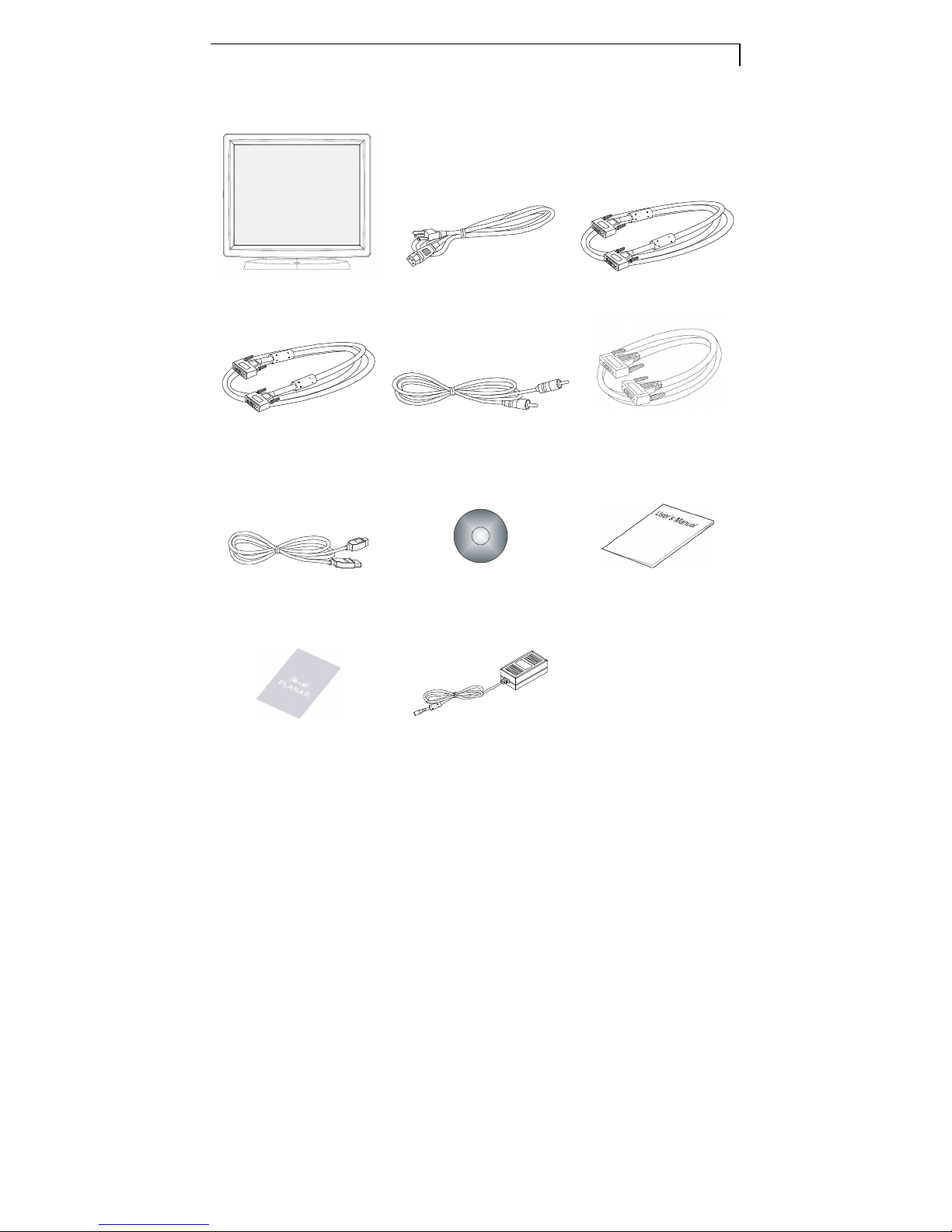

Package Overview

LCD Display Power Cord VGA Signal Cable

DVI Signal Cable Audio-in Cable RS-232 Cable

(PT1910MX)

USB Cable - Type A to B

Touch Screen Driver

Installation CD-ROM

User’s Guide

Landing Strip DC Power Supply

(sold separately)

Installation

Product Overview



Front View



PT1910MX Bottom View (Without Stand)



PT1915MU Bottom View (Without Stand)

Kensington Security Slot

The monitor can be secured to your desk or any other fixed object with

Kensington lock security products. The Kensington lock is not included.

VESA Mount your monitor

This monitor conforms to the VESA Flat Panel Mounting Physical Mounting

Interface Standard which defines a physical mounting interface for flat panel

monitors, and corresponding standards for flat panel monitor mounting devices,

such as wall and table arms. The VESA mounting interface is located on the

back of your monitor.

To mount the monitor on a swing arm or other mounting fixture, follow the

instructions included with the mounting fixture to be used.

Warning!

Please select the proper screws!

The distance between the back cover surface and the bottom of the

screw hole is 8mm Please use M4 screw diameter with a maximum

length of 8 mm.
