Planet Audio P9740 Bedienungsanleitung

1.Welcome

2.Warning

3.Note

4.Features

5.Basic Operation

6.Panel Arrangement

7.Basic Functions

8.Main Menu Touch Operation

9.OSD Setup

10.Remote Control Function

11.Disc Play Touch Operation

12.DVD Mode

13.RDS User Operation

14.Radio Operation

15.DVD Basic Operation

16.VCD Basic Operation

17.CD Basic Operation

18.MP3/USB/SD Operation

19.Other Play Mode

20.CCD/Trouble Shooting

21.Wiring Diagram

22.Specifications

23.Accessory

And

P9740

1.WELCOME

1. Please keep the disc slot clean, wipe it off when there is some dirt on it. You should

wipe off any dirt on the disc before you place it into the unit. If the disc is dirty and you

place it inside the unit, it will cause the unit to go into an error and will not play the

disc. Please ask professional to clean the laser.

2. Playing the radio at higher volumes for a long period of time may cause hearing

issues. You should play this unit at a moderate listen level.

3. This unit is set up by precision parts. If you open up this unit, you will void any and

all of your warranty.

4. Please do not touch LCD display with any hard object so that you prevent it from

getting scratched or damaged.

5. To avoid an accident caused by watching the LCD screen. This unit has a vehicle

lock out wire so that you will not be allowed to watch a video while driving down the

road.

6. This unit is meant for a 12V power and negative ground system from a vehicle.

NOTE:

We keep improving this product all the time. There may be some changes in it that are

not in this manual.

23.ACCESSORY

Accessory Quantity

User Manual 1PC

Wire

USB Cable

Warranty card

1PC

2PCS

INSTRUCTIONS INSTRUCTIONS

Thank you for enjoying our serirs of digital car A/V product.

To properly use this product, please go through this instruction manual for installation

and operation, put it in a safe place for future use!

2.WARNING

Remote Controller 1PC

3.NOTE

● This unit can play the following disc

Power supply

Power range

Max operate current

Dimensions

Ground system

FM tuner

European frequency range

Signal/Noisse ratio

Stereo separation

Search station volt

Distortion rate

AM tuner

Limit noise sensitivity

DVD PLAYER

Signal/Noise ratio

Frequency response

DC 12V

10.8-16.0V DC

10A

178X153X101MM

Negative ground

87.5-108MHz

55dB

30dB

20-30dBuv

1.5%

522-1620KHz

32dB

70dB

20Hz-20KHz

22.SPECIFICATIONS:

USA frequency range 87.5-107.9MHz

European frequency range

USA frequency range 530-1710KHz

Amp Rating 85 Watts x 4 Channels

4 41

INSTRUCTIONS INSTRUCTIONS

4.FEATURES

INSTRUCTIONS INSTRUCTIONS

DVD PLAYER

1. MPEG-4 Decoder Technology

2. Compatible with MP4 (AVI/5.X), DVD (DVD-R/DVD-RW), VCD,

SVCD, CD-RW, WMA, MP3, JPG

3. Supporting Multiple Subtitles, Angles, Languages

4. Child lock function

5. 4-Channel Audio Output

6. Pause, Play, Up/Down, Stop, Zoom, PBC Function

RADIO

1. AM/FM Radio Tuner

2. 30 Radio Preset Stations (18FM, 12AM)

LCD DISPLAY

1. 7” - 16:9 TFT LCD Display

2. Touchscreen

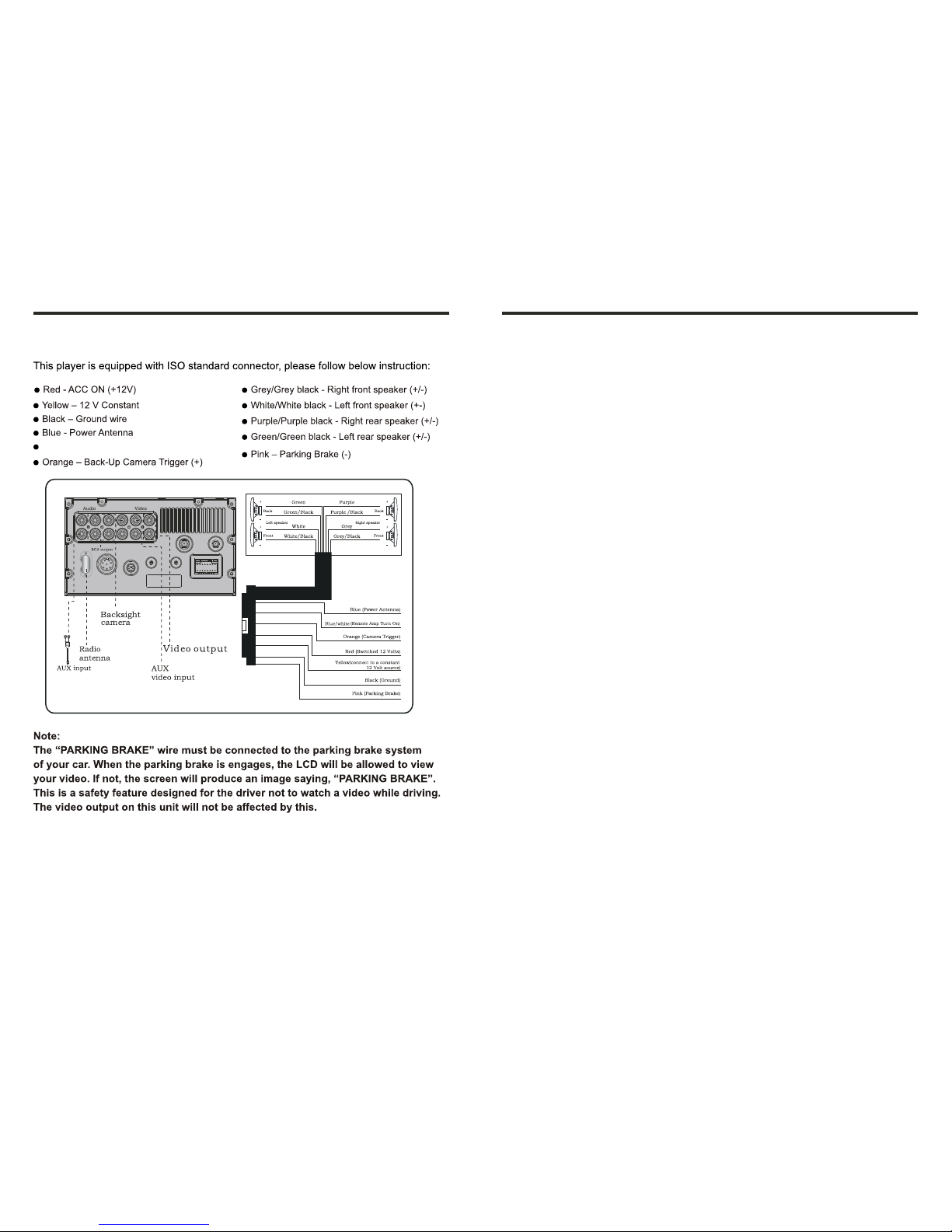

21.WIRING DIAGRAM

Blue/white-Remote Amp Turn On

VOL BAS TRE L/R

F/R

5.BASIC OPERATION 20.CCD(Back-Up Camera)

INSTRUCTIONS INSTRUCTIONS

6.PANEL ARRANGEMENT

19.OTHER PLAY MODE

1.SOURCE Button

2.Mute Button

3.VOL- Button

4.VOL+ Button

5.DN Button

6.UP Button

7.Menu Button

8.OPEN Button

9.RESET Button

10.Remote Control Receiver

11. AUX IN

12.MINI USB Port

INSTRUCTIONS INSTRUCTIONS

7.BASIC FUNCTION

8 37

1.SOURCE Button

press this button to power on,press this button longer to power off.In normal situation,

press this button can switch the playing mode.

3.VOL- Button

Press this button shortly increase volume level one step by one step.

Press this button longer increase volume level continuously.

4.VOL+ Button

Press this button shortly decreasa volume level one step by one step.

Press this button longer decreasa volume level continuously.

7.MENU Button

press this button to back to the main menu in any made.

8.OPEN Button

Press this button can eject the disc.

9.RESET Button

Press this button and this unit will be restored to the initial state.

10.REMOTE CONTROL RECEIVER

It is able of receiving infrared signals launched by the remote control matching the unit.

MUTE / TFT on/off Button

Press this button to shut off the sound output, re-press this button can resume the sound

output, long press this button can turn off the TFT LCD display.

DN Button

Short press this button to make the monitor glide down steply; Long press this button to

make the monitor glide down to the lowest position.

UP Button

Short press this button to make the monitor glide up steply; Long press this button to

make the monitor glide up to the top position.

10. CD Program Play

In CD mode, you can set the sequence of playing by the program function, the operation

is as follows:

When CD is playing, press ST/PROG button, then the display shows:

Input the number of the song you want to program by the remote control, program the

first song, input your desired song, for example, the sixth song, and press number button

6 on the remote control. Program the second song, press button move the cursor to

2 . Input your desired song, for example, the ninth song, press number button 9 on

the remote control. Press button to program play.

Back to the normal mode, press the ST/PROG button, then press button.

Note: This function can only be worked by the remote control.

PROG

3__:__

4__:__

7__:__

8__:__

5__:__

6__:__

11__:__

12__:__

9__:__

10__:__

15__:__

16__:__

13__:__

14__:__

PLAY DELETE

1__:__

2__:__

11.AUX IN

External connected audio input.

12.MINI USB PORT

Connect the USB memory to this socket,and the unit can play music format files supported

by this unit in the USB memory.

BASE

13.Disc Slot

14.Slot indicator light

15.SD Slot

13 14 15

INSTRUCTIONS INSTRUCTIONS

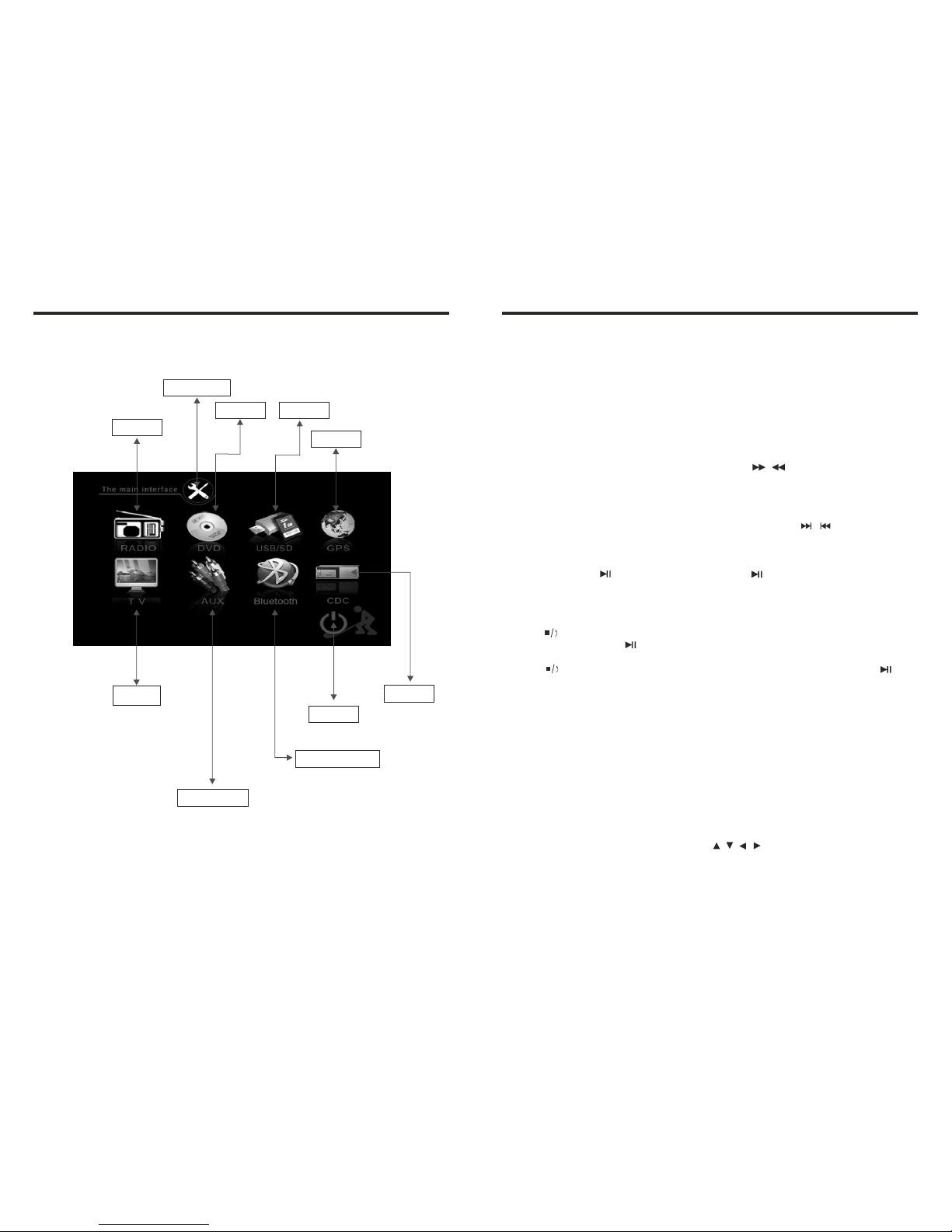

8.MAIN MENU TOUCH OPERATION

RADIO

AUX INPUT

DVD

BLUETOOTH

USB/SD

GPS

POWER

OSD SET

TV CDC

*This unit without CDC/TV/GPS/BLUETOOTHfunction.

Slide in CD/MP3 disc, unit will play it automatically. If disc is in slot, press DVD touch

button on main menu can to play.

1. Repeat Play

In CD/MP3 mode, press AMS/RPT button on remote control, to startup following, repeat

CD disc: Single song repeat→ Repeat play off.

MP3 disc: Single song repeat→Directory repeat→ Repeat play off.

2. Fast Forward/Fast Rewind

Press SEEK + / SEEK - button on remote control, or / touch button on display to

speed forward or backward playing.

Note: Hold above button a bit longer to operate.

3. Previous/Next Song Play

In playing mode, press SEEK + / SEEK - on remote control, or / touch button on

display to choose previous/next song.

4. Pause Play

In play mode, press button on remote control, or button on display to pause.

Press again to go back to normal play.

5. Stop Play

In play mode:

1) Press button on remote control to enter the pause mode, the position will be stored

in unit. At that time, press button on remote control or touch button on display to

resume playing at the stored position.

2) Press button on remote control twice to enter into stop mode, here, press

button on remote control or touch button on display, unit will play from the first song.

6. OSD

In playing mode, short press OSD on remote control to show all information of present

disc.

7. Randomly Play

In CD mode, press LOC/RDM button on remote control, to instantly play each song.

Press again to back to the normal play.

8. EQ Mode

1) This function can only be worked by remote control.

2) When playing CD/MP3, press the “ZOOM” button on the remote control, you can

choose the sound mode.

3) When enter this function, press the button / / / to move the course to select

sound mode which in the system menu, after your selection position will show red color

to indicate the confirmation.

9. OPEN

Press OPEN button on panel to eject disc.

17.CD BASIC OPERATION

10 35

PROG

3__:__

4__:__

7__:__

8__:__

5__:__

6__:__

11__:__

12__:__

9__:__

10__:__

15__:__

16__:__

13__:__

14__:__

PLAY DELETE

1__:__

2__:__

14. PBC (MENU) Play

In VCD mode, press this button then play the PBC and display will show whole menu

in disc, work with number button to choose song. When you are playing either song

of the PBC, and you want to stop to select another song, press the button to turn off.

Note:

1) This function can be worked by the control.

2) PBC is suitable for the SVCD and VCD 2.0 disc.

3) In PBC mode, you can not press number button only to choose song.

15. VCD Program Playing

In VCD mode, you can set playing sequence of songs by program play function.

The program playing operation steps are as follows:

In VCD mode, press ST/PTOG button, display will show:

Input the songs which you want to programmed by the number buttons on remote control.

For example: Program the first song, input your desires song, for example, the fourth song,

and press number button 4 on the remote control. Program the second song, press

button move the cursor to 2 . Input your desired song, for example, the eighth song,

press number button 8 on the remote control. Press button to program play. Back to

the normal mode, press the ST/PROG button, then press button.

Note: This function can only be worked by the remote control.

9.OSD SETUP
