Planet Networking & Communication DKVM-1708 Bedienungsanleitung

Quick GuideQuick Guide

DKVM-1708

DKVM-1716

DKVM-1708

DKVM-1716

2011-F00250-002

PLANET Technology Corporation

Tel: 886-2-2219-9518 Fax: 886-2-2219-9528

Email: support@planet.com.tw www.planet.com.tw

11F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)

PLANET reserves the right to change specications without prior notice. All brand names and trademarks are property of

Screw

CD-ROM KVM Cable

Quick Installation Guide Power Cord

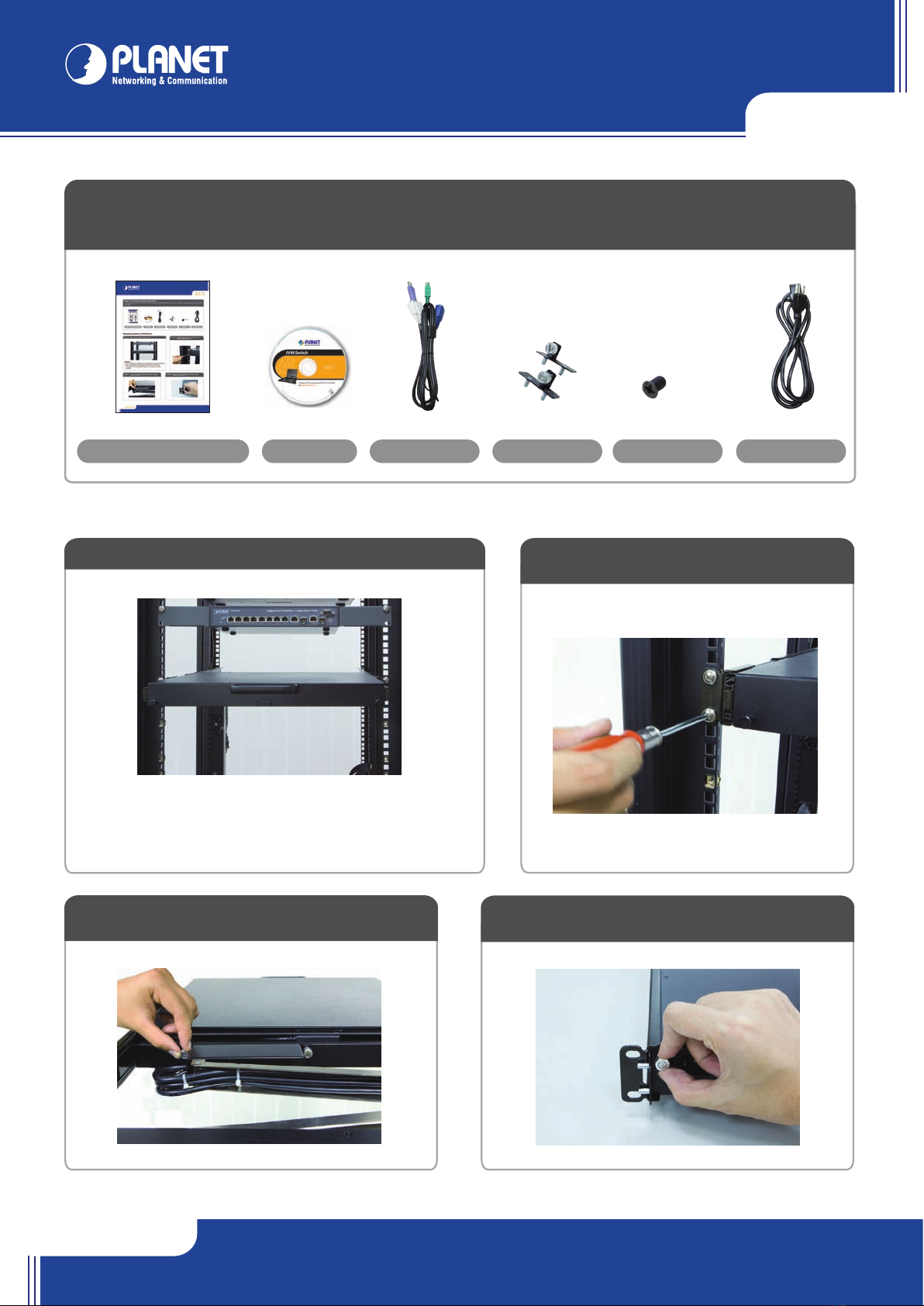

STEP 1 : Mount the LCD onto the rack STEP 2 : Install front and rear brackets on

cabinet (Both sides)

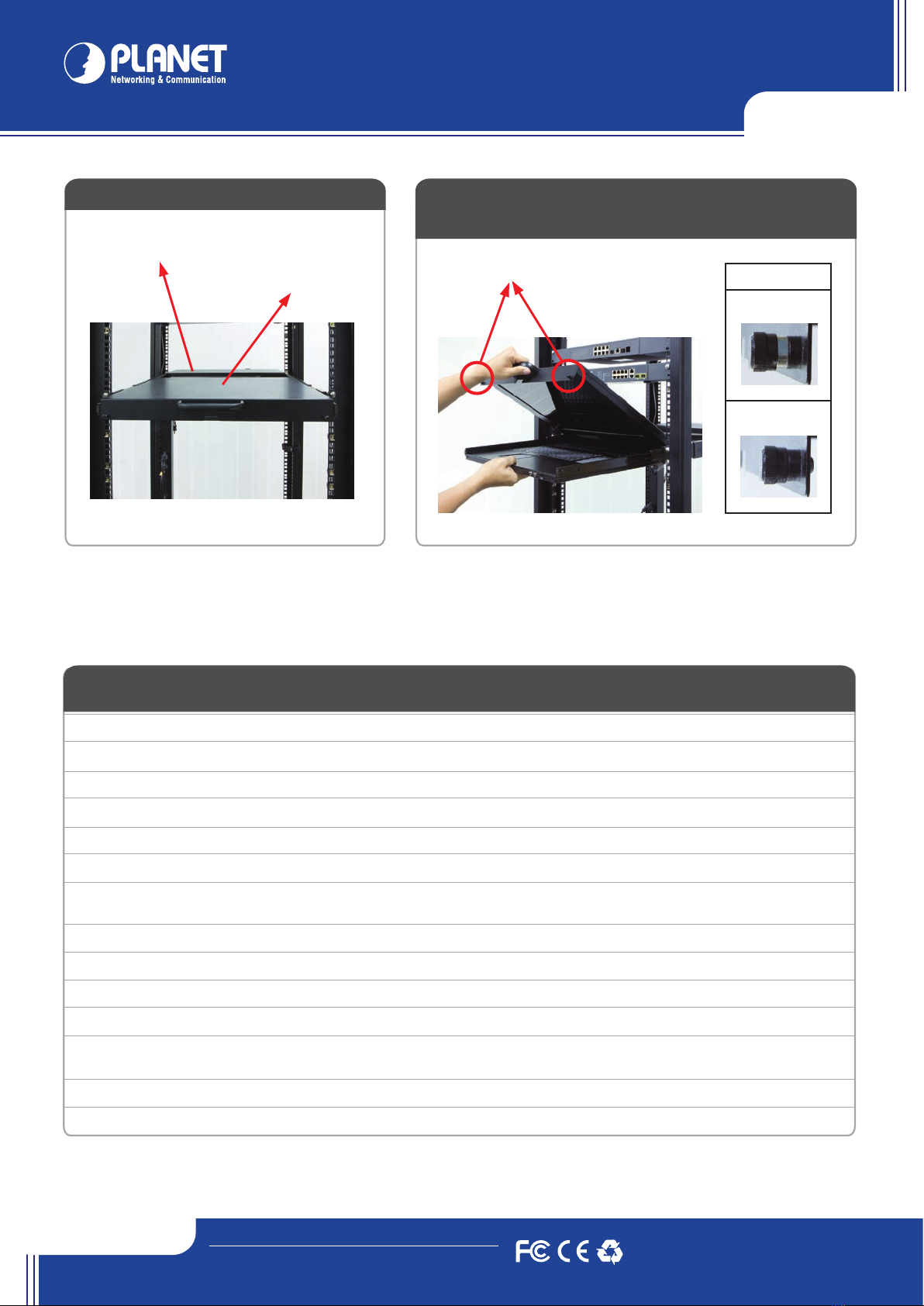

STEP 6 : Pull and turn the lock knobs (left and right at the

same time) and then put out the screen and open

console to operate.

STEP 3 : Screw the KVM module into the console

from the back

STEP 5 : Finish installation as shown below

STEP 4 : Please fix KVM module with the rack

mount bracket kit

VERIFY THE CONTENTS INSIDE PACKAGE BOX

The package box should contain the items indicated below plus DKVM-1708/DKVM-1716. If any item is missing or damaged, please contact the seller

immediately.

Bracket Kit

x 8

Specifications

Display Size 17 inches

Chassis Construction Heavy duty steel materials

Panel Type 2CCFL LCD Panel

Resolution Capabilities Maximum resolution up to 1280 x 1024 (SXGA)

Pixel Pitch Supports 0.264(H) x 0.264(V) / 0.294(H) x 0.294(V)

Backlight Lifetime 50,000 hrs

Operating System Windows 2000/XP/2003/Vista/Win7 Server, Linux, Mac OS9/OSX

and Sun Microsystems.

Multi Platform Support PS/2 and Combo-Free KVM module

Keyboard Mouse 104 key keyboard with touch pad

Keyboard Language English

Touch Pad 1000 points/inch (40 points/mm) - graphics tablet mode

KVM Switch Module PC Connectors Video: 8/16 HDB-15 female

KB/MS: PS/2 & USB signal combined

Rail Slide Dimensions 51 cm (extended length of 30 cm) - standard

Power Adaptor Universal 100~240V AC input

Caution:

1.Two installers are needed while installing the KVM drawer device.

2.Care is needed during installation as the device might be

damaged.

OSD (On Screen Display)

Press the NumLock on the keyboard twice or simultaneously press the Push Buttons 1 and 2 of the Port Selection Switch on the KVM panel to start the OSD.

Use the Up, Down and Enter keys on the keyboard to switch or directly move the mouse to the target PC, and then double click the left button.

For more information about your DKVM-1708/DKVM-1716, please also refer to the user's manual.

Knobs

KVM Module

KVM Drawer

Unlock

Lock

Knob

Mounting Installation of KVM Device
