PCI Express Gigabit Ethernet Adapter

Quick Installation Guide Version 1.0

Thank you for purchasing PLANET ENW-9702 PCI Express

Gigabit Ethernet adapter. It is a 10/100/1000Mbps

Ethernet adapter for PCI local bus-compliant PCs,

supports Auto-Negotiation for 10/100/1000Mbps

Ethernet connection. The PLANET ENW-9702 PCI Express

Gigabit Ethernet adapter provides a highly cost-effective

solution to upgrading to the Gigabit network with your

existing Ethernet infrastructures.

Operation System Support:

Windows 98 / ME

Windows 2000 / 2003 / 2003R2

Windows XP

Windows Vista

Windows 7

Windows 8

Linux / MAC OS

Hardware Installation

Step 1: Please turn off your PC.

Step 2: Remove any metal decorations from your

hands and wrists.

Step 3: Remove the cover from your PC.

Step 4: Locate an empty PCI Express slot and remove

the corresponding back plate. Save the screw

for use in Step 6.

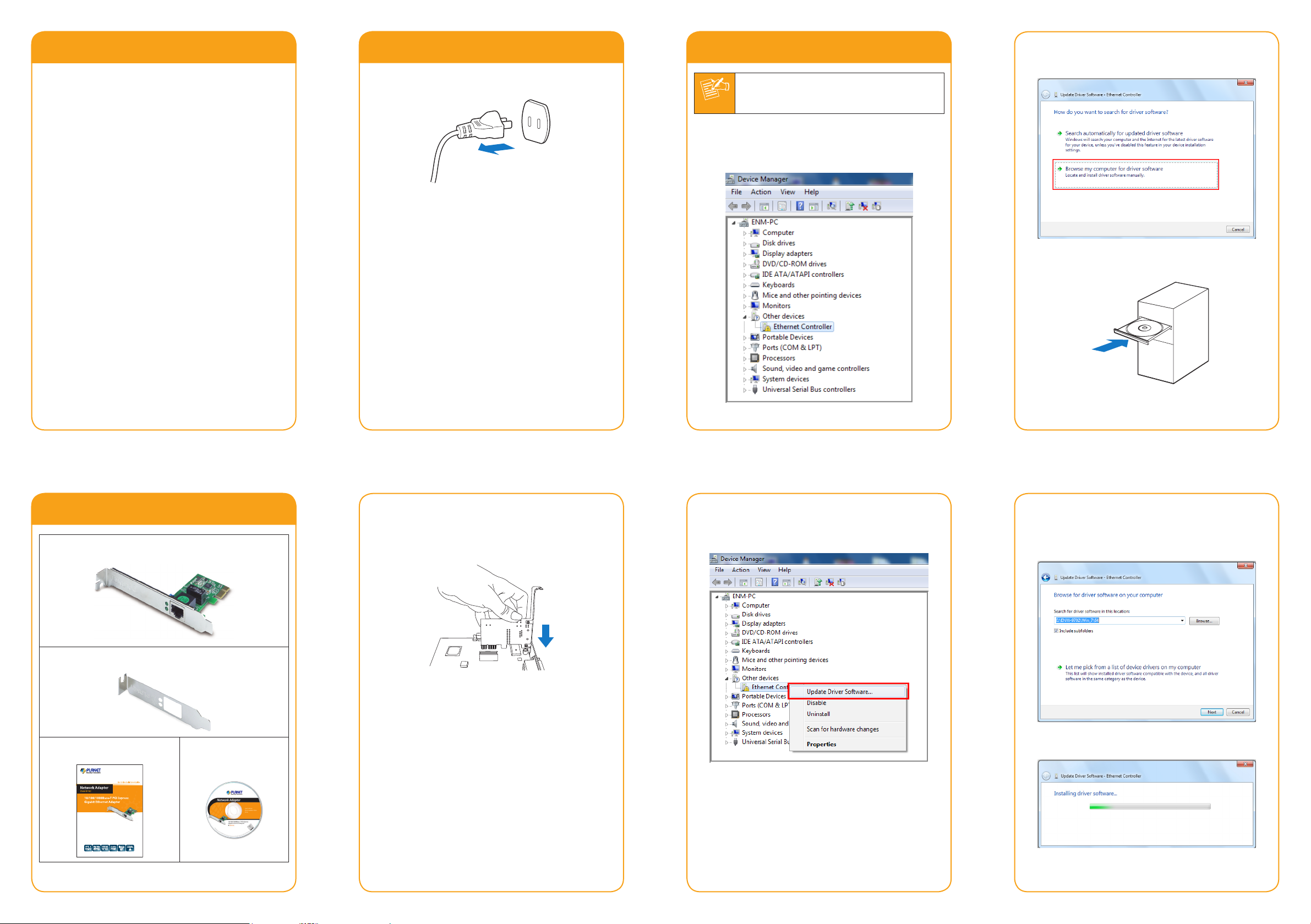

3. Please select “Browse my computer for driver

software” for next step.

4. Insert the bundled CD into the CD-ROM driver.

Installation on Windows 7

Note

This operation is under Win7, it is similar to

Windows Server 2008.

1. After installing ENW-9702 to your PC and boot up,

Windows 7 will detect it and you have to install

driver.

Package Content

ENW-9702 x 1

Low Profile Bracket x 1

Quick Installation Guide x 1 User’s Manual CD x 1

Step 5: Carefully insert the Gigabit Ethernet Adapter

into the chosen slot and press rmly with

proper push to ensure it is fully seated in the

slot.

Step 6: Secure the Gigabit Ethernet Adapter with the

screw you saved in step 4.

Step 7: Replace the PC cover.

Step 8: Power on your PC and refer to next section to

install driver.

5. Please click “Browse” to specify the driver location

to install. (Assume “E” is your CD-ROM drive, the

driver can be found in E:\ENW-9702\Win_7\64). Click

“Next” to continue.

The driver installs process.

2. Please Move and right click the mouse button for

Ethernet Controller item and select “Update Driver

Software”.

- 9 -

- 10 -

- 11 -

- 12 - - 13 - - 14 -

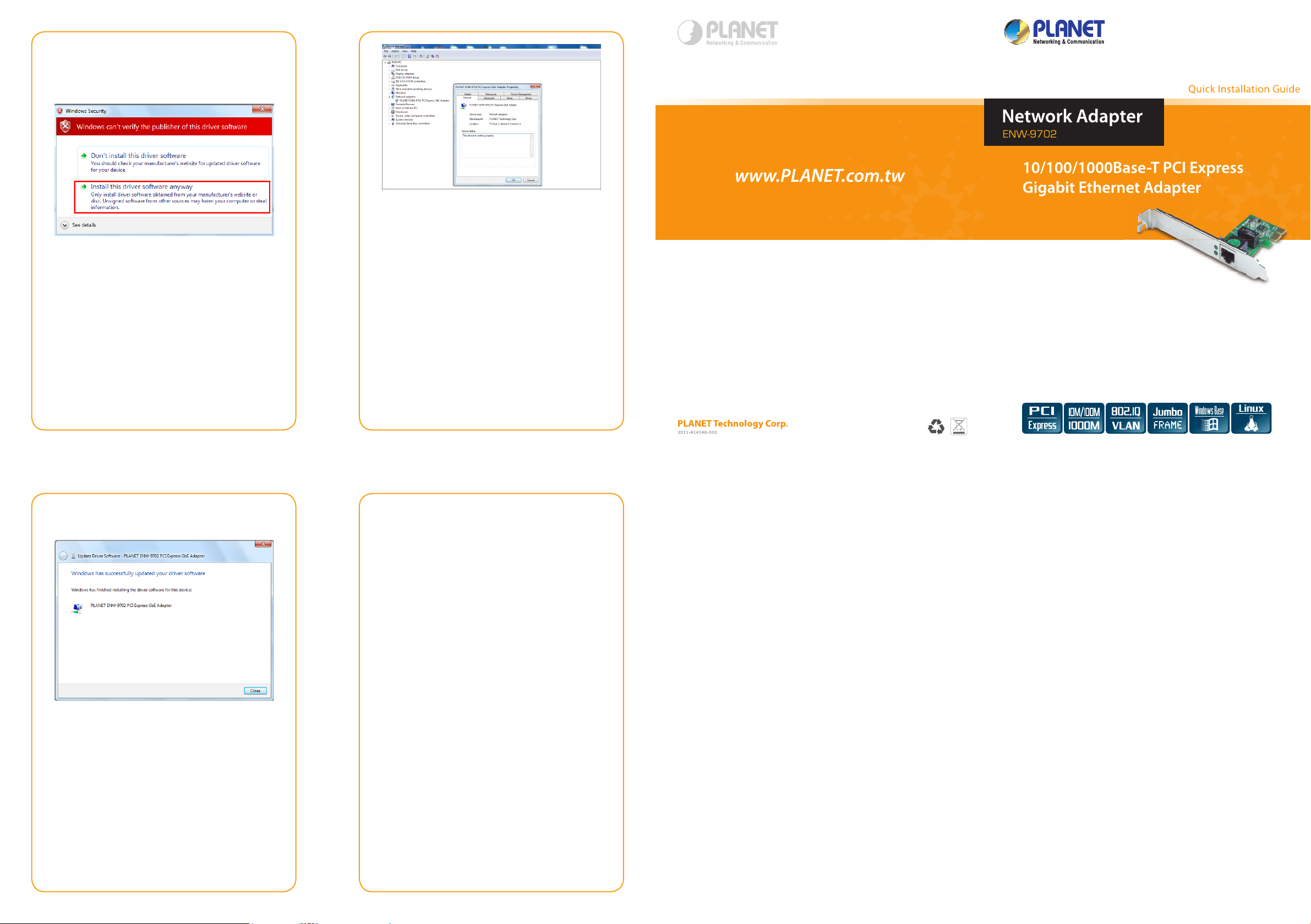

6. During the driver installation, it will pop up one

Windows Security message. Please Click “Install

this driver software anyway” button for continue

installation.

For more details, please refer to the manual of our

bundle CD-ROM.

7. Click “Close” button to complete the driver

installation.
