24-Port Gigabit with 2 Shared SFP Managed Security Switch

Data Sheet

High-Performance / Cost-effective / Telecom Gigabit solution for

backbone of Enterprise and Networking of Data Center

The PLANET WGSW-24020 is a L2/L4 Full Managed Gigabit Switch. Since

Gigabit network interface had become the basic equipment and

requirement of Enterprises and Network Servers, the WGSW-24020 can

handle extremely large amounts of data in a secure topology linking to a

backbone or high capacity server with 48Gbps switching fabric. The

powerful features of QoS and Network Security make WGSW-24020 to

meet the needs of effective data traffic control for ISPs and Enterprises,

such as VoIP, video streaming and multicast applications.

High Performance

The WGSW-24020 provides 24 10/100/1000Mbps Gigabit Ethernet ports

with 2 shared Gigabit SFP slots. It boasts high performance architecture of

switch that is capable for providing the non-blocking switch fabric and

wire-speed throughput as high as 48Gbps, which greatly simplifies the

tasks of upgrading the LAN for catering to increase bandwidth demands.

Robust Layer 2 Features

The WGSW-24020 can be programmed for basic switch management

functions such as port speed configuration, Port aggregation, VLAN,

Spanning Tree protocol, QoS, bandwidth control and IGMP Snooping. The

WGSW-24020 provides 802.1Q Tagged VLAN, and the VLAN groups

allowed on the WGSW-24020 will be maximally up to 256. Via

aggregation of supporting port, the WGSW-24020 allows the operation of

a high-speed trunk combining multiple ports, up to eight groups of

maximum to 8-ports for trunking, and it supports fail-over as well.

Excellent Traffic Control

PLANET WGSW-24020 is loaded with powerful traffic management and

QoS features to enhance services offered by telecoms. The functionality

includes QoS features such as wire-speed Layer 4 traffic classifiers and

bandwidth limiting that are particular useful for multi-tenant unit, multi

business unit, Telco, or Network Service Provide applications. It also

empowers the enterprises to take full advantages of the limited network

resources and guarantees the best performance at VoIP and Video

conferencing transmission.

WGSW-24020

Efficient Management

For efficient management, the WGSW-24020 Managed Ethernet Switch is

equipped with console, WEB and SNMP management interfaces. With its

built-in Web-based management, the PLANET WGSW-24020 offers an

easy-to-use, platform-independent management and configuration facility.

The PLANET WGSW-24020 supports standard Simple Network

Management Protocol (SNMP) and can be managed via any

standard-based management software. For text-based management, the

WGSW-24020 can also be accessed via Telnet and the console port. For

secure remote management, the WGSW-24020 supports SSL and SSH

connection which encrypt the packet content at each session.

Powerful Security

PLANET WGSW-24020 offers comprehensive Access Control List (ACL) for

enforcing security to the edge. Its protection mechanism also comprises of

port-based 802.1x user and device authentication. The port-security is

effective to limit the numbers of clients to pass through, so that network

administrators can now construct highly secured corporate networks with

time and effort considerably less than before.

Flexibility and Extension solution

The two mini-GBIC slots are compatible with 1000Base-SX/LX and WDM

SFP(Small Factor Pluggable) fiber-optic modules. The distance can be

extended from 550 meters (Multi-Mode fiber) up to above 10/50/70/120

kilometers (Single-Mode fiber or WDM fiber). They are well suited for using

within the enterprise data centers and distributions.

Key Feature

Data Sheet

WGSW-24020

Physical Ports

• 24-Port 10/100/1000Base-T Gigabit Ethernet RJ-45

• 2 mini-GBIC/SFP slots, shared with Port-12 and Port-24

• Console interface for Switch basic management and setup

Layer 2 Features

• Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z

Gigabit Ethernet standard

• Supports Auto-negotiation and half duplex/full duplex modes for all

10Base-T/100Base-TX and 1000Base-T ports.

• Auto-MDI/MDI-X detection for each RJ-45 port

• Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x

PAUSE frame flow control (Full-Duplex)

• High performance of Store-and-Forward architecture, broadcast storm

control and runt/CRC filtering eliminates erroneous packets to

optimize the network bandwidth

• 8K MAC address table, automatic source address learning and ageing

• 2Mbit embedded memory for packet buffers

• Supports IEEE 802.1Q Tagged based VLAN

• GVRP protocol for VLAN Management

• Private VLAN Edge (PVE) supported

• Supports up to 8 Trunk groups, and each trunk group can be up to

maximum 8 ports with 16Gbps bandwidth (Duplex Mode)

• IEEE 802.1d, IEEE 802.1w, classic Spanning Tree Algorithm or Rapid

Spanning Tree support

• Supports the IEEE 802.1s specification for multiple spanning trees on

a single port (spanning tree by VLAN)

• Port Mirroring to monitor the incoming or outgoing traffic on a

particular port

Quality of Service

• 4 priority queues on all switch ports.

• Supports for strict priority and Weighted Round Robin (WRR) CoS

policies

• Supports QoS and bandwidth control on each port

• Traffic-policing policies on the switch port

Multicast

• Supports IGMP Snooping v1 and v2

Security

• IEEE 802.1x Port-Based Authentication

• IP-Based Access Control List (ACL)

• MAC-Based Access Control List

• Port Security

Management

• WEB-based, Telnet, Console Command Line management

• SSH( Secure Shell), SSL

• Accesses through SNMPv1, v2c and v3 security set and get

requests.

• Four groups (history, statistics, alarms, and events) of

embedded remote monitoring (RMON) agents for network

monitoring and traffic analysis

• Built-in Trivial File Transfer Protocol (TFTP) client

• Virtual Cable Test (VCT) technology provides the mechanism to

detect and report potential cabling issues on Copper Links,

such as cable opens, cable shorts, etc..

Data Sheet

24-Port 10/100/1000Mbps with 2 shared SFP Managed Security Switch

Product

Specification

Model

Hardware Specification

Copper Ports

SFP/mini-GBIC Slots

Switch Architecture

Switch Fabric

Switch Throughput

Address Table

Share Data Buffer

Flow Control

Jumbo Frame

LED

Layer 2 Function

Management Interface

Port Configuration

Port Status

VLAN

Link Aggregation

QoS

IGMP Snooping

Access Control List

SNMP MIBs

Standards Conformance

Regulation Compliance

Standards Compliance

Physical Specifications

Dimensions

Weight

Environment Specifications

Operating

Storage

WGSW-24020

24 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports

2 SFP interfaces, shared with Port-12 and Port-24

Store-and-Forward

48Gbps / non-blocking

35.7Mpps

8K entries

2 Mbits

Back pressure for Half-Duplex

IEEE 802.3x Pause Frame for Full-Duplex

9K bytes

Power, Link/Act and speed per port

Console, Telnet, SSH, Web Browser, SSL, SNMPv1, v2c and v3

Port disable/enable. Auto-negotiation 10/100/1000Mbps full and half duplex mode

selection. Flow Control disable / enable. Bandwidth control on each port.

Display each port’s speed duplex mode, link status and Flow control status. Auto

negotiation status, trunk status.

IEEE 802.1Q Tagged Based VLAN ,up to 256 VLAN groups

Supports 8 groups of 8-Port trunk support

IEEE 802.3ad LACP

Traffic classification based on Port Number, 802.1p priority, DS/TOS field in IP Packet

IGMP (v1/v2) Snooping, up to 32 multicast Groups

IP-Based ACL / MAC-Based ACL

Up to 256 entries

RFC-1213 MIB-2

RFC-2863 Interface MIB

RFC-2665 EtherLike MIB

RFC-1493 Bridge MIB

RFC-2674 Extended Bridge MIB

RFC-2819 RMON MIB (Group 1, 2, 3 and 9)

RFC-2737 Entity MIB

RFC-2618 RADIUS Client MIB

FCC Part 15 Class A, CE

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3ab 1000Base-T Gigabit Ethernet

IEEE 802.3z 1000Base-SX/LX Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.1p Class of Service

IEEE 802.1X Port-Based Authentication

IEEE 802.1Q Tag-Based VLAN

IEEE 802.1w Rapid Spanning Tree

430 x 350 x 44.5mm (W x D x H), 1U height

3.3 KG

Temperature: 0 ~ 50 Degree C

Relative Humidity: 20% ~ 95% (non-condensing)

Temperature: -40 ~ 70 Degree C

Relative Humidity: 20% ~ 95% (non-condensing)

WGSW-24020

PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property or

08-07 C-WGSW24020-1

PLANET Technology Corporation

11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan R.O.C.

Tel: 886-2-2219-9518 Fax: 886-2-2219-9528

Email: [email protected] www.planet.com.tw

VoIP Gateway: vip.planet.com.tw

24-Port 10/100/1000Mbps with 2 Shared SFP Managed Security Switch

48-Port 10/100/1000Mbps with 4 Shared SFP Managed Security Switch

WGSW-24020

WGSW-48040

Applications

Ordering Information

Releate Product

SFP-Port 1000Base-T Module

SFP-Port 1000Base-SX mini-GBIC module

SFP-Port 1000Base-LX mini-GBIC module

SFP-Port 1000Base-LX mini-GBIC module-30km

SFP-Port 1000Base-LX mini-GBIC module-50km

SFP-Port 1000Base-LX mini-GBIC module-70km

SFP-Port 1000Base-LX mini-GBIC module-120km

SFP-Port 1000Base-LX (WDM,TX:1310nm) mini-GBIC module-10km

SFP-Port 1000Base-LX (WDM,TX:1550nm) mini-GBIC module-10km

SFP-Port 1000Base-LX (WDM,TX:1310nm) mini-GBIC module-20km

SFP-Port 1000Base-LX (WDM,TX:1550nm) mini-GBIC module-20km

SFP-Port 1000Base-LX (WDM,TX:1310nm) mini-GBIC module-40km

SFP-Port 1000Base-LX (WDM,TX:1550nm) mini-GBIC module-40km

MGB-GT

MGB-SX

MGB-LX

MGB-L30

MGB-L50

MGB-L70

MGB-L120

MGB-LA10

MGB-LB10

MGB-LA20

MGB-LB20

MGB-LA40

MGB-LB40

Available Modules for WGSW-24020

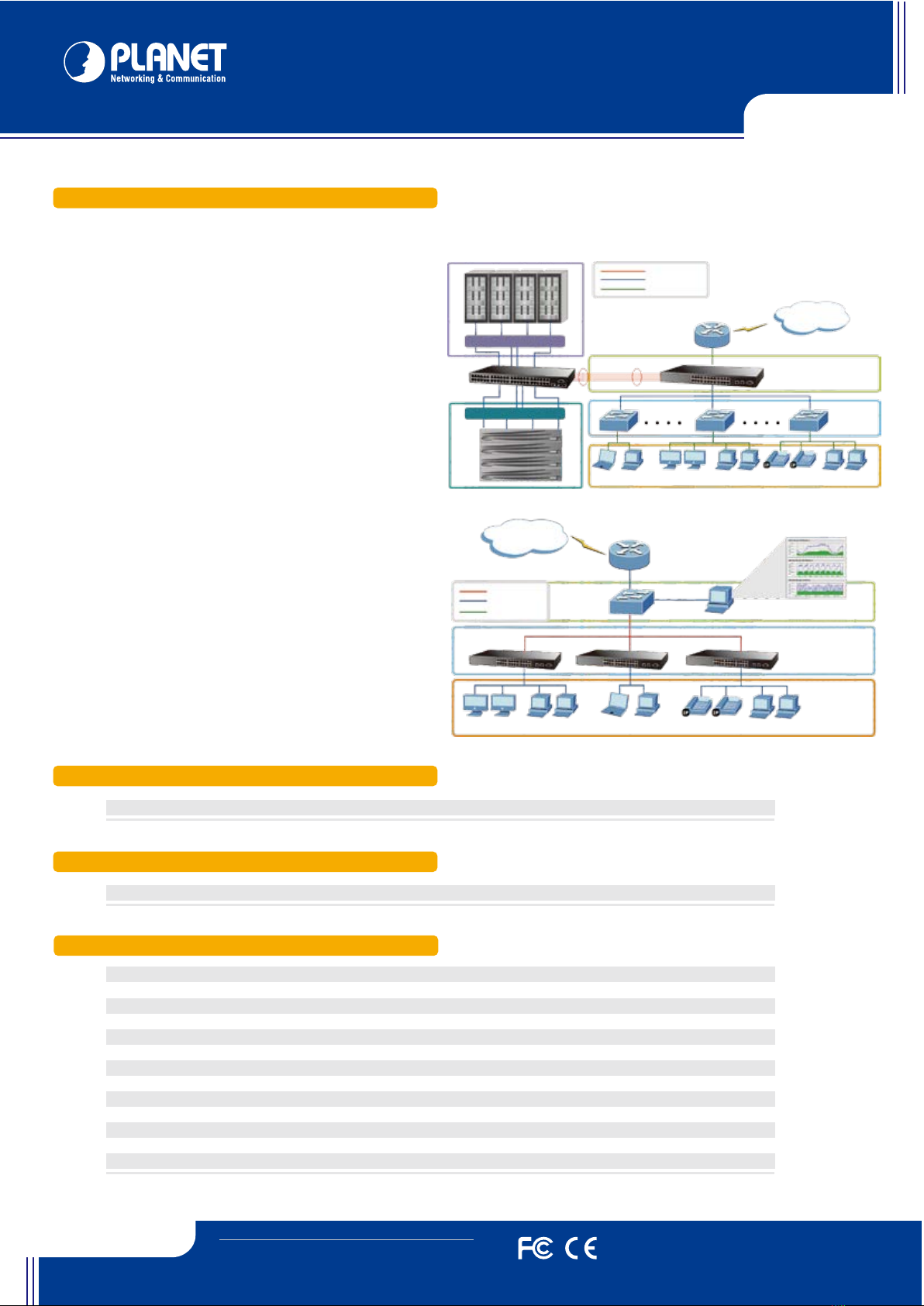

Backbone Switch

With up to 48Gigabits per second of non-blocking switch

fabric, the WGSW-24020 can easily provide the high

bandwidth required from now on. It can easily provide a local,

high bandwidth and Gigabit Ethernet network for backbone

of enterprises or Telecoms. With the two SFP ports, the

WGSW-24020 provides the uplink to the edge network

through Gigabit Ethernet LX/SX SFP modules.

Server Farm Switch

Gigabit Ethernet supported had become a basic equipment of

Enterprises and Network servers. The WGSW-24020 provides

up to 24 Gigabit Ethernet ports. It is ideal to be used as a

server farm switch connecting servers. With its port trunking

function, an 8 GB fat pipe is provided for connecting to the

backbone if required.

Data Sheet

WGSW-24020

Backbone Switch/

48G Fabric

Edge Switches

Router

1000Base-T

10/100Base-TXQoSACL Network Security

LACP

Server Farm Switch

1000 T

1000 SX / LX

100 TX

Server Rack

NAS Storage

Internet

Department/Edge Security and QoS Switch

With the security and QoS features, it improves the network to

be efficiency and protects the network clients. With the two SFP

ports, the WGSW-24020 provides the uplink to the backbone

network through Gigabit Ethernet LX/SX SFP modules. With the

security, Multicast IGMP Snooping and QoS features, it also

improves the network’s efficiency and protects the network

clients.

Security/QoS

Edge

WGSW-24020

Router Management Client

1000Base-SX/LX

10/100/1000Base-T

QoS IGMP SnoopingACL Network Security802.1X Authentication

Core Switch SNMP/WEB/SSH/SSL

Internet

1000 T

1000 SX / LX

100 TX

Andere Planet Networking & Communication Schalten Handbücher
