802.11g Wireless Access Point

WAP-4036

User’s Manual

be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or

computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,

manual or otherwise, without the prior written permission of PLANET.

PLANET makes no representations or warranties, either expressed or implied, with respect to the

contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular

purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove

defective following their purchase, the buyer (and not PLANET, its distributor, or its dealer) assumes

the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting

from any defect in the software. Further, PLANET reserves the right to revise this publication and to

make changes from time to time in the contents hereof without obligation to notify any person of such

revision or changes.

All brand and product names mentioned in this manual are trademarks and/or registered trademarks of

their respective holders.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following measures:

1.Reorient or relocate the receiving antenna.

2.Increase the separation between the equipment and receiver.

3.Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

4.Consult the dealer or an experienced radio technician for help.

FCC Caution

To assure continued compliance. (example-use only shielded interface cables when connecting to

computer or peripheral devices). Any changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the Following two

conditions: ( 1 ) This device may not cause harmful interference, and ( 2 ) this Device must accept any

interference received, including interference that may cause undesired operation.

Federal Communication Commission (FCC) Radiation Exposure

Statement

This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In

order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to

the antenna shall not be less than 20 cm (8 inches) during normal operation.

R&TTE Compliance Statement

This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN

PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication

terminal Equipment and the mutual recognition of their conformity (R&TTE)

The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal

Equipment and Satellite Earth Station Equipment) As ofApril 8,2000.

Safety

This equipment is designed with the utmost care for the safety of those who install and use it. However,

special attention must be paid to the dangers of electric shock and static electricity when working with

electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed

at all times to ensure the safe use of the equipment.

EU Countries Not Intended for Use

The ETSI version of this device is intended for home and office use in Austria Belgium, Denmark,

Finland, France (with Frequency channel restrictions). Germany, Greece, Ireland, Italy,

Luxembourg .The Netherlands, Portugal, Spain, Sweden and United Kingdom.

The ETSI version of this device is also authorized for use in EFTA member states Iceland,

Liechtenstein, Norway and Switzerland.

Potential Restrictive Use

France: Only channels 10,11,12 and 13

WEEE Regulation

To avoid the potential effects on the environment and human health as a result of the

presence of hazardous substances in electrical and electronic equipment, end users of

electrical and electronic equipment should understand the meaning of the crossed-out

wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to

collect such WEEE separately.

Revision

User’s Manual for PLANET Wireless Access Point

Model: WAP-4036

Rev: 1.1 (August, 2008)

Part No. EM-WAP4036

TABLE OF CONTENTS

Chapter 1 Introduction ..................................................................................7

1.1 Package Contents..................................................................................................................7

1.2 Features.................................................................................................................................7

1.3 LED Indicators .......................................................................................................................8

1.4 Back View..............................................................................................................................8

1.5 Wireless Performance............................................................................................................9

Chapter 2 Hardware Installation.................................................................10

Chapter 3 Web Configuration .....................................................................11

3.1 Status...................................................................................................................................12

3.2 Radio ...................................................................................................................................13

3.3 Security................................................................................................................................14

3.3.1 NONE........................................................................................................................15

3.3.2 WEP..........................................................................................................................15

3.3.3 WPA Personal ...........................................................................................................16

3.3.4 WPA2 Personal .........................................................................................................17

3.3.5 WPA & WPA2 Personal.............................................................................................18

3.4 MAC Filter............................................................................................................................19

3.5 WDS ....................................................................................................................................20

3.6 Advanced.............................................................................................................................21

3.7 Client Info.............................................................................................................................22

3.8 Site Survey ..........................................................................................................................23

3.9 IP Config..............................................................................................................................24

3.10 DHCP Server .......................................................................................................................25

3.10.1 DHCP Setup...............................................................................................................25

3.10.2 IP Reserve..................................................................................................................26

3.10.3 DHCP Info..................................................................................................................26

3.11 MISC....................................................................................................................................27

3.11.1 Login ID & Password Setup........................................................................................27

3.11.2 Restore Default / Restart System...............................................................................28

3.11.3 Firmware Upgrade......................................................................................................28

Chapter 4 Configuring Local Networking ..................................................29

4.1 Assigning a Static IPAddress in Windows XP/2000 ............................................................29

4.2 Additional Settings for Wireless Client .................................................................................31

4.3 Checking PC’s IP and Connection with the AP....................................................................32

Appendix A Specification............................................................................33

Appendix B Frequently Ask Question........................................................34

Chapter 1 Introduction

Thank you for purchasing PLANET WAP-4036, 802.11g Wireless Access Point. This device supports

both IEEE 802.11b and IEEE 802.11g standards. Except for essential AP mode, WAP-4036 also provides

AP Client/ Repeater/ WDS/ AP+WDS (Wireless Distributed System) modes to accommodate all kinds of

network topology. High data rate transfer of up to 54Mbps, up to 5 times faster than 802.11b, support

allows faster communication between LAN and WLAN. It is backward compatible with existing 802.11b

infrastructure while migrating to the 802.11g standard. Maximize network efficiency while minimizing your

network investment and maintenance costs.

In addition, the WAP-4036 supports WEP, WPA, WPA2 and MAC address filter function to consolidate

the wireless network security; you can prevent unauthorized wireless stations from accessing your

wireless network.

This product provides a friendly web interface and allows users to configuring from browser. It is also a

total solution for the Small and Medium-sized Business (SMB) and the Small Office/Home Office (SOHO)

markets, giving you an instant network today, and the flexibility to handle tomorrow's expansion and

speed.

1.1 Package Contents

Make sure that you have the following items:

z1 x WAP-4036

z1 x Power Adapter

z1 x User’s Manual CD

z1 x Quick Installation Guide

z1 x External Antenna

z1 x Ethernet Cable

If any of the above items are missing, contact your supplier as soon as

possible.

1.2 Features

zComplies with the IEEE 802.11b/g (DSSS) 2.4GHz specification

zData rate supports up to 54Mbps

zBuild-in DHCP server for providing a dynamic IP address to PCs and other devices

zSupports WEP / WPA Personal / WPA2 Personal encryption

zSupports AP/ Client/ Repeater/ WDS/ AP+WDS mode

zSeamlessly integrate wireless and wired networks

zProvides MAC Filter function

zWeb-based configuration

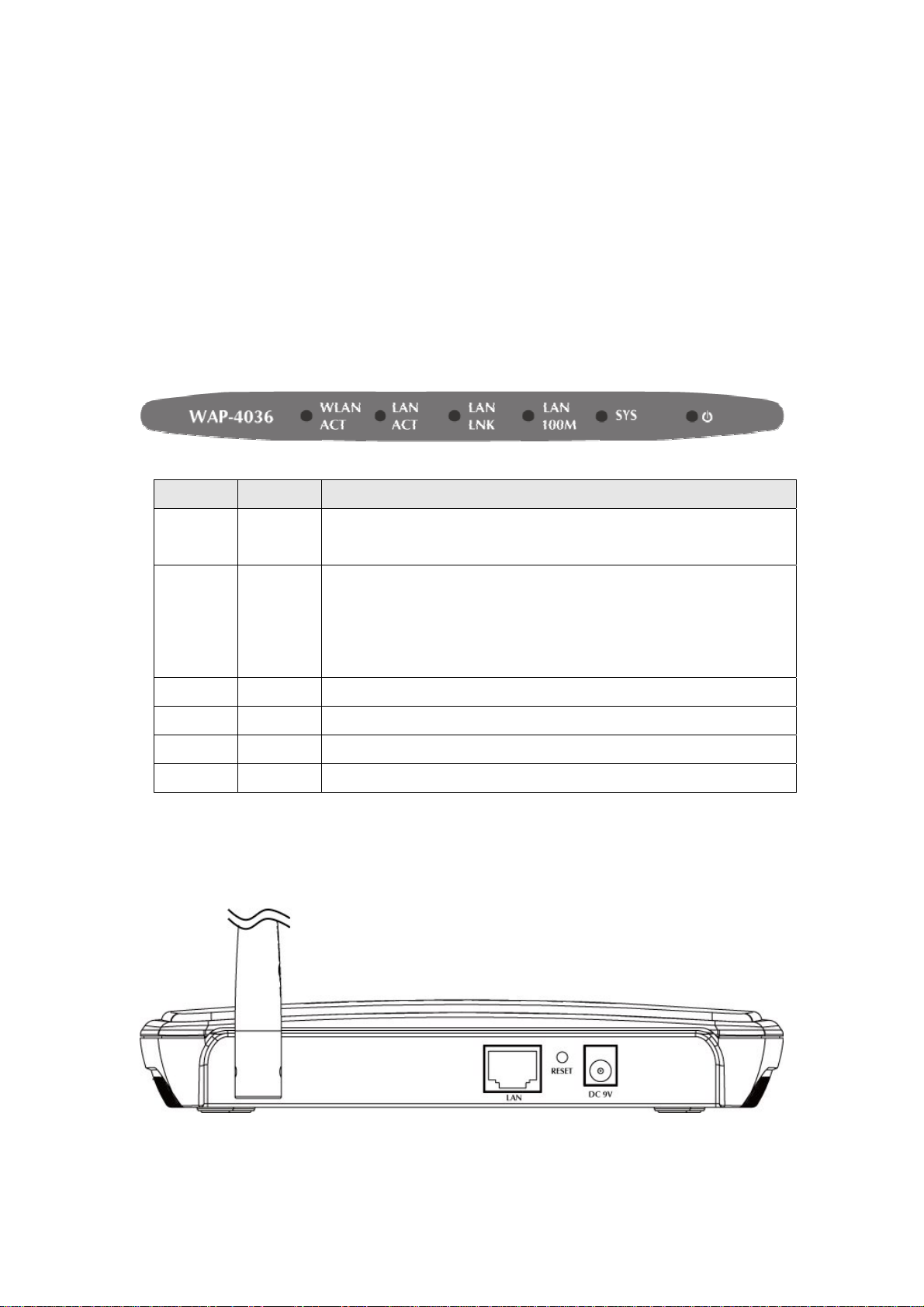

1.3 LED Indicators

LED Action Function

PWR ON

This indicator lights green when the Wireless AP is receiving power;

otherwise, it is off.

SYS ON

The LED will be dark for a few seconds when the system is started. After

that, the LED will stays green to show the Wireless AP is working normally. If

the LED stays blink or dark, it means the system is failed. Please try to

reboot the system or restore default settings.

LAN 100M ON Indicates the Ethernet is working in 100Mbps mode.

LAN LNK ON Indicates the LAN is connected.

LAN ACT Flashing Indicates the LAN has activity with data sending or receiving.

WLAN ACT Flashing Indicates wireless interface has activity with data sending or receiving.

1.4 Back View

Power (DC 9V): The receptacle where you plug in the power adapter.

Reset button: Resets your AP or resets the AP to the default login settings.

To reset the AP to the factory defaults, press and hold the Reset button for more than five

seconds. This clears the AP’s user settings, including User ID, Password, IP Address, and

Subnet mask. (Warning: your original configurations will be replaced with the factory

default settings).

LAN Port: The port connects the AP to your PC. You can configure your AP through the connection.

Antenna: The antenna used for wireless connections. You are able to rotate the antenna to gain the best

signal reception.

1.5 Wireless Performance

The following information will help you utilizing the wireless performance and operating coverage of

WAP-4036.

1. Site selection

To avoid interferences, please locate WAP-4036 and wireless client away from transformers,

microwave ovens, heavy-duty motors, fluorescent lights and other industrial equipments. Keep the

number of walls or ceilings betweenAP and clients as few as possible. Otherwise the signal strength

may be seriously reduced. Place WAP-4036 in an open space or add additional WAP-4036 as

needed to improve the coverage.

2. Environmental factors

The wireless network is easily affected by many environment factors. Every environment is unique

with different obstacles, construction materials, weather, etc. It is hard to determine the exact

operation range of WAP-4036 in a specific location without testing.

3. Antenna adjustment

The bundle antenna of WAP-4036 is adjustable. Firstly install the antenna pointing straight up, then

smoothly adjust it if the radio signal strength is poor. But the signal reception is definitely weak in

some certain areas, such as location right down the antenna.

Moreover, the original antenna of WAP-4036 can be replaced with other external antennas to extend

the coverage. Please check the specification of the antenna you want to use, and make sure it can

be used on WAP-4036.

4. WLAN Type

If WAP-4036 is installed in an 802.11b and 802.11g mixed WLAN, its performance will reduced

significantly. Because every 802.11g OFDM packet needs to be preceded by an RTS-CTS or CTS

packet exchange that can be recognized by legacy 802.11b devices. This additional overhead

lowers the speed. If there are no 802.11b devices connected, or if connections to all 802.11b devices

are denied, the WAP-4036 can operate in 11g-only mode and its data rate should actually 54Mbps.

Chapter 2 Hardware Installation

Before you proceed with the installation, it is necessary that you have enough information about the

WAP-4036.

zKeep the access point as central in your work area as possible. Signal strength and speed fall off

with distance.

zHigher is often better. For instance, set it up on the top shelf of a bookcase rather than the bottom

one, if possible.

Prior to connecting the hardware, make sure to power off your Ethernet device and Wireless Access

Point (AP). Then follow the steps below to connect the related devices.

Step 1: Connect your computer to the LAN port of WAP-4036 by using RJ-45 cable. Attach one end

of the Ethernet cable with RJ-45 connector to your hub, switch or a computer’s Ethernet port,

and the other end to one of the LAN ports of your AP.

Step 2: Assemble the antenna to WAP-4036. Try to place them to a position that can best cover your

wireless network. The antenna’s position will enhance the receiving sensitivity.

Step 3: Connect the power adapter. Connect the single DC output connector of the power adapter to

the power jack on the side of the AP. Then plug the Power Adapter into an AC outlet.

Step 4: Power on the following devices in this order: HUB or Switch, AP, and PCs

ONLY use the power adapter supplied with the WAP-4036. Otherwise, the product may be

damaged. If you want to reset your WAP-4036 to default settings, press the Reset button 5

second. Then release the button and wait for 10 seconds for rebooting.

Inhaltsverzeichnis

Andere Planet Networking & Communication Drahtloser Zugangspunkt Handbücher
