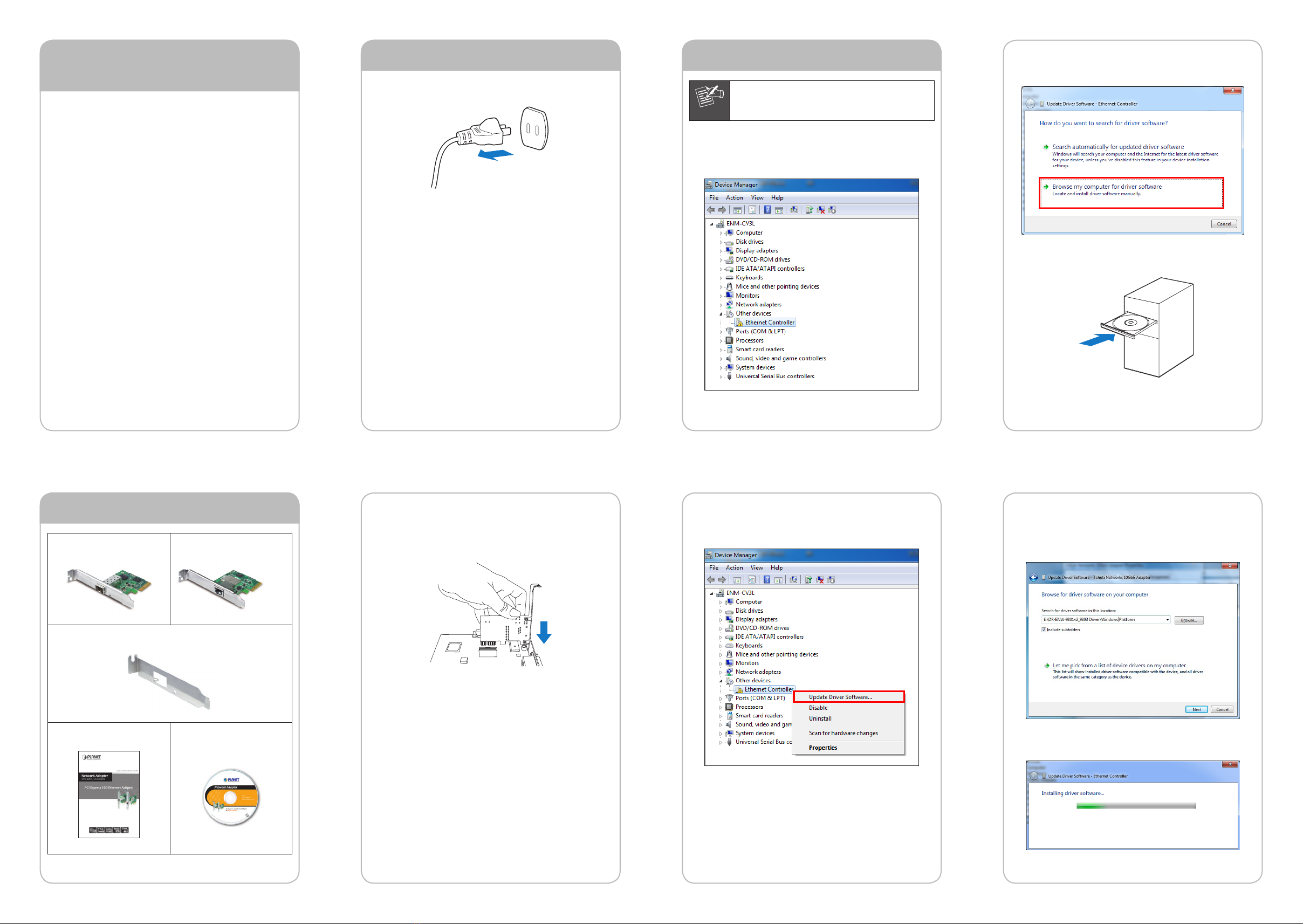

PCI Express 10 Gigabit Ethernet

Adapter

Quick Installation Guide Version 2.1

Thank you for purchasing PLANET ENW-9801/ENW-9803

PCI Express 10 Gigabit Ethernet adapter. It supports x4

PCI Express interfaces. The 10 Gigabit Ethernet adapter

provides a highly cost-effective solution to upgrading

to the 10 Gigabit network with your existing Ethernet

infrastructures.

Operation System Support:

Windows Server 2008R2 32 / 64bits

Windows Server 2012 32 / 64bits

Windows 7 32 / 64bits

Windows 8 32 / 64bits

Linux (2.6.x to 3.14.0)

VMware® ESX 5.x

Hardware Installation

Step 1: Please turn off your PC.

Step 2: Remove any metal decorations from your

hands and wrists.

Step 3: Remove the cover from your PC.

Step 4: Locate an empty PCI Express slot and remove

the corresponding back plate. Save the screw

for use in Step 6.

3. Please select “Browse my computer for driver

software” for the next step.

4. Insert the bundled CD into the CD-ROM driver.

Installation on Windows 7

Note

This operation is under Win7 which it is

similar to Windows Server 2008.

1. After installing the ENW-9801/ENW-9803 to your PC

and booting it up, Windows 7 will detect it and you

have to install driver.

Package Contents

ENW-9801 x 1 ENW-9803 x 1

Low Profile Bracket x 1

Quick Installation Guide x 1 User’s Manual CD x 1

Step 5: Carefully insert the 10 Gigabit Ethernet

Adapter into the chosen slot and press rmly

with proper push to ensure it is fully seated in

the slot.

Step 6: Secure the 10 Gigabit Ethernet Adapter with

the screw you saved in Step 4.

Step 7: Replace the PC cover.

Step 8: Power on your PC and refer to the next section

to install driver.

5. Please click “Browse” to specify the driver location

to install. (Assume “E” is your CD-ROM drive. The

driver can be found in E:\DR-ENW-9801v2_ENW-9803

Driver). Click “Next” to continue.

The driver is being installed.

2. Please move and right-click the mouse button for

Ethernet Controller item and select “Update Driver

Software”.

- 9 -

- 10 -

- 11 -

- 12 - - 13 - - 14 -

6. Click “Close” button to complete the driver

installation.

For more details, please refer to the manual of our

bundled CD-ROM.
