Planet ICA-108 Bedienungsanleitung

Wired / Wireless IR IP Camera

ICA-108 / ICA-108W

Quick Installation Guide

Table of Contents

Chapter 1. Introduction................................................................................... 3

1.1 Before Installation................................................................................. 3

1.2 System Requirements .......................................................................... 3

1.3 Package Content................................................................................... 3

Chapter 2. Physical Installation ........................................................................ 4

Chapter 3. IP Wizard ...................................................................................... 5

3.1 Installation ........................................................................................... 5

3.2 Wizard function .................................................................................... 8

3.3 Username and Password........................................................................ 9

Chapter 4. Cam Viewer Installation ..................................................................10

Appendix A: Feature Listing for Cam Viewer ....................................................14

Appendix B: Suggest Hardware / System Requirement ......................................15

Ordering Information for Cam Viewer Pro ....................................................15

Further Conguration .................................................................................15

Chapter 1. Introduction

Thank you for purchasing the ICA-108/ICA-108W. It is versatile and high image

solution of surveillance application for day and night. The ICA-108/ICA-108W is

also a stand-alone camera system with a built-in processor and web server that

provides highest quality video and system performance.

1.1 Before Installation

Before installation, please be sure to read this quick installation guide and user’s

manual (CD) carefully to complete machine installation.

1.2 System Requirements

Network Interface 10/100MBase-TX Ethernet, IEEE802.11b/g (ICA-108W only)

Monitoring System Recommended for Internet Explorer 6.0 or later

System Hardware

• CPU: Pentium 4, 1.5GHz or above

• Memory Size : 512 MB (512 MB or above

Recommended)

• VGA card resolution : 1024 x 768 or above

•Network bandwidth: In VGA resolution mode,

minimum upload bandwidth is 1Mbps.

1.3 Package Content

ICA-108/ICA-108W x 1

Power Adapter x 1

Wall Mount Accessories x 1

External Antenna x 1 (ICA-108W only)

CD Disk x 1

Quick Installation Guide x 1

Chapter 2. Physical Installation

1. Connect an Ethernet cable

Connect the LAN cable on the ICA-108/ICA-108W to the network device (hub or

switch).

2. Attach the antenna (ICA-108W only)

Finds antenna in accessory and attaches the antenna to the ICA-108W SMA

connector.

3. Check the LED (Front Panel)

The LED is dened to identify LAN/WLAN connection type. When LAN port is

connected, the LED will be green. For WLAN model, if LAN ported is connected,

the LED will be green; if LAN cable is removed; the ICA-108W will change to

WLAN connection and LED change to orange color.

4.PlacetheICA-108/ICA-108Wonthetableorxitontoceilingorwall

Use screws to x the ICA-108/ICA-108W onto the ceiling or wall. You could also

put the ICA-108/ICA-108W in the table directly.

5. Attach the power supply

Plug in power adapter and connect to power source. After power on, ICA-108/

ICA-108W will start to operate.

Note

Only use the power adapter supplied with ICA-108/ICA-108W.

Otherwise, the product may be damaged

Chapter 3. IP Wizard

This chapter shows how to quick set up your ICA-108/ICA-108W. The ICA-108/ICA-

108W is with the default settings. However to help you nd the networked camera

quickly the windows utility-IP Wizard can search the cameras in the network

that shall help you to congure some basic setting before you started advanced

management and monitoring.

3.1 Installation

Note

In the installation steps below, this guide use ICA-108 as the

example. However, the steps for ICA-108W are similar.

1. Insert the bundled CD into the CD-ROM drive to launch the autorun program.

Once completed, a welcome menu screen will appear.

2. Click the “IP Wizard” hyperlink; you will see the InstallShield Wizard dialog box

as below.

Note

If the welcome screen does not appear, click “Start” at the taskbar.

Then, select “Run” and type “D:\Utility\setup.exe”, assume D is

your CD-ROM drive.

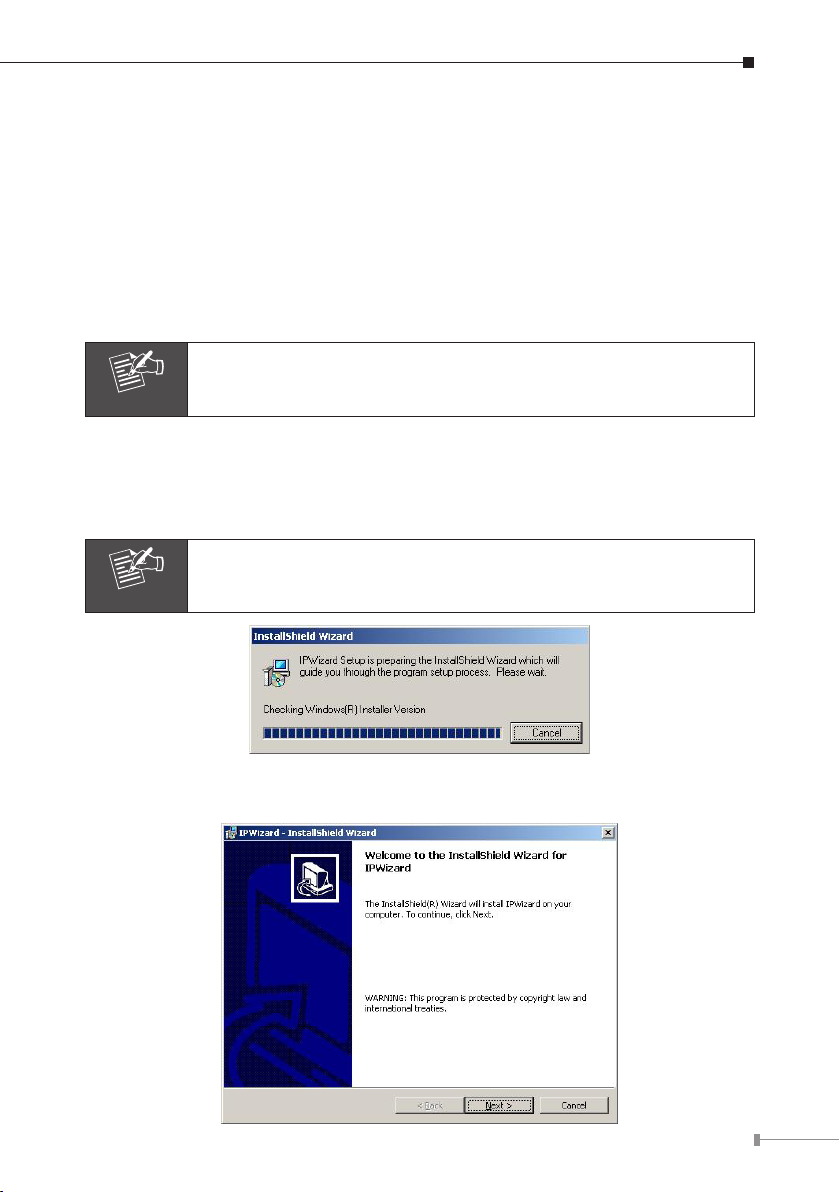

3. The “Welcome to the InstallShield Wizard for IP Wizard” will display on the

screen and click “Next” to continue.

4. Please click “Next” to install with original settings, or you may click “Change…”

button to modify the install folder then press “Next” to continue.

5. Please click “Install” to start the installation.

6. Please click “Finish” to complete the installation

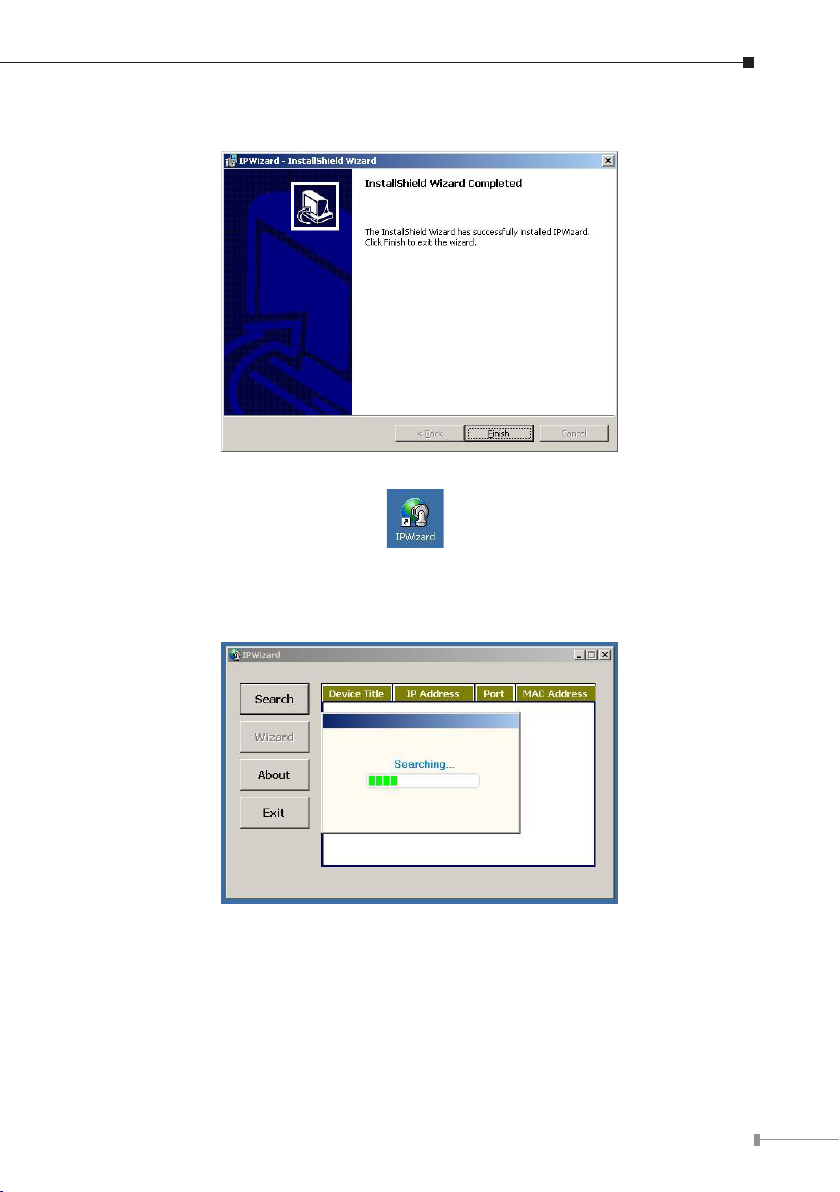

7. Please double-click the utility icon on the desktop then you will see the

ICA-108 utility.

8. Press “Search” button. IP Wizard will list all IP Cameras in your LAN environ-

ment:

3.2 Wizard function

Note

Please select your ICA-108 and press “Wizard”. The utility featured

of “Wizard” function to help user to initial ICA-108. User can setup

IP address, username and password step by step.

Please enter User Name and Password. Default Username is: admin, leave

password blank. Then click “Submit”.

3.3 Username and Password

You may change the ID and assign a new password to your ICA-108 or keep the

original and press “Next” to continue.

As below, you can select “Static IP” and enter the IP settings. Or select “DHCP ON”

when there is a DHCP server in your network.

Note

If no IP address is assigned after 30 seconds, ICA-108/ICA-108W

will use its default address 192.168.0.20.

User may open the web browser, and key in the IP address (for example:

http://192.168.0.20, the default IP address) in the address eld to login web

conguration page and refer to the User’s manual in the bundled CD disk for more

conguration.

Chapter 4. Cam Viewer Installation

This chapter will guide you to install the central management software. The ICA-

108/ICA-108W can be managed through its web interface. However, to central

control, manage or record the cameras installed in the network Cam Viewer, the

windows-based central management software are required.

Note

The Cam Viewer Pro 30 days trial version installation steps are

similar. Below is the installation of Cam Viewer Lite.

1. Insert the bundled CD disk into the CD-ROM drive to launch the autorun

program. Once completed, a welcome page will appear in IE. Click the “Cam

Viewer Lite” hyperlink, the below InstallShield Wizard dialog box will appear.

Note

If the welcome screen does not appear, click “Start” at the taskbar.

Then, select “Run” and type “D:\Cam Viewer Lite\setup.exe”,

assume “D” is your CD-ROM drive.

2. Selects the language which you want, Cam Viewer is current including fteen

languages. Please select one of the languages and click ”Next” to continue.
