Planet ICA-HM830 Bedienungsanleitung

2 Mega-Pixel Fish-Eye Panorama

Outdoor / Indoor IP Camera

ICA-HM830 / ICA-HM830W

ICA-HM835

Quick Installation Guide

Table of Contents

Chapter 1. Introduction .................................................................................... 3

1.1 Before Installation ............................................................................... 3

1.2 System Requirements .......................................................................... 3

Chapter 2. Physical Description and Installation.................................................. 4

2.1 ICA-HM830 2Mega-Pixel Fish-Eye Panorama IP Camera .......................... 4

2.1.1 ICA-HM830 Package Content........................................................ 4

2.1.2 ICA-HM830 Physical Details ......................................................... 4

2.1.3 ICA-HM830 Installation................................................................ 6

2.1.4 Wall/Ceiling Mount Installation Procedure ...................................... 7

2.2 ICA-HM830W 2Mega-Pixel Fish-Eye Panorama IP Camera........................ 8

2.2.1 ICA-HM830W Package Content..................................................... 8

2.2.2 ICA-HM830W Physical Details....................................................... 9

2.2.3 ICA-HM830W Installation............................................................11

2.2.4 Wall/Ceiling Mount Installation Procedure .....................................12

2.3 ICA-HM835 2Mega-Pixel Vandal Proof Fish-Eye IP Camera .....................13

2.3.1 ICA-HM835 Package Content.......................................................13

2.3.2 ICA-HM835 Physical Details ........................................................13

2.3.3 ICA-HM835 Installation...............................................................15

Chapter 3. Camera Windows Utility ..................................................................16

3.1 NetworkConguration ........................................................................16

3.2 Open the Web-based UI......................................................................18

Further Information ........................................................................................20

Chapter 1. Introduction

Thank you for purchasing the PLANET 2Mega-Pixel Fish-Eye Panorama IP-Camera.

The Fish-Eye lens can view 360 degree panoramic wide angle view without blind

spot. With user friendly interface, it is an easy-to-use IP camera which is designed

for security application. The IP Cameras delivers clear image through Multi-

streaming H.264 and Motion JPEG video up to UXGA (1600 x 1200 pixels).

The IP-Camera supports digital Pan/Tilt and zoom function can provide users 9

different video modes. It’s applies perspective correction software to eliminate the

rounding normally associated with Fish-Eye lenses and thus save lots of traditional

mechanical Pan/Tilt maintenance cost.

It has built-in ICR (IR-cut lter Removable) for day / night surveillance and

provides surveillance functions including DI/DO alarm, MicroSD card support for

local storage, and 2-Way audio that enables audio communication between local

and remote IP Camera installed sites by connecting the external microphone and

speaker. Moreover, the IP camera can be managed by PLANET Cam Viewer 3 IP-

Surveillance management software for multi-camera video surveillance application

and provides monitoring, recording and event management functions to secure

your property and life.

1.1 Before Installation

Before installation, please be sure to read this quick installation guide and user’s

manual (CD) carefully to complete machine installation. This guide shows how to

quick set up the IP Cameras, unless model name specied terms “IP Camera” will

be used for this model.

1.2 System Requirements

CPU Intel®Core2 Duo E5300 2.6GHz

RAM 1 GB

Video RAM 128 MB

Display Chip nVIDIA GeForce 8500GT or ATI Radeon HD 4350 or

above

Display Resolution 1024 x 768 24bits

Operating System Windows 2000 SP4 / Windows XP Pro SP2 / Windows

2003 / Vista

DirectX 9.0c or above

Network Wired Ethernet 100Base-TX

Chapter 2. Physical Description and Installation

2.1 ICA-HM830 2Mega-Pixel Fish-Eye Panorama IP Camera

2.1.1 ICA-HM830 Package Content

IP camera unit x 1

Power Adapter x 1

Quick Installation Guide x 1

User’s manual CD x 1

Wall Mount Kit x 1

GPIO Connector x 1

2.1.2 ICA-HM830 Physical Details

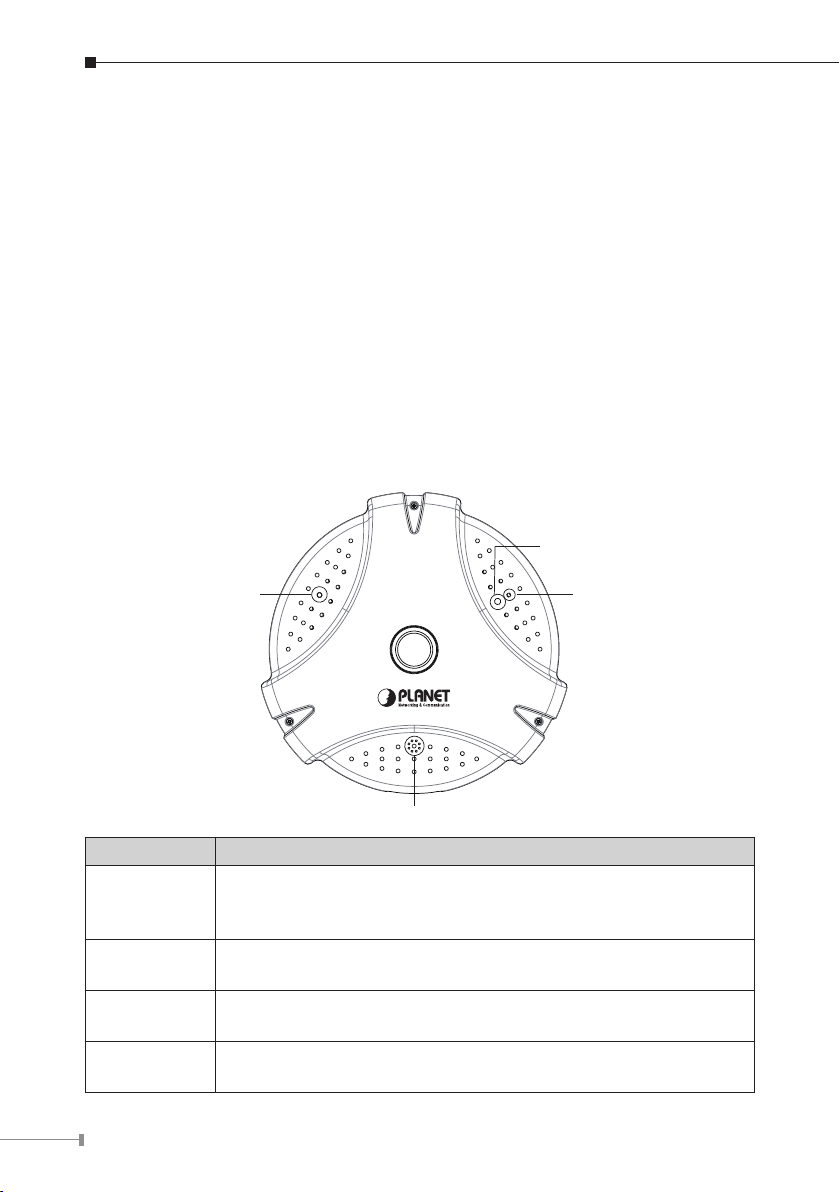

ICA-HM830 Front Panel:

Speaker

Light Sensor Reset Button

MIC

Interface Description

Light Sensor

The Light sensor is for detect IP Camera environment

illuminant, and if IP Camera in the dark/night environment that

willletIRcutlteroffforclearlynightview.

MIC The IP Camera has built-in an internal microphone. This

microphone is hidden in the pinhole located on the front panel.

Reset Button This button is hidden in the pinhole. Please refer to the user’s

manual for more information.

Speaker The IP Camera has built-in an internal speaker. This speaker is

hidden in the pinhole located on the front panel.

ICA-HM830 Bottom Panel:

DC 12V

MICRO SD

1 2 3 4 5 6 7

AUDIO

OUT

RJ 45

AUDIO

I N

DC 12V

RJ-45

MICRO SD

Audio Out

Audio In

GPIO

Interface Description

Power Jack

The input power is DC 12V, 2A.

Note: ONLY use package power adapter supplied with the

internet. Otherwise, the product may be damaged.

RJ-45 LAN socket

Connect to PC or Hub/Switch.

For connect to 10Base-T Ethernet or 100Base-TX Fast

Ethernet cabling. This Ethernet port built auto-negotiation

protocol can detect or negotiate the transmission speed

of the network automatically. Please use CAT-5 cable to

connect the Network Camera to a 100Mbps Fast Ethernet

network switch or hub.

Note: ONLY use one power source, either from DC or from

802.3af Power over Ethernet.

MicroSD Card

Slot

The IP Camera has built-in a MicroSD card slot accepts

MicroSD memory card for image / video event recording.

Audio Out Connect a loud speaker to the IP Camera. This is for voice

alerting and two-way audio.

Audio In Connect a microphone to the IP Camera.

GPIO The 7 pin terminal block includes 4 input ports and 1

output ports.

Terminal block for I/O connectors:

Name Pin Function

GND 1Four sets of Digital Input, DI1 until DI4; the internal

device is also photo-coupled electrical relay. In practice,

the external device can be simply an On/Off switch.

Four sets of On/Off switch can be connected as different

trigger source.

Digital input 4 2

Digital input 3 3

Digital input 2 4

Digital input 1 5

DO_NO 6

Digital output implementation; Pin6 to COM (Pin7) is a

Photo-coupled relay on Normal Open status. External

device can directly connect to the terminals. However the

current that will go through the 2 nodes must not exceed

130mA.Anexternal“Relay”canalsobeconnectedtothe

terminals as an implementation. In this case, current (or/

andvoltage)limitationisspeciedbytheexternalRelay.

DO_COM 7

2.1.3 ICA-HM830 Installation

Step 1. Prepare a PC with Ethernet link to the network

Step 2. Connect an Ethernet cable

Connect LAN port (RJ-45) of the IP Camera to a network switch. When

this switch is a PoE device, you can ignore the next step.

Note

If there has an IEEE 802.3af PoE switch in your network, you can

connect the IP Camera’s LAN cable to this PoE switch to obtain

power. The power adapter is unnecessary when IP Camera is

Step 3. Attach the power supply

Plug in power adapter to IP Camera and connect another end to power

outlet.

Note

Only use the power adapter supplied with IP Camera otherwise, the

product may be damaged.

Step 4. Plug Power on 100V ~ 240V

 Ensurethepoweradaptorspecicationmatchesthepowersystem(100~

110VACor220~240VAC)andconnecttheadaptortotheoutlet.

Step 5. Check LED status

 The Power LED is dened to identify IP Camera status. When IP Camera

bootingtheLEDwillbeashingandwhileIPCameraisreadytheLEDwill

be green.

Step 6. Adjust lens focus

Clockwise or counter-clockwise rotation the IP Camera lens for adjust

focus.

2.1.4 Wall/Ceiling Mount Installation Procedure

Step 1. Takethewallmountbracket,putitonthetargetplaceandxitwiththe

supplied screws (total of 2).

Step 2. Load the camera into the wall mount, be sure the camera is mated with

twoxedscrew,androtatethecameratolockitinposition.

2.2 ICA-HM830W 2Mega-Pixel Fish-Eye Panorama IP Camera

2.2.1 ICA-HM830W Package Content

IP camera unit x 1

Power Adapter x 1

Quick Installation Guide x 1

User’s manual CD x 1

Wall Mount Kit x 1

GPIO Connector x 1

2.2.2 ICA-HM830W Physical Details

ICA-HM830W Front Panel:

Speaker

Light Sensor Reset Button

MIC

Interface Description

Light Sensor

The Light sensor is for detect IP Camera environment

illuminant, and if IP Camera in the dark/night environment that

willletIRcutlteroffforclearlynightview.

MIC The IP Camera has built-in an internal microphone. This

microphone is hidden in the pinhole located on the front panel.

Reset Button This button is hidden in the pinhole. Please refer to the user’s

manual for more information.

Speaker The IP Camera has built-in an internal speaker. This speaker is

hidden in the pinhole located on the front panel.

ICA-HM830W Bottom Panel:

DC 12V

MICRO SD

1 2 3 4 5 6 7

AUDIO

OUT

RJ 45

AUDIO

I N

DC 12V

RJ-45

MICRO SD

Audio Out

Audio In

GPIO

Interface Description

Power Jack

The input power is DC 12V,2A.

Note: ONLY use package power adapter supplied with the

internet. Otherwise, the product may be damaged.

RJ-45 LAN socket

Connect to PC or Hub/Switch.

For connect to 10Base-T Ethernet or 100Base-TX Fast

Ethernet cabling. This Ethernet port built auto-negotiation

protocol can detect or negotiate the transmission speed

of the network automatically. Please use CAT-5 cable to

connect the Network Camera to a 100Mbps Fast Ethernet

network switch or hub.

MicroSD Card

Slot

The IP Camera has built-in a MicroSD card slot accepts

MicroSD memory card for image / video event recording.

Audio Out Connect a loud speaker to the IP Camera. This is for voice

alerting and two-way audio.

Audio In Connect a microphone to the IP Camera.

GPIO The 7 pin terminal block includes 4 input ports and 1

output ports.
