Planet VIP-100T Bedienungsanleitung

Trademarks

Contents subject to revise without prior notice.

PLANET is a registered trademark of PLANET Technology Corp. All other trade-

marks belong to their respective owners.

FCC Warning

This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the Instruction manual, may cause harmful inter-

ference to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the You will be re-

quired to correct the interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may cause

radio interference, in which case the You may be required to take adequate

measures.

Revision

PLANET IP Phone VIP-100T

QUICK INSTALLATION GUIDE

For model: VIP-100T

Part No.: EMQ-VIP100TV1

Table of Contents

Chapter 1 Overview 1

1.1 Before Startup 1

1.2 Physical Details 1

1.2.1 Front view and keypad function 2

1.2.2 Rear view 3

Chapter 2 Basic Configuration 5

2.1 Initialize VIP-100T 5

2.1.1 Start up 5

2.1.2 LCD configuration 6

2.1.2.1 System Configuration 8

(i) Connect Configuration 8

(ii) User Line Number 11

(iii) Firmware Update 12

(iv) Hardware Test 12

(v) Reboot 12

Chapter 3 Making Calls 13

3.1 IP address call (P2P mode) 13

3.1.1 P2P mode Operation Steps 13

3.2 GK mode Operation Steps 15

3.3 Quick Dial example 16

3.3.1 Dial to local in peer to peer (P2P) mode 16

3.3.2 Phone Book web configuration sample 17

Chapter 4 Quick Reference in CD-ROM Guide 19

Chapter 1

OVERVIEW

Thank you for purchasing PLANET IP Phone VIP-100T (VIP-100T, in the following terms).

You can now ease the cost of long distance call yet still enjoy the toll voice quality via

Internet.

1.1 Before Startup

Before your rst time start up, please check if the package comes with following items:

• VIP-100T

• Your manual CD

• Quick Installation Guide

• RJ-45 cable

And later, you are required to familiar your environment, your TCP/IP network and your

phone systems.

1.2 Physical Details

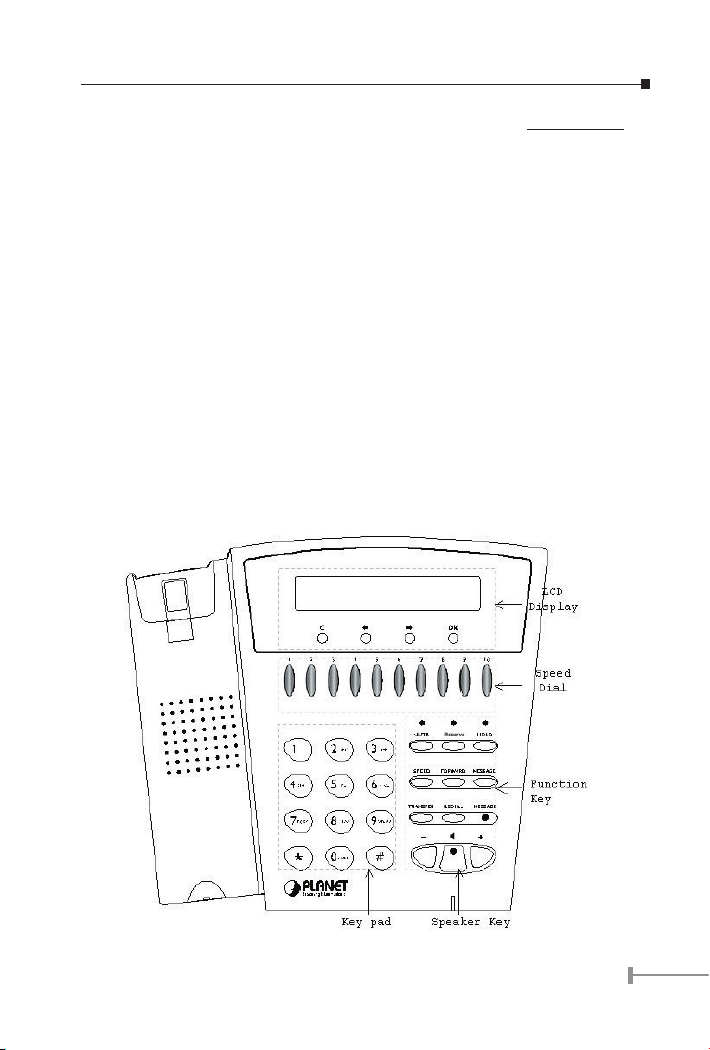

1.2.1 Front view and keypad function:

● C: Cancel and Clear

● áâ : Move to left /previous and right/next.

● OK: Press OK to confirm the modification.

● Direct Line (DL) Button 1 – 10: Speed dialing according to phone book data

1-10.

● “+” and “- ” key: Adjust voice volume in communication.

● X : Speaking without picking up handset.

● MUTE: Mute the voice of MIC and let others can’t hear from You in communica-

tion.

● HOLD: To hold a call with H.450 function.

● SPEED: Press SPEED and number (Phone book index) to do speed dial accord-

ing to phone book data.

● FORWARD: Forward an incoming call to another IP device by H.450 forward

function.

● MESSAGE and its indicated LED light: When missing the incoming calls,

the message LED will be flashing. You can know the information of miss call by

pressing the message button.

● TRANSFER:

1. Transfer a call by H.450 transfer function. Press TRANSFER button in com-

munication and press phone No. which You want to transferred to can trans-

fer this call .

2. Change characters to be capital or lowercase: when press TRANSFER before

press letters can switch type of letters.

● REDIAL: Redial the last outgoing call.

● Number 1 –10, * and #: The function is as the same as the general phone

set.

● Corresponding list of keypad and symbol:

1 “Space” ; “,” ; “.” ; “!” ; “1”

2 “A” ; “ B” ; “C” ; “2”

3 “D” ; “E” ; “F” ; “3”

4 “G” ; “H” ; “I” ; “4”

5 “J” ; “K” ; “L” ; “5”

6 “M” ; “N” ; “O” ; “6”

7 “P” ; “Q” ; “R” ; “S” ; “7”

8 “T” ; “U” ; “V” ; “8”

9 “W” ; “X” ; “Y” ; “Z” ; “9”

Ü“-“ ; “?” ; “*”

0 “0”

# “_” ; “@” ; “#”

1.2.2 Rear view

9V DC 9V DC Power input outlet

LAN RJ-45 connector, connected directly to Switch/

Hub through straight CAT-5 cable.

PC RJ-45 connector, connected directly to the PC

through straight CAT-5 cable

LED Display Two LED indicated lights; LNK/ACT and 100 for

LAN port and PC port. When network status is

in normal, LED of LNK/ACT will be flashing;

when transmit rate is in 10 Mbps/100Mbps,

LED of 100 will light off/on.

Chapter 2

BASIC CONFIGURATION

This chapter shows you the starting point of VIP-100T to be integrated into your network

and/or Internet. Conguration steps in this quick guide will be focused on keypad

conguration. More detail conguration, including keypad, web, and telnet instructions

will be illustrated in respective chapters in user’s manual.

2.1 Initialize VIP-100T

2.1.1 Start up

(a) Power on, the LCD screen shows as below after about 15 seconds.

VIP-100T

Board Start Booting

(b) Wait about one minute until VIP-100T finishes boot program initialization.

System Initializing………..

(d) Then VIP-100T will come into standby mode: The main LCD screen would be

shown as similar as following. The P2P word means VIP-100T is now in Peer-to-

Peer Mode, and when VIP-100T is connected to SNTP server, on LCD will show

current time obtained from SNTP server.

VIP-100T

P2P 10:10:10 AM

2.1.2 LCD conguration

Most functions may be directly congured via keypad operations in VIP-100T.

VIP-100T LCD menu levels can be viewed below:

1st Level 2nd Level 3rd Level

1. System Configuration 1. Connect Configurations 1. IP Address

2. Subnet Mask

3. Gateway

4.Primary DNS

5.Secondary DNS

6. Gatekeeper

7. Second Gatekeeper

8. SNTP Configuration

9. Connection Mode

10. DHCP mode

11. Token Password

12. Management Center

13. GRQ Option

14. Gatekeeper ID

2. User Line Name

3. Firmware Update 1.Download Method

2.Set File Server IP

3.Set TFP User Account

4.Indicate File Name

5.Start Download

6.Firmware Version

4. Hardware Test

5. PPPoE configuration 1.PPPoE Mode

2.Username And Pass-

word

3.Retry When Disconnect

4.PPPoE Operation

6. Reboot

1st Level 2nd Level 3rd Level

2. User Line Number 01.Line Number 1

02.Line Number 2

03.Line Number 3

04.Line Number 4

05.Line Number 5

06.Line Number 6

07.Line Number 7

08.Line Number 8

09.Line Number 9

10.Line Number 10

3. Ring Configuration 1.Ring Style Selection i.Low

ii.Middle

iii.High

2.Ring Volume Control Ring Volume: 10 to 63

4. Indicate Forward Type 1.Activate

2.Deactivat

5. Message Box 1.New Call

2.History

6. Phone Address Book 1.Display

2.Add u NAME:

u NUM:

3.Edit

4.Delete
