Planet ICA-601 Bedienungsanleitung
1
Table of Contents
1. Introduction .........................................................................2
1.1 Before Installation.................................................................... 2
1.2 System Requirements ............................................................. 2
2. Hardware Installation ..........................................................3
2.1 ICA-601 - Indoor Speed Dome Internet Camera ..................... 3
2.1.1 Package Content............................................................ 3
2.1.2 Physical Installation........................................................ 4
2.2 ICA-651 - Outdoor Speed Dome Internet Camera .................. 8
2.2.1 Package Content............................................................ 8
2.2.2 Physical Installation........................................................ 9
3. Identication of Cables......................................................10
4. Initial Utility Installation and operation...............................12
4.1 IPWizard Installation.............................................................. 12
4.2 Wizard function...................................................................... 15
4.3 Username and Password ...................................................... 16
5. Further Conguration ........................................................16
2
1. Introduction
Thank you for purchasing the ICA-601 / ICA-651. It is versatile and high image solution of the perfect
outdoor surveillance application for day and night. The ICA-601 / ICA-651 is also a stand-alone
camera system with a built-in processor and web server that provides highest quality video and system
performance.
1.1 Before Installation
Before installation, please be sure to read this quick installation guide of user’s manual (of the bundled
CD) carefully to complete machine installation.
1.2 System Requirements
Network Interface 10/100MBase-TX Ethernet
Monitoring System Recommended for Internet Explorer 6.0 or later
System Hardware
· CPU: Pentium 4, 1.5GHz or above
· Memory Size : 512 MB (512 MB or above Recommended )
· VGA card resolution : 1024 x 768 or above
· Sound card
· Network bandwidth: In VGA resolution mode, minimum upload
bandwidth is 1Mbps.
System Requirement For Viewer & Recorder Application
Support OS Win 2000 / XP
System Hardware
16 cameras surveillance application
· CPU: Pentium 4, 2.8GHz or faster
· Memory Size : 512 MB or above
· VGA card resolution : 1024 x 768 or above
· Sound card
· Free space of hard disk: 10GB or higher
· Power Supply: 300W or higher
3
2. Hardware Installation
2.1 ICA-601 - Indoor Speed Dome Internet Camera
2.1.1 Package Content
ICA-601 x 1 User’s Manual
and Utility CD x 1 Quick Guide x 1
Leaf Spring x 3 Telephone box x 1 Screw x 3
Power Adapter x 1 Software CD x 1
4
2.1.2 Physical Installation
Note
1. During the installation, please take care and avoid crash. That may cause the de-
vice damage.
2. Please make sure the hardware had been located on the cell or roof properly. If
the hardware drops down, it is possible make someone hurt. Please check the
hardware again after the installation.
1. Cut a 218~220mm diameter hole on false ceiling (according to speed dome outer cover).
The ceiling needs to embed the 115mm depth speed dome IP cam body.
2. Take away the 3pcs leaf springs inside the accessory box. Attach the springs onto the
outer cover. According to thickness of ceiling to adjust the location of springs. Find springs
directions as following photo:
5
3. Push this outer cover into the ceiling. Check if the leaf springs are clipped to ceiling tight-
ly.
4. Find safety hook inside the outer cover. Use the safety hook hanging the inner speed dome
cover
5. Have all the cables across the outer cover
6

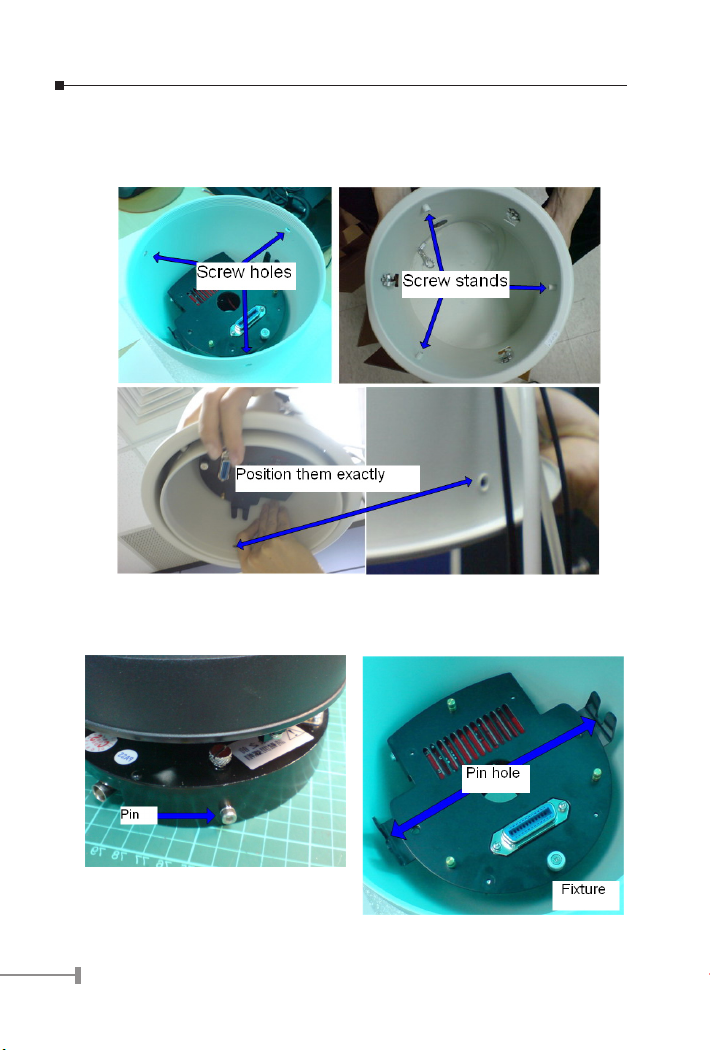

6. Take away 3pcs screws inside the accessory box. Use the screws to fix the inner cover and
outer cover.
7. Check speed dome main body. Fit in the pin into pin hole of base plate. Drive 2pcs screws
until the speed dome fits the plate tightly and solidly
7
8. Follow anti-clockwise to fix the hemisphere cover onto speed dome.
9. Now the ICA-601 is fixed on the ceiling.
8
2.2 ICA-651 - Outdoor Speed Dome Internet Camera
2.2.1 Package Content
ICA-651 x 1
User’s Manual
and Utility CD x 1
Quick Guide x 1
Cable tube x 1 Telephone box x 1 Wrench x 2
Power Adapter x 1 Software CD x 1
9
2.2.2 Physical Installation
Note
1. During the installation, please take care and avoid crash. That may cause the de-
vice damage.
2. Please make sure the hardware had been properly locate on the wall. If the hard-
ware drops down, it is possible make someone hurt. Please check the hardware
again after the installation.
1. Use the rubber ring, nut, and screw to mount the power box and ICA-651 to the wall.
Note: You need to choose correct screws to fix the ICA-651 to the wall. Other types of
screws need to buy locally.
2. Now the ICA-651 is fixed on the wall.
10
3. Identication of Cables
1. RJ45 LAN socket
Connect to PC or Hub/Switch. For connect to 10Base-T Ethernet or 100Base-TX Fast Eth-
ernet cabling. This Ethernet port built N-Way protocol can detect or negotiate the transmis-
sion speed of the network automatically. Please use Category 5 “straight through” cable to
connect the ICA-601 / ICA-651 to a 100Mbps Fast Ethernet network switch or hub.
Note: In case you need to connect the device to PC or notebook directly, you should use
cross over cable instead.
2. RS-485 & DI/DO
Connect to a local keyboard controller and connect to sensor in and alarm out devices
Inside the TEL box:
Name Function
12VDC DC 12V (50mA maximum)
GND GND
D+ RS485 data +
D- RS485 data -
DI Digital signal input
DO Digital signal output
RJ-45 LAN Video out Line in12V DC in Line out
RS-485 & DI/DO (Connect to a TEL box)
