Planmeca X-RAY GENERATOR PCB Leitfaden

X-RAY GENERATOR PCB

REPLACEMENT INSTRUCTIONS

WARNING

Make sure that the power supply is switched off before starting Generator PCB

replacement.

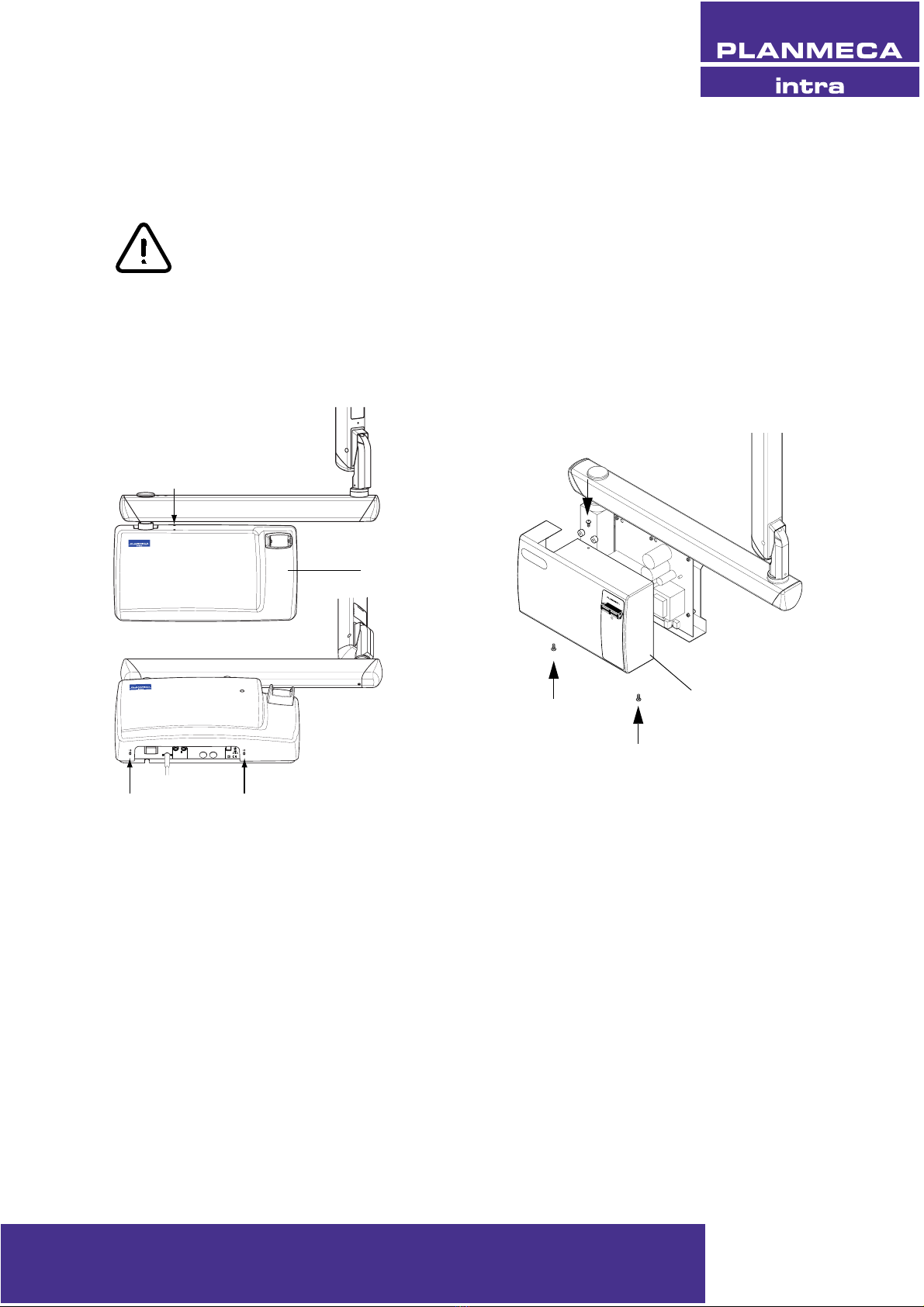

1. Loosen the three attachment screws and remove the generator cover.

Complieswith

DHHSradiation

performance

standards

21CFR

SubchapterJ.

220V- 240 V AT

100V- 115 V 15 70kVmaximum 1800mAs/h

Totalfiltration:2,0 mm EquAl

WARNING:

Forcontinued protection

againstrisk of fire replace

onlywith same type and

ratingof fuse.

Manufacturedby:

PlanmecaOY

00880HELSINKI

FINLAND

LBL-Z-006D

1000VA50/60Hz

0537

I_7.eps

Generator cover

PLANMECA INTRA

Prostyle

INTRA

PROSTYLE INTRA

Generator cover

Publication number 10010526 version 1

X-RAY GENERATOR PCB

2/4 Installation instructions

2. Measure that the mains voltage is not present at the mains input terminals (P5) marked N and L.

3. Disconnect the connectors from terminals P1, P3, P5, P6 P7, P8, P9 and P10.

NOTE In Intra X-ray units manufactured after October 2000 the generator PCB is attached to the

frame with the two M3x6 DIN 912 screws located behind the generator assembly frame.

You have to lift the whole Generator PCB assembly from the wall adapter before you can

remove the PCB , see step 5 and step 6, number 1. With the older X-ray units you can pro-

ceed from step 6, number 2.

4. Loosen the four M4x8 ISO 7380 screws of the generator assembly frame (1). Lift the generator

assembly upwards (2). The generator assembly can now be lifted away from the wall adapter (3).

I_tech_3.eps

P8P10

I_tech_4_2.eps

3/4

Installation instructions

X-RAY GENERATOR PCB

5. (1) Lift the generator assembly away from the wall adapter and open the two M3x6 DIN 912 screws

located behind the generator assembly frame.

(2) Remove the eight M4 DIN 934 attachment nuts and ø4.3 DIN 6798 washers from the Generator

PCB (2).

(3) Unscrew the two M4x8 DIN 84 screws.

6. Remove the Generator PCB.

7. Install the new Generator PCB in reverse order. Note, that the new Generator PCB is not attached

to the frame with the two M3x6 DIN 912 screws located behind the generator assembly frame.

I_tech_4_3.eps

M4 DIN 934 nut

and M4 washer

X-RAY GENERATOR PCB

4/4 Installation instructions
