ENGLISH

LCD TV User Guide

Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of re or electric shock, do not expose this

equipment to rain or moisture.

This symbol is intended to alert the user to avoid the risk of

electric shock, do not disassemble this equipment by anyone

except a qualied service personnel.

This symbol is intended to alert the user to the presence

of important operating and maintenance instructions

in the literature accompanying the appliance.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure.

WARNING

CAUTION

ENGLISH

2LCD TV User Guide

Safety Instructions

To prevent any injuries, the following safety precautions should be observed

in the installation, use, servicing and maintenance of this equipment.

Before operating this equipment, please read this manual completely,

and keep it nearby for future reference.

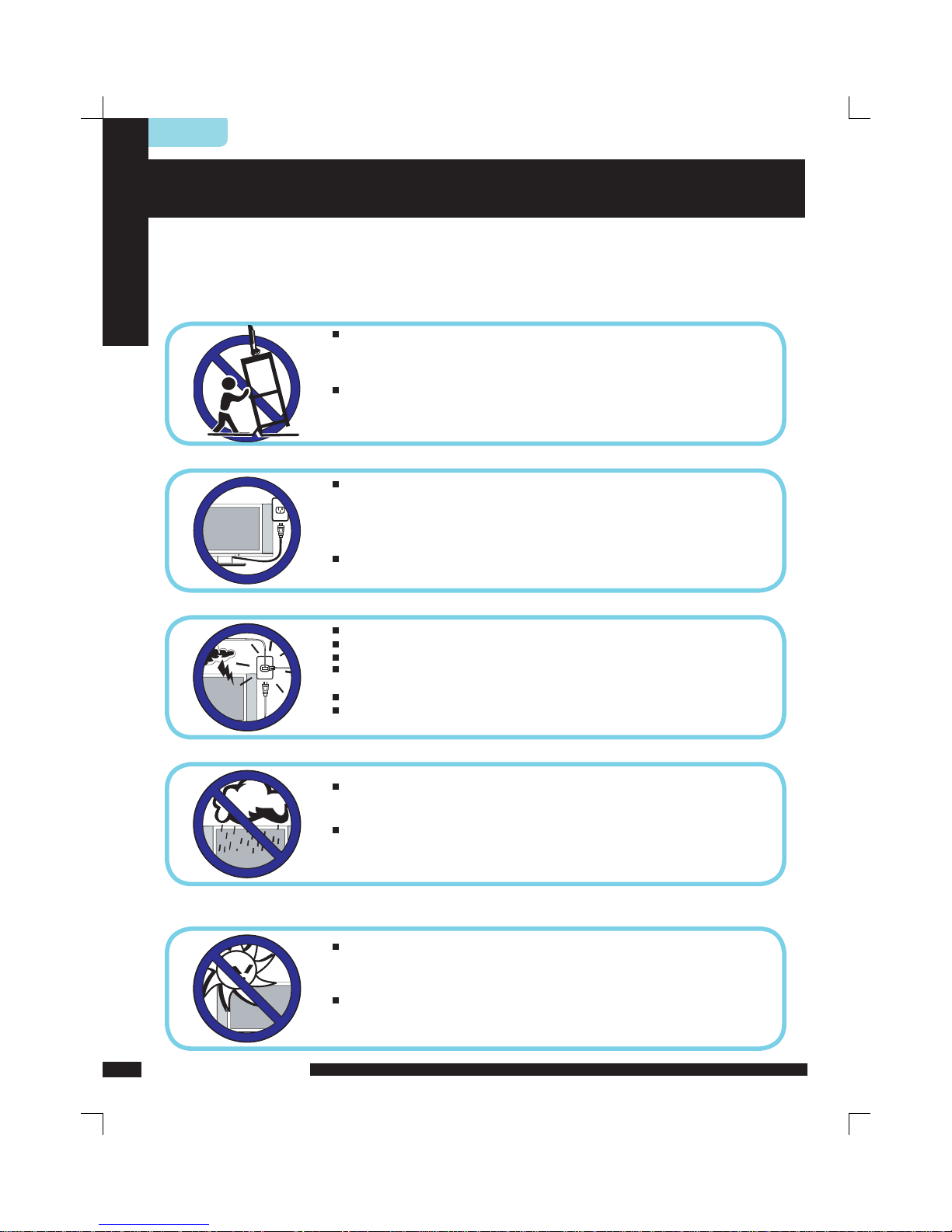

Do not place the equipment on any uneven or unstable carts,

stands, tables, shelves etc..

The equipment may fall, causing serious injuries to children or adults

and serious damage to the equipment itself.

Use only a cart or stand recommended by the manufacturer.

This equipment and recommended cart or stand should be handled

with care. Quick stops, excessive force, and uneven surfaces may

cause the equipment and recommended cart or stand to overturn.

Never overload wall outlets and extensions.

Use and handle the power cord with care.

Do not place any heavy objects on the AC power cord.

Do not pull the AC power cord. Do not handle the AC power cord

with a wet hand.

Do not touch the power cord and antenna cable during lightning.

When the equipment has not been used for a long period of time,

unplug it from the wall outlet.

Do not place, use or handle this equipment near water.

Never expose the equipment to liquid, rain, or moisture.

Seek for service if any of the above is spilled into the equipment.

Do not expose the equipment to extreme temperatures or

to direct sunlight, the equipment may overheat and can be damaged.

Do not install the equipment near any heat sources such as

radiators, heat registers, stoves, or any other apparatus

that might produce heat.

IMPORTANT SAFETY INSTRUCTIONS

Do not disable the 3-wire grounding type plug. The grounding pin

on the 3-prong plug is an important feature. Removing the grounding

pin will increase the risk of damaging the equipment.

If you can not fit the plug into the electrical outlet, contact an

electrician to install a grounding outlet.

Always operate this equipment from the type of power source

indicated on the rear of the serial/model plate.

ENGLISH

LCD TV User Guide

Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS

Do not attempt to service the equipment yourself.

Opening and removing the covers may expose you to dangerous

voltage or any other hazards and may void your warranty.

Refer service from qualied personnel.

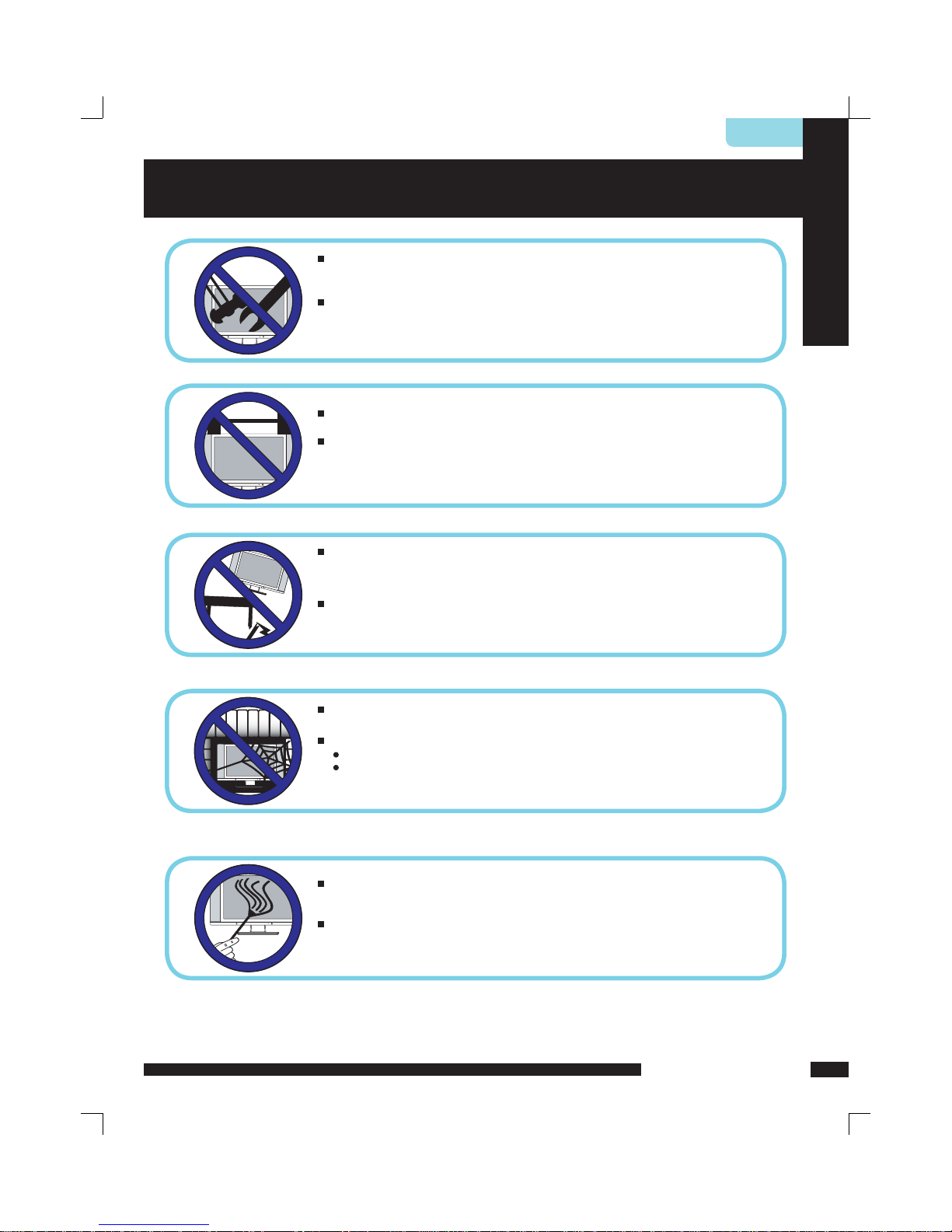

Do not place or drop any other objects on top.

Do not insert anything into the ventilation holes of your

equipment.Inserting any metal or ammable objects may result to

re or electric shock.

Do not place the equipment on uneven or unstable carts, stands,tables, shelves etc..

The equipment may fall, causing serious injuries to children or adults and serious

damages to the equipment itself.

Always place the equipment on the oor or on a surface that

is sturdy, level, stable and strong enough to support

the weight of the equipment.

Do not block any ventilating openings, leave an open space around the equipment.

Never place the equipment :

on a bed, sofa, rug, or any other similar surfaces;

too close to drapes/curtains/walls, in a bookcase,built-in cabinet,

or any other similar places that may cause poor ventilation.

Always remove the cord from the outlet before cleaning the equipment.

Never use cleaners, harsh or abrasive chemicals or solvents on the

equipment. Clean only with a dry, soft, lint-free cloth.

EXAMPLE OF OUTDOOR ANTENNA GROUNDING

ENGLISH

4LCD TV User Guide

ANTENNA CONN.

ANTENNA CONNECTION

If an outdoor antenna is connected, follow the precautions below:

An outdoor antenna should not be located anywhere that can be

in contact of overhead power lines, or any other electric light or power

circuits.

When installing an outdoor antenna system, extreme caution should be

taken to prevent contact with power lines. Direct contact with power lines

may be fatal and should be avoided at all costs.

CAUTION: Antenna installation should only be carried out by a qualified

technician.

ENGLISH

LCD TV User Guide

ANTENNA CONN.

ANTENNA CONNECTION

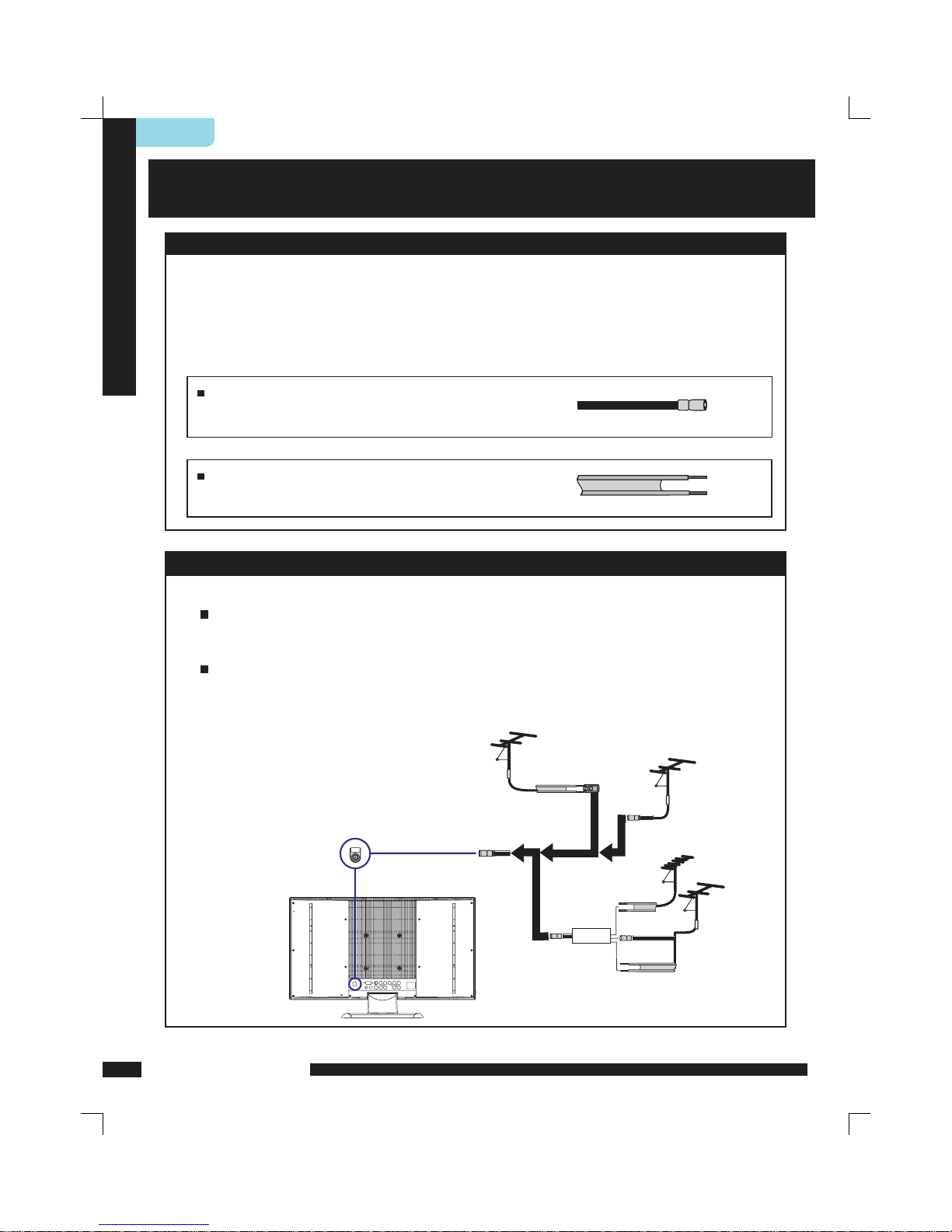

A 75-ohm coaxial cable connector is built into the set for easy hookup.

When connecting the 75-ohm coaxial cable to the set, place the 75-ohm cable into

the ANT. terminal.

Cable TV (CATV) Connection

OUT

Cable TV converter/

descrambler

(Not included)

RF switch

(Not included)

2 set signal

splitter

(Not included) Cable TV Line

Please note: the RF switch is required to provide two inputs (A and B) . (not included)

A position on the RF switch (not included) ; you can view all unscrambled channels

by using the TV channel keys.

B position on the RF switch (not included) ; you can view all scrambled channels via

the converter/descrambler by using the converter channel keys.

Some cable TV companies oer premium pay channels. Since the signals of these

premium pay channels are scrambled, a cable TV converter/descrambler is generally

provided to the subscriber by the cable TV company.

This converter/descrambler is necessary for normal viewing scrambled channels.

(Set your TV to channel 3 or 4, typically one of these channels are used.

If this is unknown, consult your cable TV company.)

For more specic instructions on installing cable TV, consult your cable TV company,

One possible method of utilizing the coverter/descrambler provided

by your cable TV company is explained below.

ENGLISH

6LCD TV User Guide

ANTENNA CONN.

ANTENNA CONNECTION

ANTENNAS

The antenna requirements for good color TV reception are more important than those of

a black &white TV reception. For this reason, a good quality outdoor antenna is strongly

recommended.

The following is a brief explanation of the type of connection that is provided

with the various antenna systems.

A 75-ohm system is generally a round cable

with PAL-type connector that can easily

be attached to a terminal without tools (not included).

A 300-ohm system is a flat twin-lead cable

that can be attached to a 75-ohm terminal

through a 300-75-ohm adapter (not included). 300-ohm twin-lead cable (at)

PAL-type connector

75-ohm coaxial cable (round)

OUT IN

75-ohm

coaxial cable

75-ohm

coaxial cable

Combiner

(not included)

300-ohm

twin-lead cable

300-ohm

twin-lead

cable

300-ohm

twin-lead cable

300/75-ohm adapter

(not included)

UHF

Antenna

VHF

Antenna

VHF/UHF

Antenna

VHF/UHF

Antenna

Use one of the following two diagrams when connecting an outdoor antenna.

A: Use a VHF/UHF combination outdoor antenna.

B: Use a separate VHF and/or UHF outdoor antenna.

Connect the outdoor antenna cable lead-in to the ANT. terminal located on the rear

of the equipment.

OUTDOOR ANTENNA

TV Tuner connector

A. Combination VHF/UHF antenna

B. Separate VHF

and/or UHF Antennas

Rear

ENGLISH

LCD TV User Guide

CONTENT

PREPARATION .......................................................................................................................................................... 8

Features .................................................................................................................................................................................................................... 8

Package Contents ............................................................................................................................................................................................... 9

LCD TV .................................................................................................................................................................................................................. 10

Front View .......................................................................................................................................................................................................... 10

Rear View ............................................................................................................................................................................................................... 11

Remote Control ................................................................................................................................................................................................. 12

Using your LCD TV................................................................................................................................................................................. 14

INSTALLATION ........................................................................................................................................................ 15

Connecting a TV Cable or an Antenna ......................................................................................................................................................... 15

Connecting a DVD Player ........................................................................................................................................................................... 16

Connecting a VCR & a Video Camera ................................................................................................................................................... 17

Connecting a TV Box and Satellite Receiver ............................................................................................................................. 18

USING THE FEATURES ............................................................................................................................................ 19

Basic Operation ................................................................................................................................................................................................. 19

OSD Menu Operation ....................................................................................................................................................................................... 20

Video ..................................................................................................................................................................................................................... 20

Audio ...................................................................................................................................................................................................................... 21

Tuner........................................................................................................................................................................................................................ 22

Setup .................................................................................................................................................................................................................... 23

TROUBLESHOOTING.............................................................................................................................................. 25

SPECIFICATIONS..................................................................................................................................................... 26.

ENGLISH

PREPARATION

Features

PREPARATION

Congratulations on the purchase of your new High Definition Compatible

Television. In order to maximize the potential of this television, you must use

it in conjunction with a High Definition Signal Source, utilizing a proper High

Definition receiving unit (often referred to as a “set-top” box). Only “true”

High Definition transmitted video will yield optimum picture quality.

Please contact your cable or satellite provider for more information on

how to receive High Definition programming.

VGA Support:

720x400/70Hz~1792x1344/60Hz

Multimedia Jack

S-Video Jack

HD Component Video Jack (YPbPr)

PC Jack

A/V Jack

Features

High Brightness / Contrast Image

Brightness: 450 cd/m2

Contrast Ratio: 500:1

NICAM/ FM-Stereo Function

Searching channels

Auto search

Sleep-Timer

User selectable color temperature settings

Enhance audio processing

Built-In CATV tuner

Faroudja DCDI Edge Processing

"DCDi® by Faroudja" is a registered trademark of Genesis Microchip Inc.

WSS (Wide Screen Scale ) Function

This function can automatically convert and display any aspect ration (4:3 / 16:9) TV

broadcast signal.

Support For Teletext Function

This function can oer all sorts of information provided by TV company.

ENGLISH

PREPARATION

Package Contents

*Most devices (VCRs, DVD player, etc.) come with the necessary

cable for connection. If you want to set up a complex system, you may need to buy

extra cable, connector, etc.

Once you open the box, make sure all of the following contents are included.

If you’re missing any items, please return this product to the original place

of purchase.

These items are all you need to set up and operate the LCD TV

in its basic conguration.

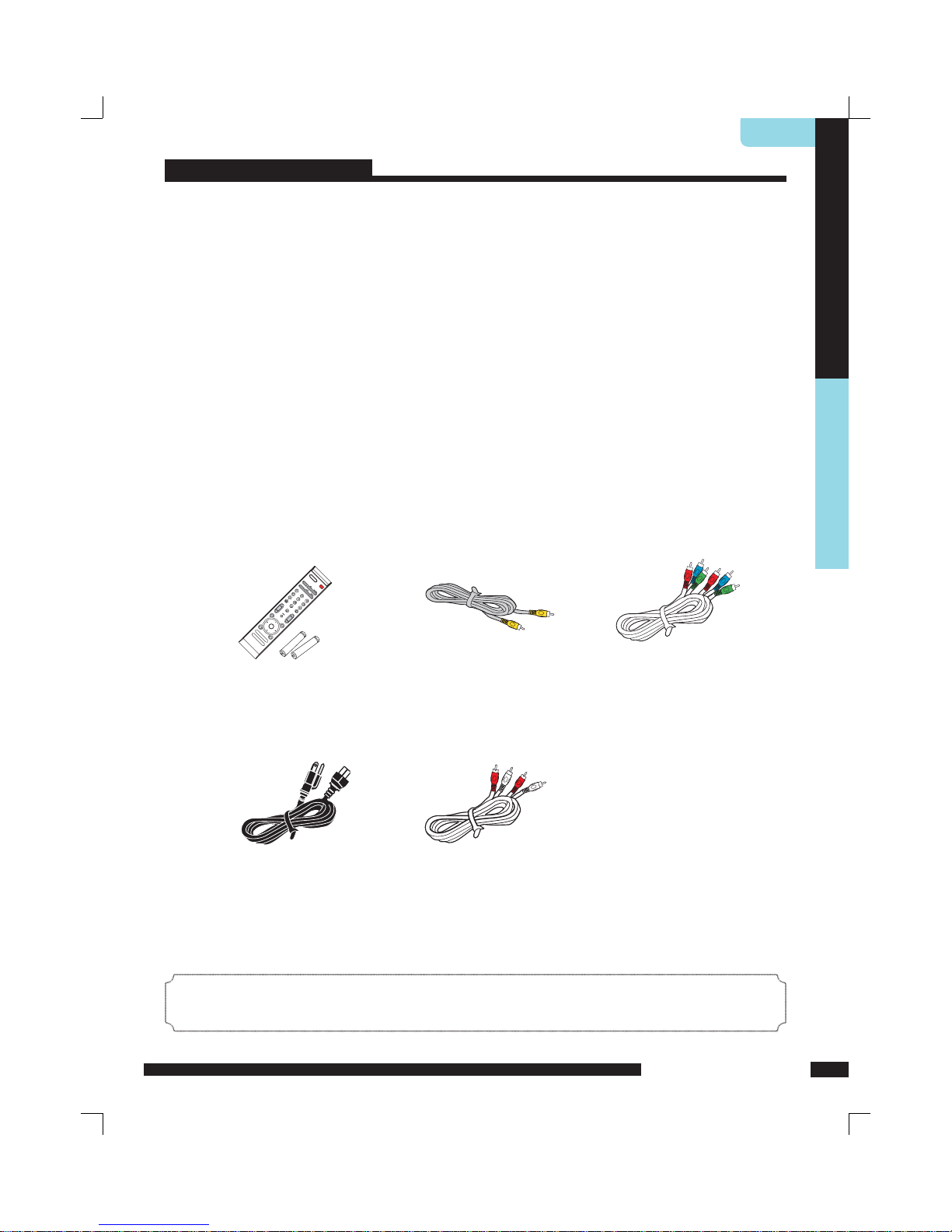

Remote control/

AAA batteries

 Video Cable

 Component Cable



Audio Cable



Power Cord

 Warranty Card



Quick Start Guide



User’s Manual



LCD TV

Inhaltsverzeichnis

Andere Polaroid LCD-Fernseher Handbücher

Polaroid

Polaroid HD-Ready Widescreen LCD TV Bedienungsanleitung

Polaroid

Polaroid 3211-TLXB - 32" LCD TV Bedienungsanleitung

Polaroid

Polaroid 4241-TLXB Bedienungsanleitung

Polaroid

Polaroid FLU-1514 Bedienungsanleitung

Polaroid

Polaroid FLM-3201 - 32" LCD TV Bedienungsanleitung

Polaroid

Polaroid FLM-3232 Bedienungsanleitung

Polaroid

Polaroid FLM-2632 - 26" LCD TV Bedienungsanleitung

Polaroid

Polaroid FLM-153B Bedienungsanleitung

Polaroid

Polaroid 1511-TLXB - 15.4" LCD TV Bedienungsanleitung

Polaroid

Polaroid TLA-01911C Bedienungsanleitung

Polaroid

Polaroid 37" Bedienungsanleitung

Polaroid

Polaroid TLU-03711C Bedienungsanleitung

Polaroid

Polaroid 32GSD3000 Bedienungsanleitung

Polaroid

Polaroid HD-Ready Widescreen LCD TV Bedienungsanleitung

Polaroid

Polaroid TLA-04641C - 46" LCD TV Bedienungsanleitung

Polaroid

Polaroid LC20H15 Bedienungsanleitung

Polaroid

Polaroid FLM-0711LA Bedienungsanleitung

Polaroid

Polaroid TLA-04011C Bedienungsanleitung

Polaroid

Polaroid FLA-1512B Bedienungsanleitung

Polaroid

Polaroid FCM-0710 Bedienungsanleitung

Polaroid

Polaroid FLM-1507 Bedienungsanleitung

Polaroid

Polaroid FLM-2632 - 26" LCD TV Bedienungsanleitung

Polaroid

Polaroid FULL HD LCD TV Bedienungsanleitung

Polaroid

Polaroid FLA-1911B Bedienungsanleitung

Beliebte LCD-Fernseher Handbücher anderer Marken

LG 32LC4R* Bedienungsanleitung

ViewSonic

ViewSonic N4200w-1 VS10945-1M Bedienungsanleitung

Salora

Salora 22LED1600 Bedienungsanleitung

Samsung

Samsung LA32E420 Leitfaden

Dell

Dell W1900 19 Gebrauchsanweisung

Samsung

Samsung LN40C670M1F Bedienungsanleitung

Samsung

Samsung Series 4+ Bedienungsanleitung

Samsung

Samsung 5 Series Bedienungsanleitung

Grundig

Grundig 40 VLE 8230 BP Bedienungsanleitung

Philips

Philips 43PFL4901/F7 Bedienungsanleitung

Sony

Sony Bravia XBR-43X830C Bedienungsanleitung

LG 32LS350 Bedienungsanleitung

VIORE

VIORE LED32VF60 Bedienungsanleitung

Toshiba

Toshiba Regza 42HL167 Bedienungsanleitung

JVC

JVC LT-32A220 Bedienungsanleitung

Philips

Philips 20TA1000/93 Bedienungsanleitung

Philips

Philips 32PFL3158T/12 Bedienungsanleitung

Sony

Sony Bravia KDL-V32XBR2 Bedienungsanleitung
