Polaroid HD-Ready Widescreen LCD TV Bedienungsanleitung
Your TV may look different from the one pictured above.
Questions?
Need some help?
This manual should help you
understand your new product.
If you still have questions, call
our help line found on the
insert with this icon:
Or visit
www.polaroid.com/support.
32”/37” 16:9 HD-READY DIGITAL LCD
TABLE OF CONTENTS
Important Information ..................................................................1
1.1-Cleaning the screen and cabinet... .......................................................1
1.2-Disposing of your TV at the end of service life... ...................................1
1.3-Superior features of your integrated digital television ............................1
1.4-Receiving digital broadcasting channels ...............................................1
Features of your new television .................................................2
2.1-Special Features ..................................................................................2
Important Safety Instructions ......................................................3
Start ................................................................................................6
4.1-Antenna connection .............................................................................6
4.2-Powering on your device and the initial use ..........................................6
4.3-Batteries ..............................................................................................6
Your new television ......................................................................7
5.1-TV Control Panel ..................................................................................7
5.2-Rear and Side External Connections ....................................................7

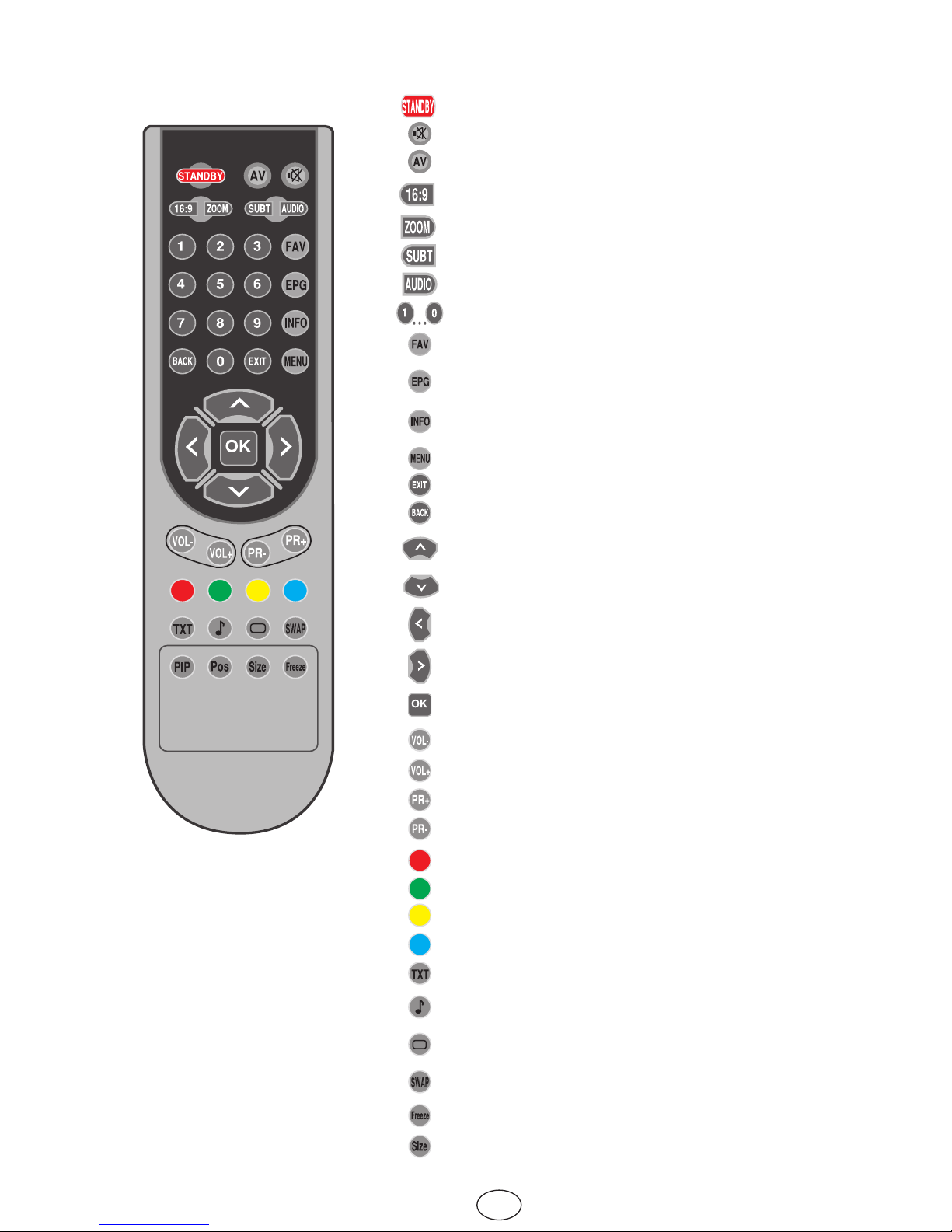

5.3-Remote Control ...................................................................................8
Performing the initial power-on settings ....................................9
6.1-TV controls ..........................................................................................9
6.2-Turning on the TV and Setting the Channels ........................................10
6.3-Performing Digital Tunings ...................................................................10
6.4-Performing Analog Tunings ..................................................................14
Settings of Your New Television .................................................17
7.1- Sound Menu Settings .........................................................................17
7.2-Picture Menu Settings ..........................................................................18
7.3-Features Menu Settings .......................................................................19
7.4-Other Picture Features .........................................................................20
Teletext ..........................................................................................21
External equipment connection ..................................................23
9.1-Connection types for external devices ..................................................24
9.2-PC Mode .............................................................................................24
9.3-Connecting a Video recorder device and a digital satellite receiver .......25
Help and tips .................................................................................26
Technical specifications chart .....................................................27
1 I GB
Polaroid. Add a little colour to your life.
Since 1937, people have turned to Polaroid for their photography needs.
Today, families look to Polaroid for consumer electronics that define the
digital age: plasma and LCD TVs, portable and standard DVD players,
digital cameras, personal media players, and so much more. And while our
selection has changed, you will still receive the same friendly, helpful
service that made Polaroid an icon.
Congratulations on your new Polaroid TV purchase. To ensure your new
TV provides you with years of enjoyment, please read this guide carefully.
LCD panels are produced with state-of-the-art technology. However, there may be missing or
lit spots on the screen under certain circumstances. That does not mean that the product is
faulty.
1.1-Cleaning the screen and cabinet...
After powering off, wipe the screen and the cabinet clean with a soft and dry cloth. We
recommend that you do not use patented polishes or solvents on the screen or cabinet since
they may cause damage.
1.2-Disposing of your TV at the end of service life...
The cold cathode fluorescent lamp found in your LCD screen contains a very small amount of
mercury. Once your TV set has completed its physical life, please dispose of it in accordance
with local government regulations or leave it at a recycling centre.
1.3-Superior features of your integrated digital television
This television can receive and process all analog and digital broadcastings. This television
set has an integrated digital and analog receiver. The digital receiver unit processes the
signals coming from digital transmitters and can convert them into superior sound and image
qualities. TV Guide (valid for digital broadcastings only) informs you about changes in the
program list briefly and provides program lists of all digital broadcastings for a number of
forthcoming days. You can display detailed information about each program by pressing a
single button if this feature is supported by the broadcasting enterprise. This television has a
comprehensive and user friendly menu configuration.
1.4-Receiving digital broadcasting channels
You will need outdoor or indoor (passive or active indoor antennas used together with its own
power cord) antennas to receive digital broadcastings. Contrary to the analog broadcastings,
all digital broadcastings may not have their own transmission frequency. Instead, various
digital broadcasting channels are gathered in regional or national groups called bouquets.
You can find current transmission data from teletexts of various broadcasting enterprises or
from TV guide or from the internet.
©2008 Polaroid
All rights reserved.
“Polaroid” and “Polaroid and Pixel” are trademarks of Polaroid Corporation. Changes are
periodically made to this document. Changes, technical inaccuracies, and typographic errors
will be corrected in subsequent editions. For service, support and warranty information, visit
www.polaroid.com.
1 Important Information
2 I GB
2
We would like this product, which has been manufactured in modern facilities in accordance
with total quality principles, to offer you the best performance. Therefore, we would like you to
read this entire manual carefully before you use your product and keep it for future reference.
2.1-Special Features
• Compatible with cable broadcasts
• Wide angle of vision
• Scart socket, AV Socket and external sound system connection
• S-VHS and Cinch inputs for S-Video connection
• PC connection
• Low energy consumption
• AVL
• Programmable power on
• Programmable power off
• 10 page / 250 (*) page Teletext
• Toptext (*)
• Graphic equalizer
• Sharpness feature in Color Transitions (CTI)
• Sharpness feature and picture resolution (LTI) in black-white transitions
• A clearer Picture made possible with a Digital Comb Filter
• On-screen viewing of all settings, program numbers and all the processes
• Manual Fine Tuning
• 100 Analog Program memory
• 1000 Digital channel memory
• Infrared remote control equipped with all functions
• Child Lock
• Feature of viewing the NTSC broadcast via Scart input
• Easy performance of the processes with the advanced menu system
• 4:3, 16:9, 14:9 Letterbox(*), Subtitle(*) and Panorama(*) picture formats
• 8-day EPG (Electronic Program Guide)
• MHEG 1.06
• List of 6 favorite channels in digital mode
• CI slot input
• HDMI connection (*)
• HDCP feature (*)
• HD-Ready (*)
• Ability to operate both with 230 V mains power and 12 V adaptor (*)
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks
or registered trademarks of HDMI Licensing LLC.
(*): These features are optional and they are not available on all models.
Your LCD TV has a Digital Tuner!
You may not have a digital signal yet, but it will be coming to you soon! In the meantime, if
you are having problems getting good reception, call our customer service helpline number.
Look for the insert with the phone icon for your area’s service number.
Features of your new television
3 I GB
3
This symbol is used to warn the user about the “dangerous voltage” contained
inside the housing of the product that may create a risk of electrical shock.
This symbol is used to remind the user important usage and service instructions
supplied with the device.
1) Please READ the operating
instructions before using
the device for the first time.
2) Please observe the
instructions contained in
the Operating Instructions.
3) Please consider all warnings.
4) MAKE SURE that all
power connections
(extension cables and the
connections between the
device components) have
been made properly and
in accordance with the manufacturer’s
instructions. Before making or changing
the connections, power off the device
and unplug the mains connection plug.
5) If you have any doubts regarding the
installation, operation or safety of the
device, please REFER to the vendor.
6) BE CAREFUL with glass panels and
covers on the device. The screen glass
may break and cause serious injuries if
something hits it.
7) To ensure adequate ventilation, please
leave a clearance area of at least 10 cm
around the television. This clearance
prevents the TV from overheating and
consequently causing damage.
• Using the device in dusty environments
should also be avoided.
• Never block the slots and openings by
placing the TV on a bed, sofa, pillow or
other similar surfaces.
MANUAL
• Never install the TV into closed places
such as bookcases or cabinets unless
adequate ventilation is provided.
8) DO NOT COVER the
ventilation openings of
the device with items
such as newspapers,
table-clothes, curtains,
etc. Overheating causes damage and
shortens the service life of the device.
9) Your TV may be damaged
if you place it under
direct sunshine or close
to a heater. Please
abstain from using the
product in very hot or
humid locations or in places where the
temperature is likely to decrease below
5°C (41°F). DO NOT PLACE on or near
the device any hot objects or items with
open flame such as candles or any night
lamps. The high temperature can melt
plastic parts and cause a fire.
Important Safety Instructions
4 I GB
10) Never operate
electrical devices close
to water. Operating
such devices, for
example, near a
bathtub, washbasin, kitchen washbasin,
washing basin, wet basement and
swimming pool can cause fire or electric
shock.
• Do not allow your TV
to get wet. Never pour
any liquids onto the
TV. Do not operate
your TV if any solid or
liquid substance enters into it. This can
cause electric shock and your TV may be
damaged. Have it checked immediately
by qualified personnel.
• Keep open flame
sources (such as
candles) away from TV
in order to avoid risk of
fire.
11) DO NOT USE
headphones at extremely
high volume levels since
this may cause permanent
loss of hearing.
12) Operate your TV only in
the 230 V 50Hz voltage
range. Use the AC power
cable supplied with the
product. If your TV is a
grounded (Class I) product, then it must
certainly be connected to a grounded
socket.
• The socket into which you plug in the
AC power cable or the adaptor must
be within easy reach.
• Unplug the device in order to
disconnect it from mains power.
Note: If your device has an adaptor, then
use the adaptor and AC power cable
supplied with your product. Do not use
defective sockets. Make sure that the
plug is firmly inserted into the socket. If
the plug remains loose, then it can cause
fire due to arching. Refer to an electrician
to have your socket replaced.
13) Make sure that the power
cable is not stepped on and
that there is no bending
at the plug sections, plug
heads and device output
point.
14) Use only the add-ons/accessories
specified by the manufacturer.
15) Use only together with
the carts, bases, tripods,
brackets or stands specified
by the manufacturer or sold
along with the product.
When using a cart, pay
attention that it won’t
overturn while carrying the
cart/device combination and
cause injuries. The device
must be fixed to the floor
or wall as indicated in the installation
instructions in order to avoid any
possible damages. Place your device on
a level surface.
16) Unplug the power cable
during thunderstorms or
when you will not use your
device for a long period of
time.
17) Consult authorised
service personnel for
service requirements.
Never attempt to
repair the device
yourself. Opening the cabinet can
expose you to dangerous voltages or
other hazardous situations. Service is
required in situations such as damage to
the power cable of the device or its plug,
water spills or substances falling into the
device, the device is subjected to rain or
5 I GB
moisture, it does not operate normally or
it is dropped.
18) Wipe the TV cabinet
clean with a soft and dry
cloth. Wipe dust from the
screen gently with a soft
cloth. Stubborn stains
can be cleaned with a
cloth slightly moistened
with soap and lukewarm water. Never
use solvents such as thinner or gasoline
for cleaning. Unplug the AC power cable
from the socket when cleaning the TV.
Otherwise, there is the risk of electric
shock.
19) Do not dispose of the
batteries in fire.
• Do not short circuit,
dismantle or overheat
the batteries. There is
the risk of explosion
if the batteries are not replaced
correctly. Replace only with the
same or equivalent type batteries.
20) Disposing of the exhausted
batteries:
• Dispose of the exhausted
batteries in accordance with
the local laws and regulations in
order to protect our environment.
21) Do not dispose of your TV
with regular household waste.
Observe local laws and
regulations for disposal.
Note 1: This is a Class A product. During
operation, the device can cause radio
interference. In this case the user may
have to remedy this. Please contact your
specialist dealer.
Note 2: Electromagnetic fields can cause
temporary performance degradation. This
can be distinguished as noise in the image.
This product contains electrical or electronic materials. The presence of these
materials may, if not disposed of properly, have potential adverse effects on
the environment and human health. Presence of this label on the product
means it should not be disposed of as unsorted waste and must be collected
separately. As a consumer, you are responsible for ensuring that this product
is disposed of properly. To find out how to properly dispose of this product,
please go to www.polaroid.com and click on “Company“ or call the customer
service number for your country listed in the instruction manual.
6 I GB
Note: Your TV is equipped to operate with
TV buttons in case your R/C is broken or the
batteries are exhausted.
3. Press the power on/off button
located on the LCD TV.
4. To power on your television,
press any numerical key or PR+ or
PR- keys on the remote control.
For this process, you can also
use the buttons on your TV. The
picture will appear on the screen
after a short while.
Note: If you are not going to use your
television for a long time, unplug its power
cable from the socket.
Initial power on and performing
settings
To set up your television, read the sections
on the TV controls and making the channel
settings.
4.3-Batteries
Open the lid of the battery compartment
and make sure that you have placed the
batteries in the correct direction. For this
remote control, UM-4, IEC R03 or AAA 1.5 V
batteries are suitable.
Do not throw your old batteries into the fire,
discard them in a dedicated waste area for
this purpose.
Do not mix used batteries with new ones or
different types of batteries together.
The performance of the remote control will
be reduced at a distance of 8 meters from or
at an angle of 30 degrees beyond the centre
of the TV.
4 Start
Remove your television carefully from its
box. You can keep the packaging of your
television to use in future.
Contents of the box
Power cable
Remote control
2 batteries
Note: Scart, HDMI, VGA and RCA cables
are not supplied with the device.
4.1-Antenna connection
If you use a 75 Ohm coaxial cable (round
cable) as an antenna cable, connect the
antenna plug directly to the antenna input
located on the TV.
Motorized vehicles, energy lines and
telecommunication lines affect your antenna.
Therefore, be careful to install your antenna
away from these and metal surface in such
a way that it shall not swing. Do not make
your antenna cable longer than required
and do not coil it. Make sure that it is not
crimped passing through a window or door.
Your antenna and cable might be affected by
natural phenomena such as rain, wind, smoke
and humidity over time. Periodically check
your antenna and equipment.
4.2-Powering on your device
and the initial use
1. Insert the power cable into the power
supply input located on the back panel of the
LCD TV.
2. Insert the power cable plug supplied with
the device into the mains socket.
or
7 I GB
5
5.1-TV Control Panel
&Program Down/Up button &Volume Level Down/Up button
&
On-Off / Standby button
&&
Stand by indicator
Bright light: TV is in Stand-by
Dimmed light: TV is On
No light: Power Cable is not connected.
&
Menu button / Source selection button
5.2-Rear and Side External Connections
1-Power input
2-AV1 scart
3-AV2 scart (*)
4-Antenna input
5-S-VHS input (*)
6-Video input CINCH connector (*)
7-Sound output CINCH connector (Left/L)(*)
8-Sound output CINCH connector (Right/R)(*)
9-SPDIF Digital audio output (*)
10-Audio input (Left/L) (*)
11-Audio input (Right/R) (*)
12-Component video input (Y)(*)
13-Component video input (Pb)(*)
14-Component video input (Pr)(*)
15-Component audio input (L)(*)
16-Component audio input (R)(*)
17-HDMI input(*)
18-VGA (PC connection input)
19-PC audio input
20-Stereo Headphone socket(*)
21-CI slot input
(*): These features are optional and they are not available on all models.
Note: Above drawing for external connections is representational. Their order and places on
your TV may be different.
Please see Technical Specifications Table on page 27 for the available external connections
on your television.
Important Note: DC power input is for models with an adaptor only.
• Please do not use the video Phono and S-Video connection simultaneously, otherwise
these two devices might influence the picture quality of one another.
• RGB input via Scart offers the best picture quality.
Your new television
8 I GB
5.3-Remote Control
Stand-by mode On/Off button
Temporary sound mute (Mute) button
AV modes selection menu button
Picture Format selection button
PAT (Picture and Teletext) Mode
ZOOM mode selection button
Subtitle selection button (D)
Sound selection button (D)
Numeric buttons
Favorite channel selection button (D)
Page Stop button in Txt mode (Hold)
EPG selection button (D)
Question/Answer button in Txt mode (Reveal)
Information button
Index page button in Txt mode
MENU button
Exit menu button
Return to previous menu button
Up movement button (Menu)
Next page selection button in Txt mode
Down movement button (Menu)
Previous page selection button in Txt mode
Left movement button (Menu)
Right movement button (Menu)
Menu selection confirm
Program table selection button
Volume down button
Volume up button
Program forward selection button
Program backward selection button
Red teletext button
MHEG display button
Green teletext button
Yellow teletext button
Blue teletext button
Teletext/Mix selection button
Equalizer selection button
Teletext page enlarge button (Double)
Picture Mode selection button
Page update button in Txt mode (Update)
Last viewed program selection button
Sub page button in Txt mode (Sub Page)
Freeze Picture button
Time Display button
Note: In the analog mode
when no menu is open on the
screen, Up/Down movement
buttons function as program
forward/backward button and
Left/Right movement buttons
function as Volume up/down
button.
(D) : Digital Mode Only
Andere Handbücher für HD-Ready Widescreen LCD TV
7
Dieses Handbuch passt für folgende Modelle
2
Inhaltsverzeichnis
Andere Polaroid LCD-Fernseher Handbücher
Polaroid
Polaroid FLA-2007B Bedienungsanleitung
Polaroid
Polaroid 46" Bedienungsanleitung
Polaroid
Polaroid FLA-1512B Bedienungsanleitung
Polaroid
Polaroid TLA-02023BM Bedienungsanleitung
Polaroid
Polaroid TLU-02612C Bedienungsanleitung
Polaroid
Polaroid FLM-1000WL Bedienungsanleitung
Polaroid
Polaroid FLM-1507 Bedienungsanleitung
Polaroid
Polaroid HD-Ready Widescreen LCD TV Bedienungsanleitung
Polaroid
Polaroid LCD TV with Digital Tuner Bedienungsanleitung
Polaroid
Polaroid FLM-0711LA Bedienungsanleitung
Polaroid
Polaroid TFT-LCD TV Bedienungsanleitung
Polaroid
Polaroid 2611-TLXB Bedienungsanleitung
Polaroid
Polaroid FULL HD LCD TV Bedienungsanleitung
Polaroid
Polaroid FLM-4234BH Bedienungsanleitung
Polaroid
Polaroid 20070918 Bedienungsanleitung
Polaroid
Polaroid FCM-0700A Bedienungsanleitung
Polaroid
Polaroid TLA-01911C Bedienungsanleitung
Polaroid
Polaroid HD-Ready Widescreen LCD TV Bedienungsanleitung
Polaroid
Polaroid TLX 01511C - 15.4" LCD TV Bedienungsanleitung
Polaroid
Polaroid FLA-1911B Bedienungsanleitung
