Polaroid TFT-LCD TV Bedienungsanleitung

- 1 -

TableofContents

Important Safety Instructions ................................................................................ 2

Accessory List......................................................................................................... 4

View of Unit.............................................................................................................. 5

Remote Control........................................................................................................ 7

System Connections............................................................................................... 9

Connecting External AV Signal Source......................................................................9

Connecting External AV Signal Source (YPbPr)......................................................10

Connecting External AV Device (AV Output)............................................................11

Connecting PC ........................................................................................................12

Connecting Power Supply .......................................................................................13

Connecting Earphone.............................................................................................. 13

Connecting TV Signal Source..................................................................................14

System Setup......................................................................................................... 16

Preparation.............................................................................................................. 16

Image Setting .......................................................................................................... 16

Audio Setting........................................................................................................... 18

Sleep Setting........................................................................................................... 19

Parental Setting....................................................................................................... 19

Setup Setting...........................................................................................................22

Use of the Wall Mount........................................................................................... 27

Troubleshooting .................................................................................................... 28

Specifications ........................................................................................................ 29

Warranty................................................................................................................. 30

- 2 -

ImportantSafetyInstructions

CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN

THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

POWER SUPPLY:

Connect the supplied adapter to the side of the DVD player (if equipped) or back of the TV in the slot

marked “Power In”. Plug the two-prong end of the power cord to a 100~240V volt electrical outlet. If

you have difficulty inserting the plug, turn it over and reinsert it. If the unit will not the used for a long

time, disconnect the plug from the outlet.

NOTE:

Before plugging the power cord into an AC outlet, make sure that all input and output device

connections have been made.

CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce

the risk of electric shock, do not perform any servicing other than that contained in the operating

instructions unless you are qualified to do so.

Refer to service manual for servicing instructions.

The images in this manual are for reference only and may differ from your model.

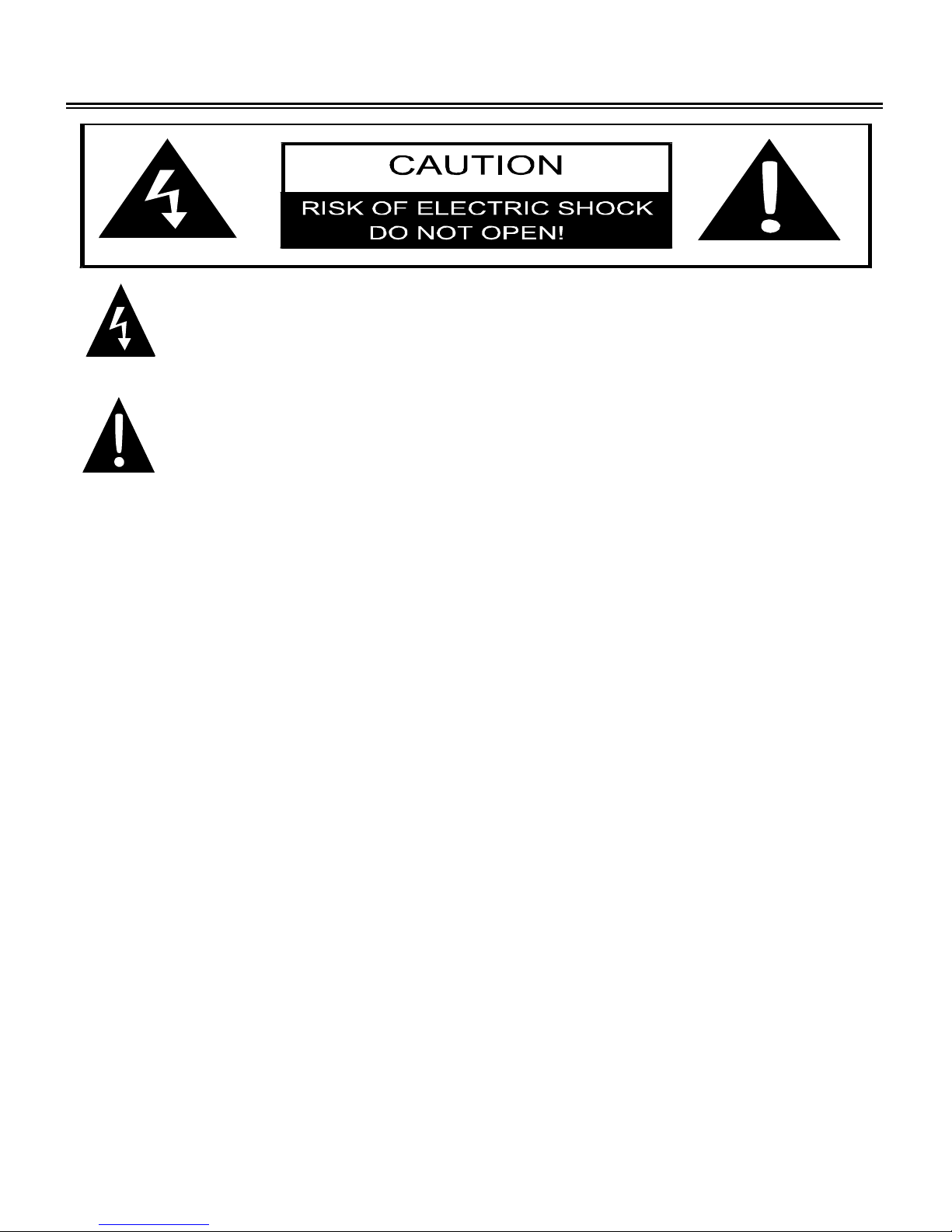

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended

to alert the user to the presence of uninsulated “dangerous voltage” within the

product’s enclosure that may be of sufficient magnitude to constitute a risk o

electrocution.

The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

- 3 -

ImportantSafetyInstructions

1) Read and follow all directions.

2) Keep these instructions.

3) Heed all warnings.

4) Do not use near water.

5) Clean only with dry cloth.

6) Do not block any ventilation openings. Maintain well ventilated conditions around the product,

Do not put product on bed, sofa or anything that blocks ventilation. Install in accordance with the

manufacturer’s instructions.

7) Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

8) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has

two blades with one wider than the other. A grounding type plug has two blades and a third

grounding prong. The wide blade or the third prong is provided for your safety. If the provided

plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

9) Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

10) Only use attachments/accessories specified by the manufacturer.

11) Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution when

moving the cart/apparatus combination to avoid injury from tip-over.

12) Unplug this apparatus during lightning storms or when unused for long periods of time.

13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has

been damaged in any way, such as power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped.

14) Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such

as vases, shall be placed on the apparatus.

Note: Do not touch the LCD screen. In the event that an electric shock is transmitted, the

screen could be damaged.

- 4 -

Accessory List

ITEM NAME QTY

Remote Control (with batteries)

(optional) 1

Power Supply Cord 1

Operation Manual 1

Note:

 Accessories and their numbers are subject to modification without prior notice.

- 5 -

ViewofUnit

Front and Right Side Panel

1. Color TFT screen

2. SOURCE button

Press repeatedly to select input sources,

choose from: TV, VGA, Component,

S-VIDEO or Composite mode.

3. MENU button

Press to enter or exit system setup menu.

4. CH ▲/▼button

In TV mode, press to select channels;

On system setup menu, the same function

as ▲/▼direction buttons.

5. VOL ▲/▼button

Press to decrease or increase the volume;

On system setup menu, the same function

as ◄/►direction buttons.

6. POWER button

Press to enter or exit standby mode.

7. Headphone Jack

When connected to headphone, the internal

speakers will automatically turn off.

8. Remote Sensor

9. Power Indicator

Lights blue while system is active and red

while system is in standby.

10.Speakers

- 6 -

ViewofUnit

Rear Panel

Open the back cover on the right side of the unit’s rear panel and all the jacks will appear, as shown

on the figure below:

1. Y/Pr(Cr)/Pb(Cb) Input Jacks

Connect Y/Pr(Cr)/Pb(Cb) input source in

Component mode.

2. L/R audio Input Jacks

Connect L/R audio input input source in

Component mode.

3. AV Output Jack

Outputs audio and video for optional

external equipment.

4. AV and S-Video Input Jacks

In the S-VIDEO mode, connect S-VIDEO

signal input source.

In the Composite mode, connect the

external video signal input source.

The L/R audio input jacks can be used in

both S-VIDEO and Composite modes.

5. TV Signal Input Jack

Connect TV antenna or analog cable in TV

mode.

6. DC 12V In Jack

Connect power supply.

7. VGA Input Jack

Connect VGA input source in VGA mode.

8. PC AUDIO Input Jack

Connected to the PC audio output jack.

- 7 -

RemoteControl

1. MUTE button

Press to mute or unmute the speaker audio

output.

2. 0~9 Number buttons

Press to select numbers.

3. button

Press to return to the previously viewed

channel in TV mode.

4. VOL +/- button

Press to increase or decrease the volume.

5. ASPECT button

Press to select screen aspect ratio.

6. SOURCE button

Press repeatedly to select the input source,

choose from: TV, VGA, Componont,

S-VIDEO or Composite.

7. Direction buttons (▲▼◄►)

Used for menu selection in setup (menu)

mode.

8. ENTER button

Press to confirm a selection.

9. INFO button

Press to display the current mode/input

source information.

10.POWER button

Press to enter or exit the standby mode.

11. button

In TV mode, when select the 1~99 channel,

press this button to confirm and enter the

selected channel.

12.CH /button

Press to select channel in TV mode.

13.MTS button

Press to activate MTS function in TV mode.

14.CC button

Press press to display the closed captions

or cancel display.

15.MENU button

Press to enter or exit the TV setup menu.

16.EXIT button

Press to exit the TV setup menu.

- 8 -

RemoteControl

Preparation

Softly push the back cover to open the battery

compartment.

Insert two batteries (1.5V, size AAA), ensuring

the polarity matches the marks inside the

compartment.

Softly press the back cover to close it.

 Remove batteries when the remote is not in

use for a long time.

Using Remote control

Point the remote control unit from no more than

about 7 meters (22 feet) from the television and

within about 60 degrees of the front of the unit.

• The operating distance may vary depending

on room illumination.

Notes:

• Do not point bright lights directly at the

television’s remote control sensor.

• Do not place objects between the remote

control unit and the remote control sensor.

 Do not use this remote control unit while

simultaneously operating the remote control

unit of any other equipment.

- 9 -

SystemConnections

• Do not connect the power cord until all other connections have been made.

• Ensure that you observe and correctly connect colored cables when connecting audio and video

cables.

• Before connecting, open the cover on the right side of the unit’s rear panel.

Connecting External AV Signal Source

Use the AV cables to connect an external AV signal source to the AV input jacks on the rear panel of

the unit.

Use the S-VIDEO cable to connect the external AV signal source to the S-VIDEO input jack on the

rear panel of the unit .

After connection, turn on the power of the unit and the external AV signal source and then press the

SOURCE button to shift to Composite or S-VIDEO mode.

Note:

1. S-Video signals typically provide better image quality than composite video signals.

2. If both composite and S-Video video input signals are connected, the TV will default to the

S-Video signal.
